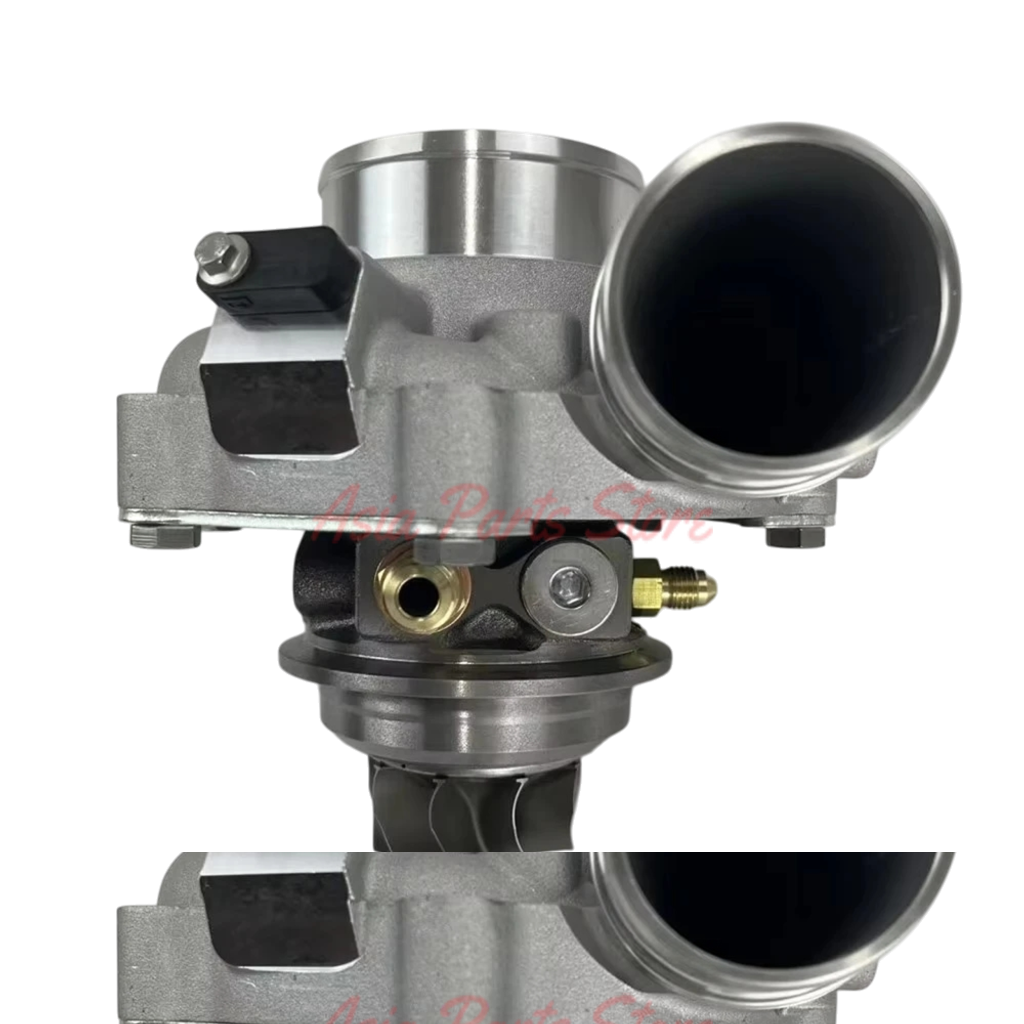

Garrett G25-550 ball bearing performance turbocharger with V-band housing

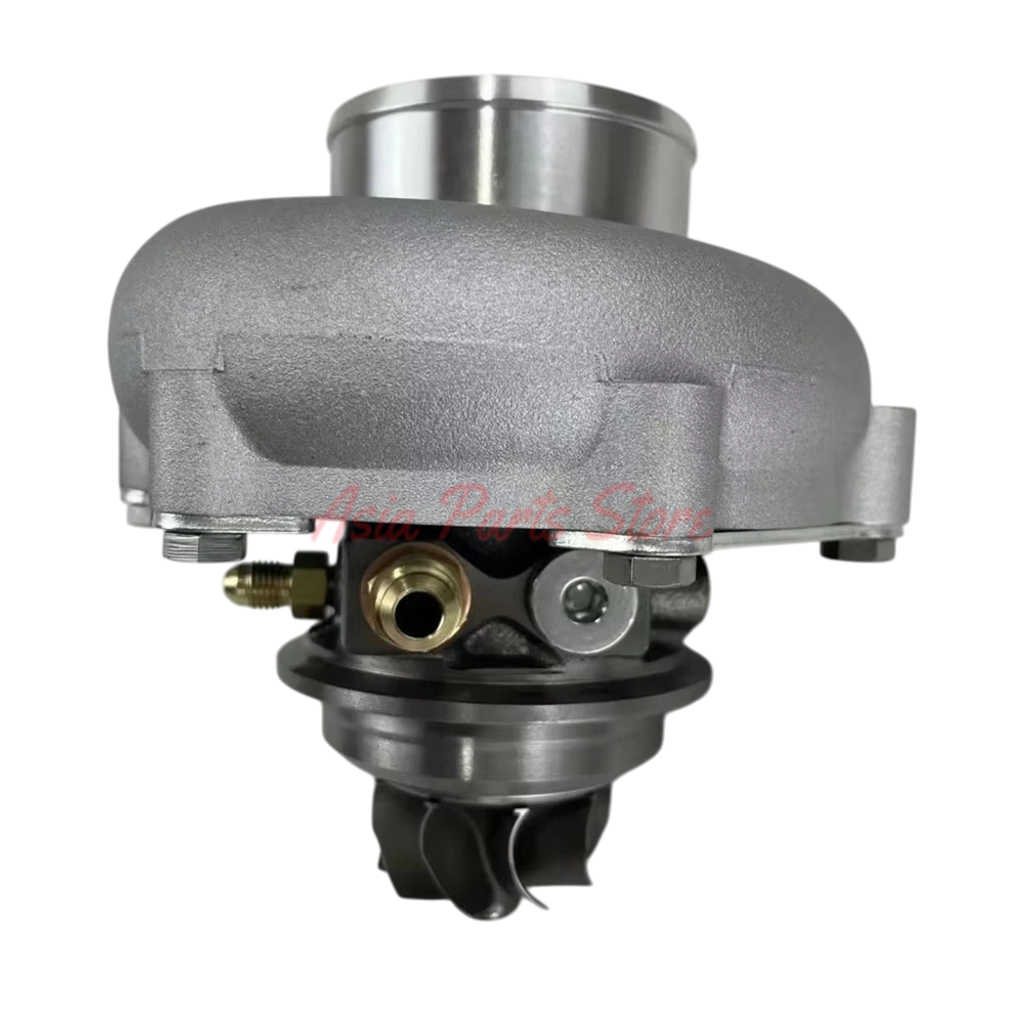

Garrett G25-550 ball bearing performance turbocharger with V-band housing
Garrett G25-550 ball bearing performance turbocharger with V-band housing
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

Garrett G25-550 Turbocharger Ball Bearing V-Band 0.72 / 0.92 A/R

2 8
G25-550STDR
In stock
A$1,109.00
Overview The Garrett G25-550 turbocharger is engineered for performance builds needing fast spool, strong mid-range torque,...
A$1,109.00

customers are viewing this product
Garrett G25-550 Turbocharger Ball Bearing V-Band 0.72 / 0.92 A/R

Overview

The Garrett G25-550 turbocharger is engineered for performance builds needing fast spool, strong mid-range torque, and reliable top-end power in a compact package. Designed for 1.4L to 3.0L engines producing 300–550 horsepower, it suits street, track, and mixed-use applications where responsiveness and durability are critical.

Key Features & Benefits

  • Dual ceramic ball bearings for reduced friction, faster spool, and long service life under sustained boost.
  • STD and reverse V-band turbine housings offering flexible fitment for custom and performance exhaust systems.
  • Multiple A/R choices (0.72 / 0.92) to balance fast response or higher top-end power depending on the build.
  • High-efficiency compressor wheel supporting up to 550 HP with stable airflow and strong boost control.
  • Robust housing materials available in cast iron and stainless steel for durability in high-heat environments.
  • Integrated wastegate (cast iron) for precise boost regulation and consistent on-throttle performance.

Performance Focus

The Garrett G25-550 turbocharger combines compact dimensions with modern aerodynamics and advanced bearing technology. It is an excellent choice for high-output street cars and dedicated performance projects that require sharp throttle response, reliable boost delivery, and stable operation at elevated power levels.

Technical Specifications

  • Condition: New
  • Purpose: Replace / repair turbocharger
  • Type: Turbocharger (G-series performance)
  • Turbo model: G25-550
  • Model number: G25-550
  • Turbo part number: 877895-5003S
  • Supercore part number: 858161-5002S
  • Turbine part number: 740902-0069
  • Rotation: Standard
  • Compressor specs: Inducer 48 mm / Exducer 60 mm / A/R 0.70
  • Turbine specs: Inducer 54 mm / Exducer 49 mm / A/R 0.72
  • Available turbine A/R options: 0.72 / 0.92
  • Recommended engine displacement: 1.4L – 3.0L
  • Horsepower range: 300 – 550 HP
  • Weight: 6.80 kg
  • Bearing type: Dual ceramic ball bearing
  • Housing materials: Cast iron / stainless steel
  • Wastegate: Included (cast iron)

What's Included

  • 1 x Garrett G25-550 turbocharger assembly
