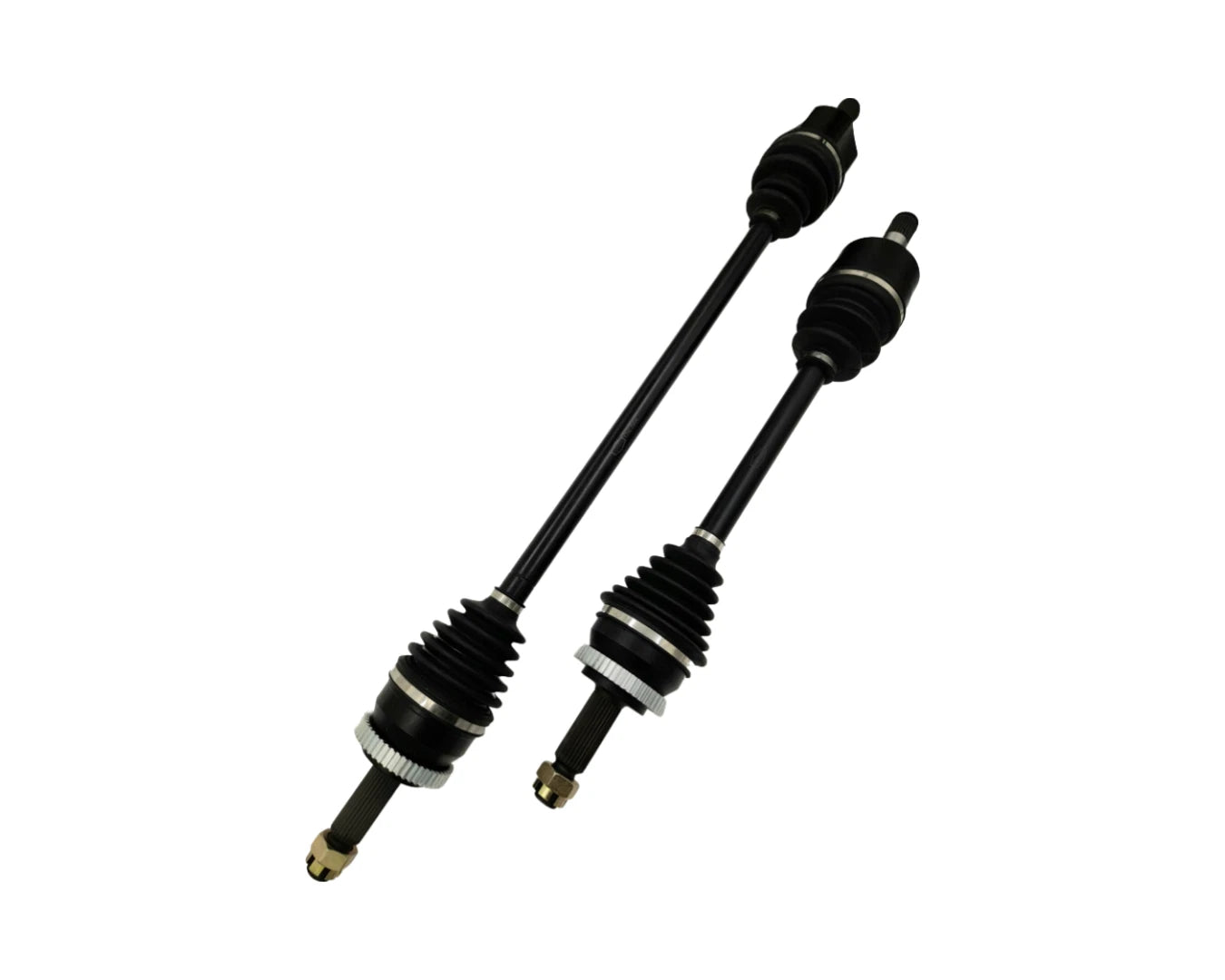

CV Joint Drive Shaft Pair Front LH & RH for Hyundai Tucson JM 2.0L 2004-2010

PRODUCT OVERVIEW

Front left-hand and right-hand CV joint axle drive shafts for Hyundai Tucson JM 2.0L petrol and diesel, suitable for automatic and manual FWD, 4WD and AWD variants (including City, City Elite and City SX sub-models).

Supplied as a matched pair for complete front-end driveline replacement.

WHAT'S INCLUDED

• 1 x Front left-hand (LH) CV driveshaft
• 1 x Front right-hand (RH) CV driveshaft

KEY FEATURES

• Built to OEM specifications for direct fit and reliable performance
• Heat-treated chrome steel construction for maximum strength and service life
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Filled with high-performance moly grease for smooth operation at varying angles and speeds
• Suitable for passenger and 4WD applications within the listed model range

SPECIFICATIONS – LEFT-HAND SHAFT

• Engine applications: 2.0L G4Gc petrol (04/2004–01/2010), 2.0L D4Ea diesel (2006–2010)
• Compressed length: 668 mm
• Spline count – outer/wheel side: 27
• Spline count – inner/diff side: 27
• ABS ring teeth: 48
• Hub nut: M22 x 1.5

SPECIFICATIONS – RIGHT-HAND SHAFT

• Engine applications: 2.0L G4Gc petrol (04/2004–01/2010), 2.0L D4Ea diesel (2006–2010)
• Compressed length: 965 mm
• Spline count – outer/wheel side: 27
• Spline count – inner/diff side: 27
• ABS ring teeth: 48
• Hub nut: M22 x 1.5

WARRANTY

• CV driveshafts: 12 months or 20,000 km (whichever occurs first)
• CV boots: 3 months from date of purchase

FITMENT NOTES

• Designed for Hyundai Tucson JM 2.0L petrol and diesel models within the listed years
• Check engine code, transmission type and driveline (FWD/4WD/AWD) before purchase
• Compare spline counts, ABS ring teeth and lengths with existing shafts to confirm compatibility
