12–24V Battery Isolator Kill Switch with Key, 200A, Waterproof, Red

PRODUCT OVERVIEW

This 12–24V battery disconnect isolator switch provides reliable ON/OFF control of the main power supply for automotive, marine and recreational applications. It features a removable key, waterproof cover and heavy-duty brass contacts for high current performance and long service life.

KEY FEATURES

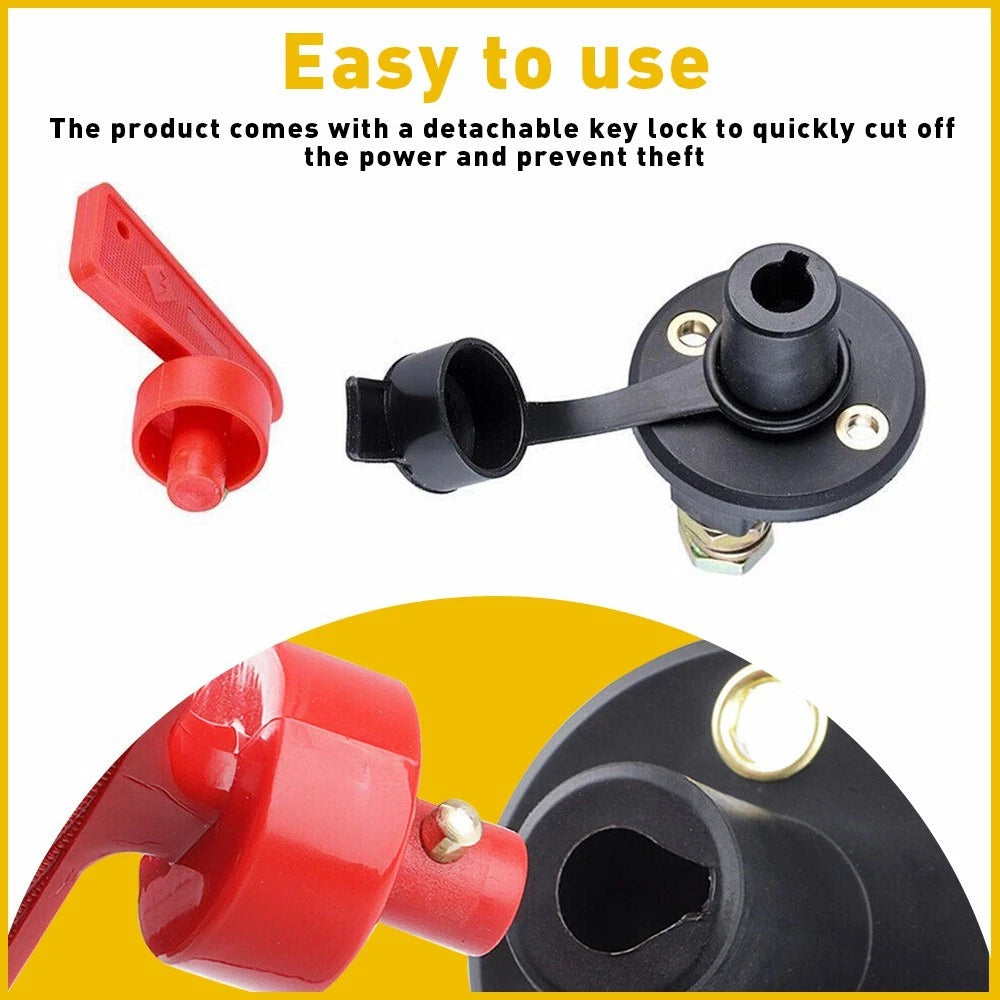

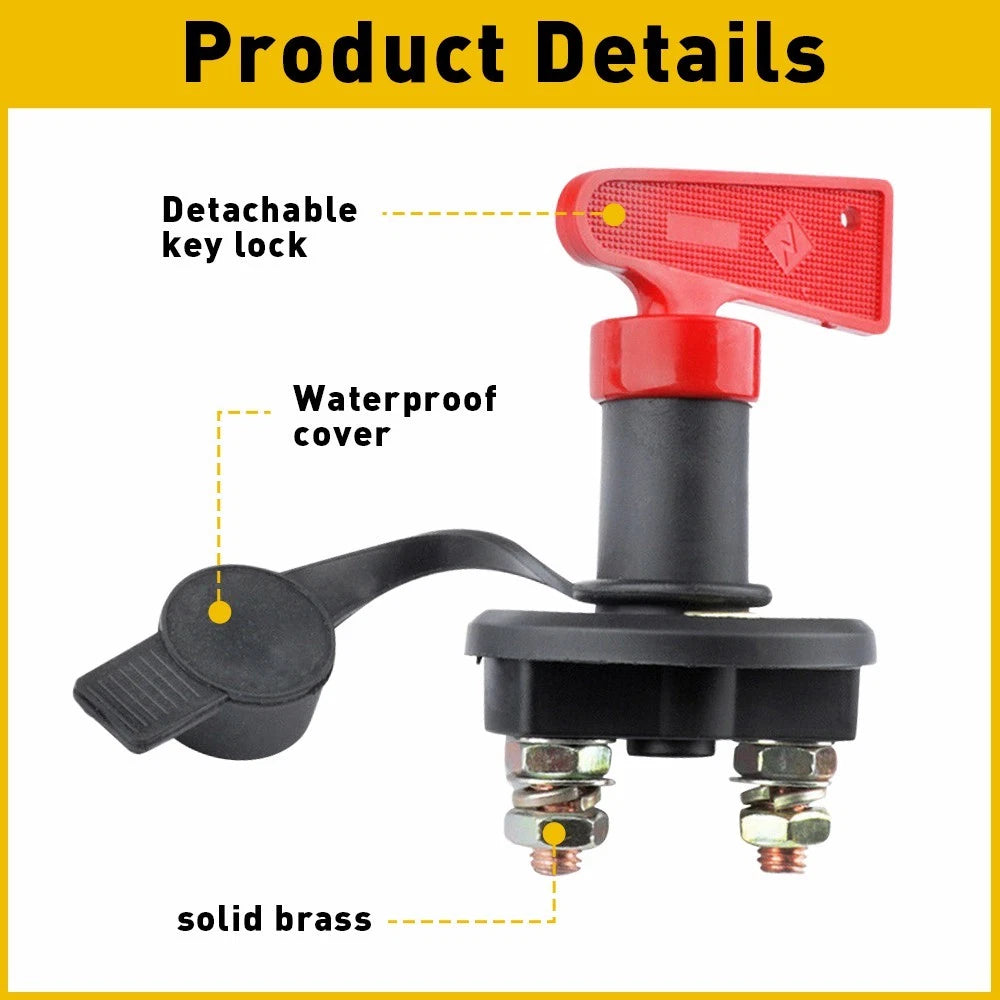

• Removable key lock to safely disconnect power and help deter theft
• Waterproof protective cover to seal and protect the keyhole

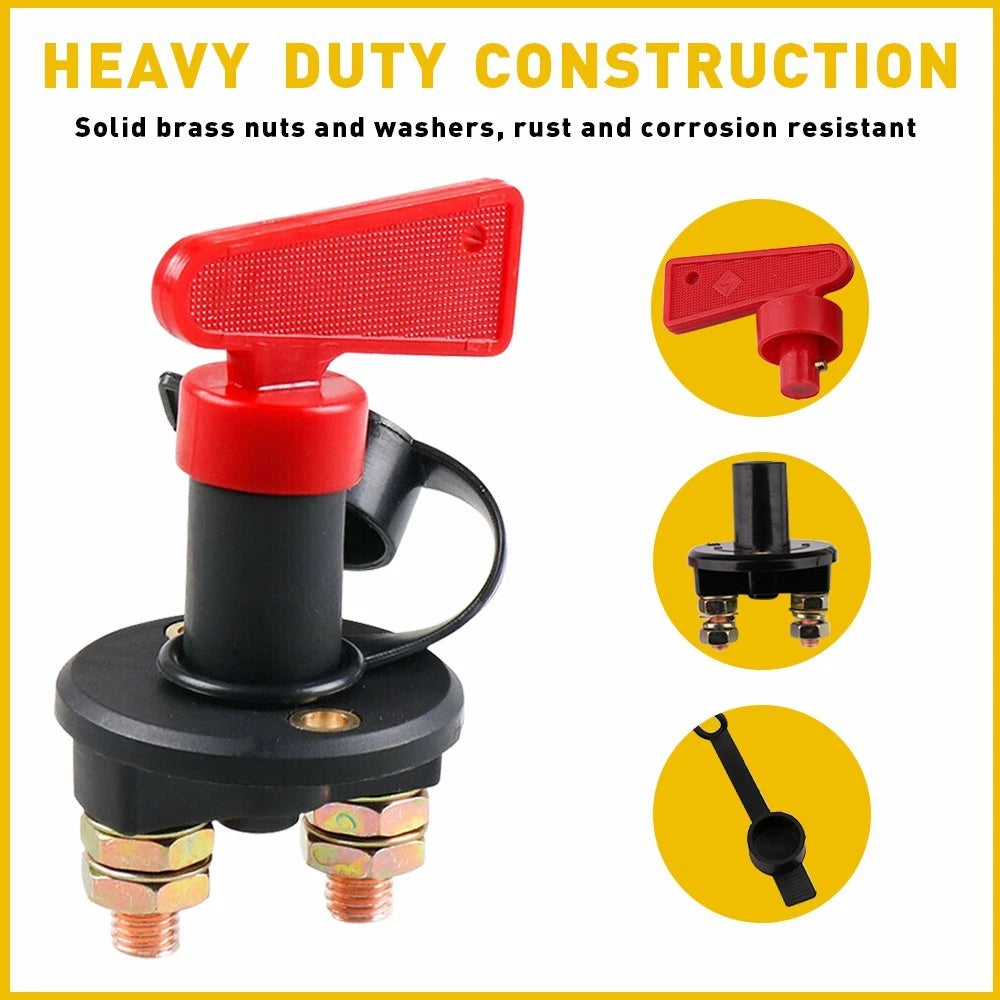

• Rust- and corrosion-resistant hardware with solid brass nuts and washers
• Simple ON/OFF operation for quick battery isolation
• Helps prevent battery drain and extends overall battery life
• Suitable for racing and high-demand applications to quickly cut power in an emergency

SPECIFICATIONS

• Item type: Battery cut off / battery isolator switch
• Operation: ON / OFF
• Voltage: 12V–24V
• Rated continuous current: 200A
• Cranking current: 1000A
• Connection type: 2 quick-connect studs with nuts

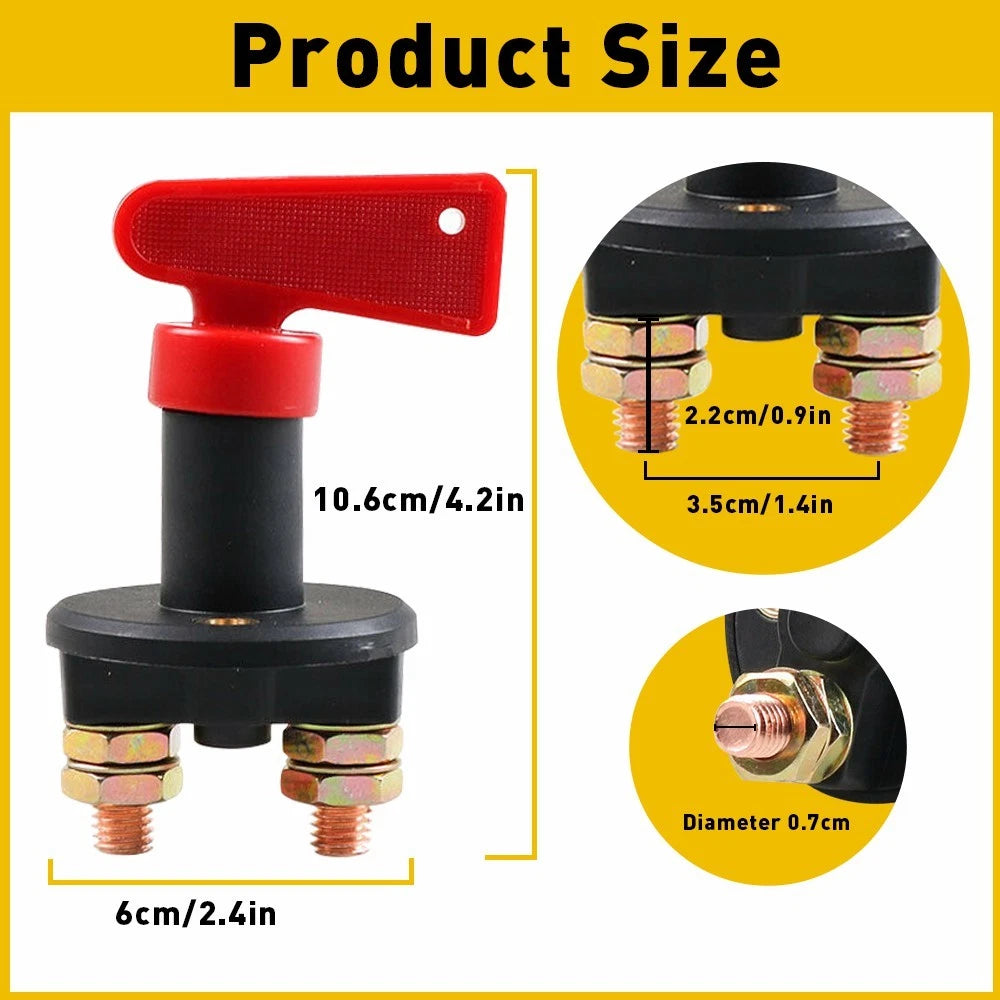

• Stud bolt diameter: 5/16"
• Stud bolt spacing: approx. 36mm / 1.4in
• Mounting hole diameter: 3/16"
• Round plate diameter: 60mm / 2.36in
• Overall size: 10.7 × 5.7cm / 4.2 × 2.2in (approx.)
• Working temperature: -40°C to 60°C
• Color: Red
• Material: Brass and plastic
• Fitment: Universal for 12–24V systems on cars, trucks, trailers, RVs, caravans, SUVs, boats and other seasonal equipment

APPLICATIONS

• Automotive: cars, SUVs, 4x4s, trucks, buses, lorries and trailers
• Recreational: RVs, caravans, UTVs, ATVs and other seasonal vehicles
• Marine: boats and other 12–24V marine electrical systems
• General: suitable for use as a master battery disconnect to isolate power during storage, maintenance or emergency shut-off

PACKAGE CONTENTS

• 1 × Battery disconnect / isolator switch
• 1 × Removable key
• 1 × Waterproof protective cover

NOTES

• All dimensions are approximate; allow 1–2cm variation due to manual measurement.
• Professional installation is recommended. Ensure compatibility with your vehicle or equipment’s electrical system before fitting.
