100 LED Sequential Tail Light Pair 12-24V for Trailer Truck Ute Caravan

OVERVIEW

This pair of 100 LED tail lights provides bright, energy-efficient rear lighting for trailers, trucks, utes, 4WD, 4x4 and caravans. Designed for 12-24V systems, each lamp integrates brake, tail and sequential indicator functions in red, white and amber.

APPLICATION

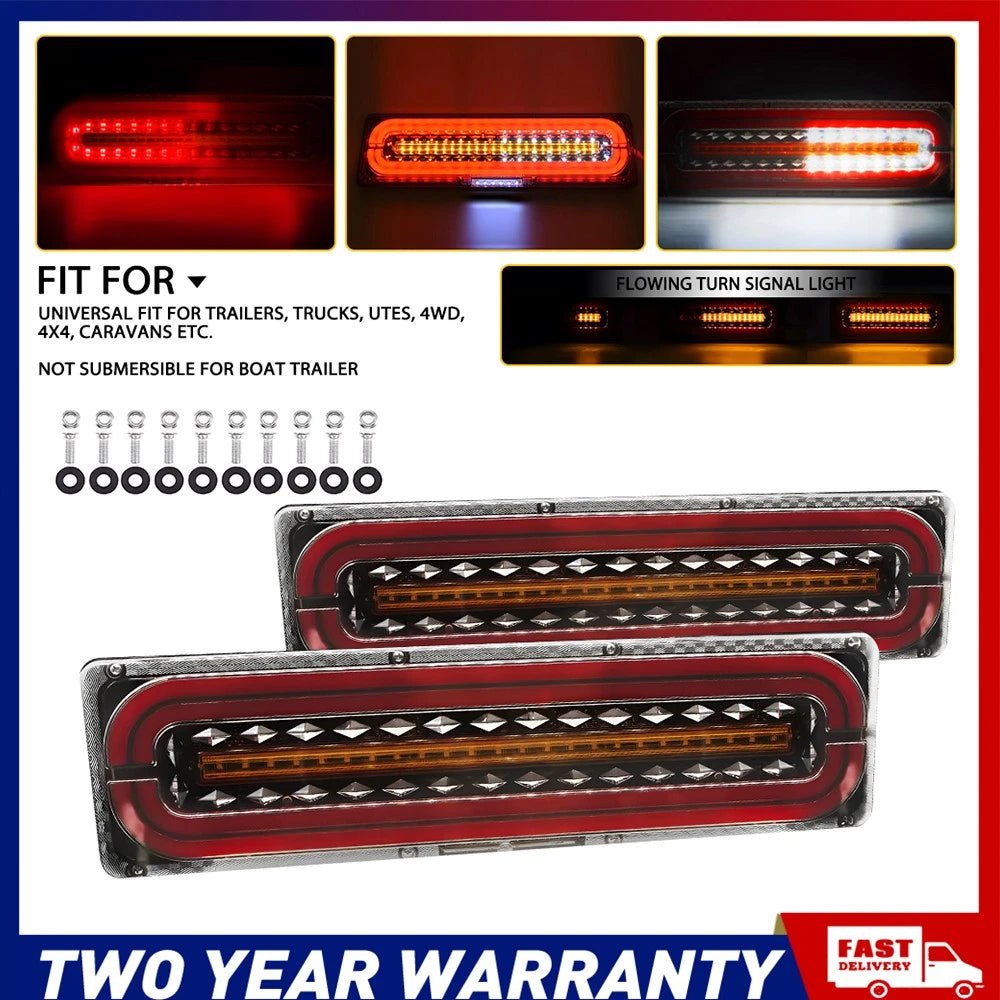

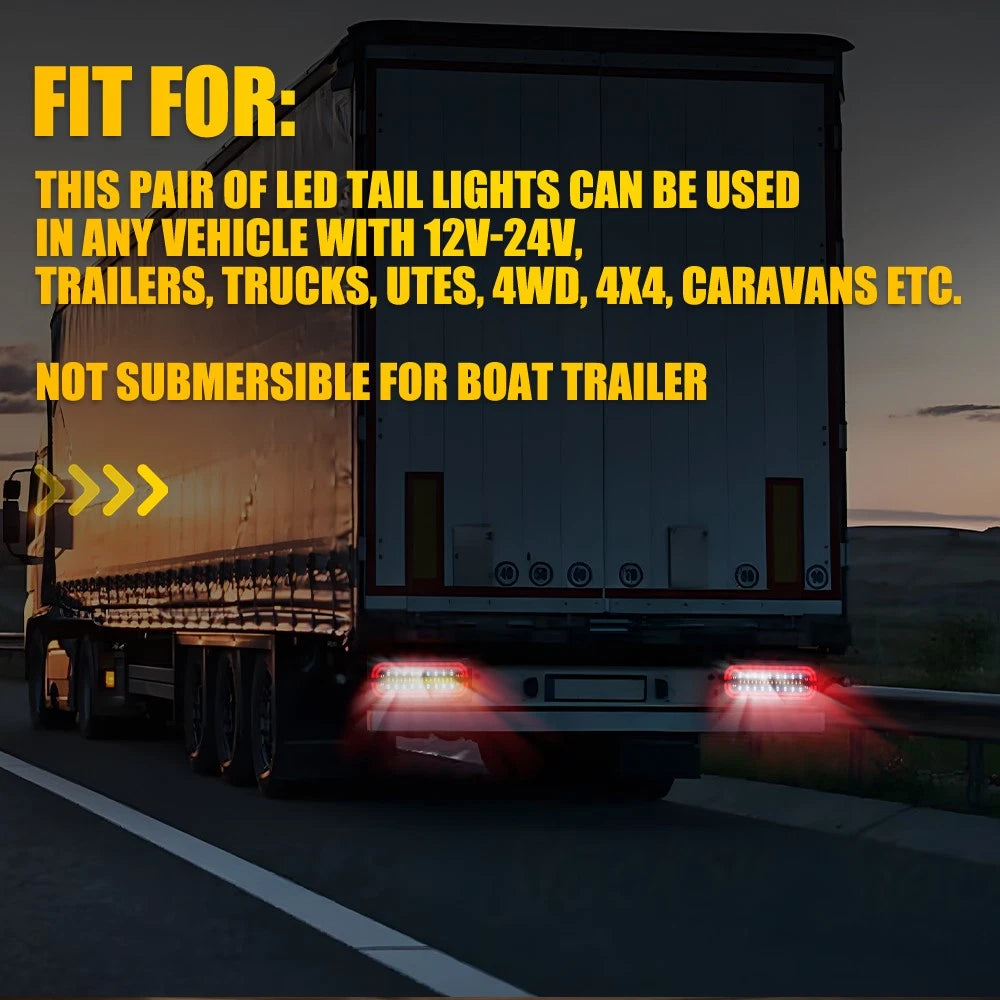

• Universal fit for trailers, trucks, utes, 4WD, 4x4 and caravans
• Suitable for 12V–24V electrical systems
• Not submersible and not recommended for boat trailers

SPECIFICATIONS

• Lighting technology: LED
• Number of LEDs: 100 per lamp (approx.)
• Voltage: 12–24V (listed range 10–30V)

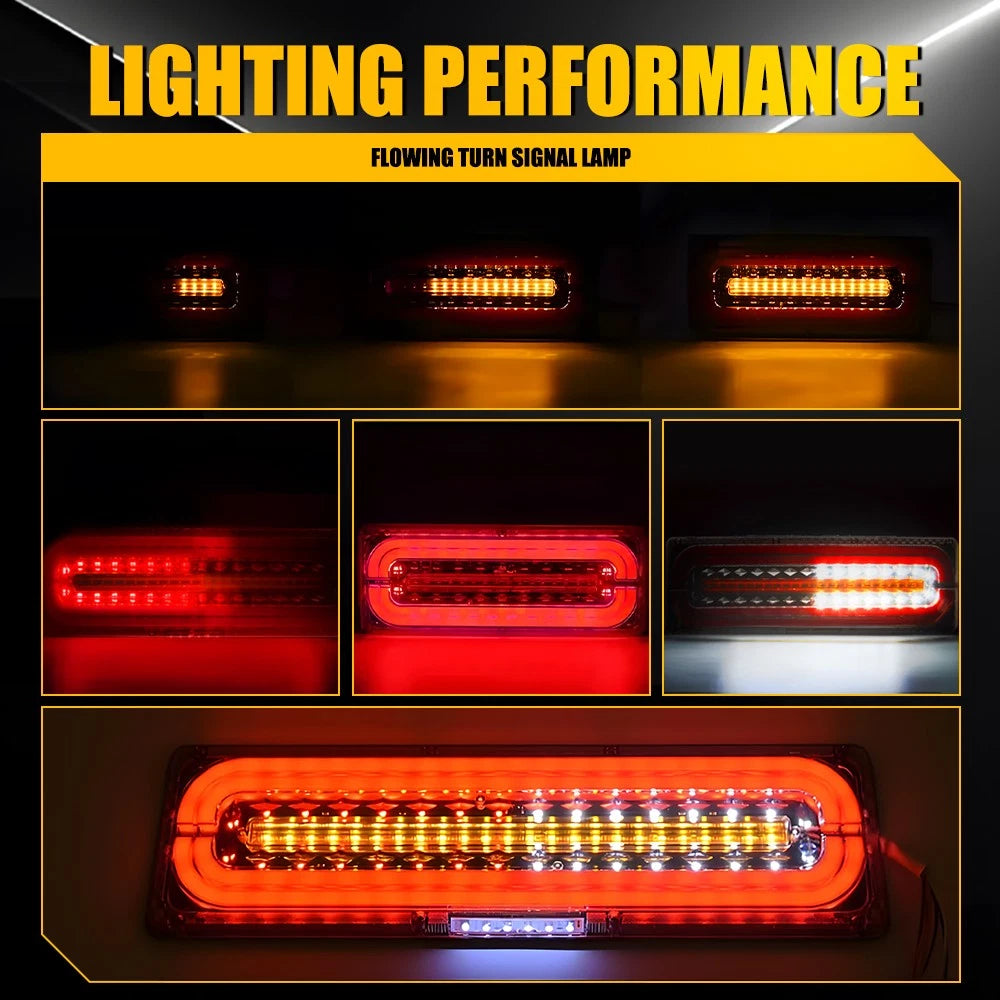

• Functions: brake / tail / turn signal (sequential), reverse/marker segments
• Light colours: red, white, amber
• Lens colours: red, white, yellow
• Housing colour: black

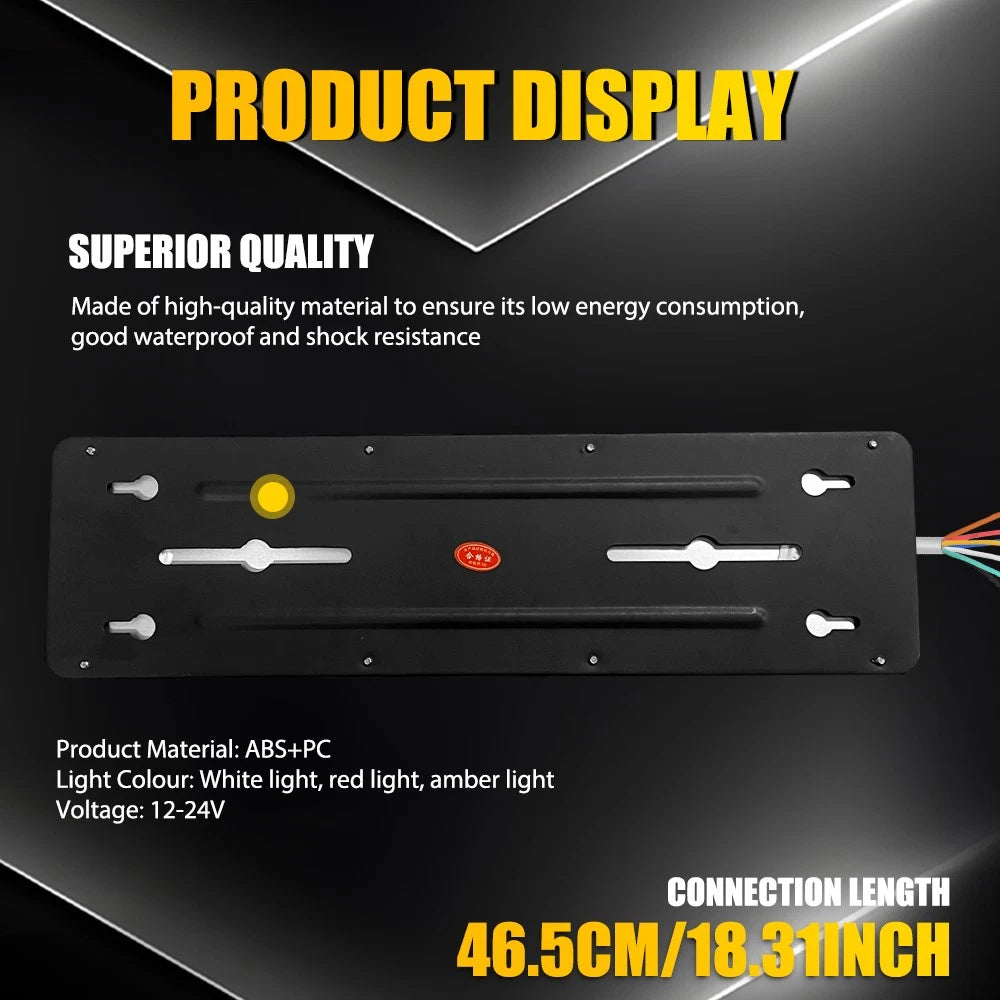

• Material: ABS + PC
• Length: 460–465 mm
• Width: 130 mm
• Height: 20 mm
• Mounting style: screw mount
• Bulb shape code: T15
• Wattage: 5 W
• Colour temperature: 3000K
• Lumens: up to 3000 lm
• Finish: polished
• Universal fitment: yes

WIRING CONNECTION

• Black wire: negative (ground)
• Red wire: ring, high-brightness red
• Green wire: ring, low-brightness red / white
• Blue wire: half-section illuminated in red
• White wire: half-section illuminated in white
• Orange wire: constant amber
• Yellow wire: sequential amber indicator

KEY FEATURES

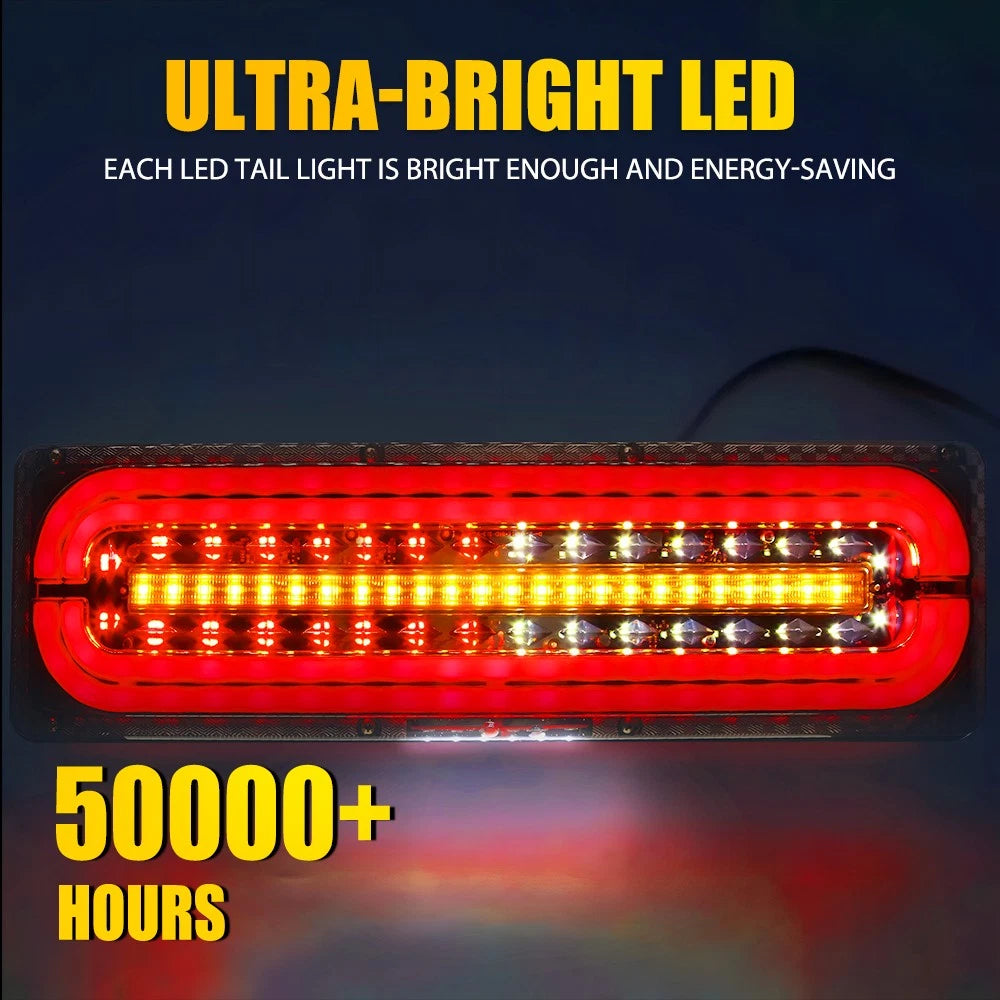

• High-brightness LEDs for enhanced visibility and safety
• Low energy consumption with long service life

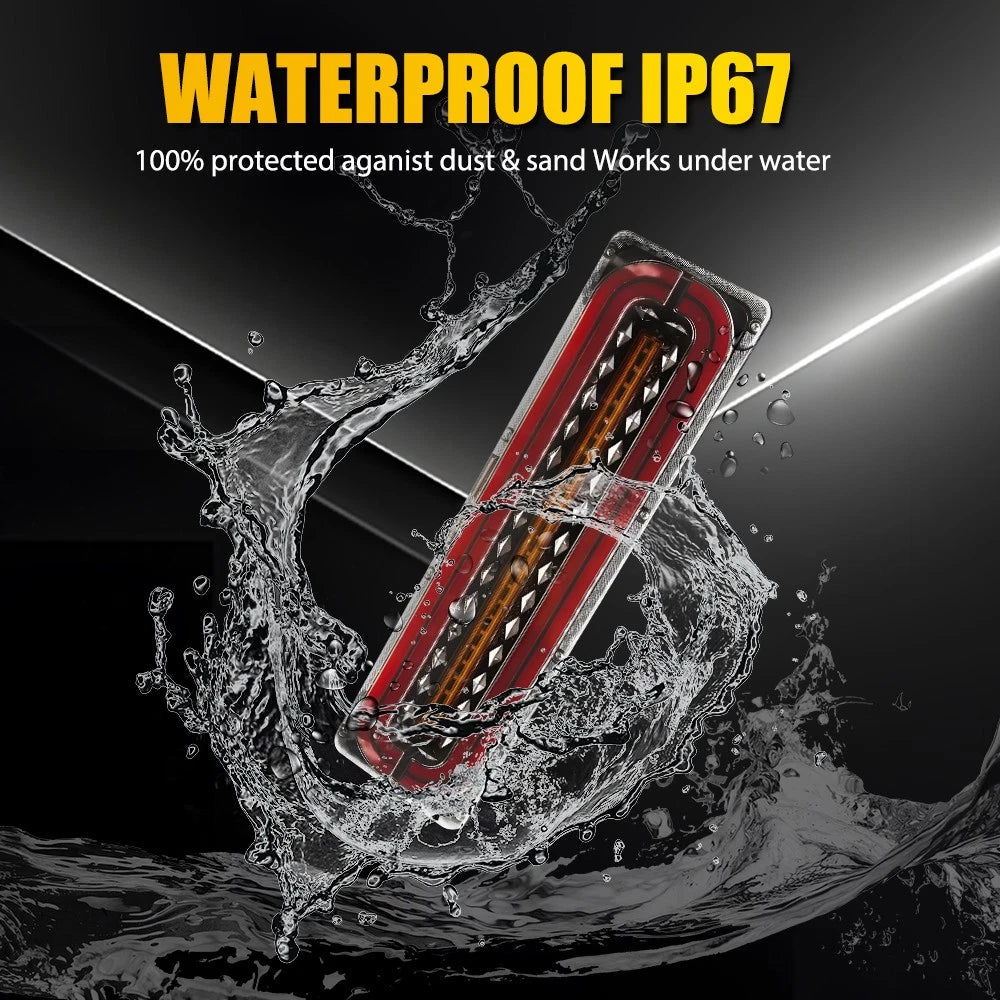

• IP67-rated waterproof construction for rain and snow
• Shock-resistant ABS+PC housing for durability on rough roads
• Original-size style design for a neat, integrated fit
• Easy screw mounting with no modification required

PACKAGE CONTENTS

• 2 x LED tail lights

NOTES

• Check dimensions and wiring against your vehicle before purchase
• Professional installation is recommended for optimal performance
