Front Dimple Drilled Slotted Brake Rotors & Pads Kit 300mm for Navara D22 4x4

2 8
124155179323
In stock
Braking System
A$275.82
PRODUCT OVERVIEW Set of 2 front dimple drilled and slotted vented disc brake rotors with matching...
A$275.82
customers are viewing this product
Front Dimple Drilled Slotted Brake Rotors & Pads Kit 300mm for Navara D22 4x4
Description

PRODUCT OVERVIEW

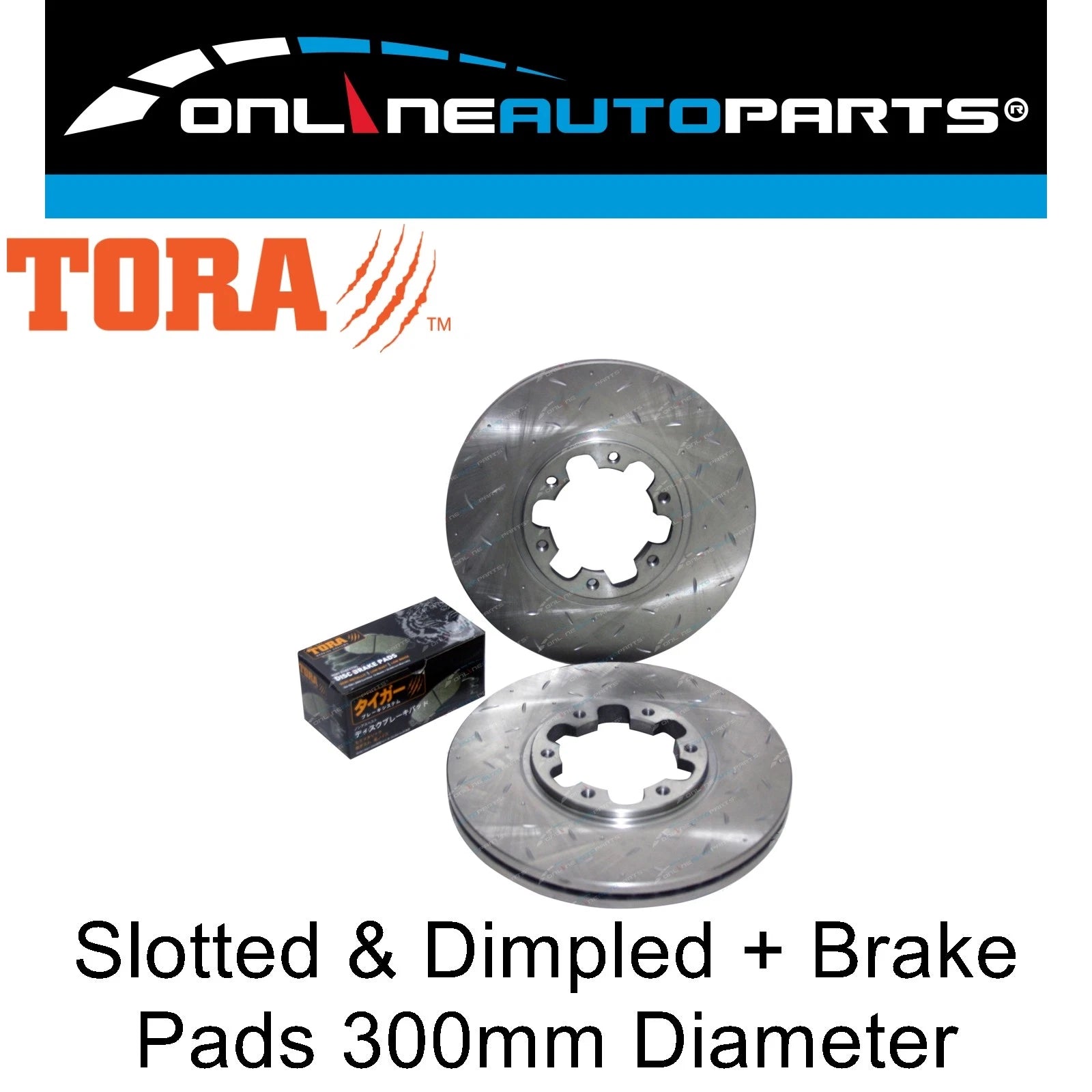

Set of 2 front dimple drilled and slotted vented disc brake rotors with matching disc brake pads for Nissan Navara D22 4x4 (300 mm diameter rotors).

This performance rotor and pad package is engineered to improve braking consistency, cooling and pad bite under demanding driving conditions.

KEY FEATURES

  • Dimple drilled (not fully cross drilled) to reduce cracking risk while aiding cooling.
  • Slotted faces help evacuate gases and dust, reducing brake fade and pad glazing.
  • Vented rotor construction for improved heat dissipation.
  • Designed to provide stable, confident braking performance.
  • Supplied as a matched rotor and pad combination for the front axle.

FITMENT NOTE

These rotors are 300 mm diameter. Some vehicles may use an alternative rotor size. Always confirm rotor diameter and specifications on your vehicle before ordering.

SPECIFICATIONS

  • Position: Front
  • Rotor type: Vented, dimple drilled & slotted
  • Diameter: 300 mm
  • Height: 38 mm
  • Thickness: 28 mm
  • Centre hole diameter: 100 mm
  • Bolt holes / studs: 6

PERFORMANCE BENEFITS

  • Improved resistance to brake fade under repeated high-temperature braking.
  • Enhanced pad bite and more consistent pedal feel.
  • Self-cleaning slot design helps maintain a fresh pad surface.
  • Balanced combination of performance, durability and appearance.

REFERENCE NUMBERS

  • Part reference: DR629SLXPADSTN
  • Additional references: 629, ZPN-13150

PACKAGE CONTENTS

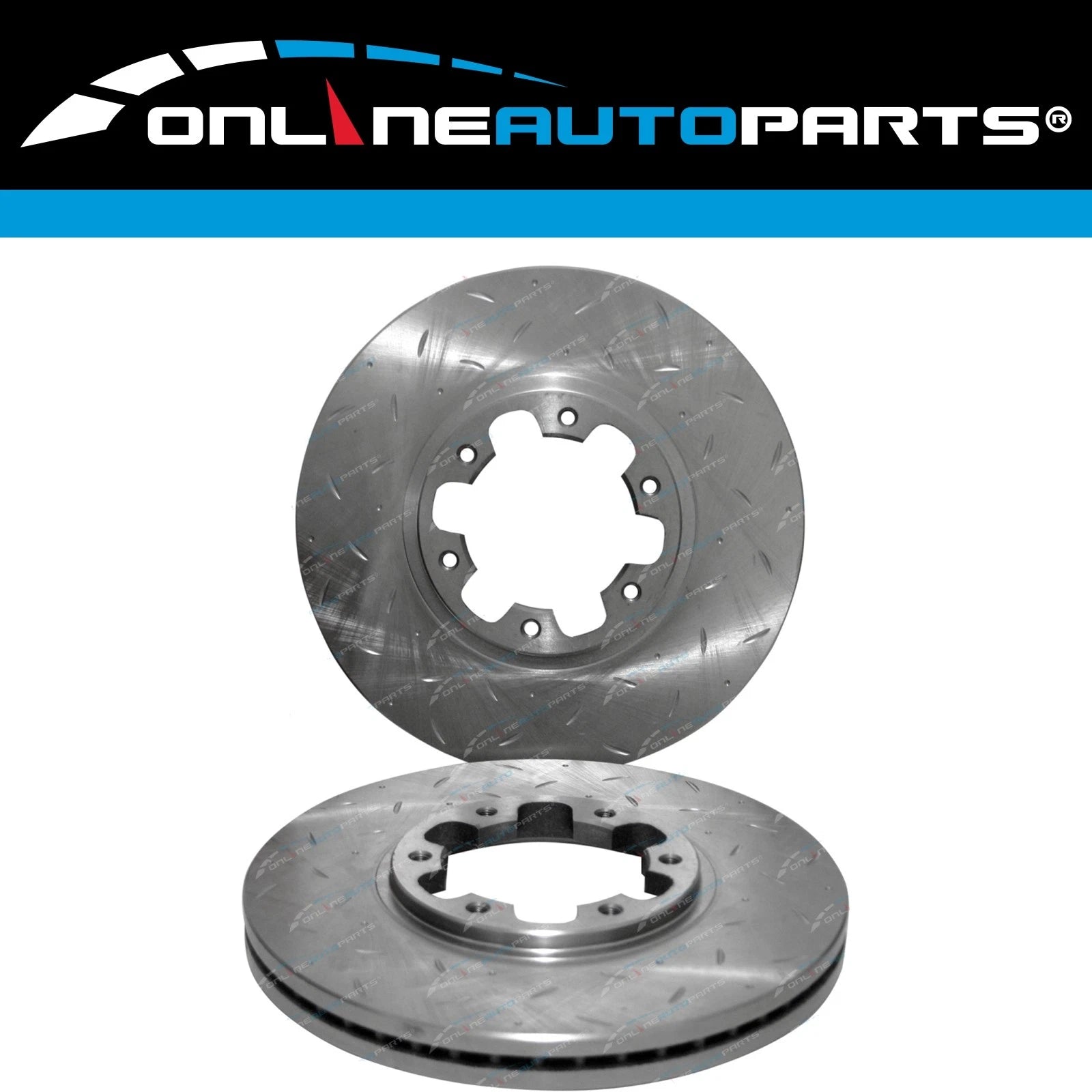

  • 2 x front dimple drilled & slotted vented brake rotors (300 mm)

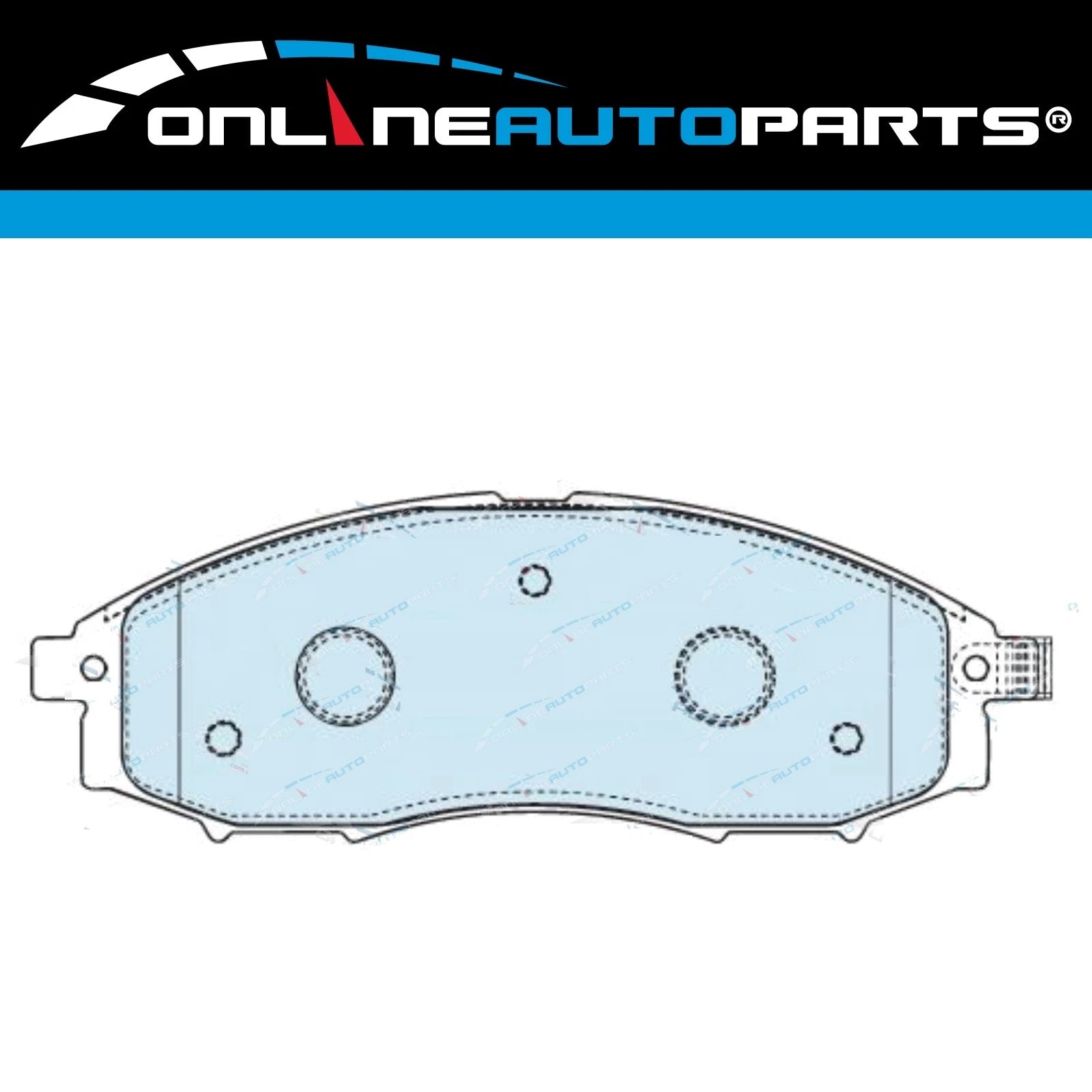

  • 1 x set of front disc brake pads (sufficient for both front wheels)

WARRANTY INFORMATION

  • Limited warranty on rotors: 1 year / 25,000 km (whichever occurs first).
  • Limited warranty on disc pads: 1 year / 20,000 km (whichever occurs first).
  • Warranty applies to manufacturing defects only and excludes installation and associated costs.

Always have brake components fitted and inspected by a suitably qualified technician and follow all local regulations and guidelines.

Vehicle Compatibility

Make Model Series Years Badge Drive Engine Details Position
Nissan Navara D22 2007-2016 incl.: DX, ST-R 4X4 4 cyl YD25DDTi 2.5L 2488cc Front LH or
Front RH
Note1:this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm
Nissan Navara D22 2001-2008 incl.: DX, Standard, ST-R 4X4 4 cyl ZD30DDT 3.0L 2953cc Front LH or
Front RH
Note1:this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm
Nissan Navara D22 2000-2003 incl.: DX, ST, ST-R 4X4 V6 VG30E 3.0L 2960cc Front LH or
Front RH
Note1:this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm
Nissan Navara D22 2003-2005 incl.: DX, ST-R 4X4 V6 VG33E 3.3L 3274cc Front LH or
Front RH
Note1:this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm

Make Model Year Submodel Variant Engine Notes
Nissan Navara 2015 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2014 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2013 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2012 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2011 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2010 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2009 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2008 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2008 D22 Platform/Chassis 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2008 D22 Ute 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Utility;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2007 D22 Platform/Chassis 2.5 Di 4WD AWD Diesel 2.5L 4cyl 98kW YD25DDTi 2488cc 98kW (Diesel) D22;4 cyl Turbo Diesel YD25DDTi 2.5L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2007 D22 Platform/Chassis 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2007 D22 Ute 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Utility;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2006 D22 Platform/Chassis 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2006 D22 Ute 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Utility;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2005 D22 Platform/Chassis 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2005 D22 Ute 3.3 4WD AWD Petrol 3.3L 6cyl 125kW VG33E 3275cc 125kW (Petrol) D22;V6 Petrol VG33E 3.3L;4X4 Utility;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2005 D22 Ute 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Utility;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
Nissan Navara 2004 D22 Platform/Chassis 3.0 TD 4WD AWD Diesel 3.0L 4cyl 110kW ZD30 2953cc 110kW (Diesel) D22;4 cyl Turbo Diesel ZD30DDT 3.0L;4X4 Cab Chassis;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front LH,Front RH Read more Read more compatibility notes
Nissan Navara 2004 D22 Ute 3.3 4WD AWD Petrol 3.3L 6cyl 125kW VG33E 3275cc 125kW (Petrol) D22;V6 Petrol VG33E 3.3L;4X4 Utility;this is the 300mm Diameter Discs usually fitted to some ST-R Models. Please check as there is 277mm;Front RH,Front LH Read more Read more compatibility notes
