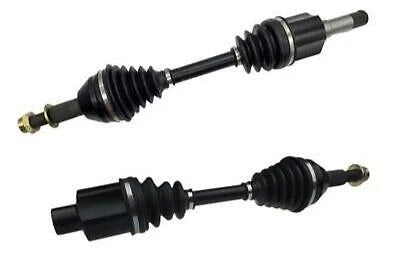

2x Front CV Axle Drive Shafts for Holden Captiva CG Series 1 2007-2012

PRODUCT OVERVIEW

Pair of front left and right CV axle drive shafts for Holden Captiva CG Series 1 models. Suitable for selected 4WD manual, 4WD automatic and FWD manual applications as listed in the specifications.

Note: Series 1 models up to 01/2011 and 05/2012 only. Always confirm manufacturing date before purchase.

Series 2: Left-hand drive shaft reference: CVA1594. Right-hand drive shaft reference: CVA1595 (for checking only, not included).

KEY FEATURES

• Built to OEM specifications for fitment and performance
• Heat-treated chrome steel construction for maximum service life
• High-quality neoprene dust boots with stainless steel clamps to reduce contamination
• Filled with moly grease for smooth operation at varying angles, speeds and high RPM

VEHICLE APPLICATIONS

Suitable for selected Holden Captiva CG Series 1 models, including:

• 2.0L Z20S1 (LLW) 4WD manual (03/2007 - 01/2011)
• 2.0L Z20S1 (LLW) 4WD automatic (03/2007 - 01/2011)
• 2.0L Z20S1 (LLW) FWD manual (08/2008 - 01/2011)
• 2.4L Z24SED (LD9) FWD manual (12/2009 - 01/2011)
• 2.4L Z24SED (LD9) 4WD automatic (12/2009 - 01/2011)
• 3.0L LF1 4WD automatic (01/2011 - 05/2012)
• 3.2L LU1 (HM) 4WD automatic (10/2006 - 01/2011)

Model variants covered include SX, CX, LX, 5, 7 CX, 7 LX and MAXX where applicable within the date ranges above.

SPECIFICATIONS

Right-hand shaft:

• Length (compressed): 555 mm
• Spline count outer / wheel side: 30T
• Spline count inner / diff side: 27T
• Inboard joint type: Tripod
• Outboard joint type: Ball

Left-hand shaft:

• Length (compressed): 631 mm
• Spline count outer / wheel side: 30T
• Spline count inner / diff side: 27T

WHAT'S INCLUDED

• 1 x Front left CV axle shaft
• 1 x Front right CV axle shaft

WARRANTY

• 12 month / 20,000 km warranty on CV driveshafts
• CV boots warranted for 3 months from date of purchase

Always compare all measurements, spline counts and joint types with the original components before installation.
