CV Drive Shaft Pair RH & LH for Holden Astra TR/TS 1.8L FWD MT/AT

PRODUCT OVERVIEW

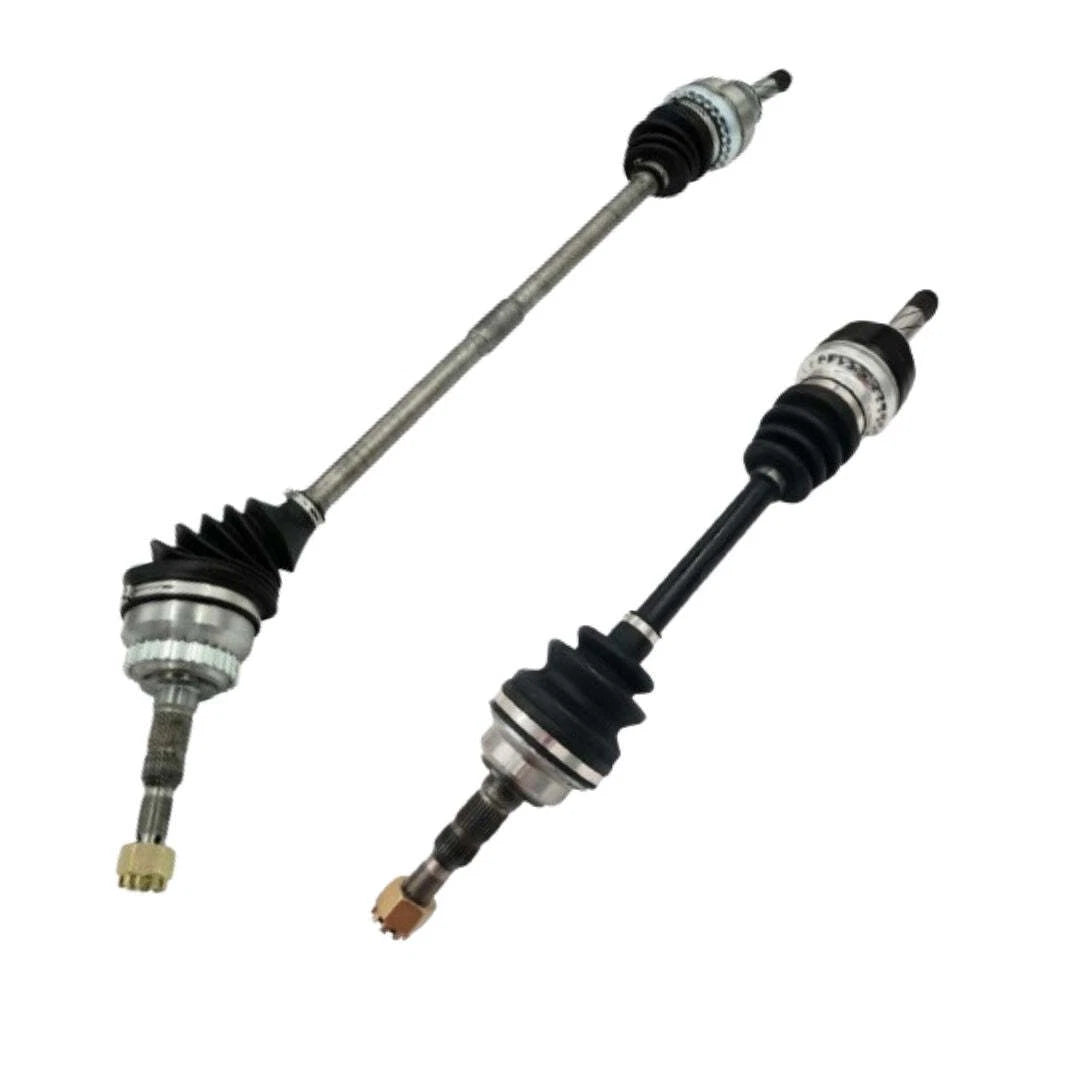

This CV axle drive shaft set includes both left-hand and right-hand shafts for selected Holden Astra TR and TS 1.8L FWD models with manual or automatic transmissions. The right-hand CV shaft is supplied with an ABS ring on the shaft. Designed as an OEM-style replacement for reliable driveline performance.

KEY FEATURES

• OEM-style CV axle pair: left-hand and right-hand sides
• Heat-treated chrome steel construction for durability
• High-quality neoprene dust boots with stainless steel clamps
• Molybdenum grease for smooth operation at varying angles and speeds
• Right-hand shaft supplied with ABS ring on the shaft

VEHICLE COMPATIBILITY

Suitable for selected Holden Astra TR and TS 1.8L FWD models with manual (MT) or automatic (AT) transmissions. Includes, but may not be limited to:

• Holden Astra TS 1.8L Z18XE FWD MT/AT (2000 - 2003) – chassis TGF48, TGF69, TGF08; sub-models CD, CDX, City, Classic, Equipe
• Holden Astra TS 1.8L Z18XE FWD MT/AT (2002 - 12/2005) – chassis TGF48, TGF69, TGF35; sub-models Classic, Equipe, CD Classic
• Holden Astra TS 1.8L X18XE1 FWD MT/AT (09/1998 - 12/2000) – sub-models CD, CD Olympic Edition, City, City Olympic Edition
• Holden Astra TR 1.8L C18SEL FWD MT/AT (09/1996 - 09/1998) – sub-model GL

Always confirm spline counts, shaft lengths and ABS requirements against your original parts before purchase.

SPECIFICATIONS

General

• Outboard (wheel side) spline count: 33
• Inboard (diff side) spline count: 22
• Outboard joint type: Ball
• Inboard joint type: Ball
• ABS ring: Yes (right-hand shaft)
• Hub nut: M20 x 1 / M20x1

Right-hand (RH) CV shaft

• Compressed length: 955 mm
• Outboard spline count: 33
• Inboard spline count: 22
• Outboard joint type: Ball
• Inboard joint type: Ball
• ABS ring fitted: Yes

Left-hand (LH) CV shaft

• Compressed length: 605 mm
• Outboard spline count: 33
• Inboard spline count: 22
• Outboard joint type: Ball
• Inboard joint type: Ball

WHAT'S INCLUDED

• 1 x Right-hand CV drive shaft (with ABS ring)
• 1 x Left-hand CV drive shaft

WARRANTY

• CV drive shafts: 12 month / 20,000 km warranty (whichever occurs first)
• CV boots: 3 month warranty from date of purchase

Installation by a qualified technician is recommended to ensure correct fitment and to maintain warranty coverage.
