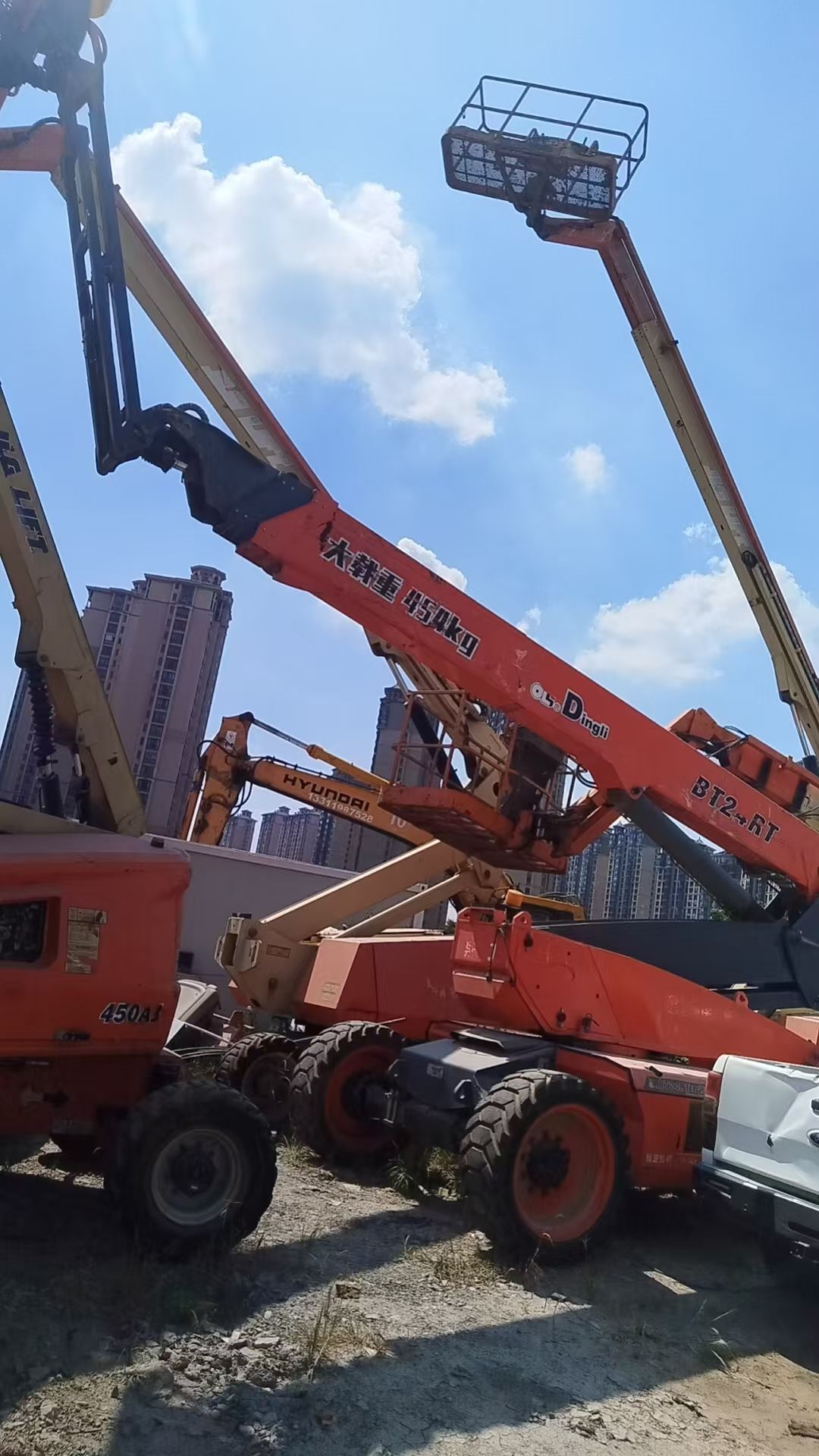

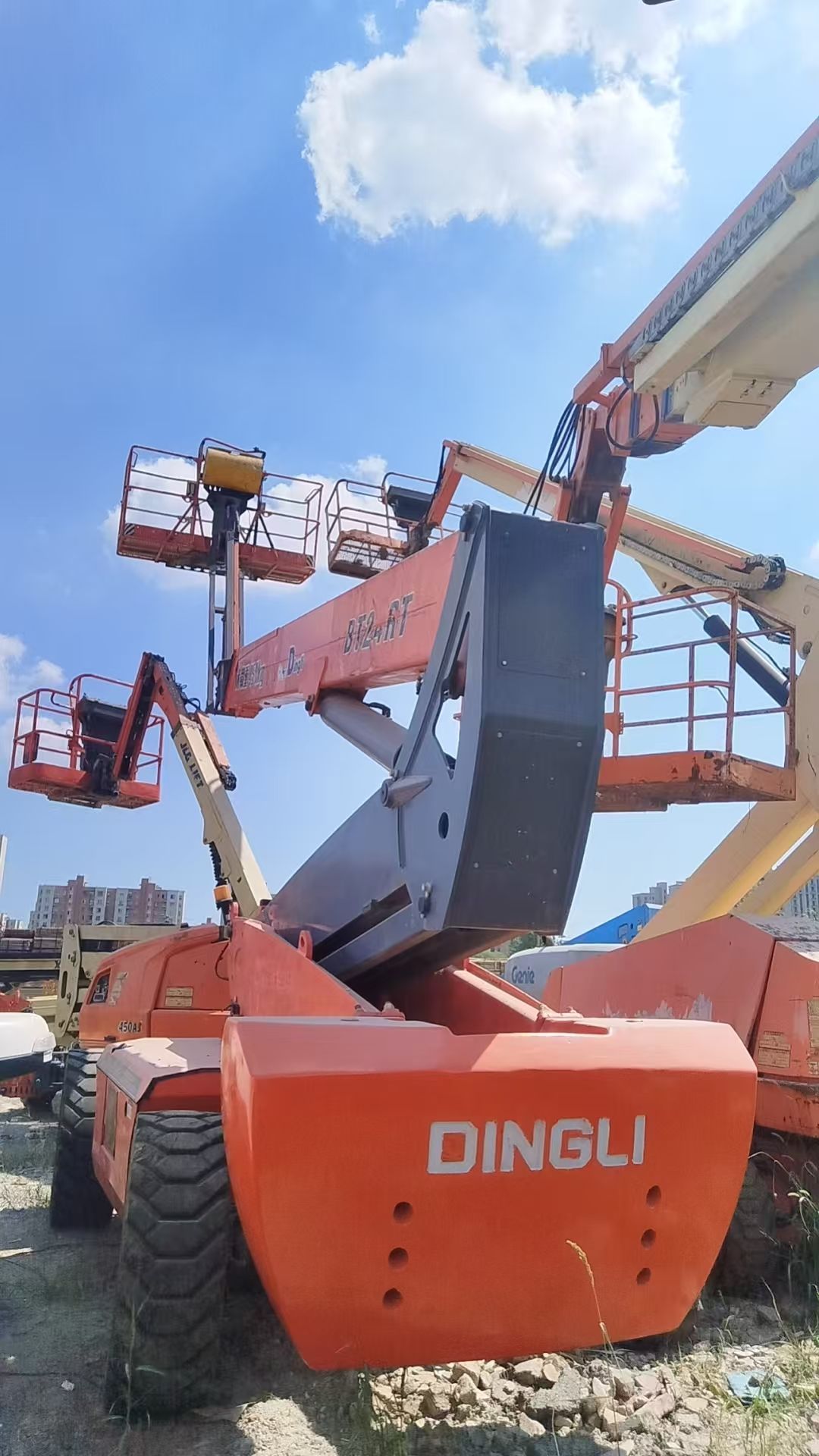

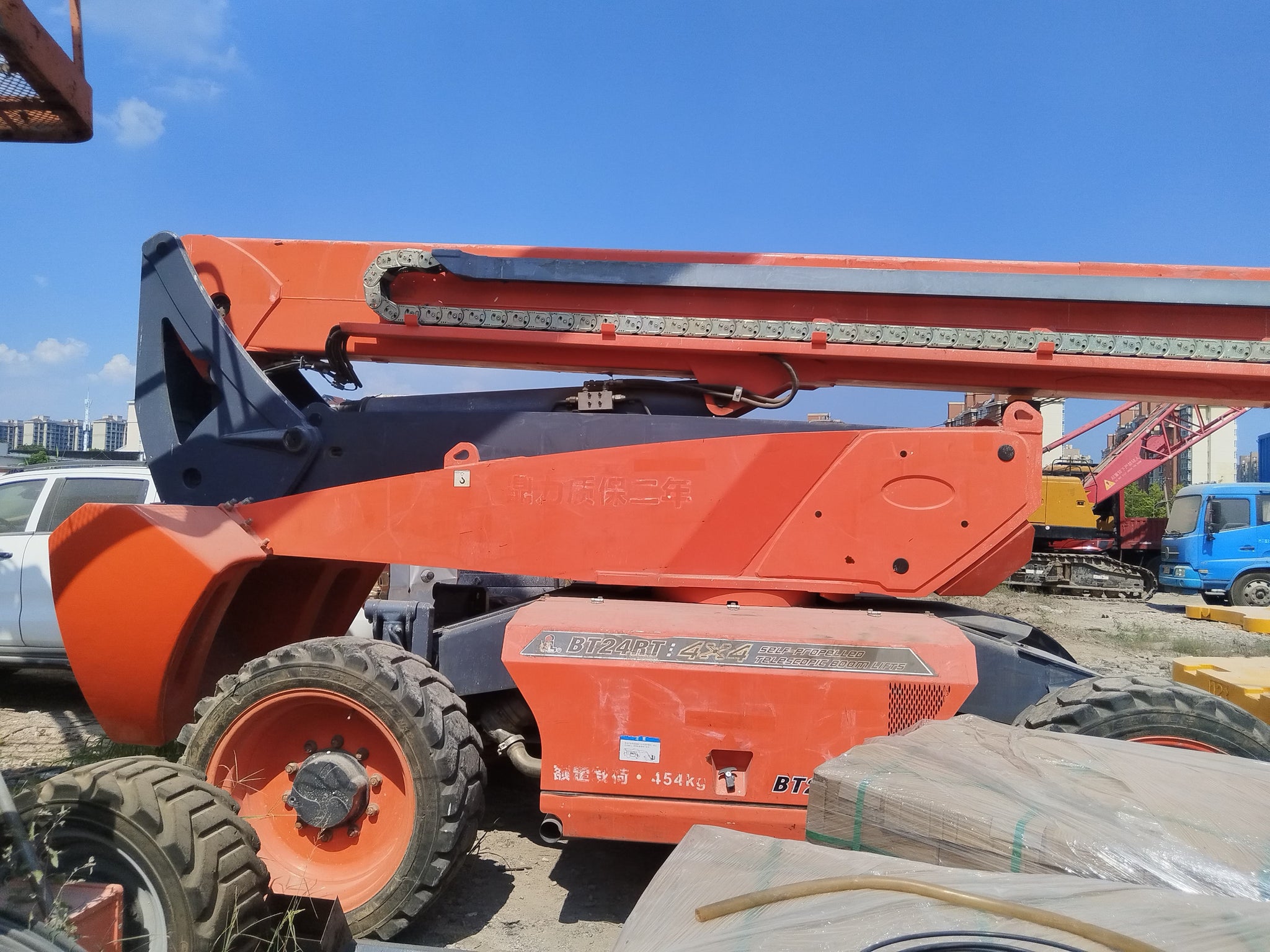

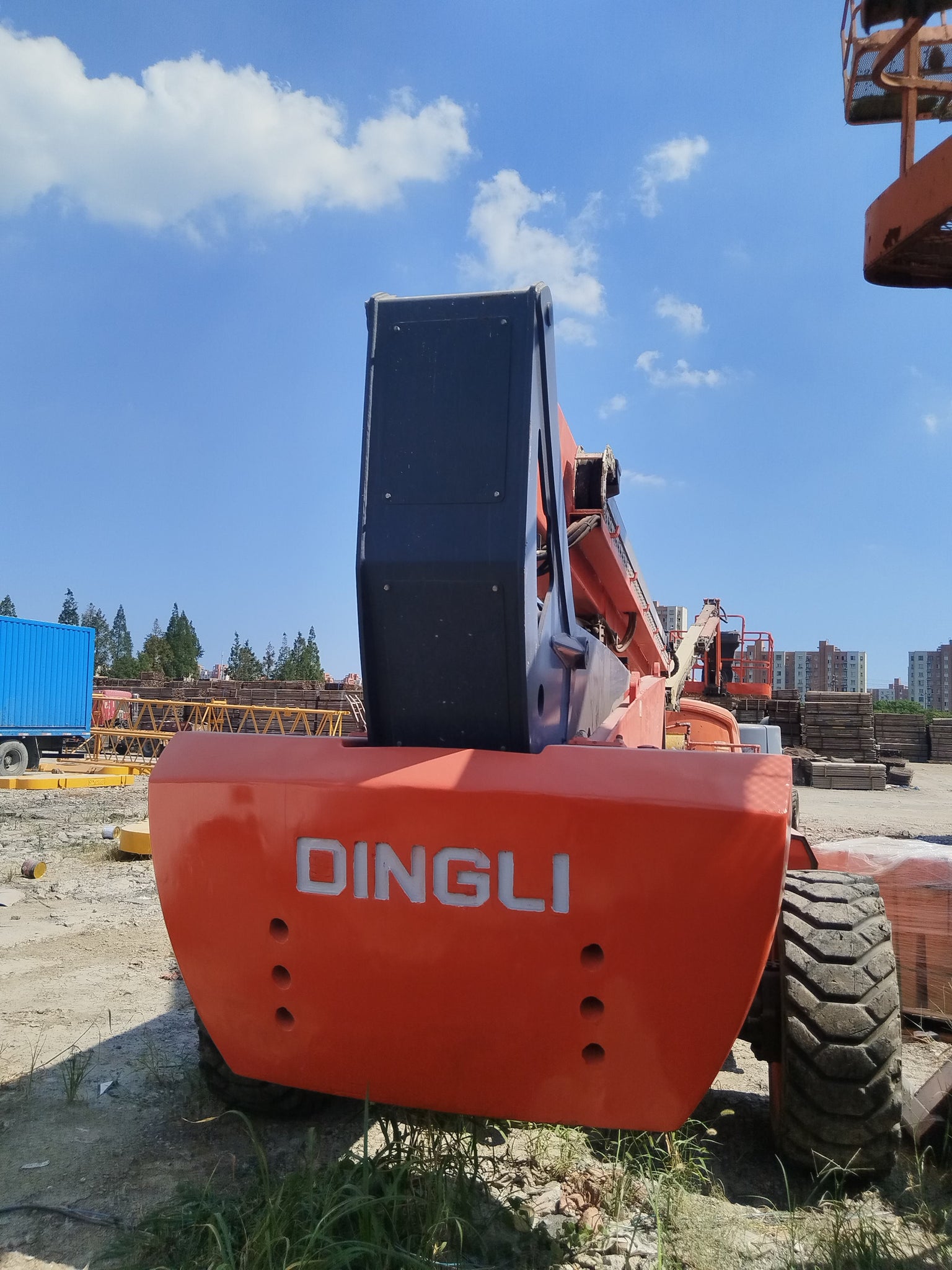

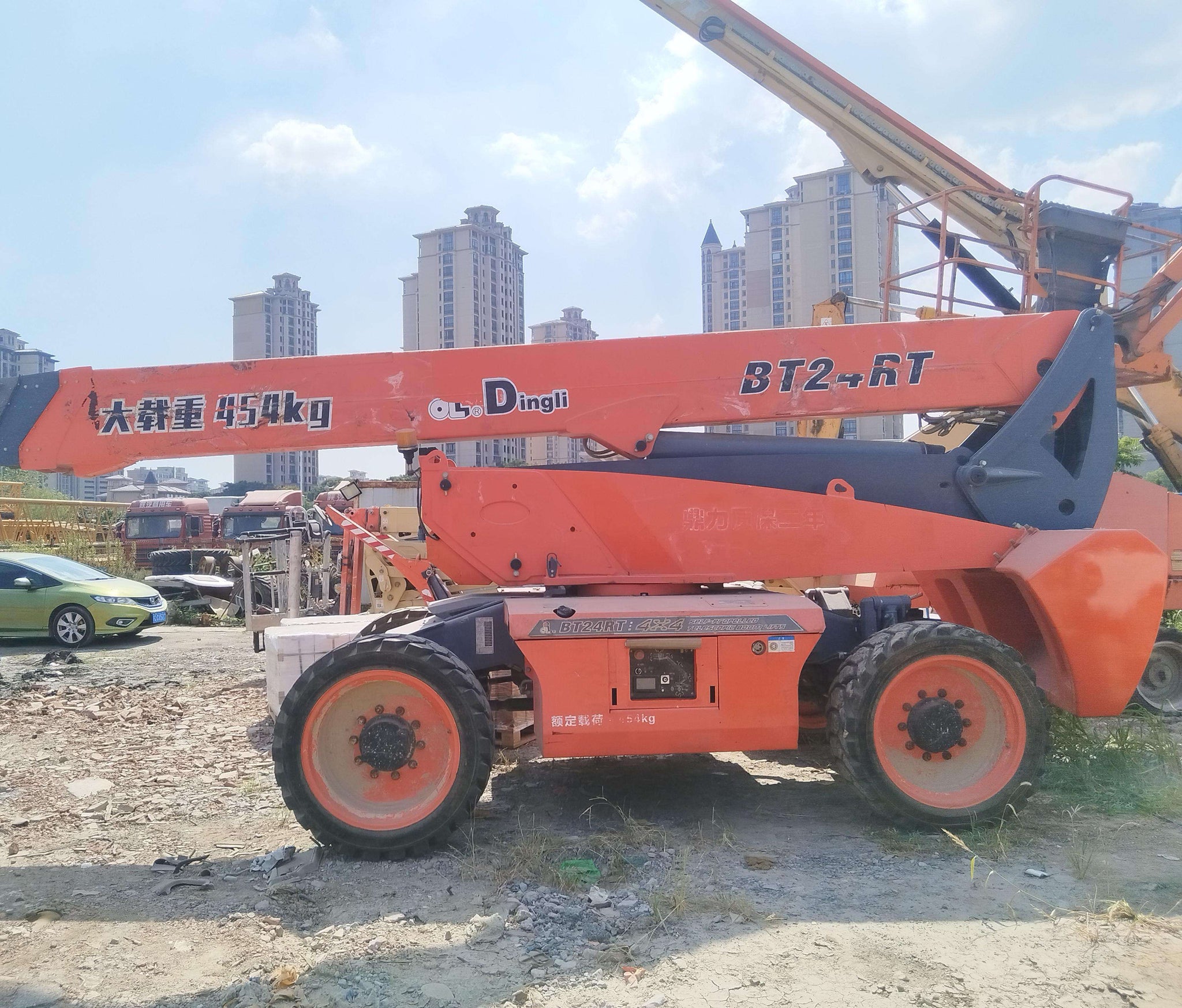

2020 DINGLI BT24RT Diesel Boom Lift - Refurbished

2020 DINGLI BT24RT Diesel Boom Lift - Refurbished

This refurbished 2020 DINGLI BT24RT diesel boom lift delivers reliable high-altitude access for construction, industrial maintenance, and municipal engineering work. Powered by a 55.4kW Deutz diesel engine, it combines strong performance with the durability DINGLI is known for.

KEY SPECIFICATIONS

• Max Working Height: 25m (24.80m platform reach)
• Max Platform Height: 22.80m
• Rated Load Capacity: 450kg (454kg safe load)
• Horizontal Reach: Up to 17.90m
• Engine: Deutz diesel, 55.4kW
• Gradeability (stowed): 45%
• Max Speed: 6km/h
• Platform Size: 2.44m x 0.91m
• Total Weight: 14,300kg
• Wheelbase: 2.80m

DESIGN FEATURES

• All-Terrain Capability: Integrated four-wheel drive axle system with 100% hydraulic differential lock, built for mud, sand, and uneven terrain
• Enhanced Stability: Low center-of-gravity design improves anti-overturning performance during high-altitude operation
• Safety Protection: Platform anti-compression device automatically shuts down operation if abnormal pressure is detected
• Full Range of Motion: 360° continuous turntable rotation, ±90° platform swing, 68° main arm angle, and 135° secondary arm angle for complete work coverage
• Backup Power: Built-in 12V emergency power supply ensures the platform can still be safely lowered during a power failure
• Standardized Components: 95% of main components and 80%+ of structural parts are shared across the DINGLI range, keeping spare parts and maintenance costs down

IDEAL APPLICATIONS

• Construction: exterior decoration, steel structure installation, glass curtain wall cleaning
• Industrial maintenance: power facility and petrochemical pipeline servicing
• Municipal work: street lighting, traffic signal maintenance, bridge inspection

WHAT'S INCLUDED

• Machinery test report provided
• Video outgoing-inspection available
• 6-month warranty
