20mm 5x114.3 Wheel Spacers Pair for Ford Mustang & Falcon

PRODUCT OVERVIEW

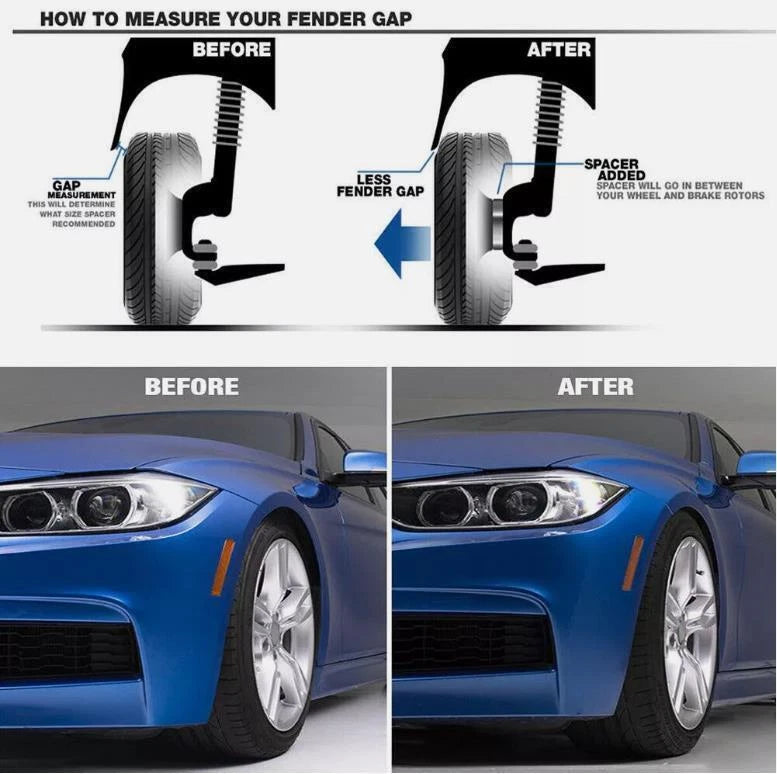

Pair of 20mm 5x114.3 wheel spacers designed to widen track width, improve stance and increase tire clearance on selected Ford applications including Falcon and Mustang models.

KEY FEATURES

• 20mm thickness per spacer (40mm total widening per axle)
• Vehicle bolt pattern: 5 x 114.3 mm
• Wheel bolt pattern: 5 x 114.3 mm
• Hub-centric design with 70.5 mm center bore
• CNC precision machined T6061 billet aluminum construction
• High-strength 12.9 grade wheel studs
• Stud/nut thread: 1/2" - 20 UNF
• Machine-pressed studs and matching lug nuts included

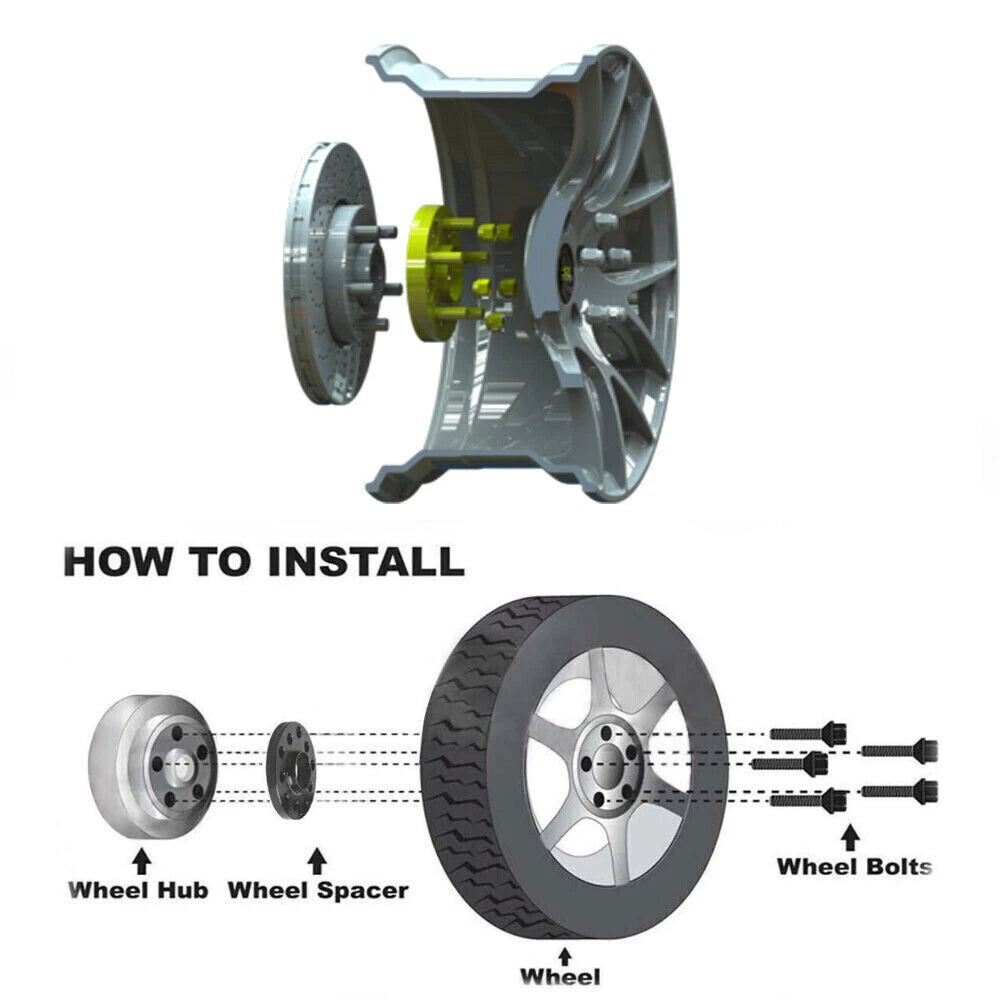

• Direct bolt-on installation (professional fitting recommended)
• Improves stability, reduces body roll and enhances aggressive stance
• 2-year warranty

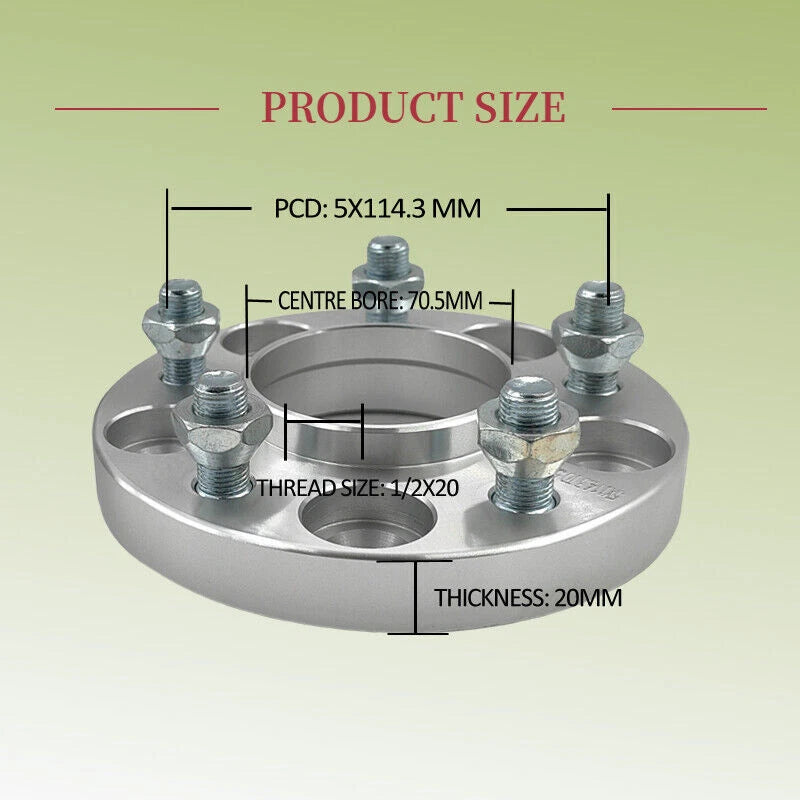

SPECIFICATIONS

• Thickness (each spacer): 20mm
• Total widening per axle: 40mm (20mm per wheel)
• Bolt pattern (vehicle): 5 x 114.3 mm
• Bolt pattern (wheel): 5 x 114.3 mm
• Center bore: 70.5 mm
• Stud grade: 12.9
• Stud/nut thread: 1/2" - 20 UNF
• Material: T6061 billet aluminum, CNC precision machined

FITMENT NOTES

• For selected Ford Falcon models (XT XF EA EB ED EF EL to BA BF FG AU, 1988-2017)
• For selected Ford Mustang models (1994-2014)
• For selected Ford Mustang Cobra, Shelby GT500, Mach 1 (1994-2014)
• For selected Ford Explorer UT UX UZ (1990-2010)
• For selected Ford Crown Victoria (1992-2011 / GT 2005-2006)
• For selected Ford Territory SX SY SZ
• Only for E Series Falcon rear hub where specified.

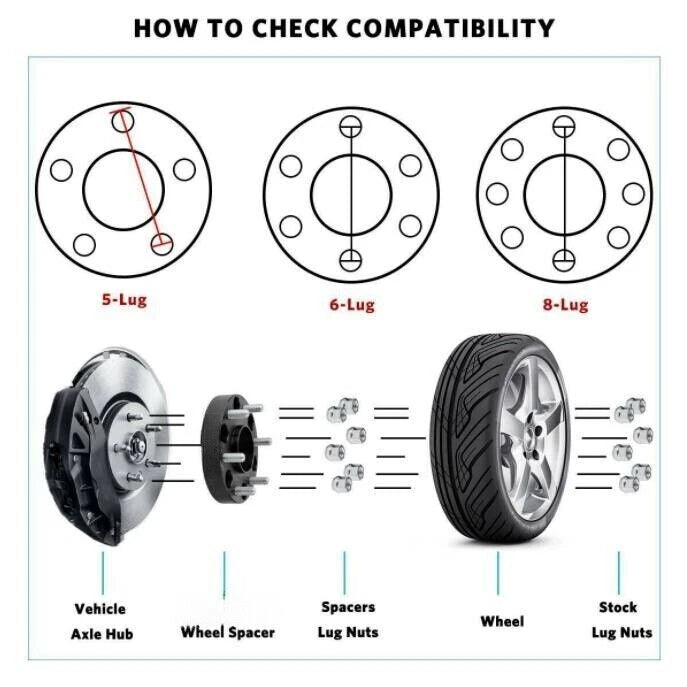

• Fitment must be verified by checking bolt pattern, center bore and thread size against the original vehicle specifications.

INSTALLATION WARNING

• Professional installation is highly recommended.
• Center bore height on the axle hub should be less than 17mm. If the lip on the axle exceeds 17mm, installation may fail, especially on E Series Falcon hubs.
• Always torque wheel nuts to the vehicle manufacturer’s specification and re-check after initial driving.
• Confirm the vehicle’s original part specifications before purchase.

PACKAGE CONTENTS

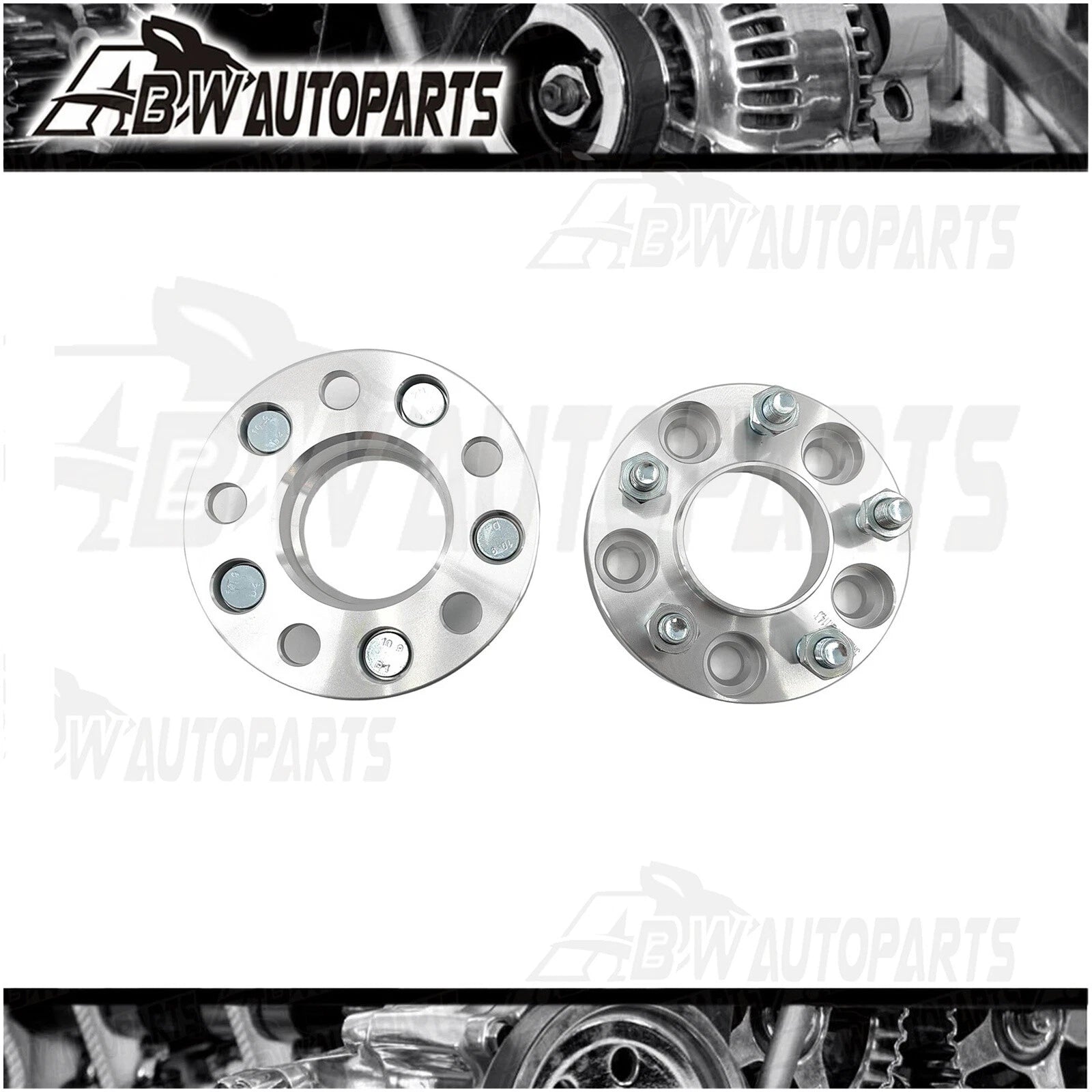

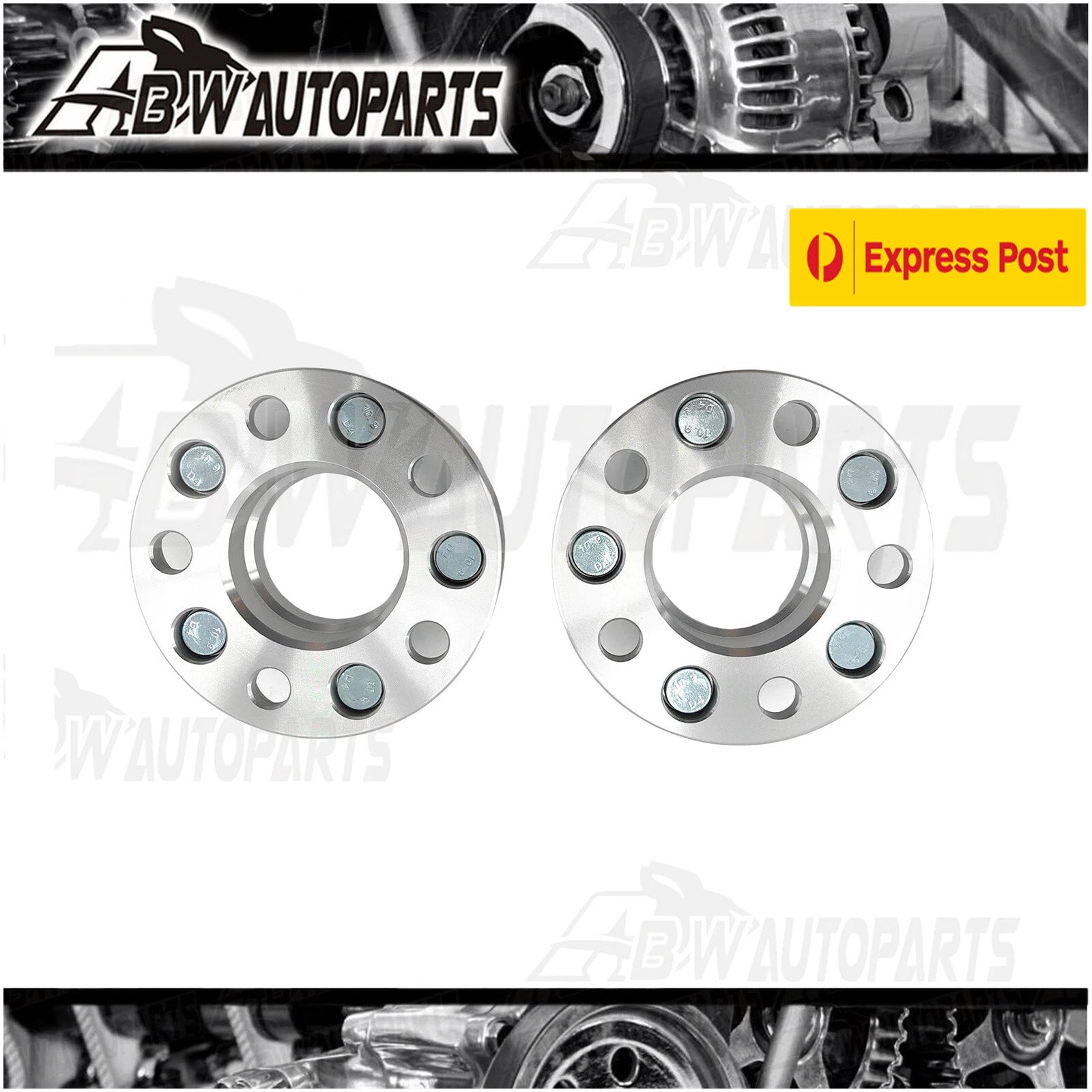

• 2 x 20mm 5x114.3 wheel spacers/adapters
• Included wheel studs and matching lug nuts
