2-Pin 80A Alternator for Holden Rodeo RA 3.0L Diesel 4JH1TC 4JJ1TC 03–08

PRODUCT OVERVIEW

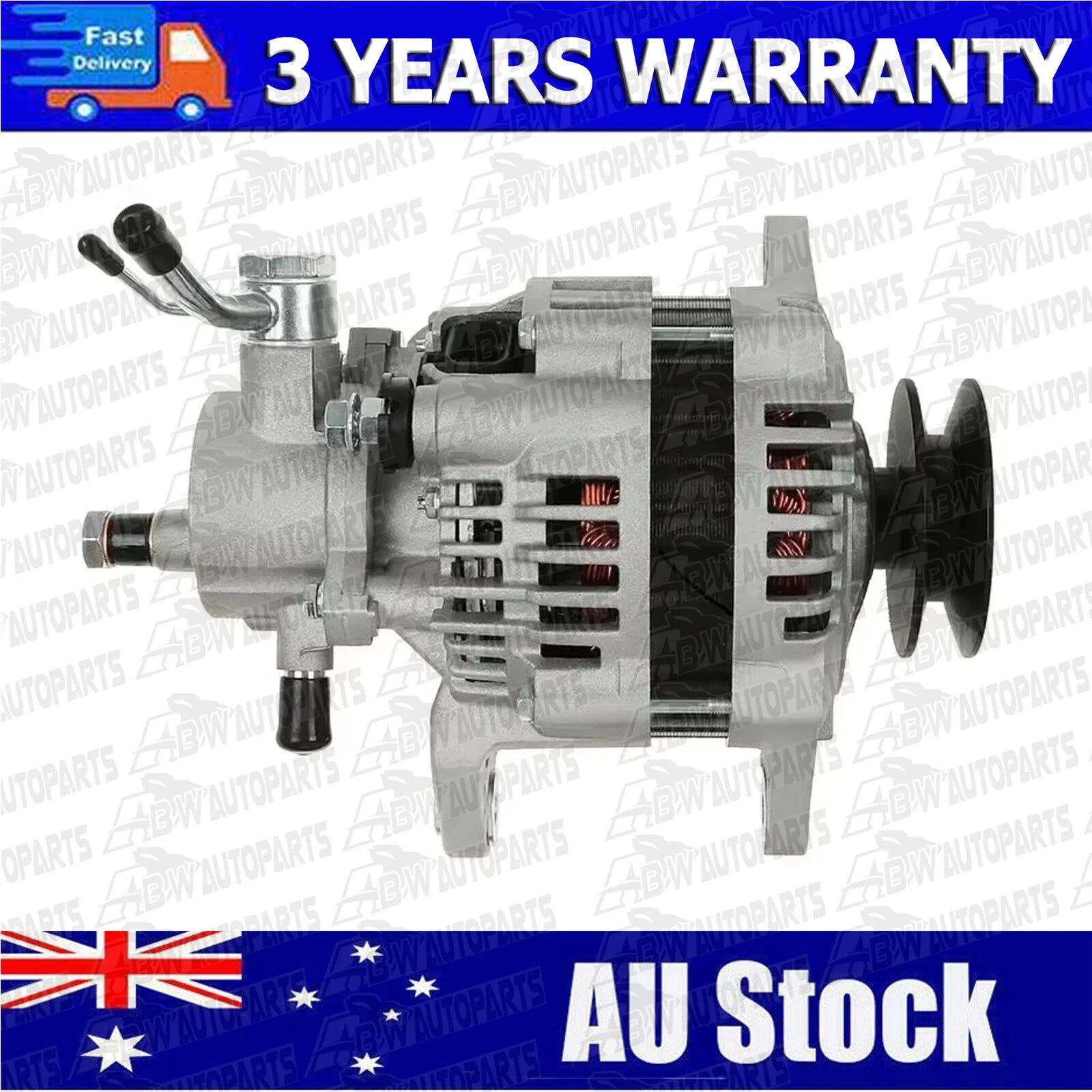

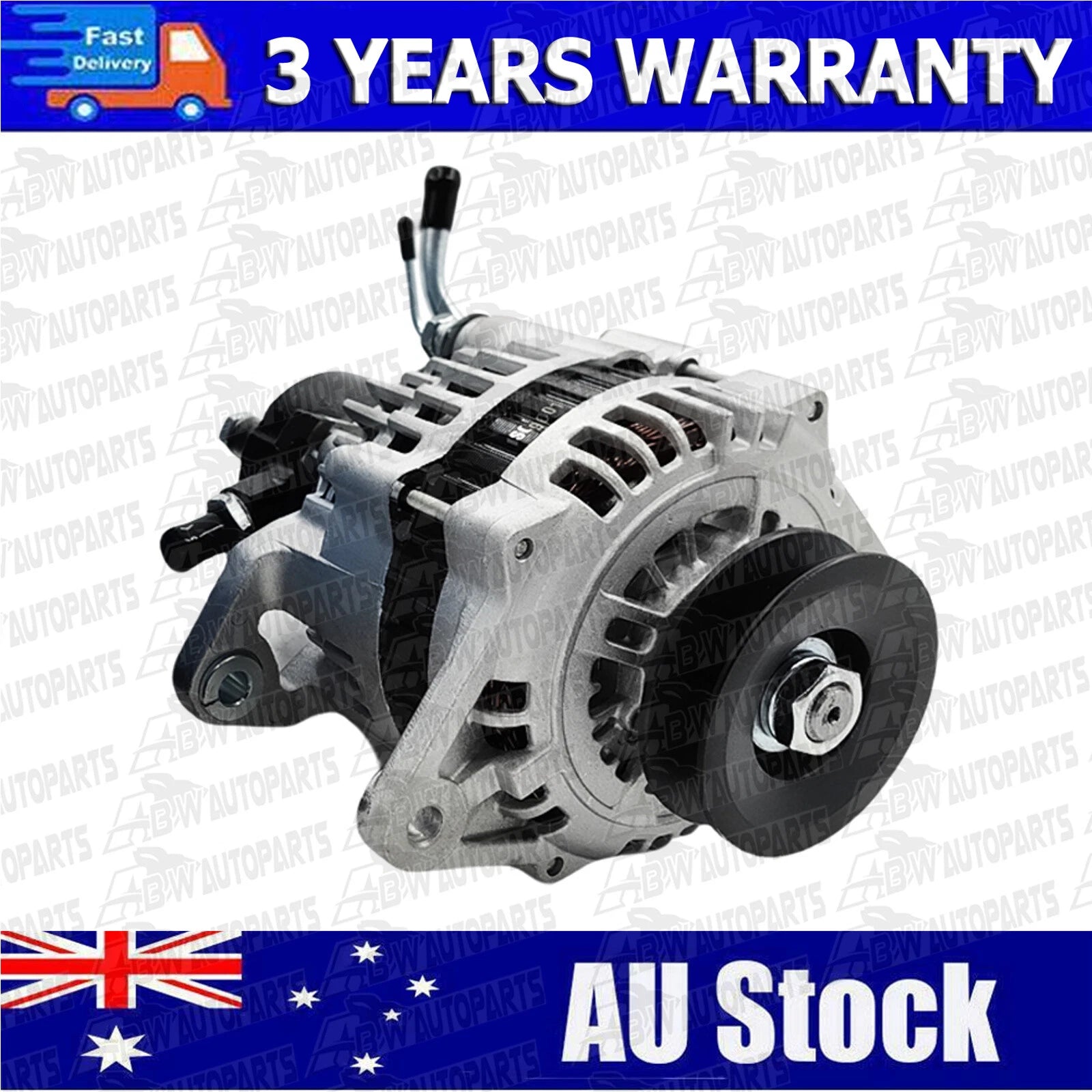

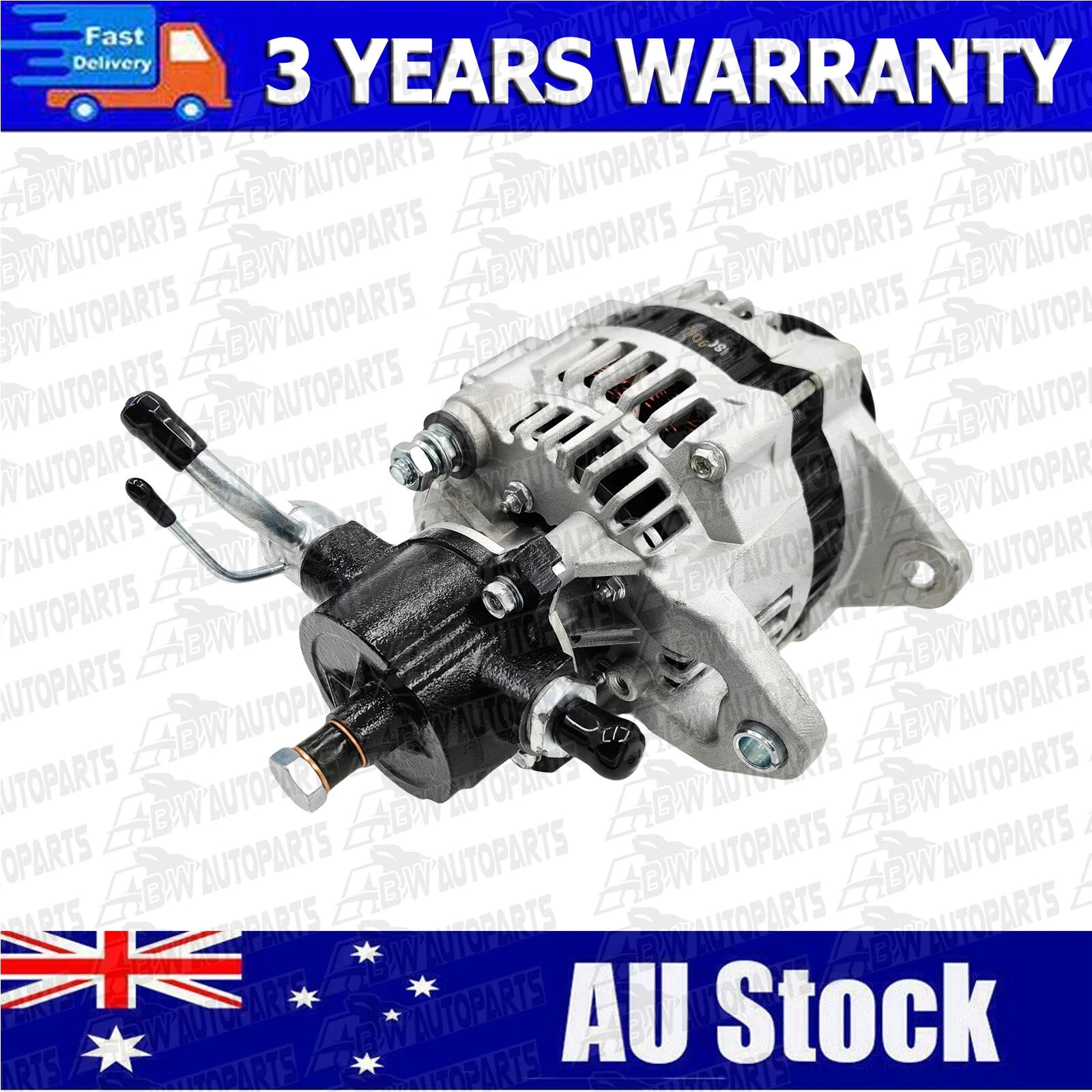

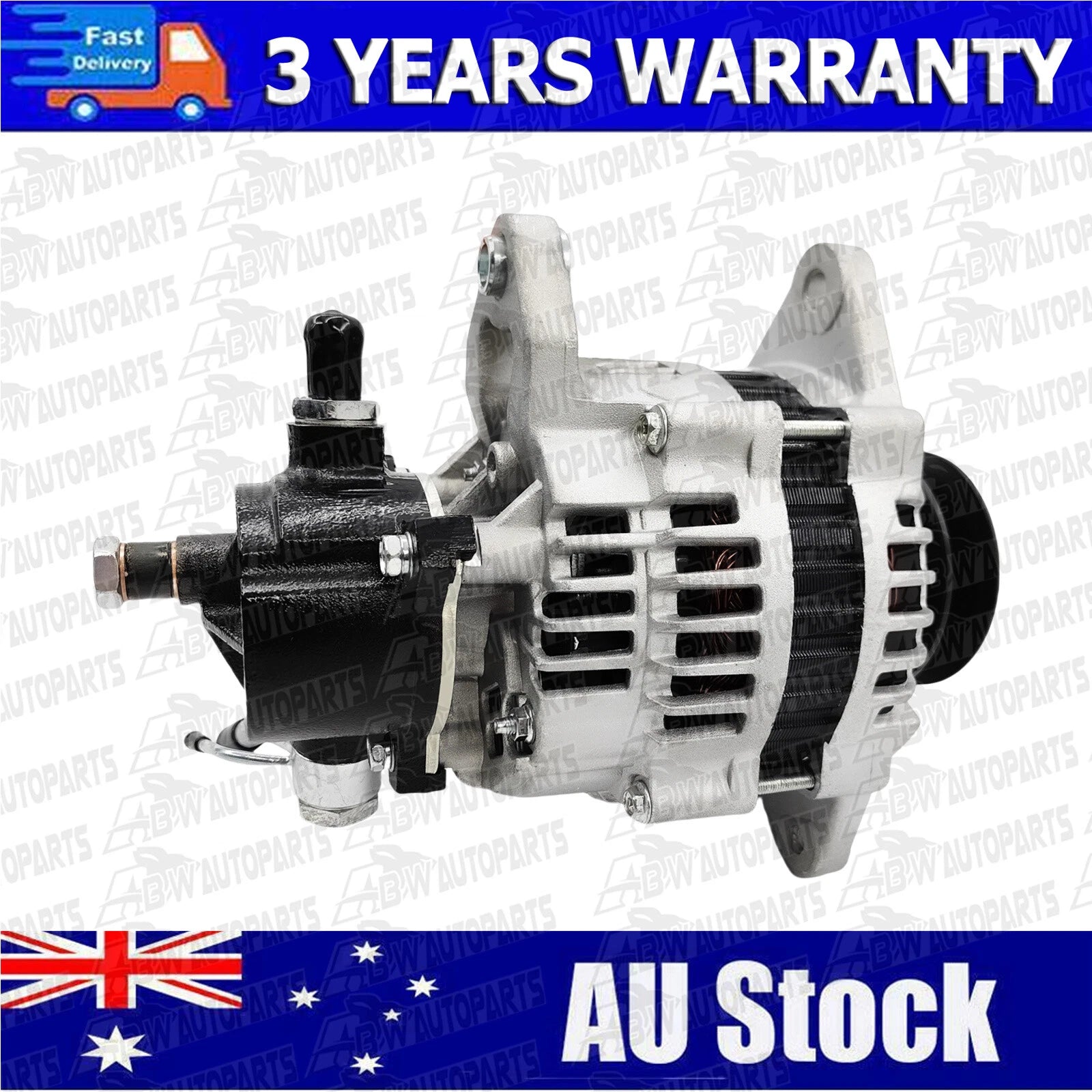

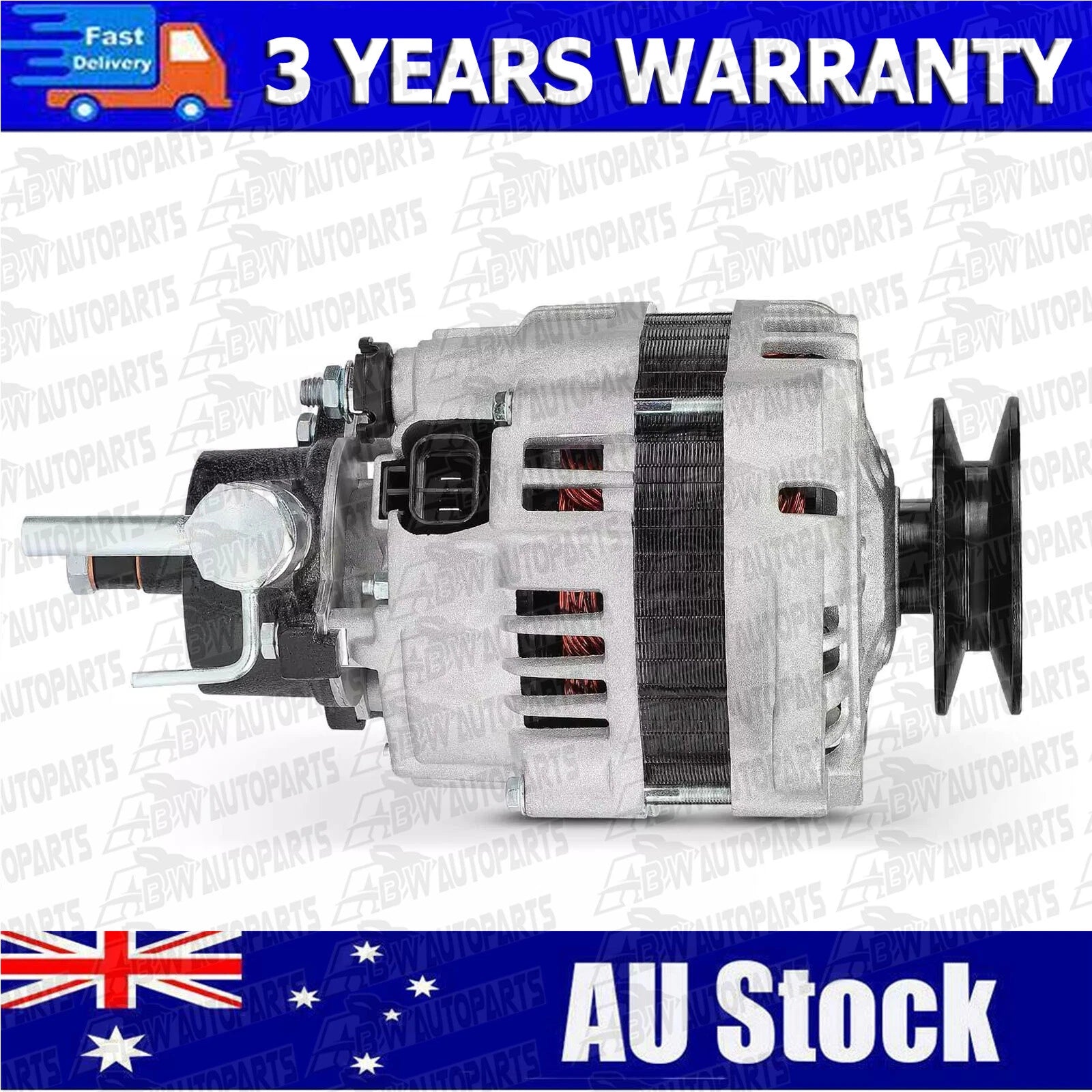

This 2-pin 80A alternator is designed for Holden Rodeo RA 3.0L diesel engines (4JH1TC, 4JJ1TC) from 2003–2008. It is a 12V, internally regulated unit supplied complete with pulley, ready for professional installation.

KEY FEATURES

• 12V, 80A output for reliable charging performance
• 2-pin RP19 plug type
• Internally regulated design
• Supplied with single-groove (1A) pulley
• Direct replacement style unit for specified Holden Rodeo applications

Important: Please check the plug type, mounting dimensions and pulley configuration against the original alternator before ordering.

SPECIFICATIONS

• Voltage: 12V
• Current: 80A
• Adjustment hole (mm): M8 x 1.25
• Pivot hole (mm): 10
• Adjustment to pivot distance (mm): 172
• Inside foot to foot (mm): 79
• Pulley diameter (mm): 80
• No. of grooves: 1A

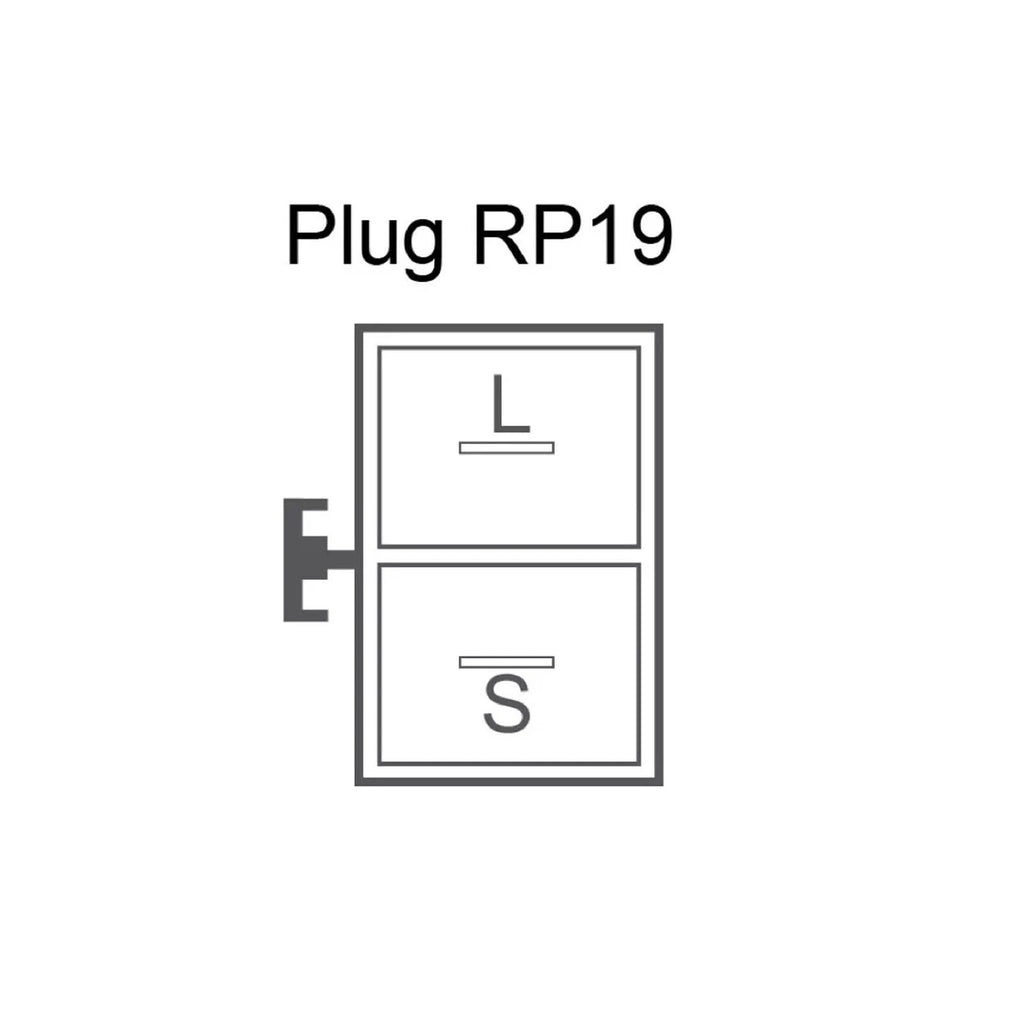

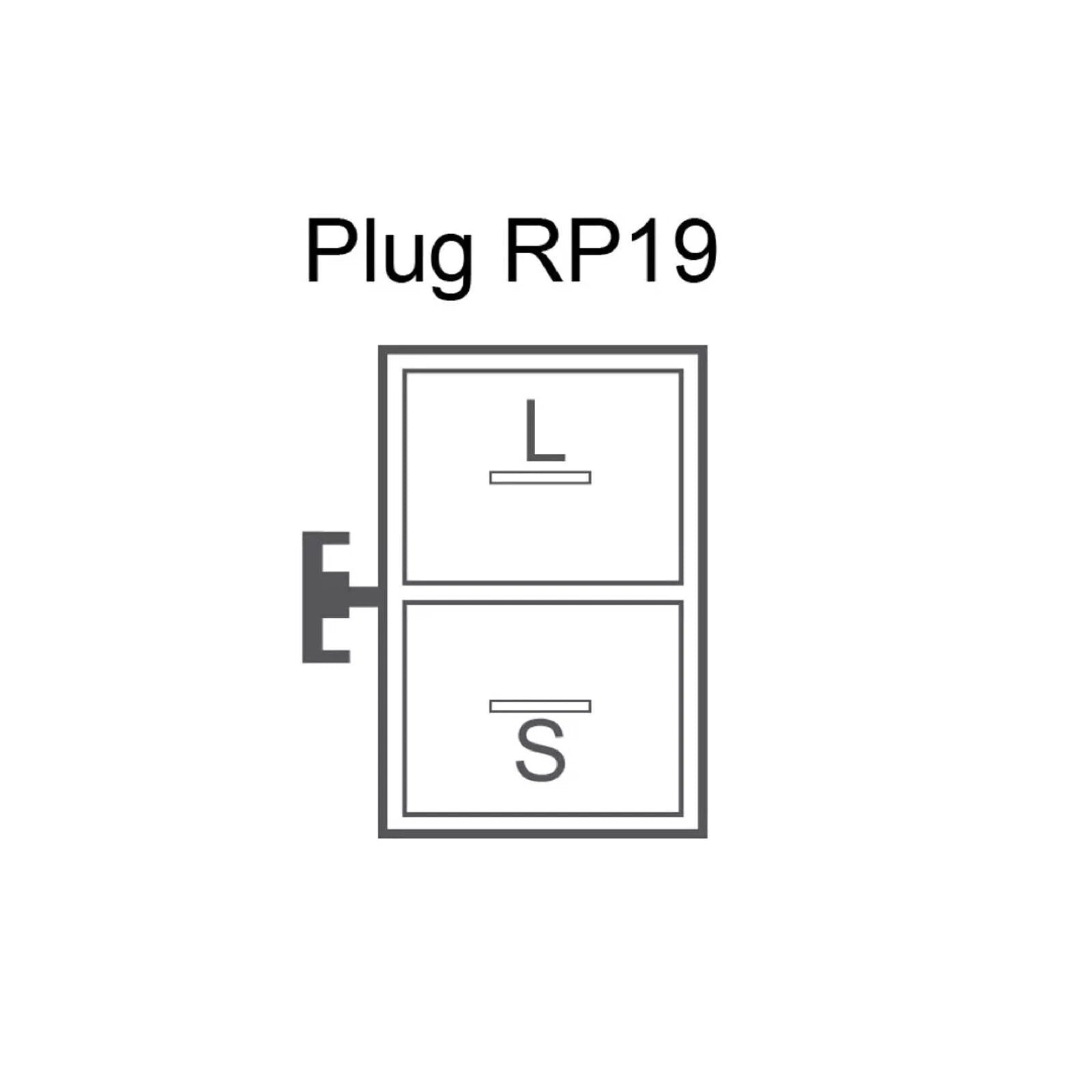

• Plug type: RP19
• Regulator type: Internally regulated

CROSS-REFERENCE PART NUMBERS

• LR160-503
• LR160-503E
• LR160-502E
• LR180-513
• LR180-513B
• LR160503 / LR160503E / LR160502E
• LR180513 / LR180513B
• LR160-503C / LR160503C
• 8-97240-270-2 / 8972402702
• 8-97245-850-0 / 8-97245-850-2
• 8-97327-218-1 / 8972458500 / 8972458502 / 8973272181
• 12689 / A0282A0159 / HX095 / HX096

Use the cross-reference numbers as a guide only. Always confirm against the original alternator and vehicle details.

VEHICLE APPLICATIONS

• Holden Rodeo RA platform/chassis 3.0 DiTD 4x4 (TFS85) 2007–2008
• Holden Rodeo RA platform/chassis 3.0 TD 4x4 (TFS77) 2003–2007
• Holden Rodeo RA ute 3.0 DiTD 4x4 (TFS85) 2007–2008
• Holden Rodeo RA ute 3.0 TD 4x4 (TFS77) 2003–2007
• Holden Rodeo TF platform/chassis 3.0 TD 4x4 (TFS77) 2001–2003
• Holden Rodeo TF ute 3.0 TD 4x4 (TFS77) 2001–2003

Fitment information is provided as a guide. Confirm engine code, build year and alternator plug/pulley details before purchase.

PACKAGE CONTENTS

• 1 x Alternator

INSTALLATION NOTE

Professional installation is highly recommended. Ensure all electrical connections and belt alignment are checked during fitment.
