2x 244-LED Sequential Tail Lights Stop Indicator for Trailer Caravan Truck

PRODUCT OVERVIEW

Pair of 244-LED combination tail lights providing stop, tail and sequential indicator functions for trailers, trucks, utes, 4WDs, caravans and other 12–24V vehicles. Not submersible for boat trailers.

KEY FEATURES

• 244 high-brightness 3528 SMD LEDs (each side) for excellent visibility
• Sequential dynamic amber indicator for flowing turn signal effect
• Multi-function: brake, tail, turn signal and reverse/white light
• Wide voltage input: suitable for 12V–24V DC systems

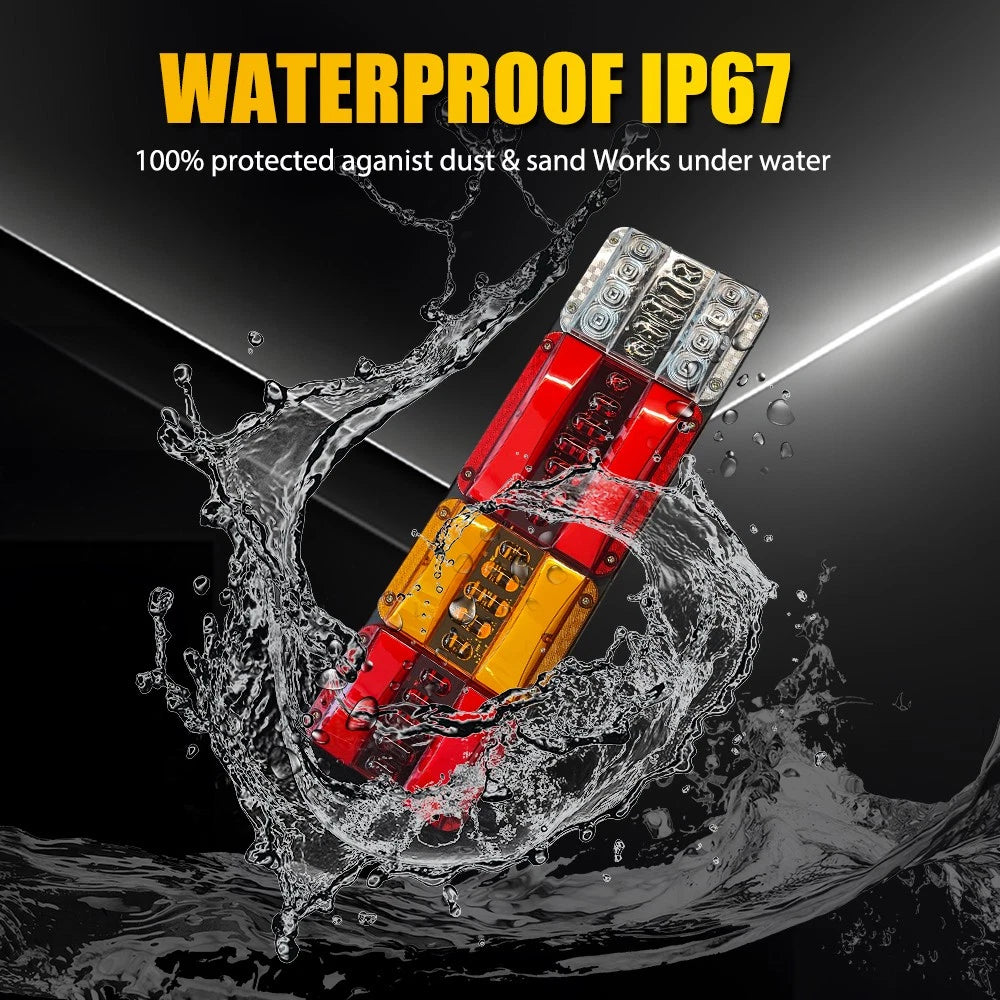

• IP67 waterproof rating for use in rain and snow (non-submersible)
• Durable ABS housing with PC lens, shock and rust resistant
• Universal surface mount design with screw mounting

SPECIFICATIONS

• Lighting technology: LED
• Number of LEDs: 122 x 3528 SMD LED per side
• Light colours: red, amber, white
• Input voltage: 12V–24V DC
• Colour temperature: approx. 6500K (white)
• Lumens: approx. 2000 lm
• Power: 5 W (nominal)
• Working temperature: -40°C to 60°C
• Housing material: ABS
• Lens material: PC
• Housing colour: black
• Lens colour: red / amber
• Finish: polished
• Dimensions (each lamp): 450 mm (L) x 140 mm (W) x 25 mm (H)
• Distance between fixing bolts: 280–380 mm
• Approx. package weight: 1,796 g

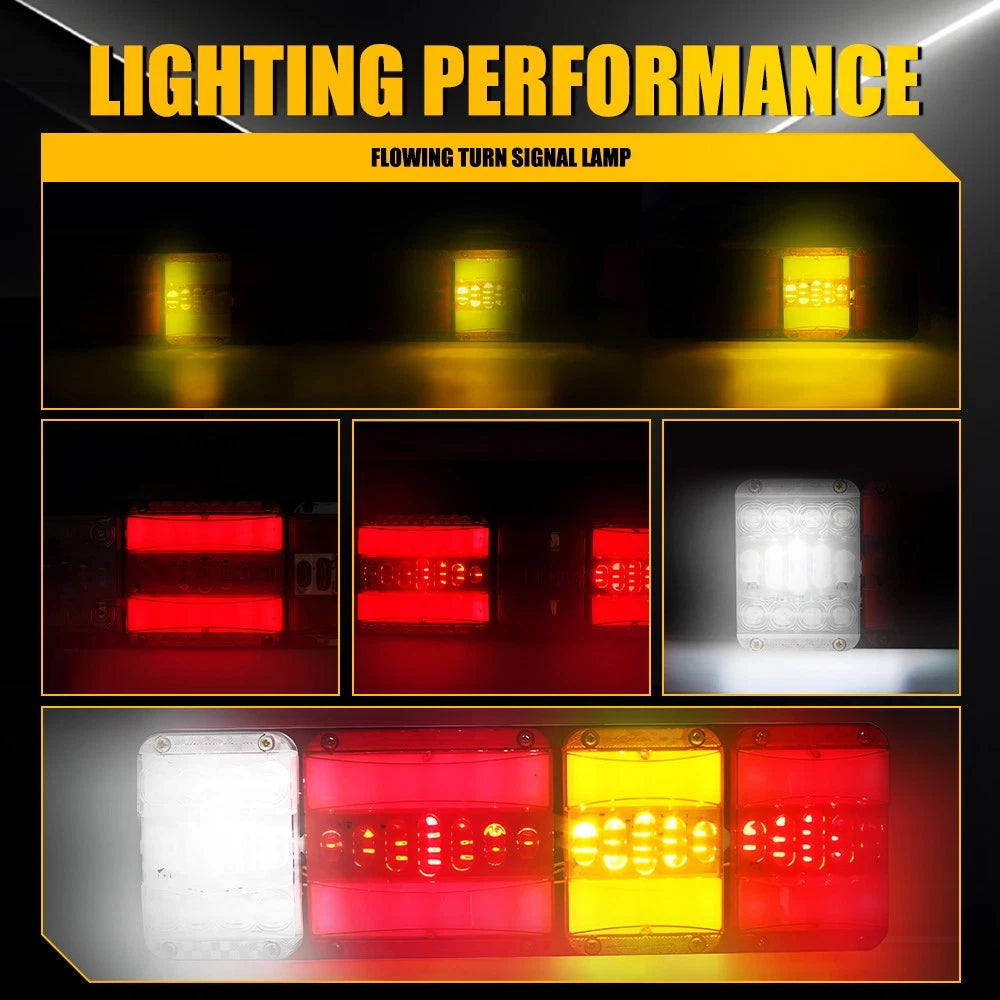

FUNCTIONS

• Tail / running light (low-brightness red)
• Brake light (high-brightness red)
• Sequential dynamic amber turn indicator
• White light function (e.g. reverse or auxiliary)

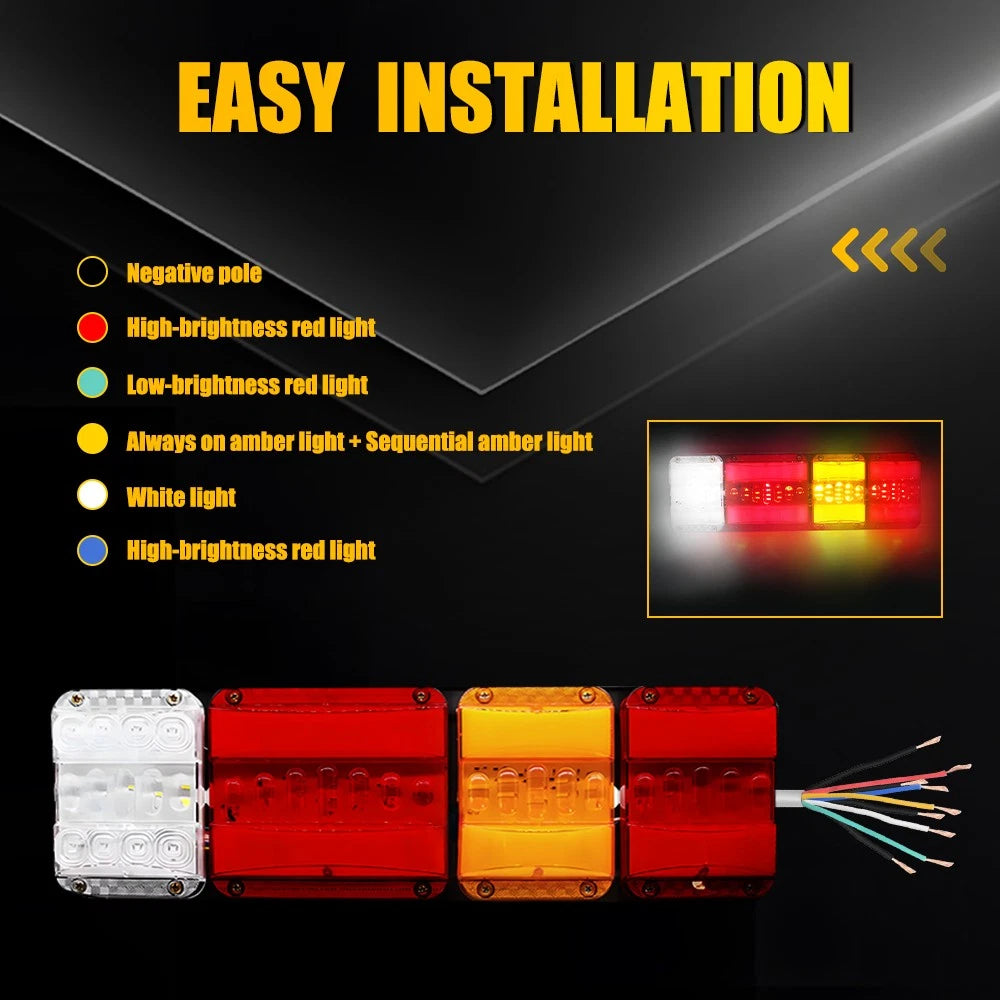

WIRING CONNECTIONS

• Black wire: negative (ground)
• Yellow wire: constant amber + sequential amber indicator
• Green wire: low-brightness red (tail light)
• Red wire: high-brightness red (brake)
• Blue wire: high-brightness red (additional brake/indicator function)
• White wire: white light

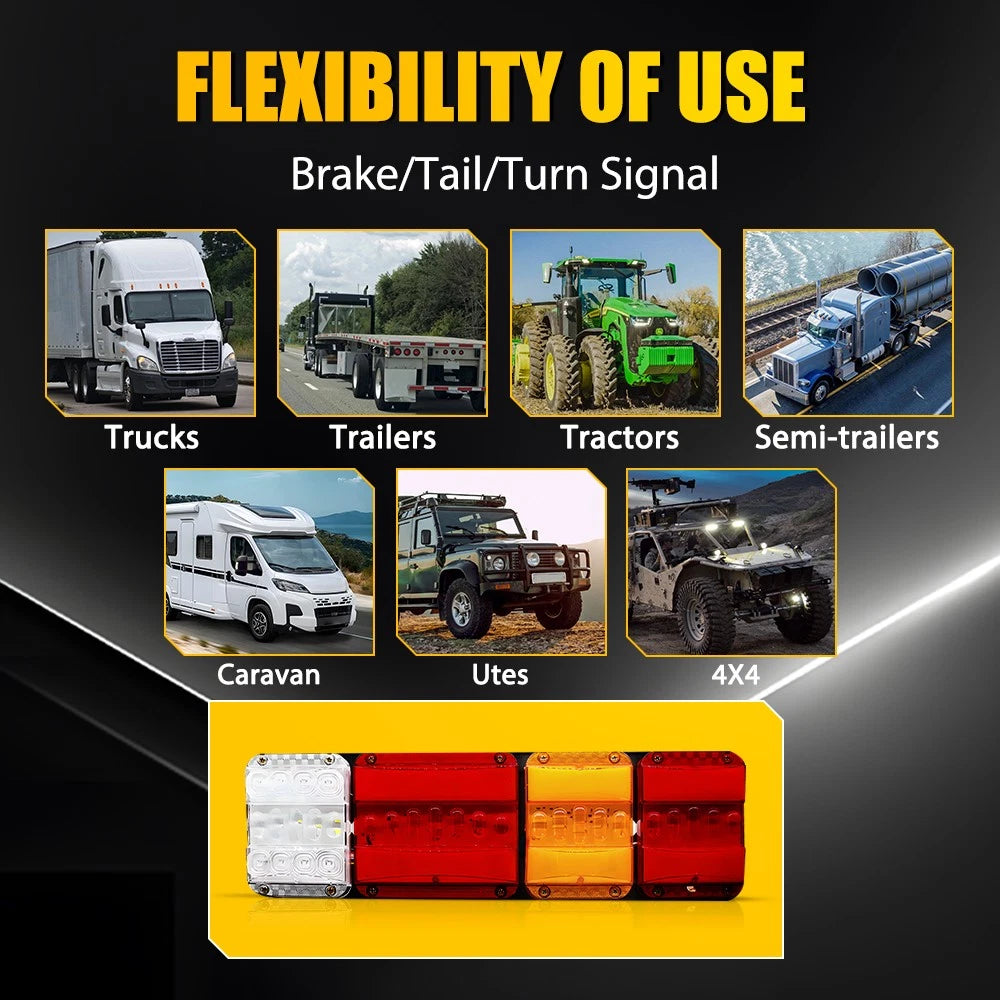

APPLICATIONS

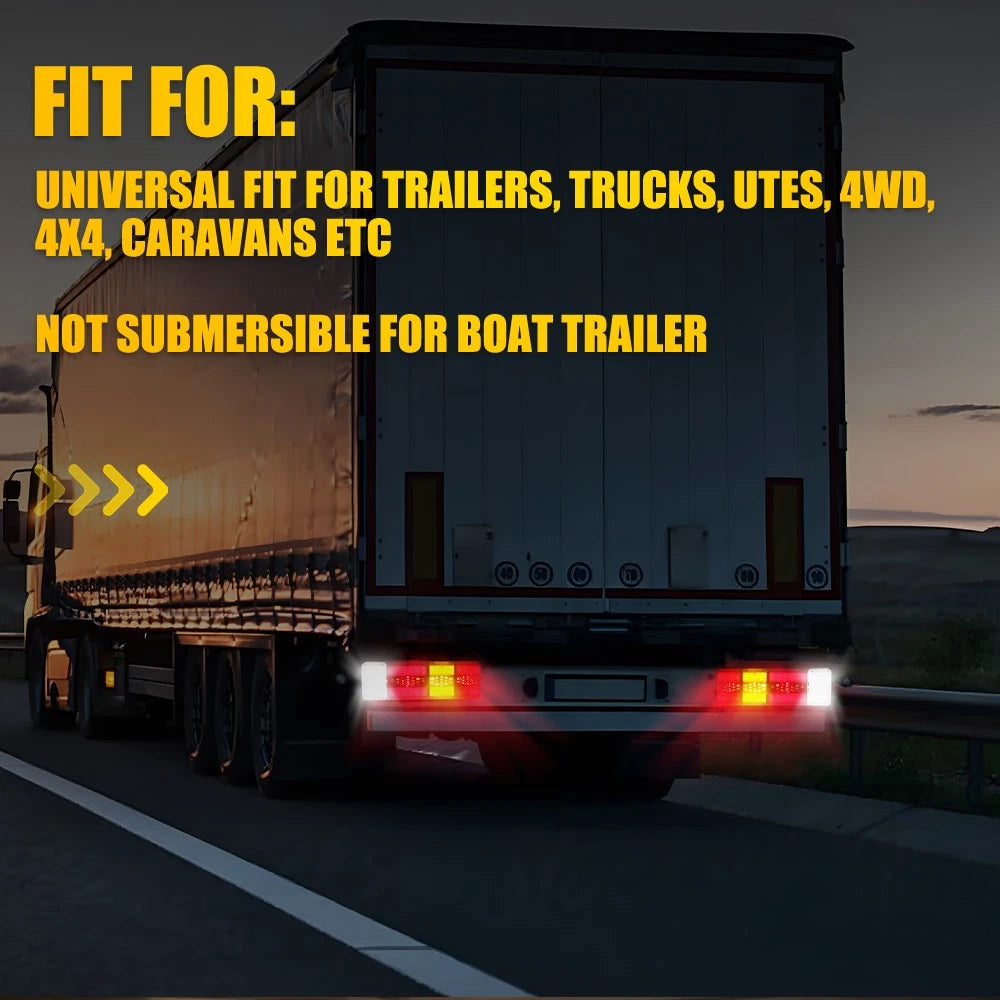

• Universal fit for most 12V–24V trailers and heavy trucks
• Suitable for caravans, utes, 4WD/4x4 and RVs
• Can be used as rear combination lamp, side marker or indicator assembly as allowed by local regulations
• Not recommended for use as submersible boat trailer lights

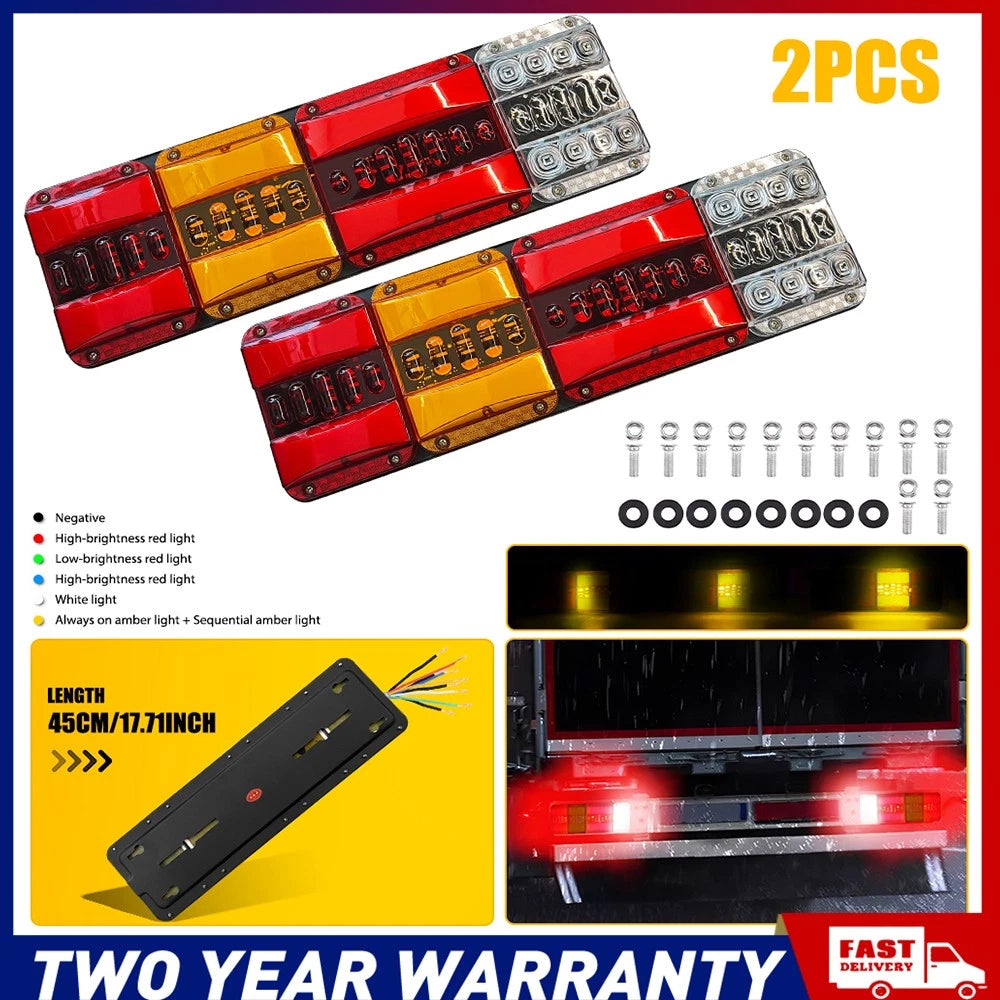

PACKAGE CONTENTS

• 2 x LED tail lamp assemblies

INSTALLATION NOTES

• Direct replacement style with screw mounting
• Professional installation recommended to ensure correct wiring and compliance with local road laws
• Please confirm dimensions, voltage and wiring requirements before purchase
