2x 244 LED Sequential Tail Lights Stop Turn Reverse for Trailer Truck 12‑24V

OVERVIEW

This pair of 244 LED tail lights provides high-visibility stop, tail, turn and reverse functions for 12–24V vehicles. Designed as a universal fit for trailers, trucks, utes, 4WD/4x4 and caravans, they feature dynamic sequential indicators and a low-profile light bar design.

KEY FEATURES

• 244 high-intensity LEDs (122 x 3528 SMD per side) for strong visibility
• Multi-function: brake, tail, turn signal, reverse and marker lighting

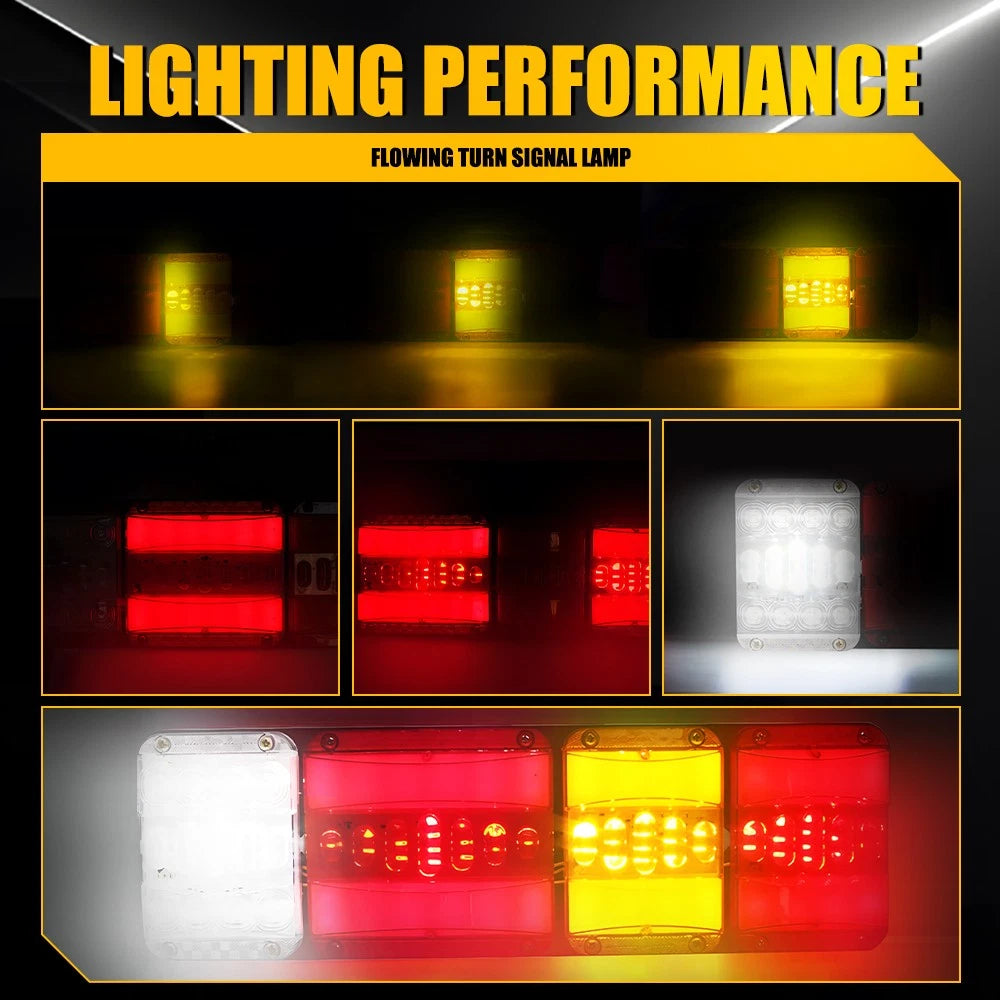

• Dynamic flowing (sequential) amber turn signal effect
• Wide 12–24V DC operating range for light commercial and heavy vehicles

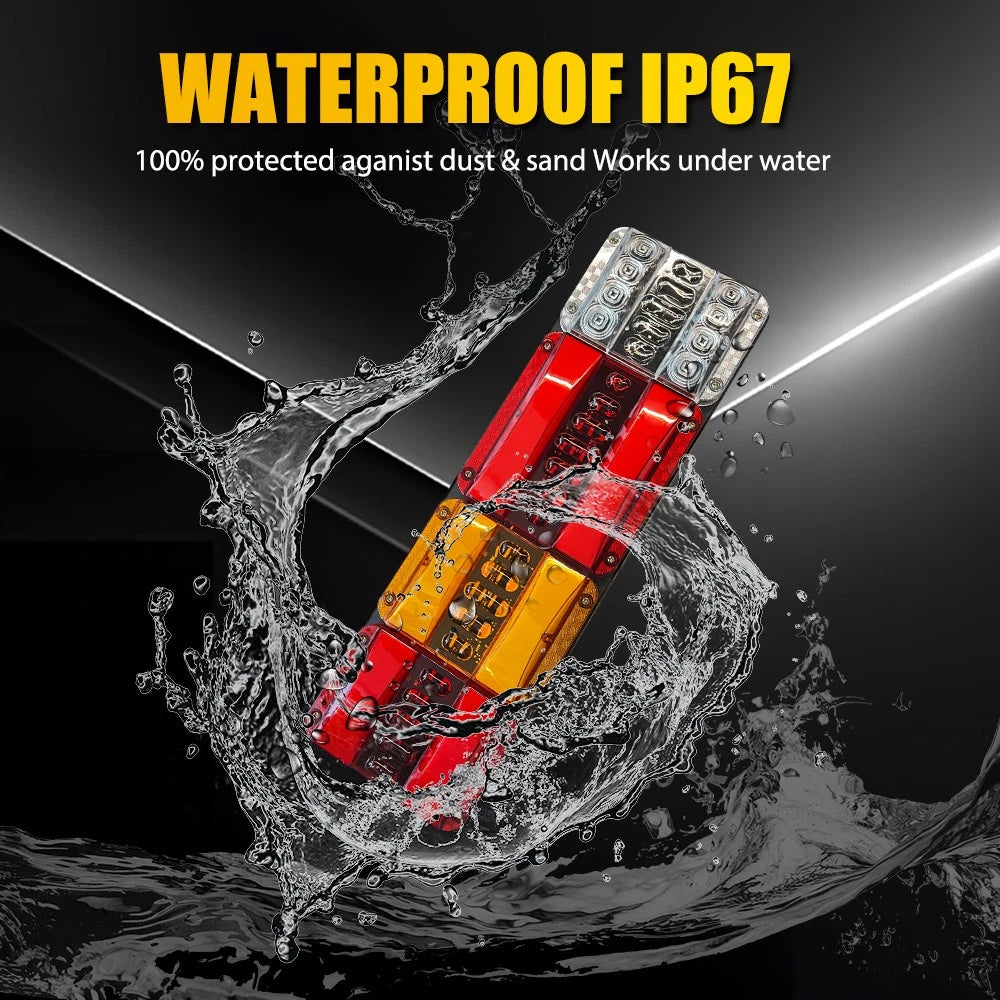

• IP67-rated waterproof design for reliable performance in rain and snow
• Durable ABS housing with PC lens for impact and shock resistance
• Universal surface-mount installation with screw fixings

SPECIFICATIONS

• Lighting technology: LED
• Number of LEDs: 122 x 3528 SMD per lamp (244 total)
• Functions: brake, tail, turn signal (sequential), reverse, marker
• Light colours: red, amber, white
• Operating voltage: 12–24V DC
• Lumens: approx. 2000 lm
• Colour temperature (white): 6500K
• Power consumption: 5W (approx.)
• Working temperature: -40 to 60 °C
• Material: ABS housing, PC lens
• Housing colour: black
• Lens colour: red with amber indicator sections
• Finish: polished
• Mounting style: screw mount
• Distance between fixing bolts: approx. 280–380 mm (adjustable range)
• Dimensions (each lamp): 450 mm (L) x 140 mm (W) x 25 mm (H)
• Estimated service life: > 50,000 hours
• Ingress protection: IP67 (not submersible for prolonged boat trailer use)

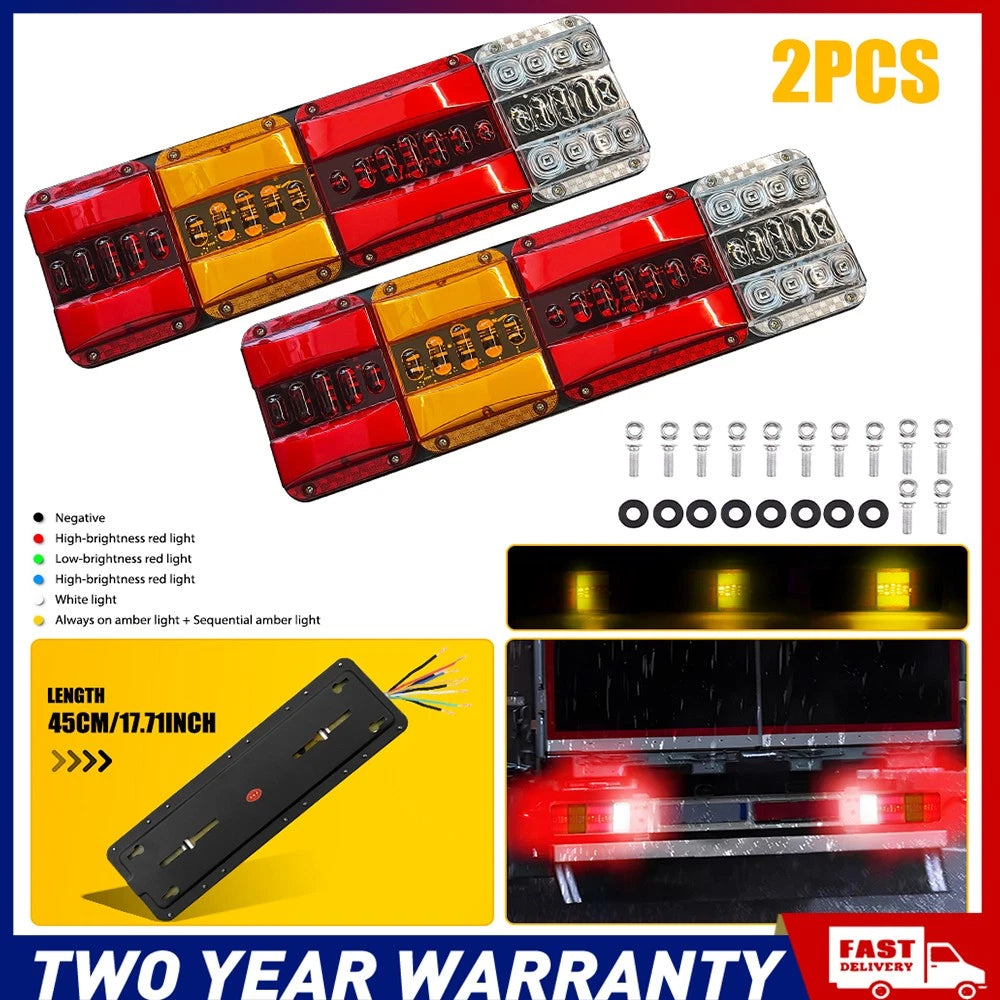

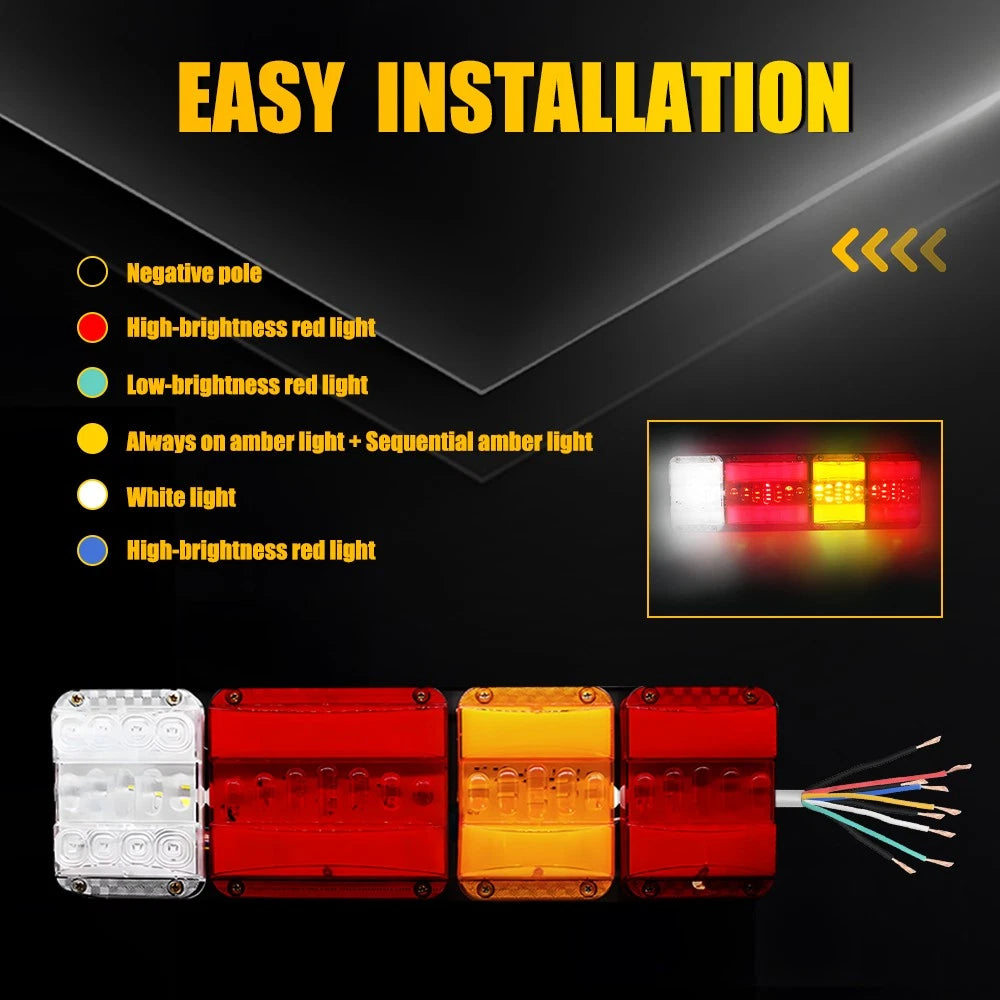

WIRING CONNECTIONS

• Black wire: negative (ground)
• Yellow wire: running amber light + sequential amber turn signal
• Green wire: low-brightness red (tail light)
• Red wire: high-brightness red (brake)
• Blue wire: high-brightness red (additional brake/indicator function, as required)
• White wire: white light (reverse or work light)

APPLICATIONS

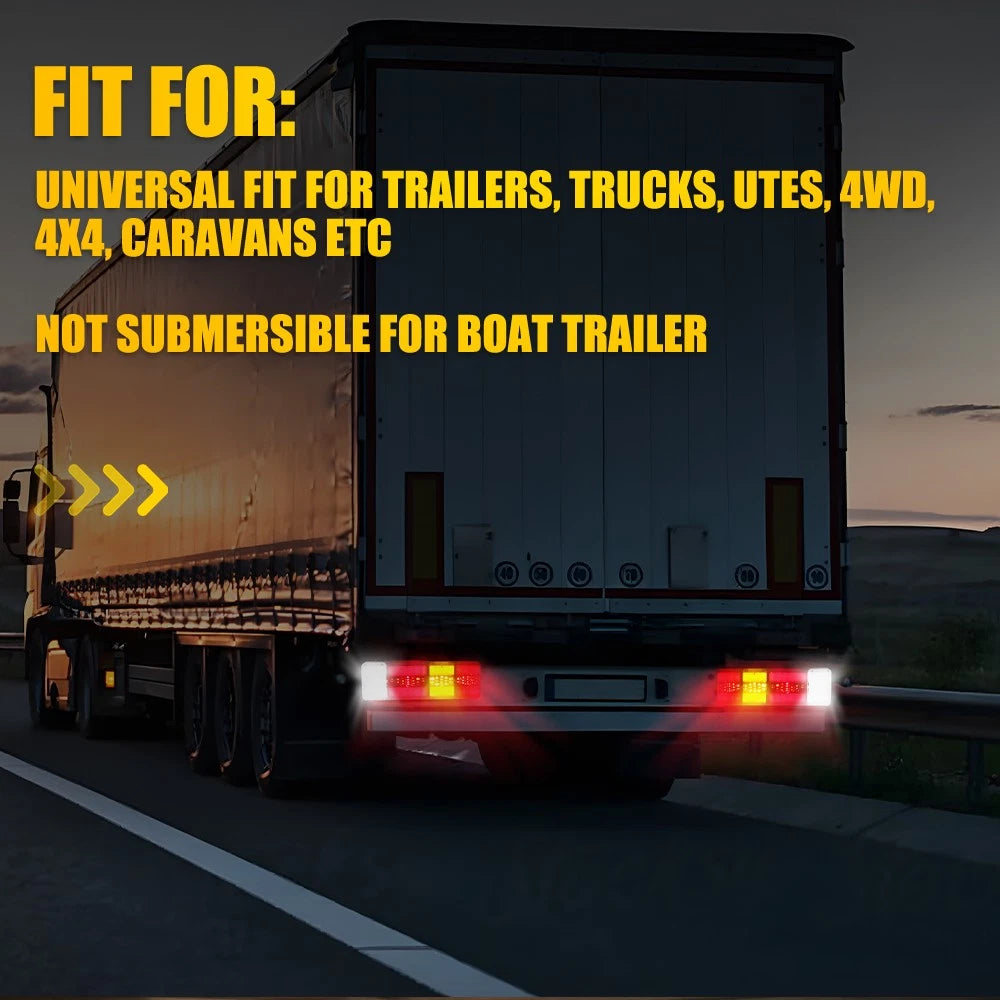

• Universal fitment for 12–24V trailers and caravans
• Suitable for trucks, utes, 4WD/4x4 and RVs
• Ideal as rear combination light bars, marker and indicator lights
• Not recommended as fully submersible boat trailer lights

PACKAGE CONTENTS

• 2 x 244 LED tail light assemblies

NOTE

• Universal product; no specific vehicle compatibility list is provided.
• Please check dimensions, mounting points and wiring before purchase.
• Professional installation is recommended for optimal performance and safety.
