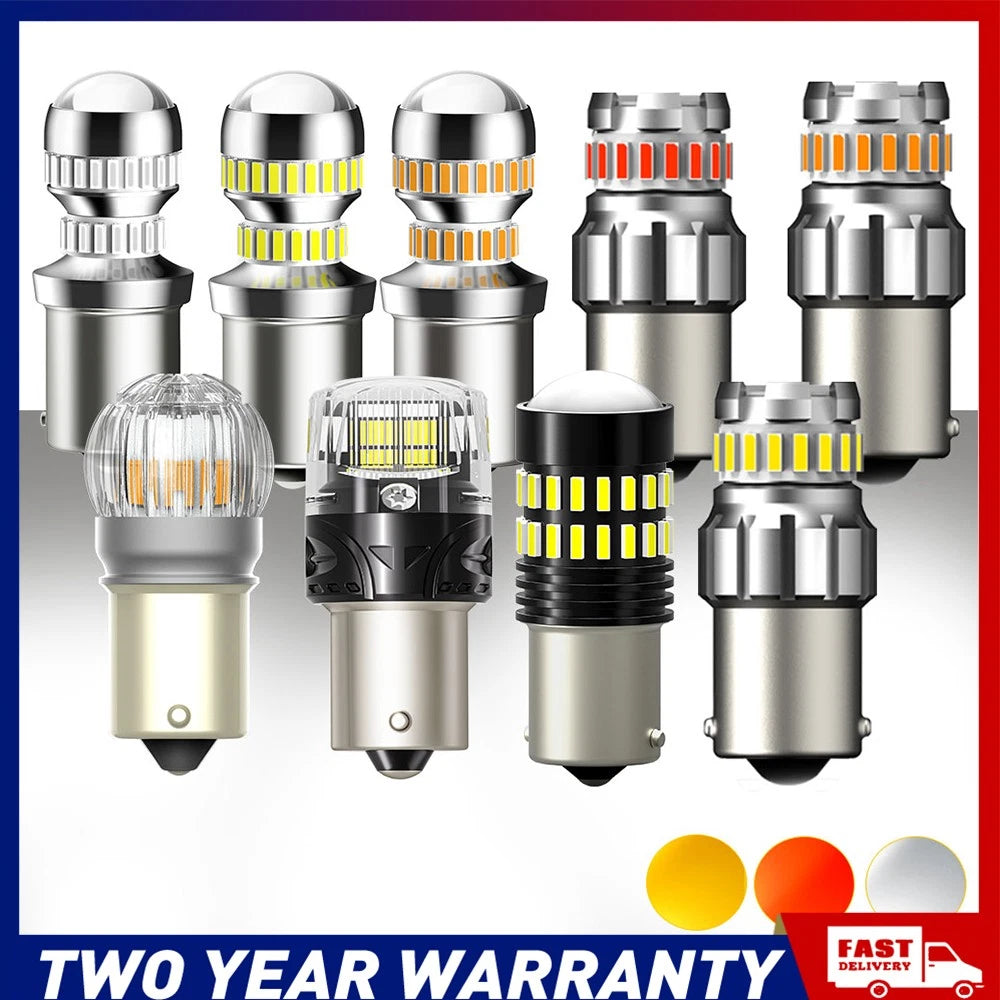

1156 BA15S P21W LED Bulbs 6000K White 54SMD 4014 CANbus (Pair)

OVERVIEW

These 1156 BA15S P21W LED bulbs provide a high-output 6000K white light for automotive applications. Featuring 54SMD 4014 LEDs and CANbus compatibility, they are designed as direct replacements for standard 1156 incandescent bulbs in 12V systems.

APPLICATIONS

Suitable for a wide range of 12V vehicles where an 1156 / BA15S / P21W base is used. Typical uses include:

• Tail lights and brake/stop lights
• Reverse and backup lights
• Front or rear turn signal and side marker lights
• Daytime running lights (DRL) where applicable
• Interior, RV and camper cargo or auxiliary lighting

Compatibility depends on socket type. If your vehicle uses an 1156 / BA15S / P21W base, these bulbs are a direct fit, but they may not suit every position on all vehicles.

BASE & CROSS-REFERENCE

Standard single-contact BA15S 1156 P21W base designed to replace many OE part numbers, including but not limited to:

• 1156, P21W, 7506, 1073, 1095, 1141, 1159, 1195, 12088, 1259
• 1295, 1295NA, 1459, 1619, 1651, 1680, 199, 2396
• 3496, 3497, 5007, 5008, 631, 87, 93, 97, 97A, 97NA, 1156A, 1156NA

Always compare your original bulb code and base type before purchase.

KEY FEATURES

• 54SMD 4014 LED chips for high brightness output
• Approx. 6000K cold white color temperature

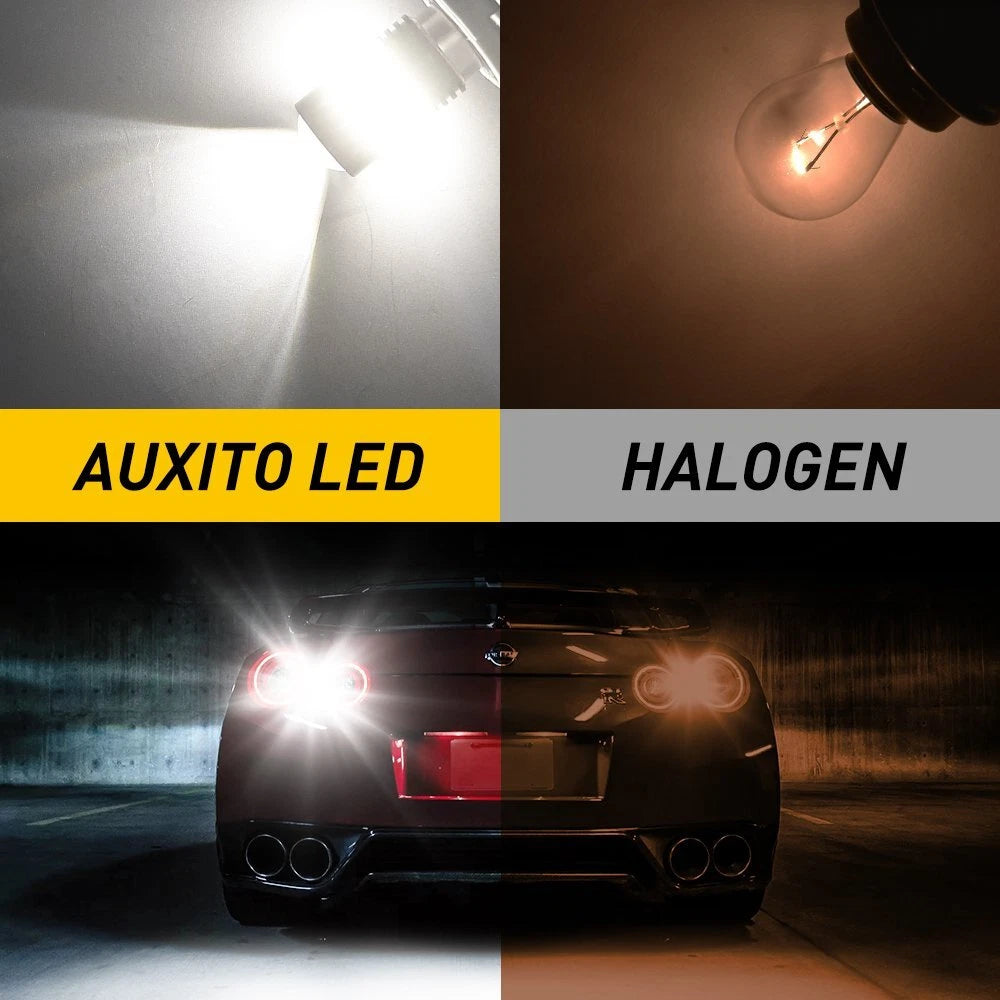

• Up to 400% brighter than standard incandescent bulbs (manufacturer claim)

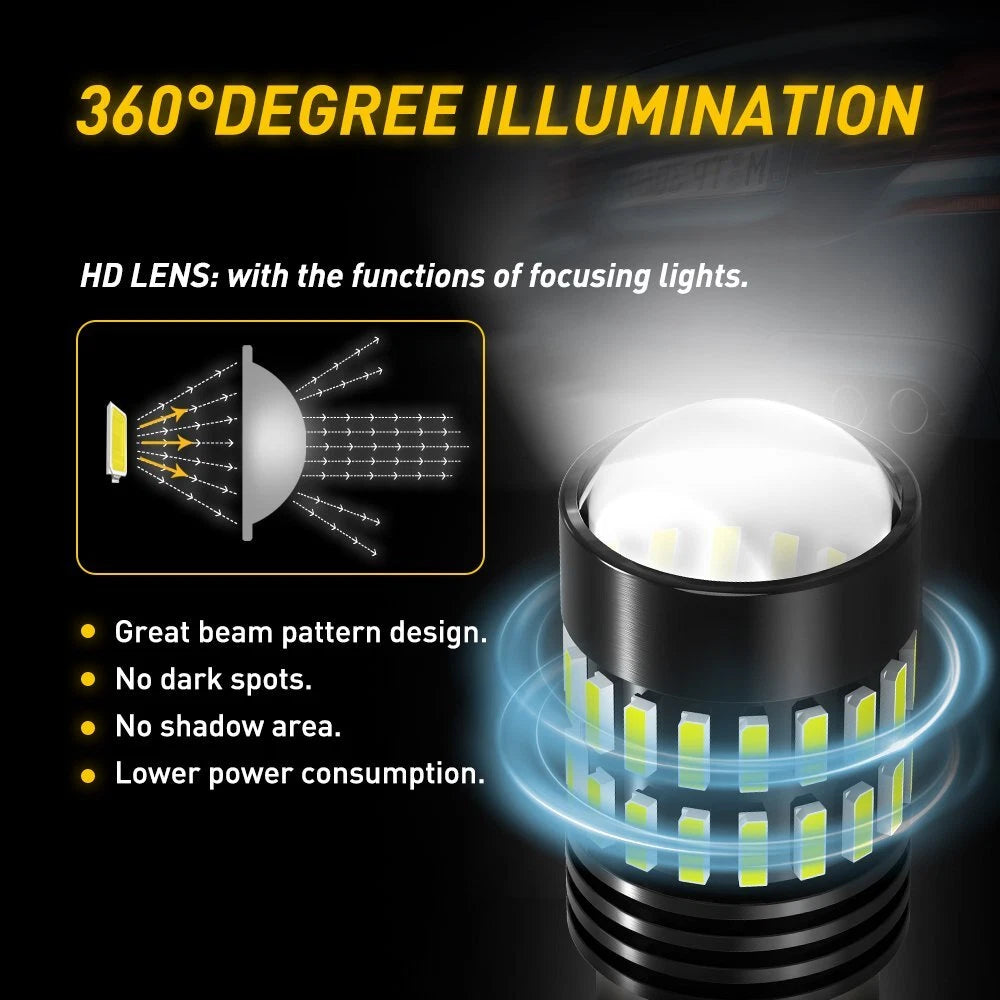

• 360° beam angle for uniform light distribution
• Low power consumption and high efficiency

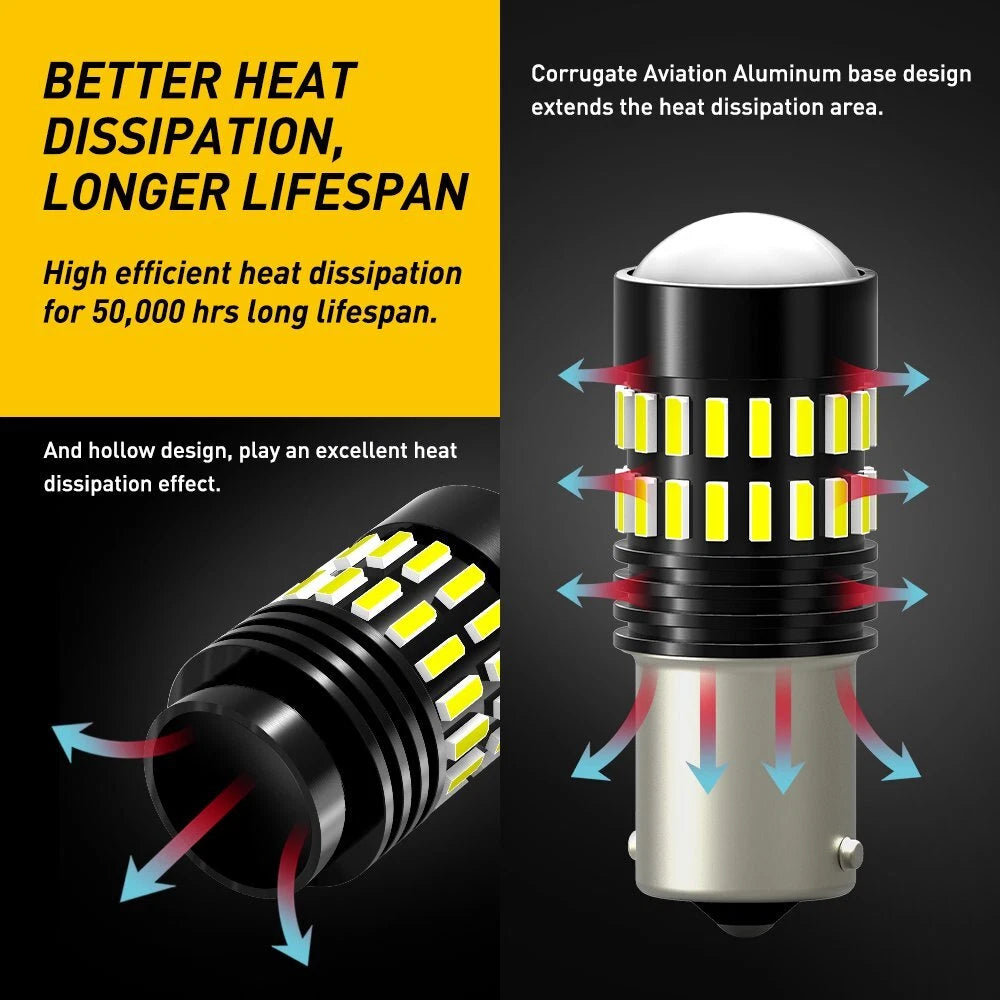

• Fanless design for silent operation
• CANbus compatible, anti-flicker, reduced hyper-flash and error messages on many vehicles
• IP67–IP68 rated water and dust resistance (manufacturer data)
• CE and RoHS certified

SPECIFICATIONS

• Bulb type: 1156 / BA15S / P21W single-contact
• LED quantity: 54SMD 4014
• Light color: 6000K–6500K white
• Luminous flux: up to 1800 lm per pair (approx., manufacturer data)
• Voltage: 12V DC (operating range approx. 12–14V)
• Wattage: approx. 5.5W per bulb
• Beam pattern: 360°
• Operating temperature: -40°C to +80°C
• Service life: >50,000 hours (theoretical)
• Fitment type: direct replacement, plug & play
• Housing finish: polished chrome
• Waterproof rating: IP67–IP68 (manufacturer data)
• Manufacturer warranty: 2 years (subject to seller terms)

INSTALLATION NOTES

• Plug-and-play into compatible 1156 / BA15S / P21W sockets
• If the bulb does not illuminate on first install, remove and rotate 180° to match polarity
• CANbus compatibility reduces but does not guarantee elimination of warning messages on all vehicles
• Check local regulations regarding use of LED bulbs in exterior lighting positions
• Bulbs may not fit every lighting position on every vehicle even if the base code matches

PACKAGE CONTENTS

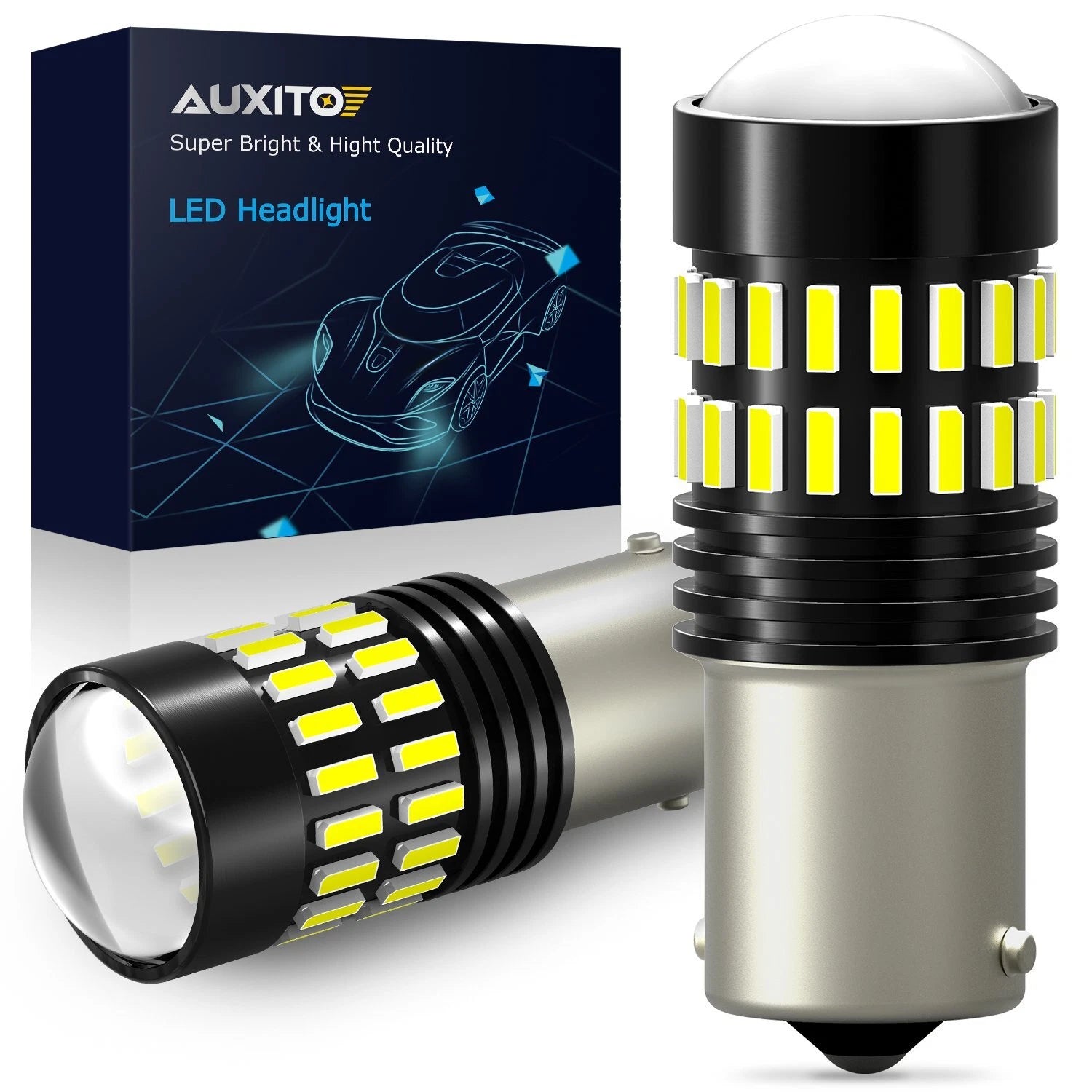

• 2 × 1156 BA15S P21W 6000K white LED bulbs

Part number: AUXITO54H1156.
