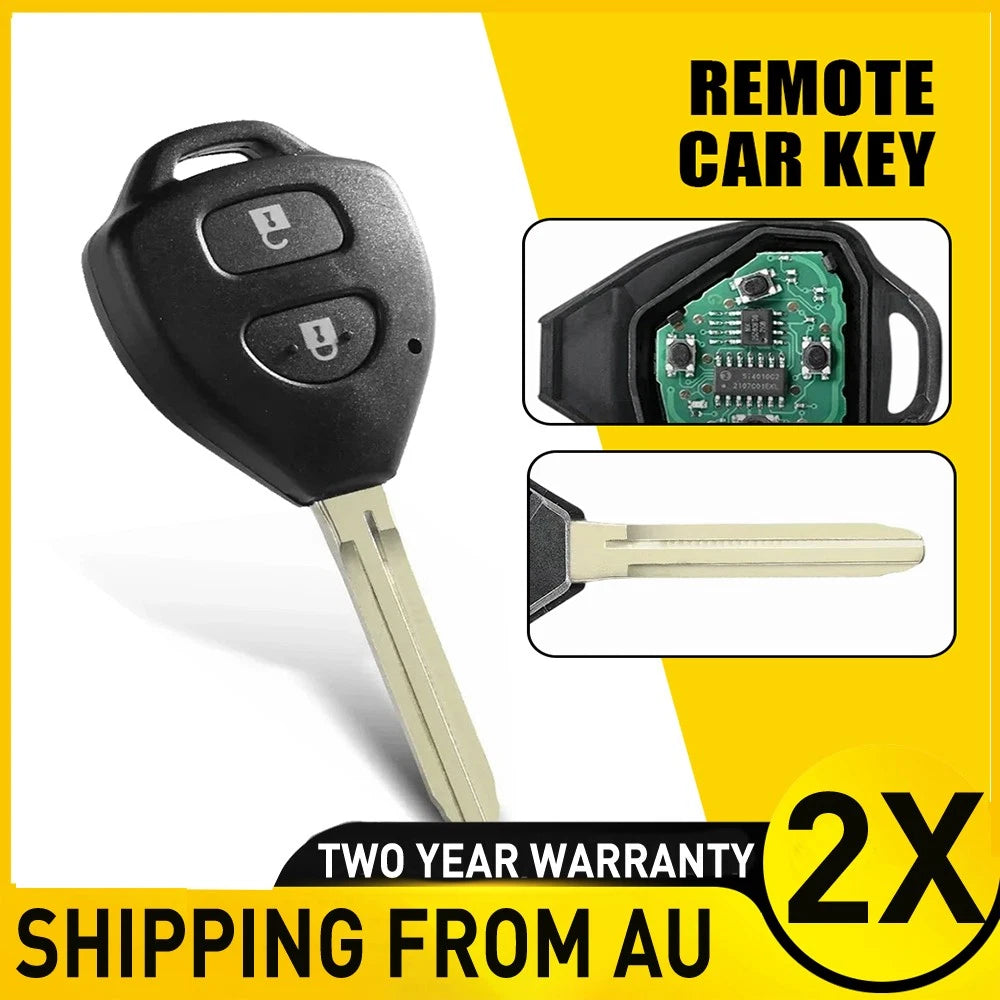

2x Remote Key Fob Kit for Toyota Hilux Yaris Corolla B41TA G Chip

OVERVIEW

Complete 2-button remote key fob kit with transponder chip and electronics, suitable for selected Toyota Hilux, Yaris and Corolla models using B41TA frequency and G chip immobiliser systems.

COMPATIBILITY

• Compatible with Toyota Hilux: 10/2009 to 05/2015
• Compatible with Toyota Yaris: 12/2011 to 06/2014
• Compatible with Toyota Corolla: 10/2009 to 08/2012

Only suitable where the original key matches B41TA frequency (not B41TH), blade style and overall appearance.

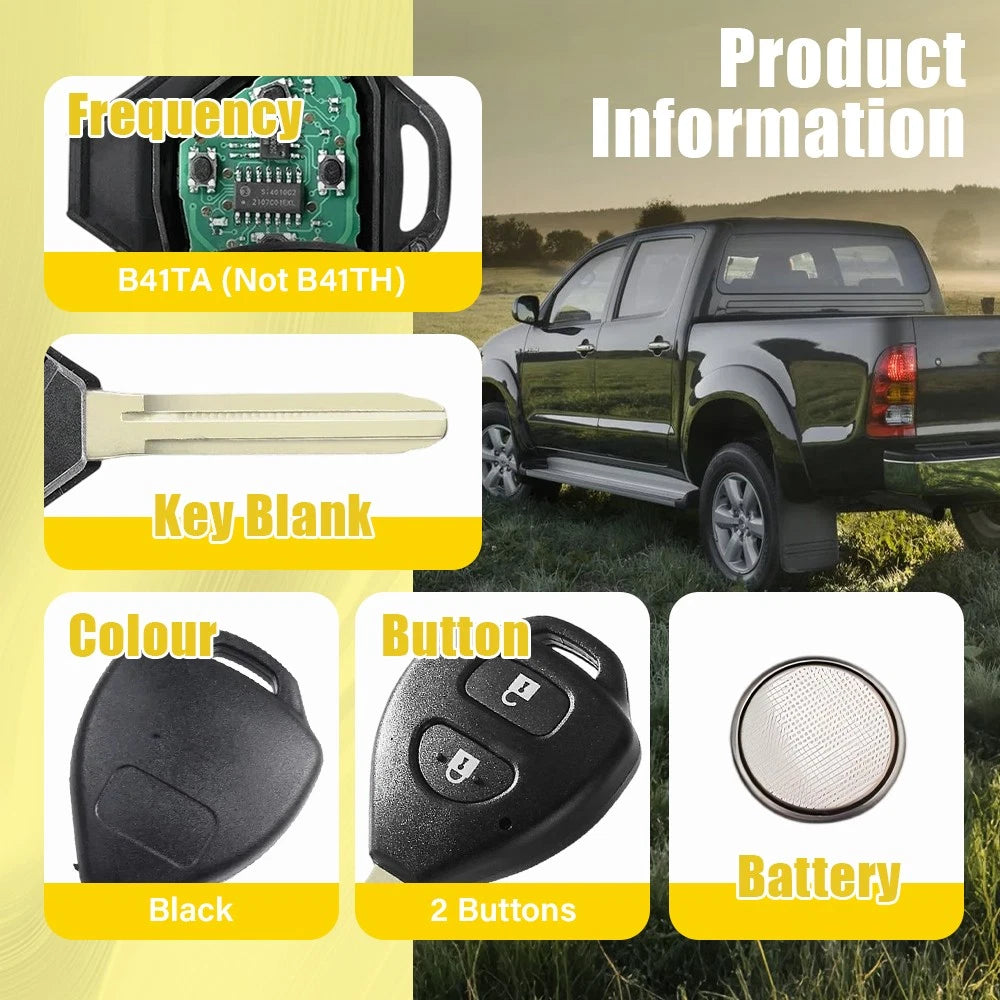

SPECIFICATIONS

• Type: Transponder remote key fob
• Buttons: 2 (lock / unlock)
• Transponder chip: G
• Frequency: B41TA (not B41TH)
• Bundle: 314.3 MHz G chip
• Key blank: Included
• Electronics & battery: Included
• Material: Metal with plastic housing
• Colour: Black
• Approx. packaging weight: 30 g

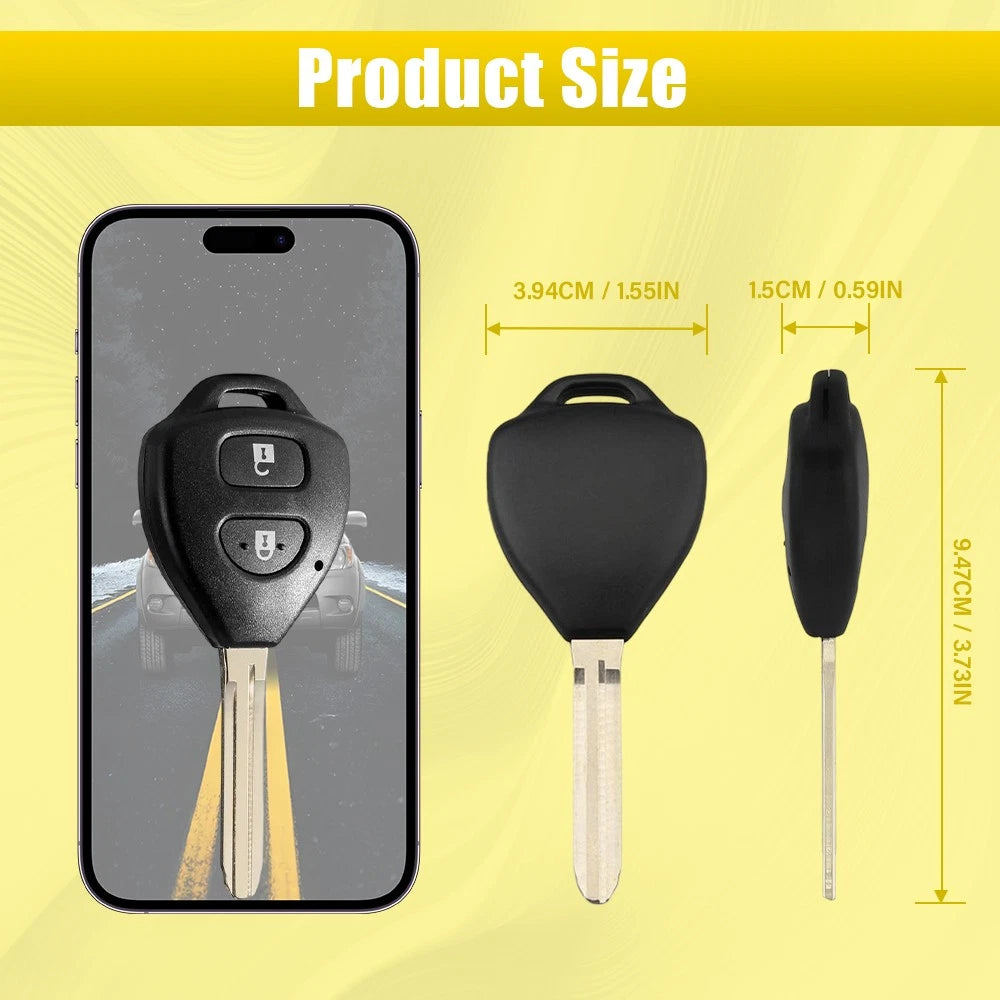

• Approx. packaging size: 20 x 12 x 2 cm

FEATURES

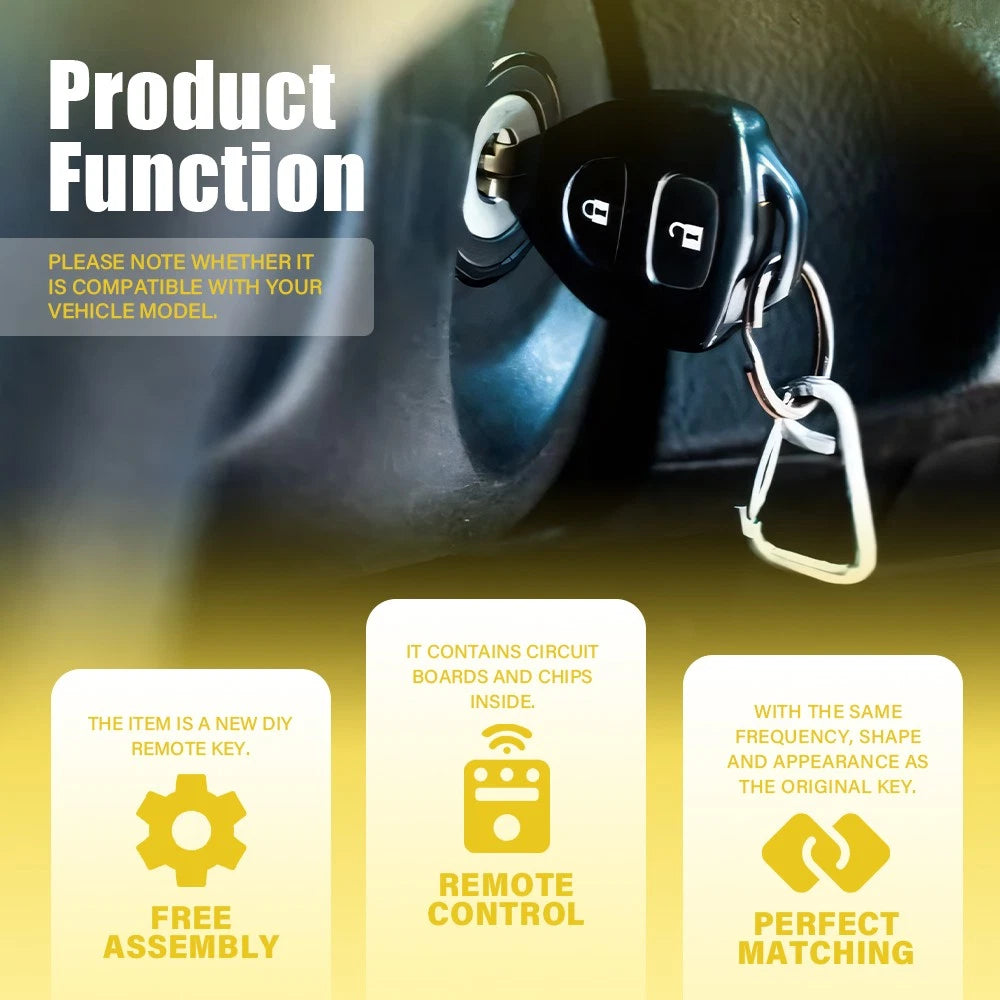

• Complete DIY remote key solution: housing, circuit board, G chip and battery included
• Designed for vehicles using B41TA frequency for reliable remote operation
• Secure G type transponder for proper immobiliser communication
• Convenient two-button layout for central locking control

Please verify the frequency, transponder type, and key blade profile against your original key before purchase.

PROGRAMMING – REMOTE FUNCTIONS

Program the remote functions before having the key blade cut. Procedure may vary by vehicle; professional assistance is recommended if you are unsure.

1. Open the driver's door.
2. Insert and remove the original key from the ignition 2 times.
3. Close and open the driver's door 2 times.
4. Insert and remove the original key once.
5. Close and open the driver's door 2 times.
6. Close the door.
7. Turn the ignition ON.
8. Turn the ignition OFF and remove the key.
9. Wait for the door locks to cycle.
10. On the new remote, press LOCK and UNLOCK together for 1 second, then press LOCK.
11. When locks cycle, insert key, turn ignition ON then OFF.
12. Remove the key, close the door and test the remote.

To delete previously programmed remotes, a separate procedure may be required; refer to your service manual or a qualified locksmith.

PROGRAMMING – TRANSPONDER KEY

A working master key is typically required. If you do not have one, consult an automotive locksmith or dealer.

1. Insert the original master key into the ignition and remove it 5 times, finishing with the key inserted.
2. Open and close the driver's door 6 times.
3. Remove the original key and insert the new key.
4. Leave the new key in the ignition for about 60 seconds (or until the security light stops flashing).
5. After the light stops flashing, start the vehicle to confirm programming.
6. Remove the key.

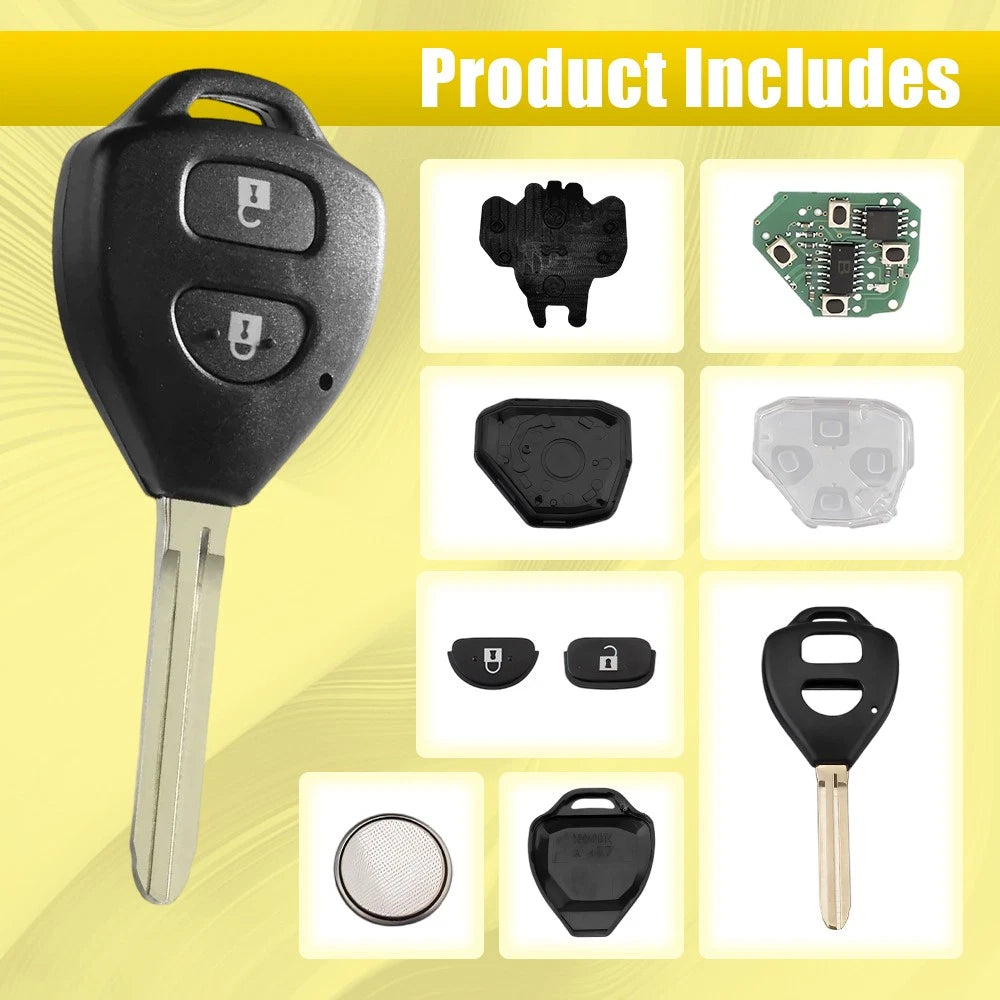

PACKAGE CONTENTS

• 2 x 2-button remote key fobs (key blanks)
• 2 x Electronic circuit boards
• 2 x G transponder key chips

Professional cutting and coding is recommended for best results and to ensure full functionality.
