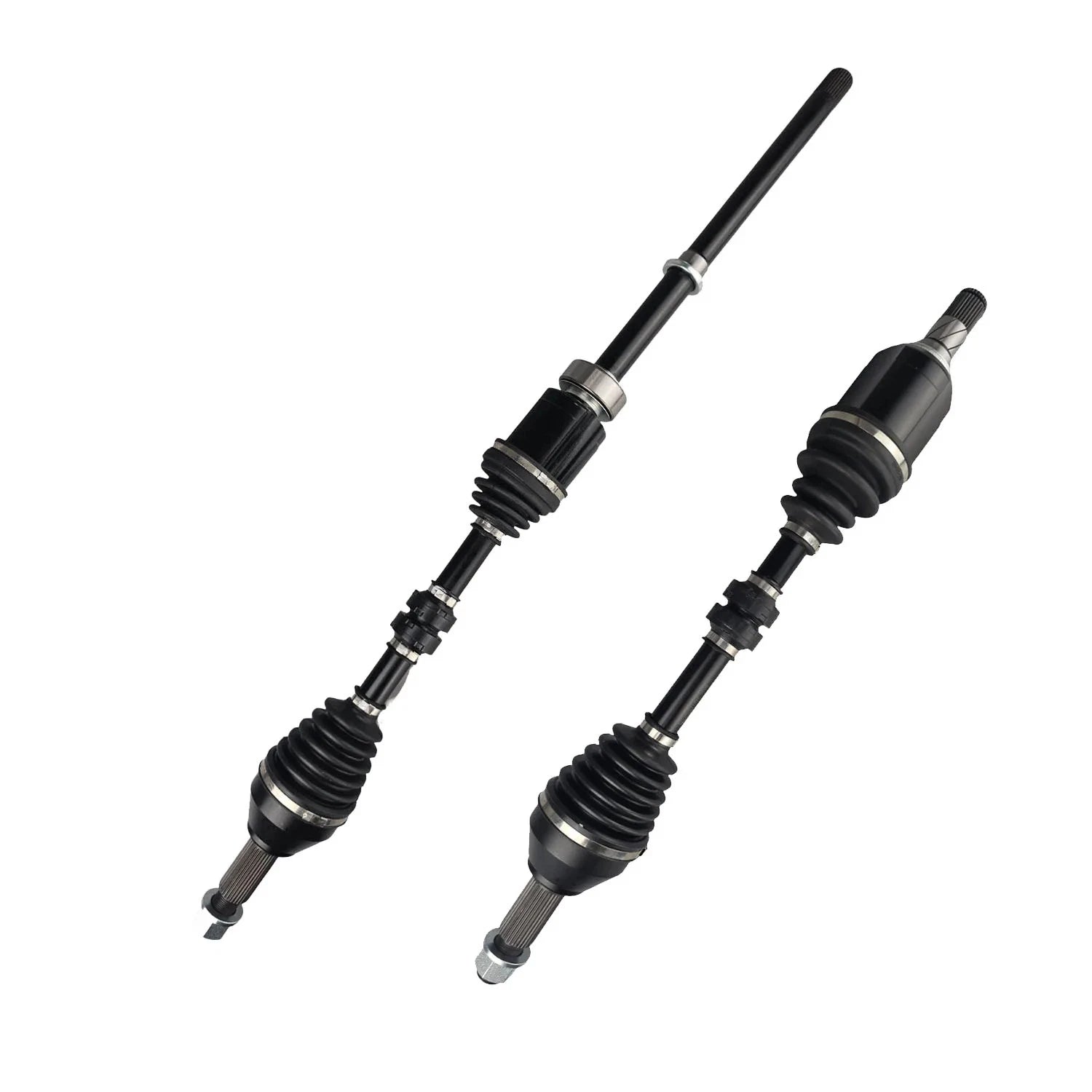

Front CV Axle Drive Shaft Pair for Nissan Pathfinder R52 AWD CVT 2013-2021

PRODUCT OVERVIEW

This front CV axle drive shaft pair (left and right) is engineered for Nissan Pathfinder R52 AWD CVT models, built to OEM specifications for reliable drivetrain performance and fitment.

KEY FEATURES

• Designed as a direct replacement front CV axle pair for Nissan Pathfinder R52 AWD CVT
• Heat-treated chrome steel construction to maximize strength and service life
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Molybdenum grease for smooth operation at varying angles, speeds, and high RPM
• Supplied as a matched left and right-hand side pair for complete front axle service

FITMENT DETAILS

• Nissan Pathfinder R52 2.5L QR25DER Hybrid Supercharged AWD CVT (08/2014 - 01/2021) – AWD CVT only
• Nissan Pathfinder R52 3.5L VQ35DE / VQ35DD AWD CVT (10/2013 - 01/2021) – AWD CVT only
• Pair kit is for AWD CVT models only – please confirm specifications before purchase
• For FWD models, refer to part numbers CVA1633 and CVA1634 (not included)

SPECIFICATIONS

• Compressed length (shaft 1): 1054 mm
• Compressed length (shaft 2): 695 mm
• Spline count – outer / wheel side: 32T
• Spline count – inner: 29T
• Outboard joint type: Ball
• Inboard joint type: Tripod
• Extension shaft bearing OD: 72 mm
• Extension shaft length from outside of bearing: 455 mm
• Extension shaft length outside of tin dust cover to end: 292 mm
• Hub nut style: M24 x 1.5

WHAT'S INCLUDED

• 1 x Front right CV axle drive shaft
• 1 x Front left CV axle drive shaft

WARRANTY

• 12 month / 20,000 km warranty on CV driveshafts
• CV boots warranted for 3 months from date of purchase

FITMENT NOTICE

• AWD CVT models only – not suitable for FWD or non-CVT transmissions
• Please verify engine type, drivetrain, and transmission before ordering
