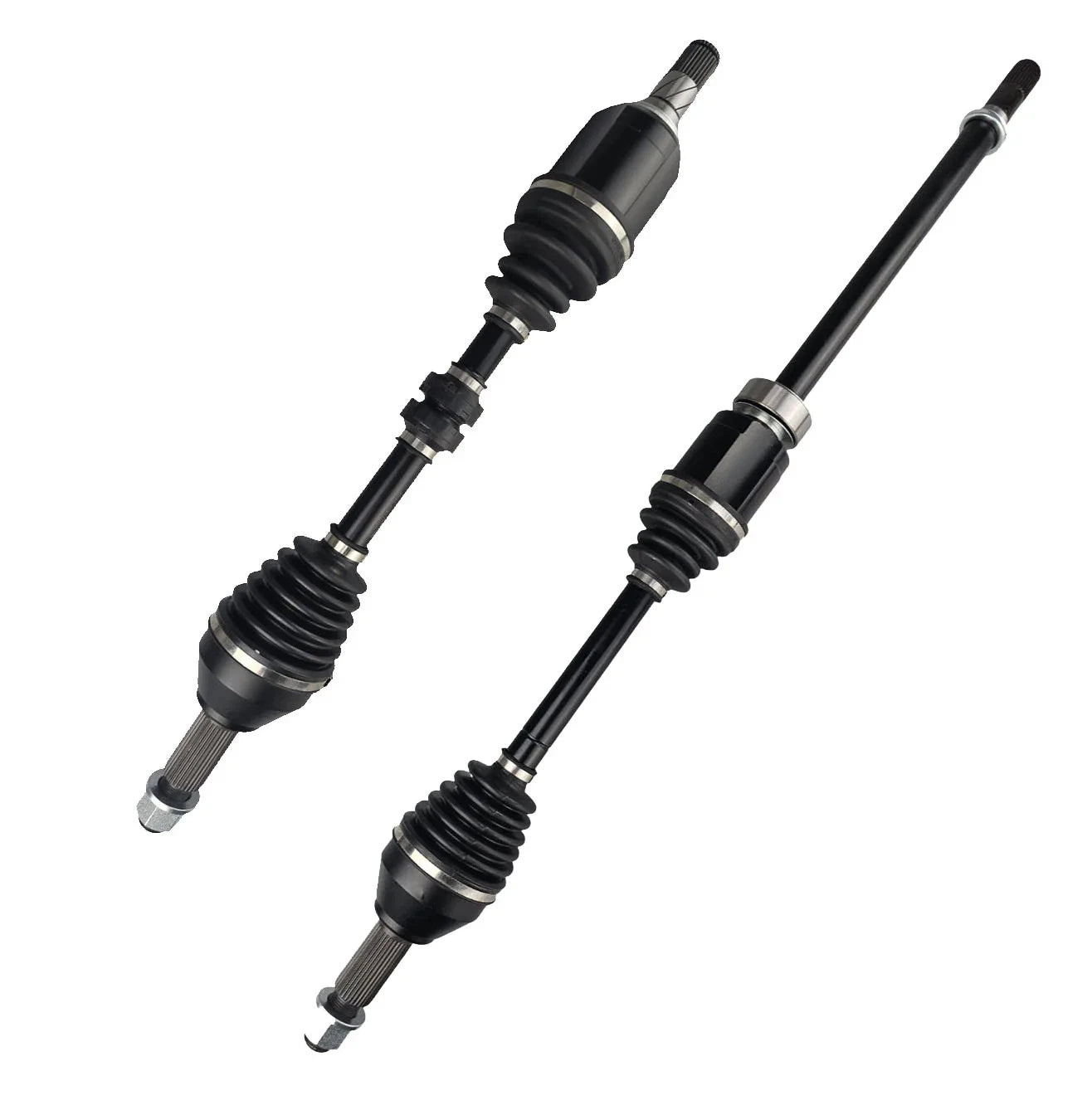

Front CV Axle Drive Shaft Pair for Nissan Pathfinder R52 FWD CVT 2013-2021

PRODUCT OVERVIEW

This front CV axle drive shaft pair (left and right) is engineered to meet OEM specifications for Nissan Pathfinder R52 FWD CVT models. Heat-treated chrome steel construction and high-quality components provide reliable performance and long service life.

KEY FEATURES

• Complete front pair: left-hand and right-hand CV axle shafts
• Built to OEM specifications for fit, form and function
• Heat-treated chrome steel for strength and durability
• High-quality neoprene dust boots with stainless steel clamps
• Molybdenum grease for smooth operation at varying angles and speeds
• Designed specifically for FWD CVT applications

FITMENT DETAILS

Compatible with Nissan Pathfinder R52 FWD CVT only (verify transmission and drivetrain before purchase):

• 2.5L QR25DER Hybrid Supercharged AWD CVT (08/2014 - 01/2021) — FWD CVT only; sub-models include ST, L, TI, Hybrid, TI Hybrid, Hybrid OP
• 3.5L VQ35DE / VQ35DD AWD CVT (10/2013 - 01/2021) — FWD CVT only; sub-models include ST, ST-L, Ti, N-Trek
• Pair kit is for FWD CVT only. Please check all specifications for accurate fitment.
• For AWD models, refer to part numbers CVA1632 / CVA1633 (not included in this kit).

SPECIFICATIONS – RIGHT CV SHAFT

• Length (compressed): 1050 mm
• Spline count – outer/wheel side: 32T
• Spline count – inner side: 29T
• Outboard joint type: Ball
• Inboard joint type: Tripod
• Extension shaft bearing OD: 72 mm
• Extension shaft bearing width: 25 mm
• Extension shaft length from outside of bearing: 455 mm
• Extension shaft length outside of tin dust cover to end: 90 mm
• Hub nut style: M24 x 1.5

SPECIFICATIONS – LEFT CV SHAFT

• Length (compressed): 695 mm
• Spline count – outer/wheel side: 32T
• Spline count – inner side: 29T
• Outboard joint type: Ball
• Inboard joint type: Tripod
• Hub nut style: M24 x 1.5

INCLUDED IN KIT

• 1 x Front right CV axle drive shaft
• 1 x Front left CV axle drive shaft

ADDITIONAL INFORMATION

• Engineered for the majority of Nissan Pathfinder R52 FWD CVT applications within the listed years.
• All CV driveshafts are typically supplied with a 12 month / 20,000 km warranty (CV boots may be covered for a shorter period; check seller terms).
• Always confirm spline counts, lengths and drivetrain (FWD vs AWD) before installation.
