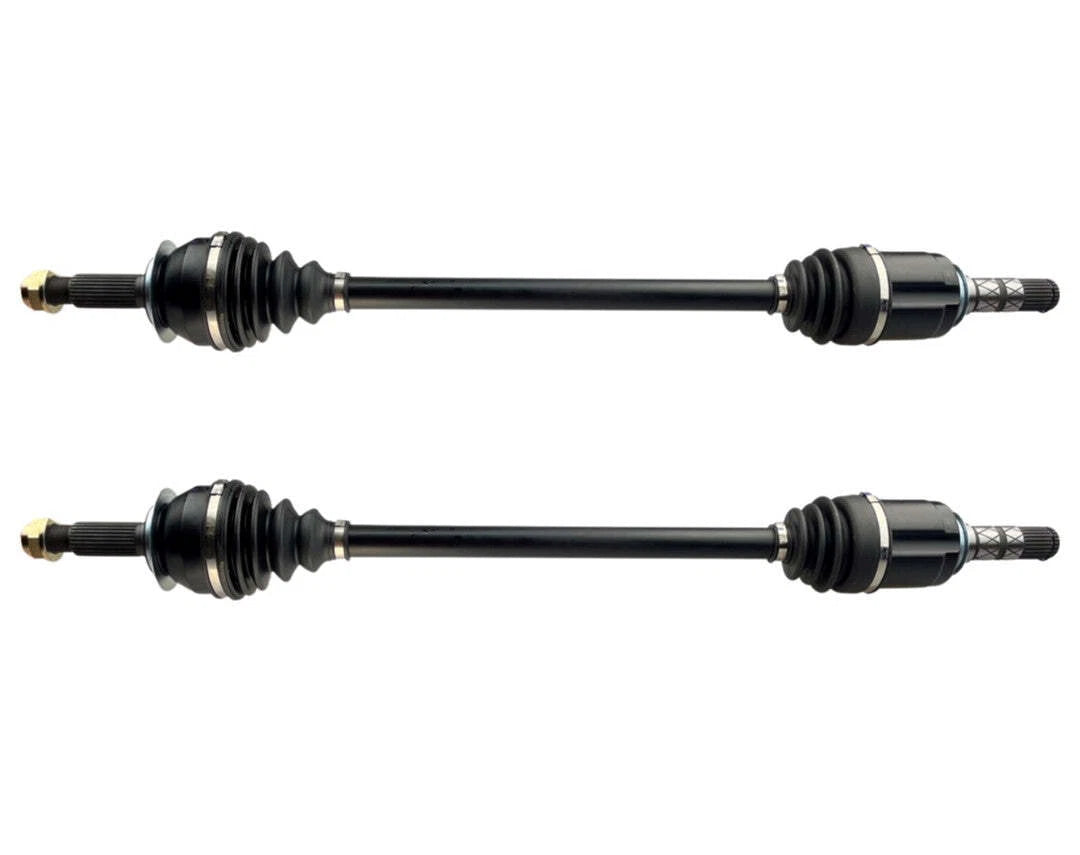

2x Front CV Axle Drive Shafts Pair for Subaru Outback, Liberty & Tribeca

PRODUCT OVERVIEW

Pair of front CV axle drive shafts (left and right) for selected Subaru Outback, Liberty and Tribeca AWD models with CVT, automatic or manual transmissions. Designed as a direct replacement to OEM driveshafts.

KEY FEATURES

• Supplied as a matched left and right front CV shaft pair
• Built to OEM specifications for fit, performance and durability
• Heat-treated chrome steel construction for extended service life
• High-quality neoprene dust boots with stainless steel clamps
• Molybdenum grease for smooth operation at varying angles and speeds

SIZING & SPECIFICATIONS

• Position: Front, left and right
• Length (compressed): 826.5 mm
• Wheel side spline length: 86.5 mm
• Inboard joint type: Tripod
• Outboard joint type: Ball
• Outer / wheel side spline count: 27T
• Inner / diff side spline count: 25T
• If 807 mm length is required, refer to part CVA1046

VEHICLE FITMENT DETAILS

Suitable for selected Subaru AWD models (verify all dimensions and spline counts against your original parts):

• Outback BSD Series (BS/B15), 2.0L EE20Z (08/2014 - 12/2020), sub models: 2.0D, 2.0D Premium
• Outback BRD, BRM Series (BR/B14), 2.0L EE20Z & 2.5L FB25A (10/2009 - 01/2015), sub models: 2.0D & Premium, 2.5i & Premium
• Outback BT9 Series (BT/B16), 2.5L FB25C (10/2020 - on), sub models: AWD
• Liberty BMM, BRM, BMF Series (BM/B14, BR/B14), 2.5L FB25A & 3.6L EZ36D (05/2009 - 11/2014), sub models: 2.5X, 2.5i, 2.5i Premium, 3.6R, 3.6X
• Tribeca WXE, WXF Series (WX/W10), 3.0L EZ30D & 3.6L EZ36D (03/2006 - 08/2013), sub models: 3.0R, 3.0R Premium, 3.6R, 3.6R Columbia Limited Edition, 3.6R Premium

Always confirm chassis code, engine, transmission type and measurements before purchase.

WHAT'S INCLUDED

• 2 x complete front CV axle drive shafts (left and right)

WARRANTY

• 12 month / 20,000 km warranty on CV driveshafts
• CV boots warranted for 3 months from date of purchase

Installation by a qualified technician is recommended. Replace in pairs to maintain balanced driveline performance.
