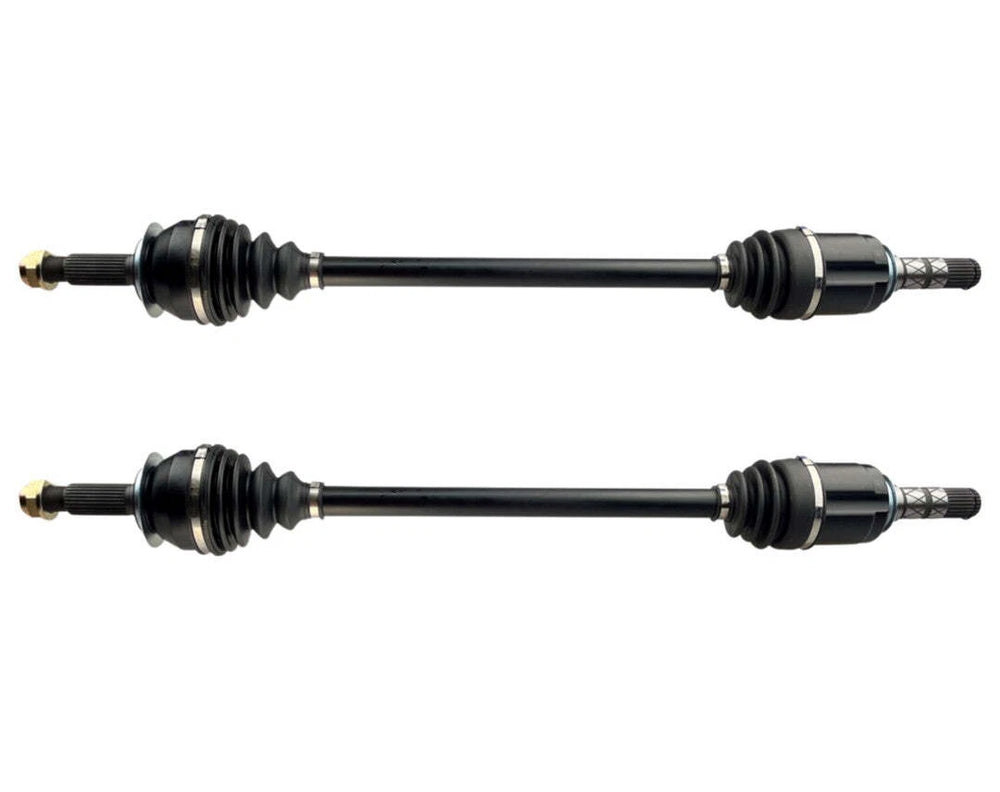

2x Front CV Axle Drive Shafts Pair for Subaru Outback, Liberty & Tribeca
A$308.74
PRODUCT OVERVIEW Pair of front CV axle drive shafts (left and right) for selected Subaru Outback, Liberty and Tribeca AWD models with CVT, automatic or manual transmissions. Designed as a...
Guaranteed Fitment
Fast Shipping
Product Details
PRODUCT OVERVIEW
Pair of front CV axle drive shafts (left and right) for selected Subaru Outback, Liberty and Tribeca AWD models with CVT, automatic or manual transmissions. Designed as a direct replacement to OEM driveshafts.
KEY FEATURES
- Supplied as a matched left and right front CV shaft pair
- Built to OEM specifications for fit, performance and durability
- Heat-treated chrome steel construction for extended service life
- High-quality neoprene dust boots with stainless steel clamps
- Molybdenum grease for smooth operation at varying angles and speeds
SIZING & SPECIFICATIONS
- Position: Front, left and right
- Length (compressed): 826.5 mm
- Wheel side spline length: 86.5 mm
- Inboard joint type: Tripod
- Outboard joint type: Ball
- Outer / wheel side spline count: 27T
- Inner / diff side spline count: 25T
- If 807 mm length is required, refer to part CVA1046
VEHICLE FITMENT DETAILS
Suitable for selected Subaru AWD models (verify all dimensions and spline counts against your original parts):
- Outback BSD Series (BS/B15), 2.0L EE20Z (08/2014 - 12/2020), sub models: 2.0D, 2.0D Premium
- Outback BRD, BRM Series (BR/B14), 2.0L EE20Z & 2.5L FB25A (10/2009 - 01/2015), sub models: 2.0D & Premium, 2.5i & Premium
- Outback BT9 Series (BT/B16), 2.5L FB25C (10/2020 - on), sub models: AWD
- Liberty BMM, BRM, BMF Series (BM/B14, BR/B14), 2.5L FB25A & 3.6L EZ36D (05/2009 - 11/2014), sub models: 2.5X, 2.5i, 2.5i Premium, 3.6R, 3.6X
- Tribeca WXE, WXF Series (WX/W10), 3.0L EZ30D & 3.6L EZ36D (03/2006 - 08/2013), sub models: 3.0R, 3.0R Premium, 3.6R, 3.6R Columbia Limited Edition, 3.6R Premium
Always confirm chassis code, engine, transmission type and measurements before purchase.
WHAT'S INCLUDED
- 2 x complete front CV axle drive shafts (left and right)
WARRANTY
- 12 month / 20,000 km warranty on CV driveshafts
- CV boots warranted for 3 months from date of purchase
Installation by a qualified technician is recommended. Replace in pairs to maintain balanced driveline performance.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Subaru | Outback | 2023 | BT Wagon 2.5 AWD (BT9) | AWD Petrol 2.5L 4cyl 136kW FB25D,FB25C | 2498cc 136kW (Petrol) | |
| Subaru | Outback | 2022 | BT Wagon 2.5 AWD (BT9) | AWD Petrol 2.5L 4cyl 136kW FB25D,FB25C | 2498cc 136kW (Petrol) | |
| Subaru | Outback | 2021 | BT Wagon 2.5 AWD (BT9) | AWD Petrol 2.5L 4cyl 136kW FB25D,FB25C | 2498cc 136kW (Petrol) | |
| Subaru | Outback | 2020 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2020 | BT Wagon 2.5 AWD (BT9) | AWD Petrol 2.5L 4cyl 136kW FB25D,FB25C | 2498cc 136kW (Petrol) | |
| Subaru | Outback | 2019 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2018 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2017 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2016 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2015 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 125kW FB25 | 2498cc 125kW (Petrol) | |
| Subaru | Outback | 2015 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 127kW FB25B | 2498cc 127kW (Petrol) | |
| Subaru | Outback | 2015 | BR Wagon 2.0 D AWD (BRD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2015 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Liberty | 2014 | BM Sedan 2.5 AWD (BMM) | AWD Petrol 2.5L 4cyl 129kW FB25 | 2498cc 129kW (Petrol) | |
| Subaru | Liberty | 2014 | BM Sedan 2.5 i AWD (BMM) | AWD Petrol 2.5L 4cyl 127kW FB25,FB25A,FB25B | 2498cc 127kW (Petrol) | |
| Subaru | Liberty | 2014 | BM Sedan 3.6 AWD (BMF) | AWD Petrol 3.6L 6cyl 191kW EZ36D | 3630cc 191kW (Petrol) | |
| Subaru | Liberty | 2014 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 127kW FB25 | 2498cc 127kW (Petrol) | |
| Subaru | Outback | 2014 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 125kW FB25 | 2498cc 125kW (Petrol) | |
| Subaru | Outback | 2014 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 127kW FB25B | 2498cc 127kW (Petrol) | |
| Subaru | Outback | 2014 | BR Wagon 2.0 D AWD (BRD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) |
PRODUCT OVERVIEW
Pair of front CV axle drive shafts (left and right) for selected Subaru Outback, Liberty and Tribeca AWD models with CVT, automatic or manual transmissions. Designed as a direct replacement to OEM driveshafts.
KEY FEATURES
- Supplied as a matched left and right front CV shaft pair
- Built to OEM specifications for fit, performance and durability
- Heat-treated chrome steel construction for extended service life
- High-quality neoprene dust boots with stainless steel clamps
- Molybdenum grease for smooth operation at varying angles and speeds
SIZING & SPECIFICATIONS
- Position: Front, left and right
- Length (compressed): 826.5 mm
- Wheel side spline length: 86.5 mm
- Inboard joint type: Tripod
- Outboard joint type: Ball
- Outer / wheel side spline count: 27T
- Inner / diff side spline count: 25T
- If 807 mm length is required, refer to part CVA1046
VEHICLE FITMENT DETAILS
Suitable for selected Subaru AWD models (verify all dimensions and spline counts against your original parts):
- Outback BSD Series (BS/B15), 2.0L EE20Z (08/2014 - 12/2020), sub models: 2.0D, 2.0D Premium
- Outback BRD, BRM Series (BR/B14), 2.0L EE20Z & 2.5L FB25A (10/2009 - 01/2015), sub models: 2.0D & Premium, 2.5i & Premium
- Outback BT9 Series (BT/B16), 2.5L FB25C (10/2020 - on), sub models: AWD
- Liberty BMM, BRM, BMF Series (BM/B14, BR/B14), 2.5L FB25A & 3.6L EZ36D (05/2009 - 11/2014), sub models: 2.5X, 2.5i, 2.5i Premium, 3.6R, 3.6X
- Tribeca WXE, WXF Series (WX/W10), 3.0L EZ30D & 3.6L EZ36D (03/2006 - 08/2013), sub models: 3.0R, 3.0R Premium, 3.6R, 3.6R Columbia Limited Edition, 3.6R Premium
Always confirm chassis code, engine, transmission type and measurements before purchase.
WHAT'S INCLUDED
- 2 x complete front CV axle drive shafts (left and right)
WARRANTY
- 12 month / 20,000 km warranty on CV driveshafts
- CV boots warranted for 3 months from date of purchase
Installation by a qualified technician is recommended. Replace in pairs to maintain balanced driveline performance.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Subaru | Outback | 2023 | BT Wagon 2.5 AWD (BT9) | AWD Petrol 2.5L 4cyl 136kW FB25D,FB25C | 2498cc 136kW (Petrol) | |
| Subaru | Outback | 2022 | BT Wagon 2.5 AWD (BT9) | AWD Petrol 2.5L 4cyl 136kW FB25D,FB25C | 2498cc 136kW (Petrol) | |
| Subaru | Outback | 2021 | BT Wagon 2.5 AWD (BT9) | AWD Petrol 2.5L 4cyl 136kW FB25D,FB25C | 2498cc 136kW (Petrol) | |
| Subaru | Outback | 2020 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2020 | BT Wagon 2.5 AWD (BT9) | AWD Petrol 2.5L 4cyl 136kW FB25D,FB25C | 2498cc 136kW (Petrol) | |
| Subaru | Outback | 2019 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2018 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2017 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2016 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2015 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 125kW FB25 | 2498cc 125kW (Petrol) | |
| Subaru | Outback | 2015 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 127kW FB25B | 2498cc 127kW (Petrol) | |
| Subaru | Outback | 2015 | BR Wagon 2.0 D AWD (BRD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Outback | 2015 | BS Wagon 2.0 D AWD (BSD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) | |
| Subaru | Liberty | 2014 | BM Sedan 2.5 AWD (BMM) | AWD Petrol 2.5L 4cyl 129kW FB25 | 2498cc 129kW (Petrol) | |
| Subaru | Liberty | 2014 | BM Sedan 2.5 i AWD (BMM) | AWD Petrol 2.5L 4cyl 127kW FB25,FB25A,FB25B | 2498cc 127kW (Petrol) | |
| Subaru | Liberty | 2014 | BM Sedan 3.6 AWD (BMF) | AWD Petrol 3.6L 6cyl 191kW EZ36D | 3630cc 191kW (Petrol) | |
| Subaru | Liberty | 2014 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 127kW FB25 | 2498cc 127kW (Petrol) | |
| Subaru | Outback | 2014 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 125kW FB25 | 2498cc 125kW (Petrol) | |
| Subaru | Outback | 2014 | BR Wagon 2.5 i AWD (BRM) | AWD Petrol 2.5L 4cyl 127kW FB25B | 2498cc 127kW (Petrol) | |
| Subaru | Outback | 2014 | BR Wagon 2.0 D AWD (BRD) | AWD Diesel 2.0L 4cyl 110kW EE20Z | 1998cc 110kW (Diesel) |
