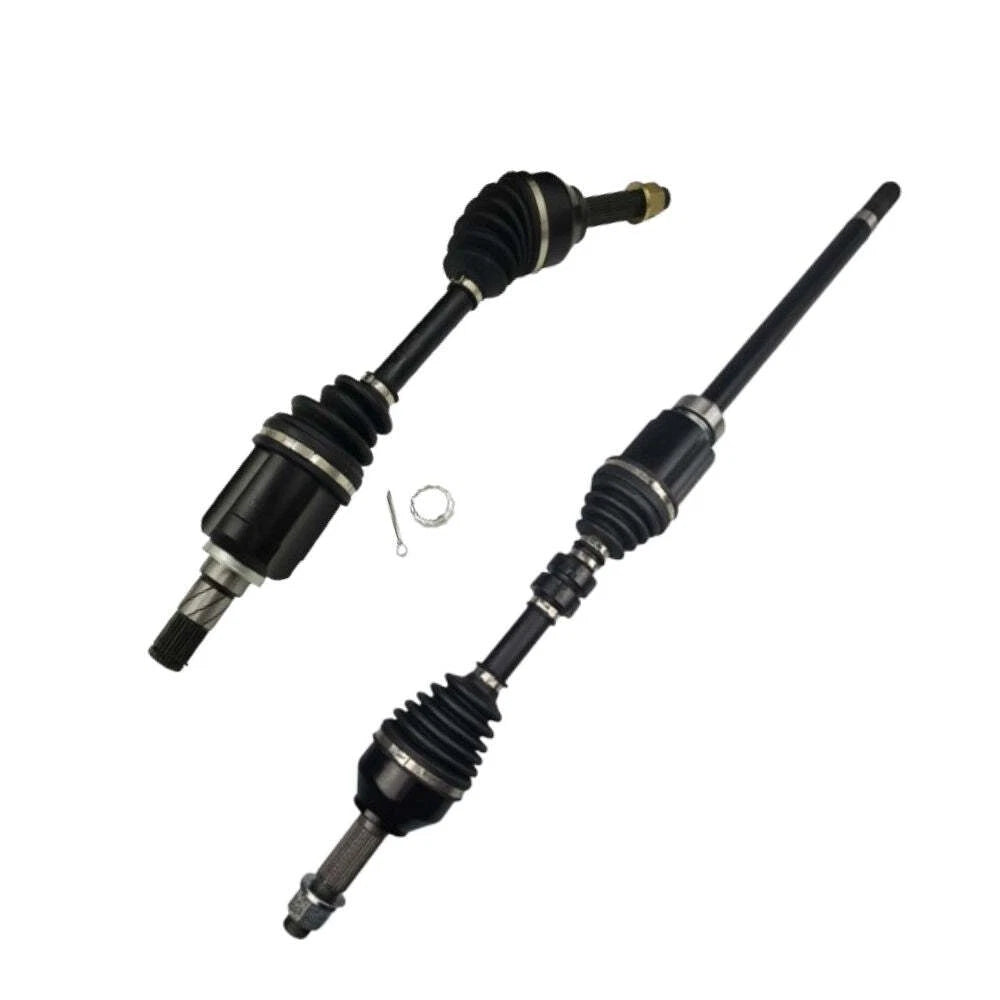

Front CV Drive Shaft Pair for Nissan Dualis J10 & X-Trail T31 AWD Manual 29T

PRODUCT OVERVIEW

Pair of front left and right CV axle drive shafts for Nissan Dualis J10 and X-Trail T31 AWD manual models with 29-spline shafts. Built to OEM specifications for reliable driveline performance and fitment.

KEY FEATURES

• OEM-style front CV axle shafts for left and right sides
• Heat-treated chrome steel construction for durability
• High-quality neoprene dust boots with stainless steel clamps
• Molybdenum grease for smooth operation at varying angles and speeds
• Designed for AWD/4WD manual transmission applications
• 29T outer and inner spline configuration (manual 29-spline version only)

VEHICLE APPLICATION DETAILS

Nissan Dualis J10 / FBNJ10 / JBNJ10 2.0L MR20DE AWD MT (12/2007 - 01/2016)
Models include ST, +2 ST, Ti, Ti-L, +2 Ti, +2 Ti-L.

Nissan X-Trail T31 / NT31 2.0L MR20DE 4WD MT (08/2007 - 03/2015)
Models include 20S 4WD, 20ST 4WD, 20X 4WD, 20XT 4WD, 20XTT 4WD AXIS, 4WD, DRIVING GEAR 4WD.

Important: Will only fit manual transmission vehicles with 29-spline shafts. Please confirm spline count and transmission type before purchase.

SPECIFICATIONS

• Compressed length: 1003.5 mm
• Outer/wheel side spline count: 29T
• Inner/diff side spline count: 29T
• Outboard joint type: Ball
• Inboard joint type: Tripod
• Bearing outer diameter on extension shaft: 62 mm
• Extension shaft length from inside of bearing face: 426 mm
• Bearing width: 22.5 mm
• Hub nut style: M24 x 1.5
• Secondary shaft length: 620 mm
• Shaft diameter: 27 mm

WHAT'S INCLUDED

• 1 x Front right CV drive shaft
• 1 x Front left CV drive shaft

WARRANTY

• 12 month / 20,000 km warranty on CV driveshafts
• CV boots warranted for 3 months from date of purchase

Always compare measurements, spline counts and joint types with your original parts, and verify compatibility with your specific vehicle variant before installation.
