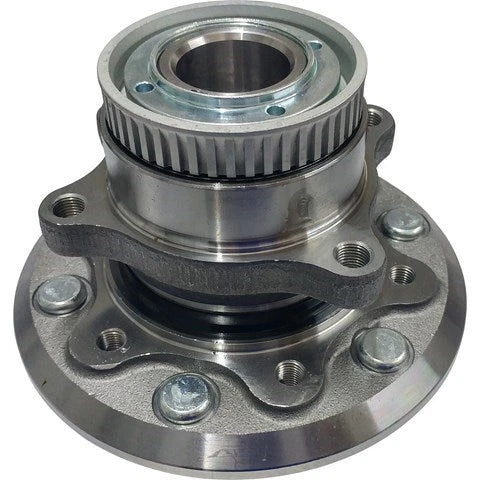

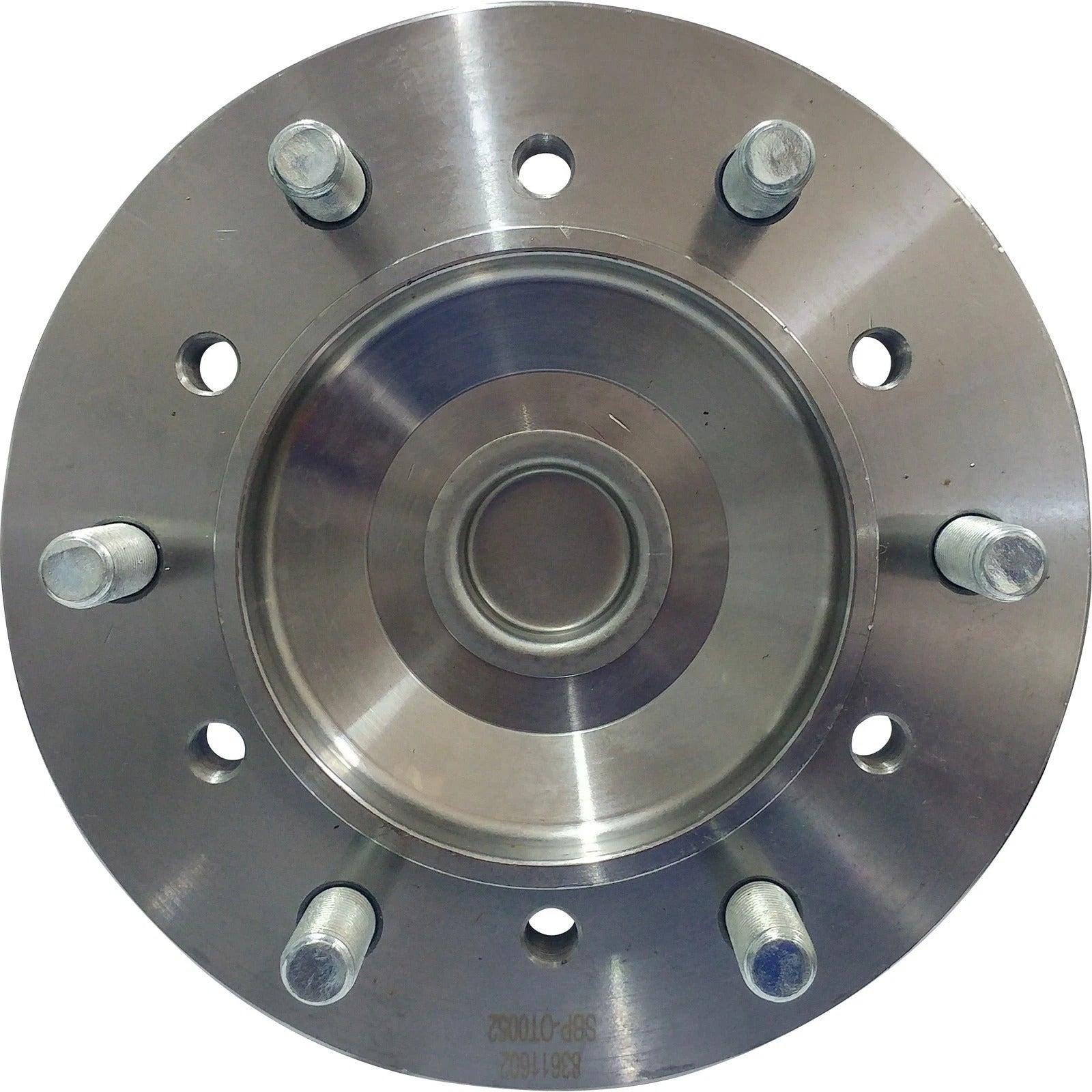

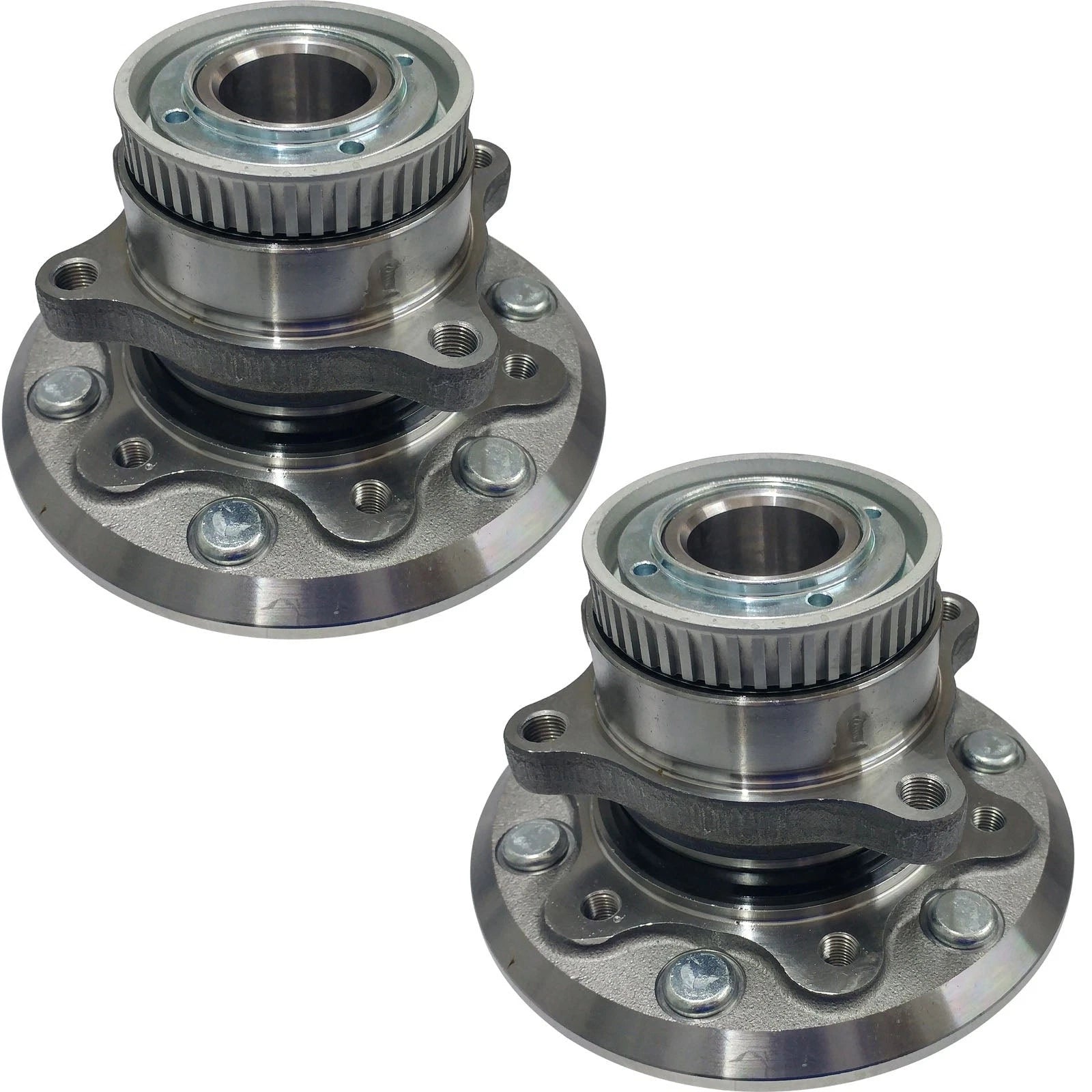

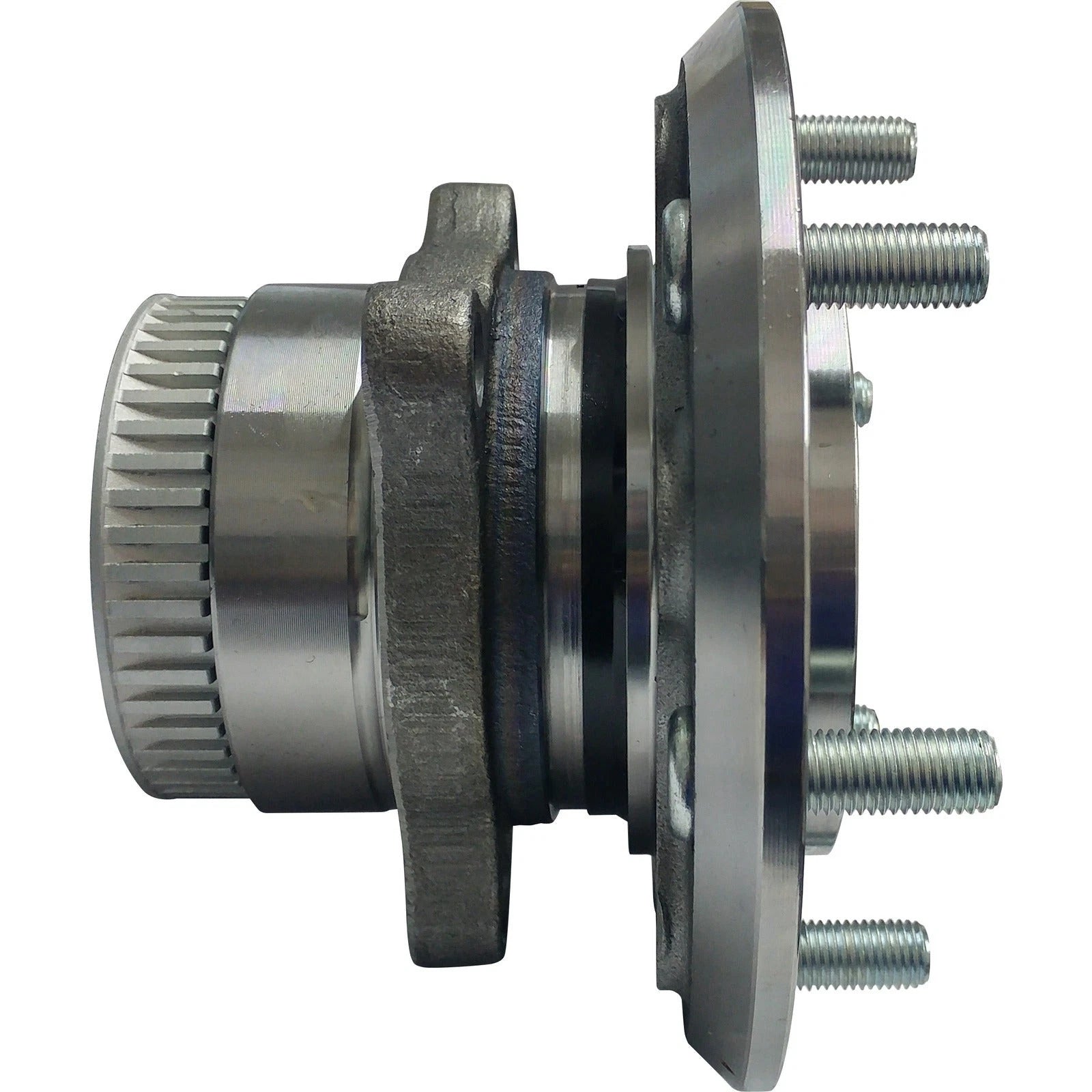

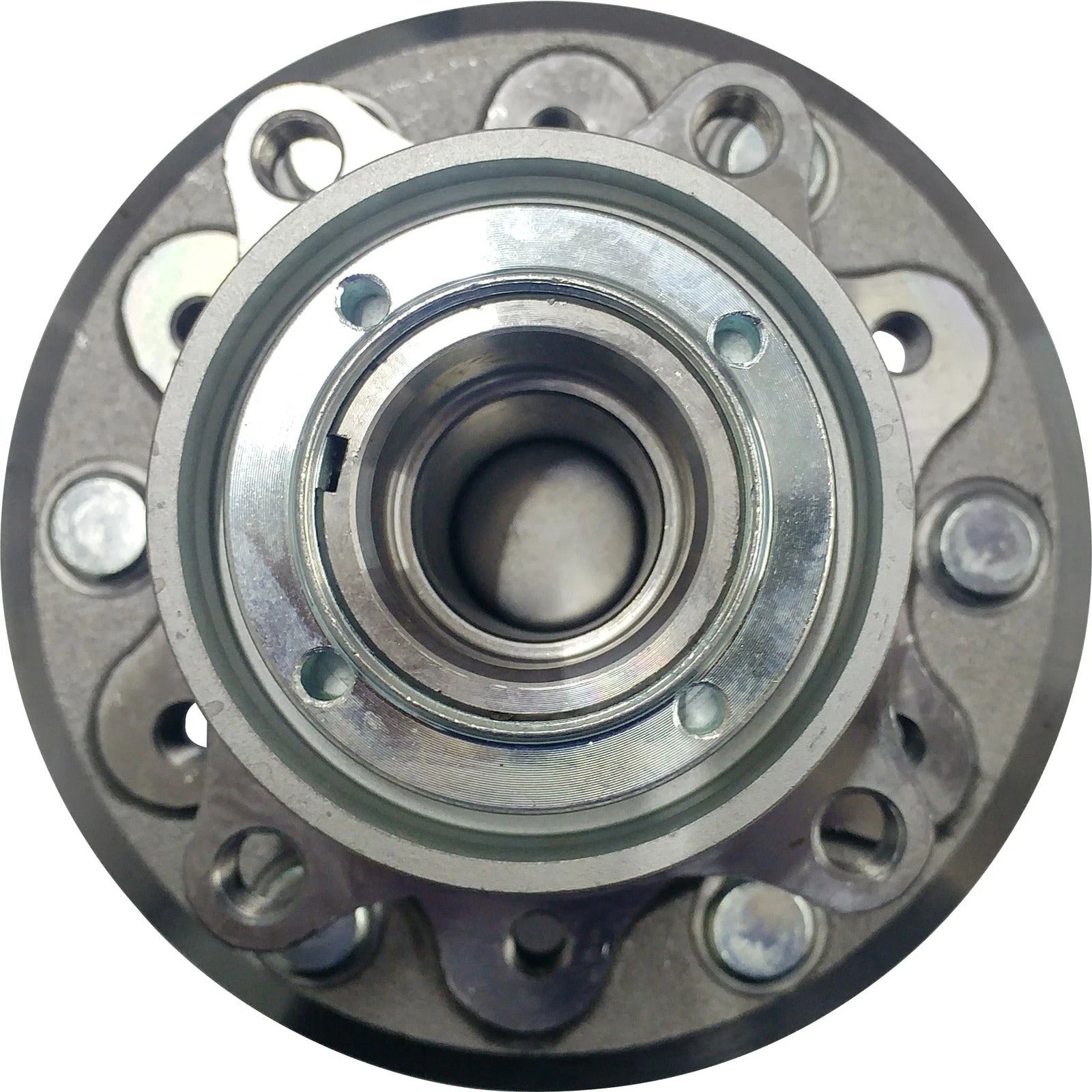

2x Front Wheel Bearing Hub Assembly for Toyota Hiace KDH / TRH (2003-2024)

PRODUCT OVERVIEW

Pair of premium front wheel bearing hub assemblies engineered for Toyota Hiace KDH / TRH models (2003-2024). Manufactured from high-quality steel with heavy-duty seals and OEM-grade components for quiet, smooth operation and long service life.

KEY FEATURES

• 2 x complete front wheel bearing hub assemblies
• Premium steel construction with heavy-duty seals
• Precision engineered to OEM specifications
• Designed for quiet, smooth running and improved durability
• High-grade rubber used on ABS sensor wiring (where applicable)
• 12 month / 20,000km warranty

VEHICLE INFORMATION

Suitable for a wide range of Toyota Hiace KDH and TRH variants from 2003-2024, including DX, GL, Commuter, Super Long Body, High Roof, Bus and Children Bus models with 2.0L, 2.5L, 2.7L and 3.0L engines.

SPECIFICATIONS

• Stud bolt quantity: 6
• Flange mounting hole quantity: 4
• Wheel flange diameter: 180mm
• 6 stud PCD: M12 x 1.5, 139mm
• Wheel pilot diameter: 106mm
• Wheel flange centre hole: 30mm
• Flange offset: 59.8mm
• Hub pilot diameter 1: 92.3mm
• Hub pilot diameter 2: 90mm
• ABS ring teeth: 48
• Hub centre hole: 37mm

WHAT'S INCLUDED

• 2 x complete front wheel bearing hub assemblies

NOTES

• Please confirm all measurements and specifications against your existing hubs before purchase.
• Professional installation is recommended.
