T20 7443 7440 48SMD LED CANBUS Tail Brake Bulbs 2x – Asia Parts Store
Sold out
Pair of T20 7443 7440 48SMD LED 6000K white CANBUS tail brake reverse light bulbs
2x T20 7443 7440 48SMD LED Canbus Tail Brake Reverse Light Bulbs 6000K
2x T20 7443 7440 48SMD LED Canbus Tail Brake Reverse Light Bulbs 6000K
2x T20 7443 7440 48SMD LED Canbus Tail Brake Reverse Light Bulbs 6000K
2x T20 7443 7440 48SMD LED Canbus Tail Brake Reverse Light Bulbs 6000K
2x T20 7443 7440 48SMD LED Canbus Tail Brake Reverse Light Bulbs 6000K
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

2x T20 7443 7440 48SMD LED Canbus Tail Brake Reverse Light Bulbs 6000K

2 8
376757512340
Out of stock
Lighting
A$41.23
PRODUCT OVERVIEW High-output T20 7443 / 7440 LED bulbs with 48 x 4014-SMD chips provide a...

customers are viewing this product
2x T20 7443 7440 48SMD LED Canbus Tail Brake Reverse Light Bulbs 6000K

PRODUCT OVERVIEW

High-output T20 7443 / 7440 LED bulbs with 48 x 4014-SMD chips provide a powerful 6000K white light for improved visibility and response time. Designed as a plug-and-play upgrade for common T20/W21W applications including tail, brake, reverse, and daytime running lights.

KEY FEATURES

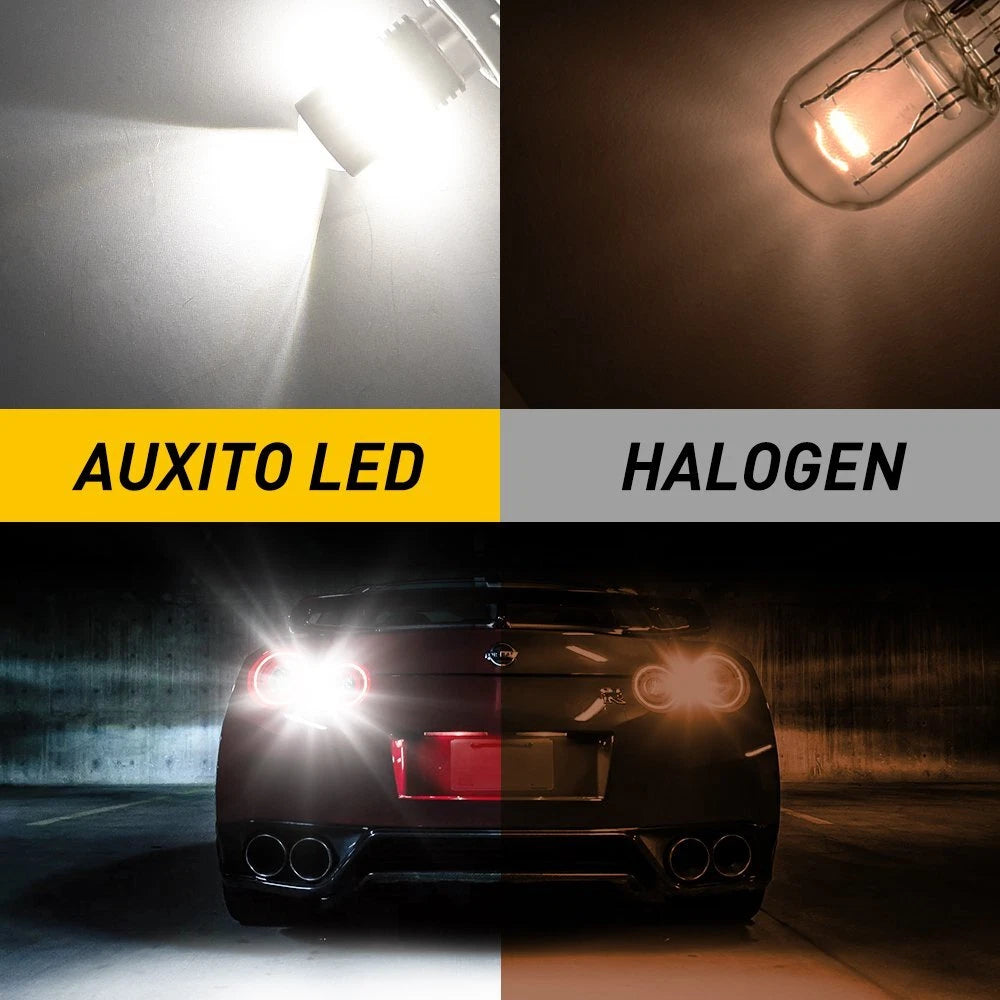

  • High brightness output with up to 300–400% more light than standard halogen bulbs.
  • 48 x 4014-SMD LEDs per bulb for a uniform 360° light distribution.
  • 6000K–6500K cold white colour for a modern, crisp appearance.
  • CANBUS-compatible design helps reduce error warnings and flicker on most vehicles.

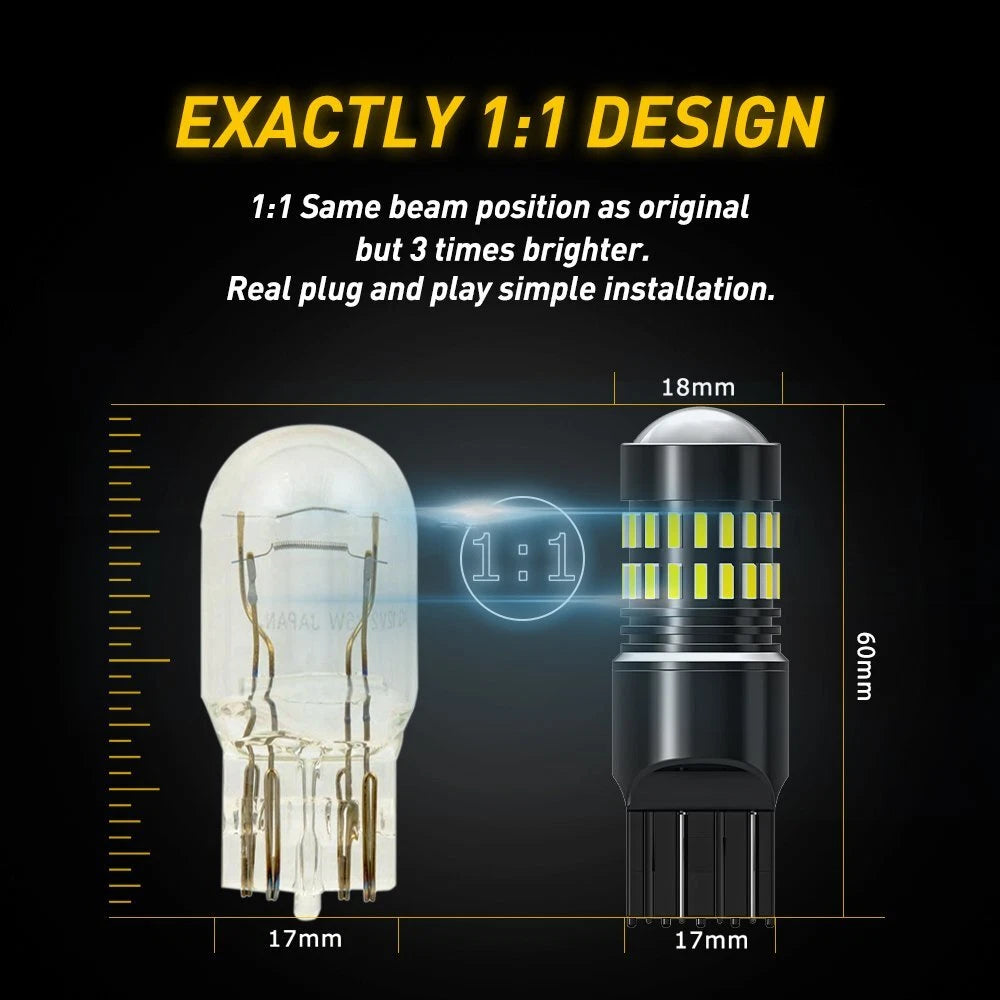

  • Non-polarity, plug-and-play installation with no external driver or ballast required.

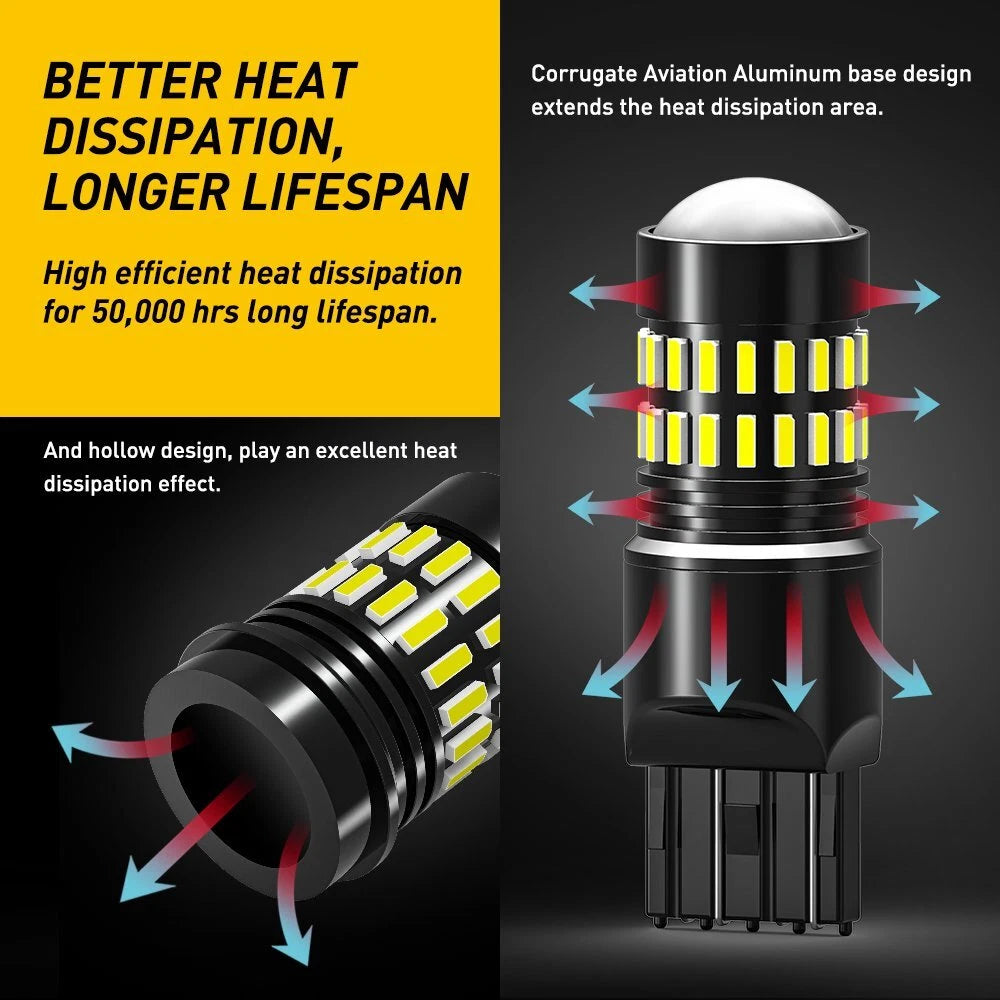

  • Full aluminium body for efficient heat dissipation and extended service life.
  • Fanless construction for silent operation and improved reliability.
  • IP67-rated housing for resistance to water and dust ingress.

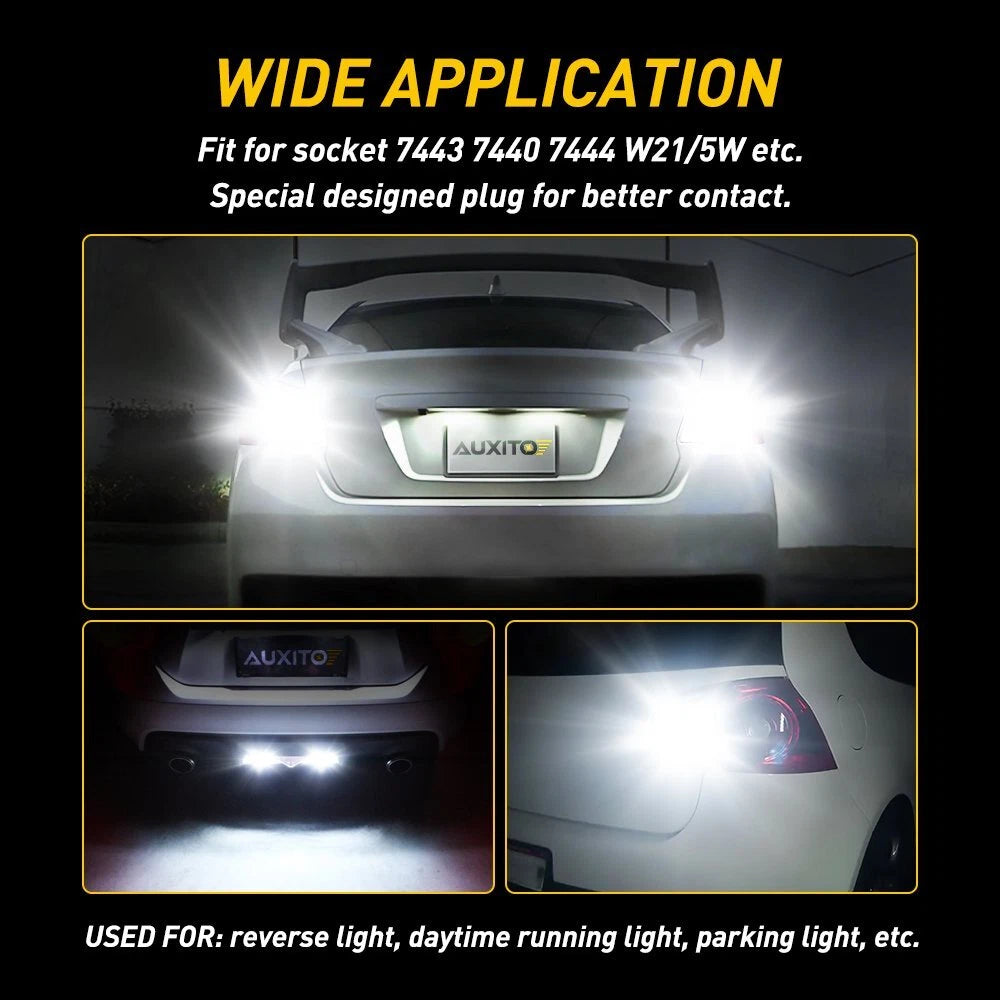

APPLICATIONS

  • Tail lights
  • Brake / stop lights
  • Reverse / backup lights
  • Turn signal indicators (load resistors may be required to prevent hyper-flash)
  • Side marker lights
  • Daytime running lights (DRL)
  • Parking and rear position lights
  • Interior and cargo area lights where T20 / W21W base is used

SOCKET & CROSS-REFERENCE CODES

Designed for T20 wedge sockets. Common interchangeable part numbers include (check your vehicle manual or existing bulb):

  • 7440, 7440A, 7440NA, 7440LL, 7440ANK, 7440K
  • 7443, 7443NA, 7443R, 7443LL, 7443-SCK
  • 7441, 7442, 7444, 7444NA, 7444NAK, 7444NAPLL
  • 992, T20, W21W, WY21W, W21/5W

Always confirm bulb size and type before purchase.

TECHNICAL SPECIFICATIONS

  • Base type: T20 (7440 / 7443 / W21W / W21/5W)
  • LED configuration: 48 x 4014-SMD per bulb
  • Lighting technology: LED
  • Colour temperature: 6000K–6500K cold white
  • Voltage: 12V DC (operating range approx. 12–14V DC, suitable for 12–24V systems as specified)
  • Power consumption: approx. 20W per bulb
  • Luminous flux: up to approx. 1500–2400 lm per bulb (supplier rated)

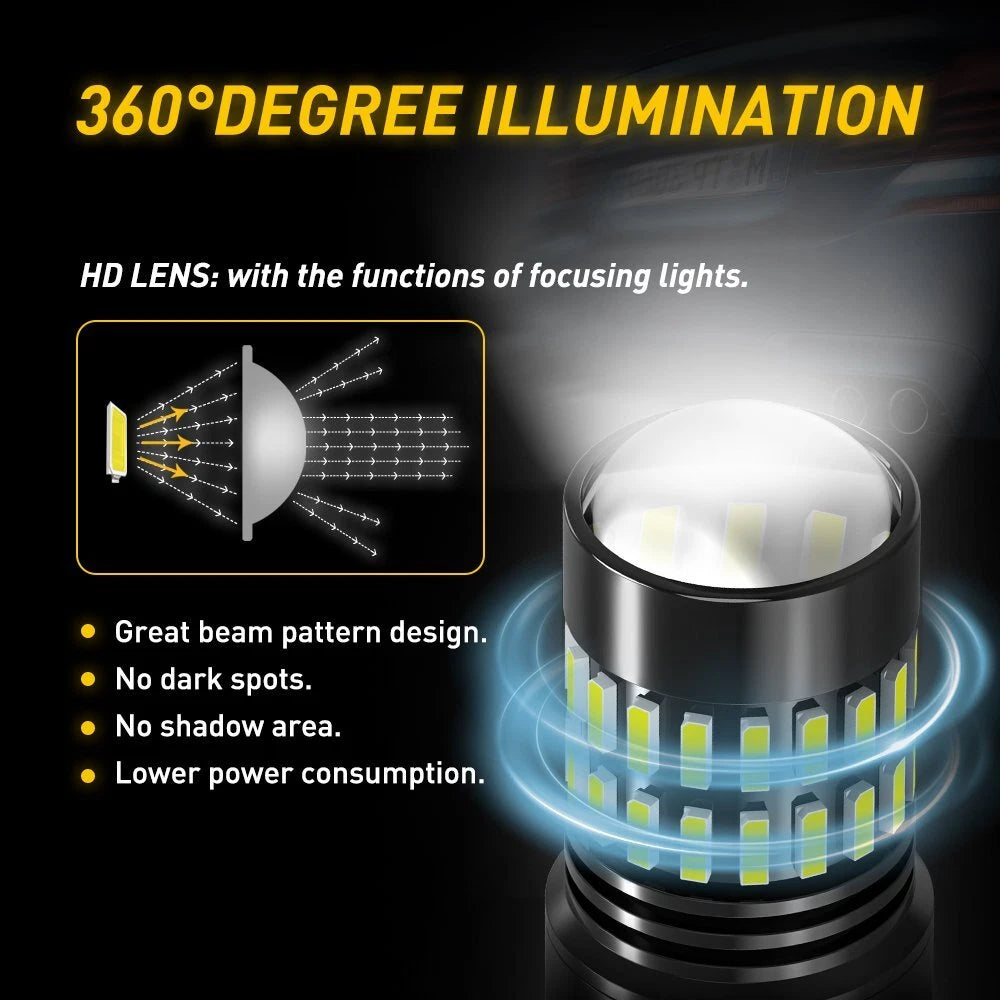

  • Beam angle: 360°
  • Waterproof rating: IP67
  • Construction: aviation aluminium shell for heat control
  • Cooling: fanless, passive cooling
  • Operating temperature: -40°C to +80°C
  • Estimated service life: >50,000 hours (supplier rated)
  • Warranty: 2 years (manufacturer terms apply)
  • Fitment: front or rear, left or right, depending on vehicle position using T20 base

INSTALLATION GUIDANCE

  • Ensure the vehicle is parked securely with ignition off and keys removed.
  • Allow existing bulbs and housings to cool before handling.
  • Remove the original halogen bulb from the T20 socket.
  • Insert the LED bulb into the socket and twist to lock, ensuring firm connection.
  • Test the light function before reassembling any trims or covers.
  • Confirm that the bulb does not contact any internal lens or shield.

For vehicles with sensitive CANBUS systems or when used as turn signals, additional load resistors or decoders may be required to prevent error messages or hyper flashing.

FITMENT CHECK

  • Check your owner’s manual or the marking on the original bulb for the correct code.
  • Verify the socket type visually to confirm T20 / 7440 / 7443 compatibility.

No specific vehicle list is provided. Universal fitment applies only where bulb type and space allow.

PACKAGE CONTENTS

  • 2 x T20 7443 / 7440 48SMD LED bulbs (cold white)

Vehicle Compatibility

Shop Category Store Home  LED Headlight ◈  H4 9003 HB2 ◈  H1  LED Foglight ◈  H8 H9 H11  T10 168 192 912 W5W  LED Interior light  LED Brake Light ◈  1157 BAY15D 7528 2057 P21/5W  1156 BA15S 7506 7527 1651  1157 BAY15D 7528 2057 P21/5W  7443 7444 7441 7440 W21W  OtherHot Item
10X AUXITO CANBUS T10 LED Wedge Parker License Plate Light Globes W5W 194 168
AUD 13.68
AUXITO 10X T10 LED White Car Interior Light Parker Bulb Wedge Globe 6000K White
AUD 10.99
AUXITO T10 18-LED White Car Interior Light Parker Bulb Wedge Globe 6500K 12V New
AUD 10.99
3M Window Roll Uncut Tint Film VLT 5/15/20/35/50/70% 10ft Car Home Office 50cm
AUD 19.99
Canbus T10 White 194 168 W5W LED Car Side Wedge Parker Light Globe Bulbs 12V 10x
AUD 24.69
New List Item
AUXITO 2X T20 7443 7440 LED Amber BRAKE CAR STOP TAIL LIGHT BULB GLOBE AU IP67
AUD 31.99
10x Side Marker Light LED Clearance Light RED AMBER Trailer Truck Caravan Lorry
AUD 55.99
2-10x T20 Amber LED Indicator Turn Signal Light Bulb 7443 Canbus 7440 Error NEWA
AUD 25.99
6-60PCS 9005(HB3) 9006(HB4) H8 H9 LED Headlight Light Bulbs Hi/Low Beam Globes
AUD 99.99
Universal Auto Car Seat Covers Full Set Anti Slip Seat Cover Protector Black
AUD 87.99
2X T20 7443 7440 48SMD LED Canbus No Error Tail Brake Stop Light Bulb Globe A

Features:

400% Brighter】Each 7443 led bulb powered by 48-smd 6000K white led chips, 20w high power brings 2400 Lumen output per bulb, total 4800 Lumen, helps you see farther& wider when reversing

CAN-BUS Error Free】Intelligent IC and 20w high output makes the 7440/7443 led light bulbs compatible with 99% of vehicles, no radio interference, no flicker issue

15-Minutes Installation】 Non-polarity design, simply plug and play, suit for socket: 7440A, 7440NA, 7440, 7440SV, 7443NA, 7441, 7443, 7443R, 7444, 992, WY21W, W21/5W, W21W, etc, compatible with CK and AU standard type

Wide Application】 Used for back up reverse lights, brake lights, tail lights, parking lights, side marker lights, daytime running lights, etc. You will need load resistor or flash relay to prevent the hyper flash when replace for Turn Signal Lights

Long Lifespan】 Full aviation aluminum body cooling down the heat rapidly, extends the service time of the 7440/7443 led back up light lamps up to 50,000hrs

Specifications:

  • Brand:AUXITO
  • Compatible With: T20 7443 7440
  • Condition: 100%Brand New/ Never Used
  • Lifespan:>50000hr
  • LED: 48 pcs 4014 SMD
  • Voltage Range:12-24V
  • Wattage:20W
  • Lumens:4800LM
  • Color: 6500K(White Color)
  • Beam Angle: 360 Degrees
  • Placement on Vehicle: Left, Right
  • Heat Control: Aluminum shell base
  • Warranty: 2 Year
  • Complete Kit: No Other Ballast/Driver Required Just Plug and Play - Newest Technology
  • Beam Angel: 360 Degrees
  • Operating Temperature:-40°C ~ +80°C
  • Cross Reference: 992 7441, 7442 7444,W21W, WY21W, W21/5W 7444NA, 7444NAK 7440LL, 7443LL, T20, 7440NA, 7440A, 7440ANK, 7440K, 7444NAPLL etc
  • Installation positions:Tail Lights, Brake Lights, Reverse Lights, Turn Signals Lights, Side Marker Lights, Rear Light, Stop Lamp, Backup Lights, and Interior RV Camper Bulbs Cargo Area Light , Wedge light Center High Mount Stop.etc
  • Common use for: Car, 4WD 4X4,Dune buggy, Mining, Marine, Excavator, VAN, UD ,Sport Utility ,SUV, Bus, Off-road, ATV, Wagon, UTB, Forklift, Tractor ,Van, Truck, Pickup, Motorcycle, Motorbike, Bike, car, etc..

Package include:

2x LED 7443 Bulbs

Install Caution
1. As a safety precaution, make sure that the car has had time to cool down properly before starting the installation process.
2. Put the vehicle into park or make sure it is securely in gear.
3. Make sure to have the ignition turned off and the keys removed.
4. Be careful to avoid burns, especially when turning on or off the vehicles lighting.
5. Be careful to avoid crushing or cutting the bulbs. Also make sure to not touch the bulbs with your fingers, as this will cause blotting.
6. Fully examine the connection of the contact points, ports and the wires as faulty connections can cause lighting problems.
7. Make certain that the end of the bulb does not come in contact with the interior light shield of the headlight when adjusting the bulb.

CANBUS ERROR FREENo. For most vehicles, just directly plug and play. Yet for some vehicles with CAN-BUS system, it may require install decoder or load resistor to avoid hyper flash or fast blinking.

How to Pick the Right Bulb Size?

  • 1, Check your owner's manual or the part number on your original bulbs
  • 2, Select your vehicle model in the filter system on product page to check the fit

How to Install the Bulb Correctly and Quickly?

  • 1, Take your halogen bulb out. Twist and pull out the locker ring of AUXITO h4 bulb
  • 2, Put the locker ring in the right slot of the light housing and lock in the clip
  • 3, Insert the bulb in and rotate clockwise to fix the bulb
  • 4, Connect the power cable

Other Name :t20 led auxito,7443 led back up lights,t20 bulb,Wy21w,t20 21/5w,t20 led Amber,t20 led Amber reverse,t20 led reversing lights,T20 led wedge globe,21w T20 Led,t20 led 21w/5w Amber,7440 Led Bulb,t20 led reverse,WY21w led,T20 7443 led,7440 led,7443 led,w21w led,t20 led brake light,7443 led brake light,t20 led reverse globe,w21w led 7443 drl,w21w 7440,t20 led globe,w21w 12v 7440 led globe bulb,T20 led,wedge bulb t20 led,PY21W,t20 led 21w 5w,7443 led light,w21w,t20 led dual,led 7443,w21w bulb,py21w led,canbus t20 led globe,T20 led reverse light,t-20 led,T20 LED bulb,t20 globes,T20 led bulbs,w21w bulbs,1300 lumen T20 / W21W /7440 LED reverse light bulbs x2


Item Specifics
UPC 782890731218
Brand AUXITO
Manufacturer Part Number Does Not Apply
Type t20 7443 LED light bulb
Voltage DC 12V
Placement on Vehicle Front, Rear, Left, Right
Bulb Colour 6000k white
To Fit Reverse Light,Tail light,Side Marker Light, drl light
Bulb Size 7443 7440 7441 7444 T20 w21w
Warranty 2 Year
Number of bulb 2
Light beads 48PCS 4014-SMD
Use as Perfect Replacement For Halogen Xenon White Bulb
Other part numer 7440LL, 7443LL, 7443-SCK, 7440A, 7440ANK, 7440K
Lighting Technology LED
Suitable For Brake Stop Tail Reverse Turn Signal Day Running Light
Bulb Fitment Code 992 7440 7441 7443 7442 7444 W21W WY21W W21/5W
Number of Bulbs 2
Light Colour Cold White,White
Voltage 12v
Voltage Range 12-14V DC
Colour Temperature 6000k
Wattage 20w
Lumens 1500lm
Bulb Life Hours > 50,000 Hours
Model 992 7440 7441 7443 7442 7444 W21W WY21W W21/5W
Waterproof IP67
Bulbs Other name 992 7440 7441 7443 7442 7444 W21W WY21W W21/5W
LED Qty 48SMD 4014
Fan Fanless
Brightness 300% Bright
Item Weight 0.0400kg
Item packag size 0
Manufacturer Warranty 2 Years2 Years
Type Light Bulb
Features Ballast Included,CAN bus Compatible,Road Legal,Rust-Resistant
Lighting Technology LED
Universal Fitment Yes
