2x 12-24V LED Sequential Tail Lights Kit for Trailer Truck Caravan

OVERVIEW

These universal 12-24V LED tail lights feature sequential turn indicators and multi-function output for use on trailers, trucks, utes, 4WDs, caravans and more. Each light integrates brake, tail, reverse and turn signal functions in a durable, low-maintenance housing.

KEY FEATURES

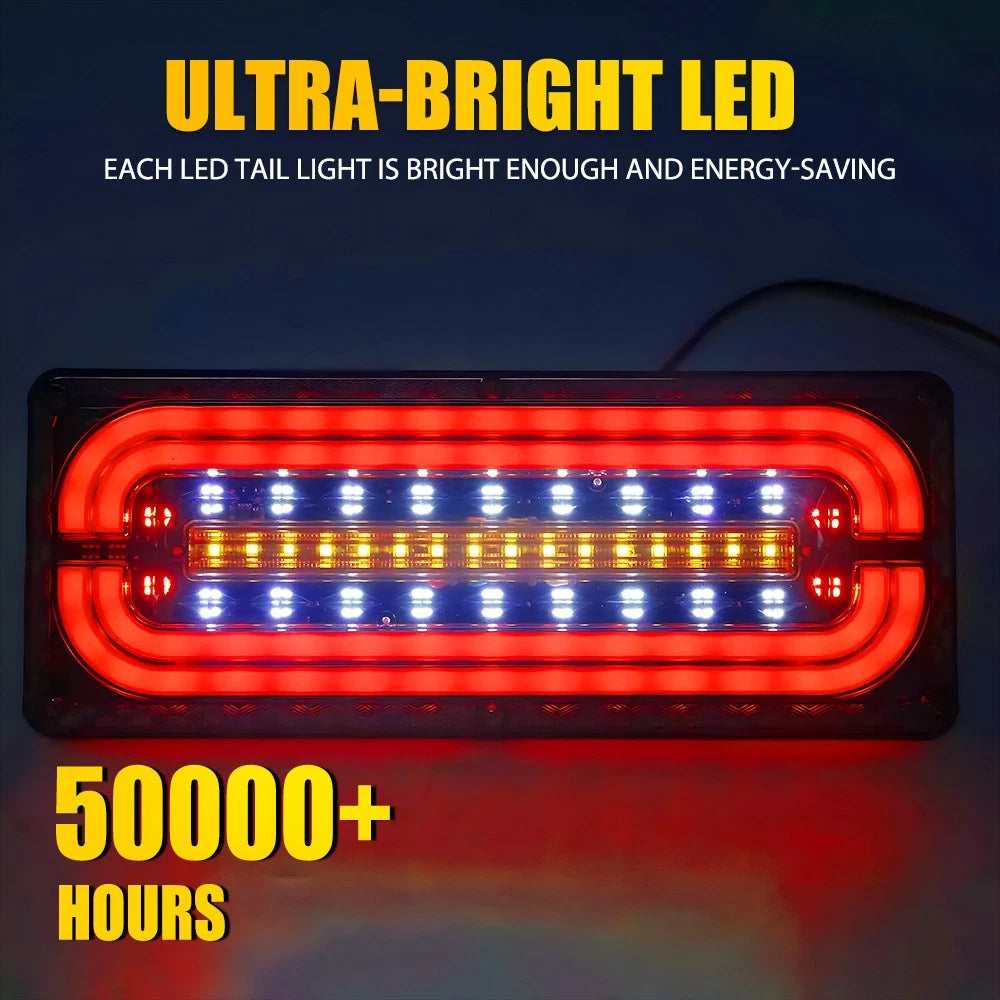

• Universal 12-24V LED tail light pair with sequential turn signal
• Multi-colour output: red (brake/tail), amber (indicator), white (reverse)
• High-brightness LEDs with low power consumption
• Durable ABS housing and PC lens construction

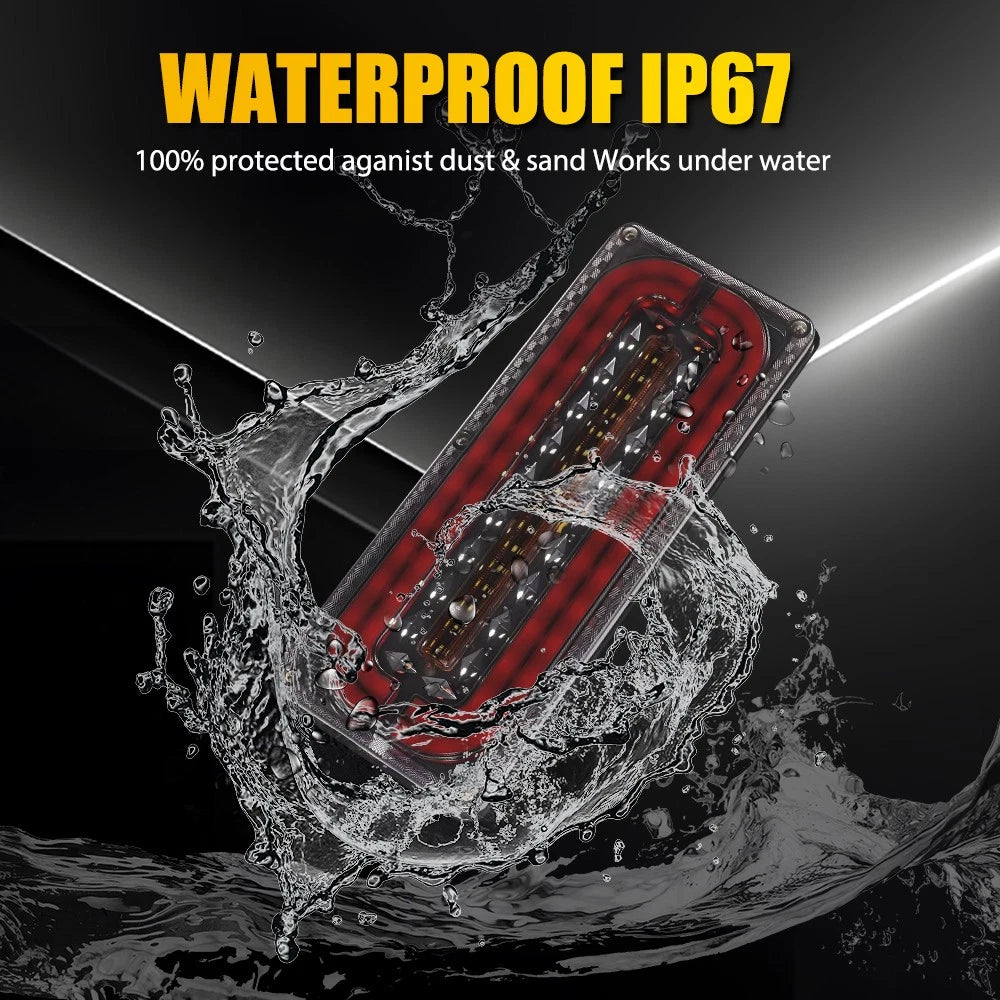

• IP67 water-resistant design for harsh weather use
• Suitable for trailers, trucks, utes, 4WD, 4x4, caravans and similar vehicles

APPLICATION & NOTICE

Universal fit for a wide range of 12-24V vehicles including trailers, trucks, utes, 4WD, 4x4 and caravans.

Important: Not submersible for boat trailer use. Check dimensions and wiring before purchase to confirm suitability for your installation.

SPECIFICATIONS

• Voltage: 12-24V
• Lighting technology: LED

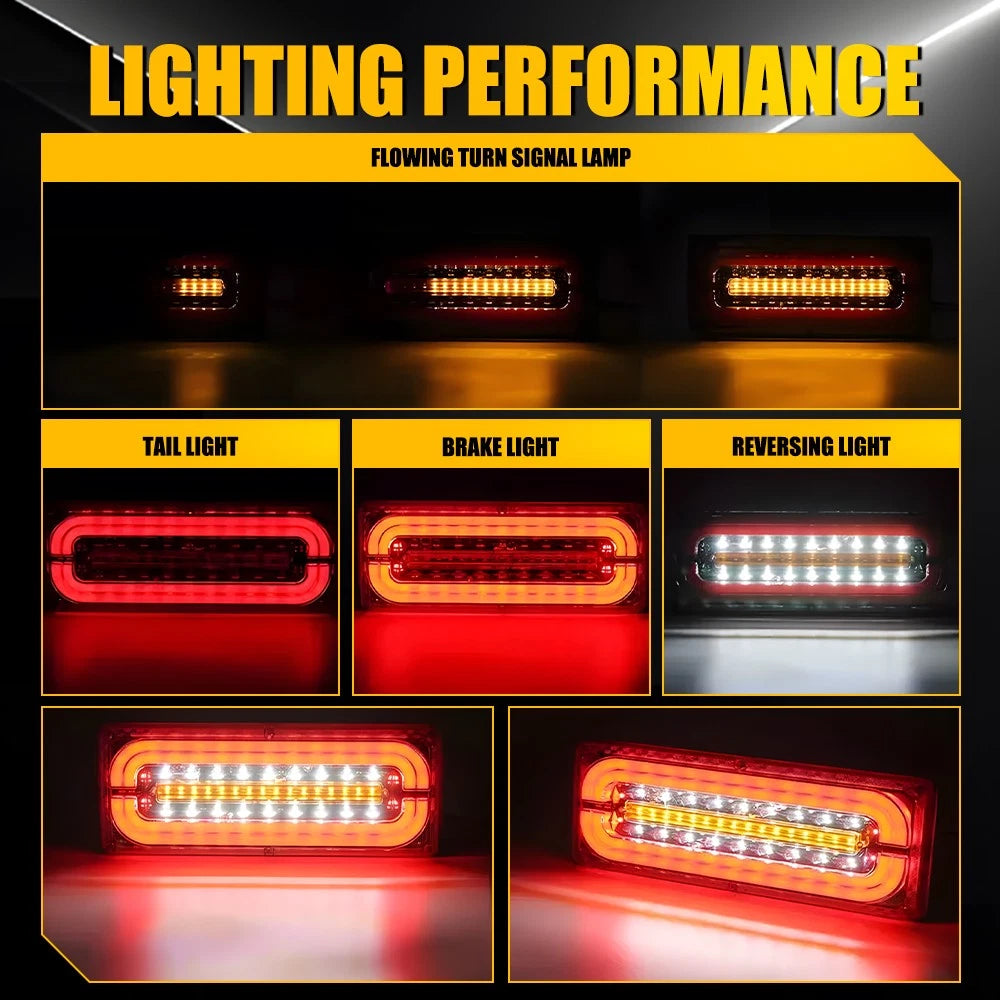

• Functions: brake, tail, reverse, turn signal (static and sequential)
• Length: 330 mm (approx. 33 cm / 13 in)
• Height: 41 mm (approx. 4.1 cm / 1.61 in)
• Width: 130 mm (approx. 13 cm / 5.11 in)
• Materials: ABS housing, PC lens
• Light colours: red, white, amber
• Rated waterproof: IP67
• Colour temperature: 3000K
• Wattage: 5 W (per light)
• Lumens: 2400 lm (set)
• Bulb life: > 50,000 hours
• Operating temperature: -40°C to 80°C
• Mounting style: screw mount
• Housing colour: black
• Lens colour: yellow / red / white

WIRING CONNECTIONS

• Black wire: Negative (ground)
• Red wire: Brake light – high-brightness red
• Green wire: Tail light – low-brightness red
• White wire: Reverse light – white
• Orange wire: Turn signal – constant amber
• Yellow wire: Turn signal – sequential amber

BENEFITS

• Improved rear visibility and safety with bright LED output
• Sequential indicator enhances signal clarity to other road users
• Energy-efficient LEDs reduce power draw compared with halogen
• Shock-resistant, rust-resistant design for long service life
• Road-legal LED indicator assembly with universal fitment

PACKAGE CONTENTS

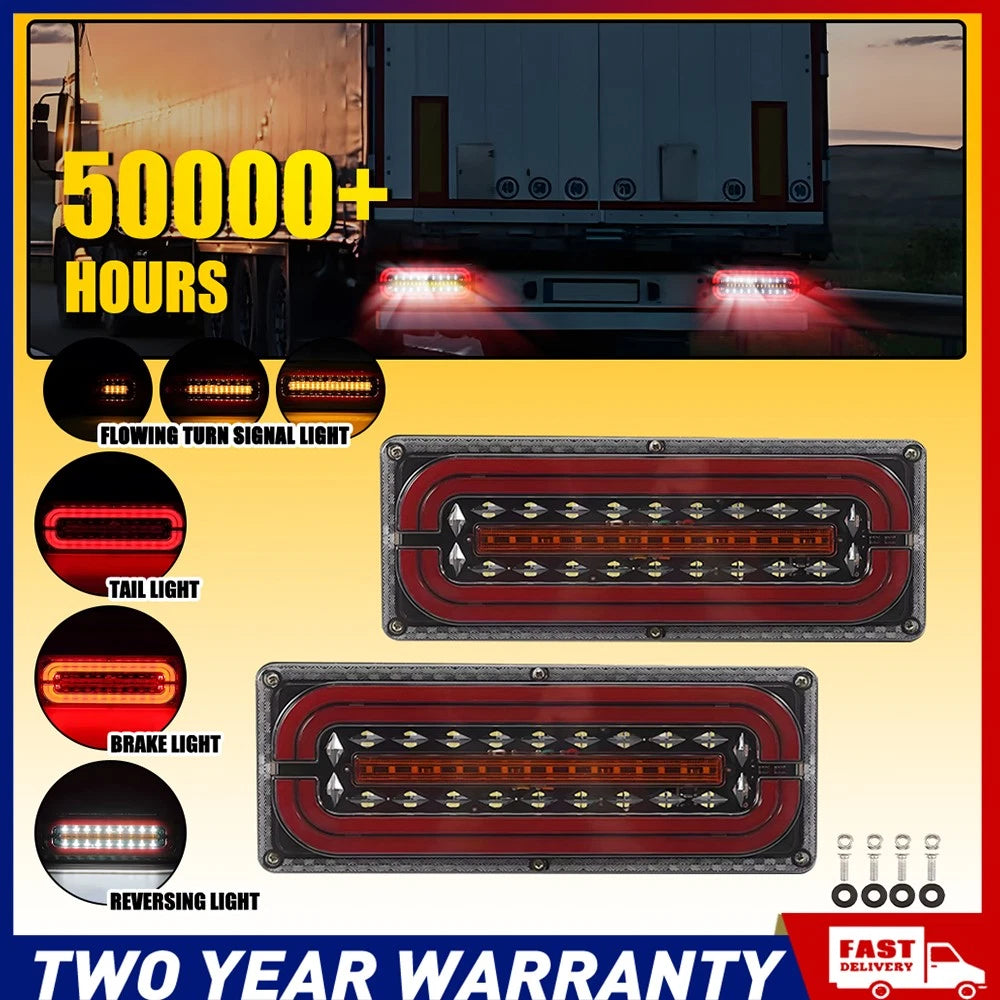

• 2 x LED sequential tail lights

FITMENT NOTE

No specific vehicle compatibility list is provided. Measure your existing lights and review the wiring and mounting style to ensure proper fitment before installation.
