3-Pin 130A Alternator for Ford Falcon BF FG FGX & Territory SY SZ 4.0L

OVERVIEW

High-output 3-pin 130A alternator designed for selected Ford Falcon BF, FG, FGX and Territory SY, SZ 4.0L engines. Built to meet or exceed OEM performance and provide reliable charging for factory and auxiliary electrical loads.

VEHICLE COMPATIBILITY

• Ford Falcon BF engine H 4.0L Petrol (2005–2008)
• Ford Falcon BF engine S 4.0L LPG (2005–2008)
• Ford Falcon BF XR6 engine H 4.0L Petrol (2005–2008)
• Ford Falcon BF XR6 Turbo engine Y 4.0L Petrol (2005–2008)
• Ford Falcon BF FPV Typhoon engine Y 4.0L Petrol (2005–2008)
• Ford Falcon FG engine BARRA195 4.0L Petrol (2008–2016)
• Ford Falcon FG engine BARRA 4.0L Petrol (2008–2016)
• Ford Falcon FG XR6 Turbo engine BARRA 4.0L Petrol (2008–2016)
• Ford Territory SY SZ Turbo engine Barra 4.0L Petrol (2011–2016)

Always compare plug type, pulley configuration and mounting dimensions with your original alternator before purchase.

SPECIFICATIONS

• Voltage: 12V
• Output: 130A
• Adjustment hole: 9 mm
• Pivot hole: 9 mm
• Adjustment to pivot: 110 mm
• Pivot length: 45 mm
• Inside foot to foot: N/A
• Pulley diameter: 63 mm
• Number of grooves: 6PV

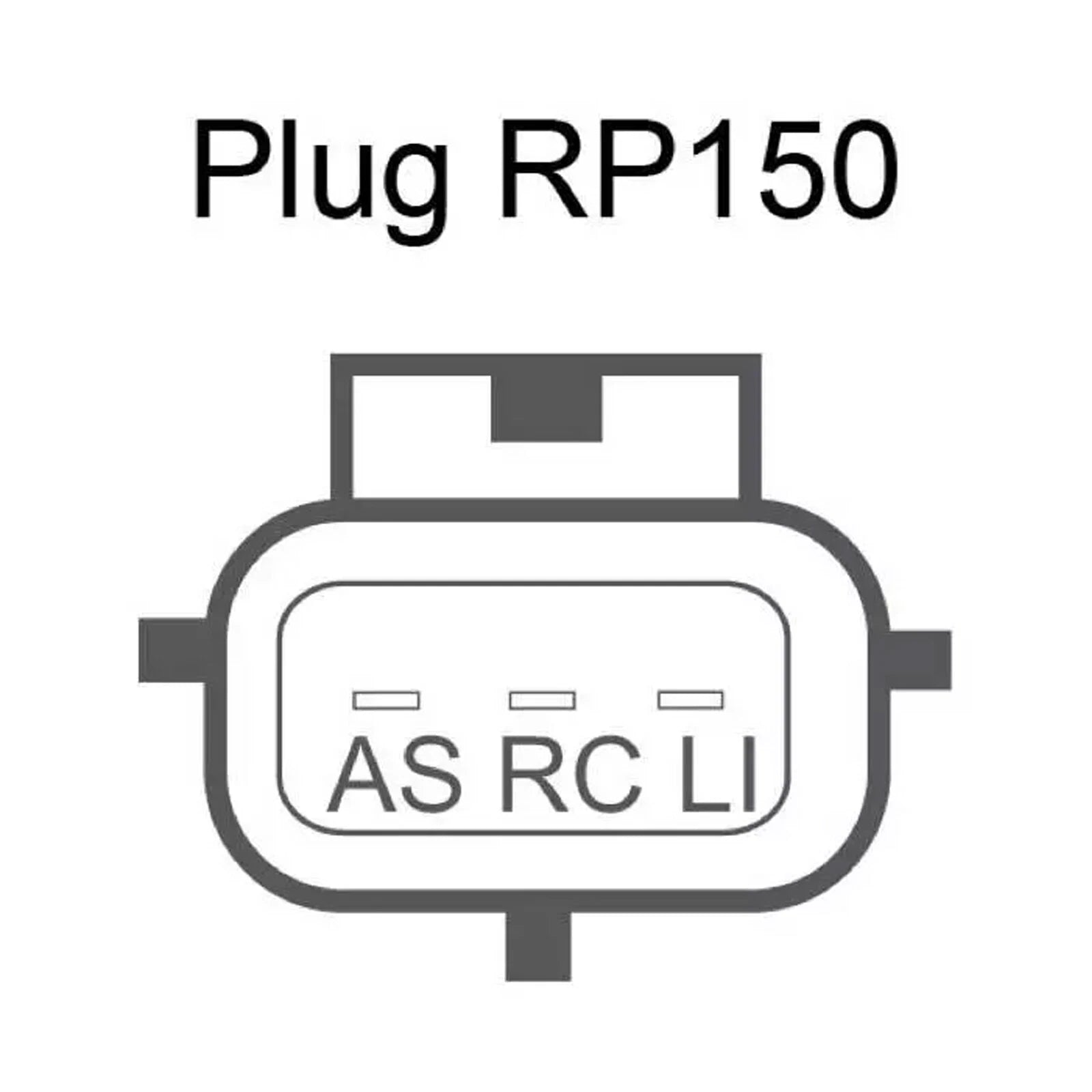

• Plug type: RP150
• Connector: 3-pin

PART REFERENCE NUMBERS

This alternator is a replacement for the following part numbers (and equivalents):

• A3TJ1691
• A003TJ1691
• 7R29-10300-AA / 7R2910300AA
• 5R29-10300-AB / 5R2910300AB
• 5R29-10300-AC / 5R2910300AC
• BAF210300AA

INSTALLATION NOTES

• Professional installation is highly recommended.
• Verify plug type, pulley type, and mounting points match the original unit.

PACKAGE CONTENTS

• 1 × Alternator
