LED Side Marker Clearance Lights Amber Red 12-24V for Truck Trailer RV

PRODUCT OVERVIEW

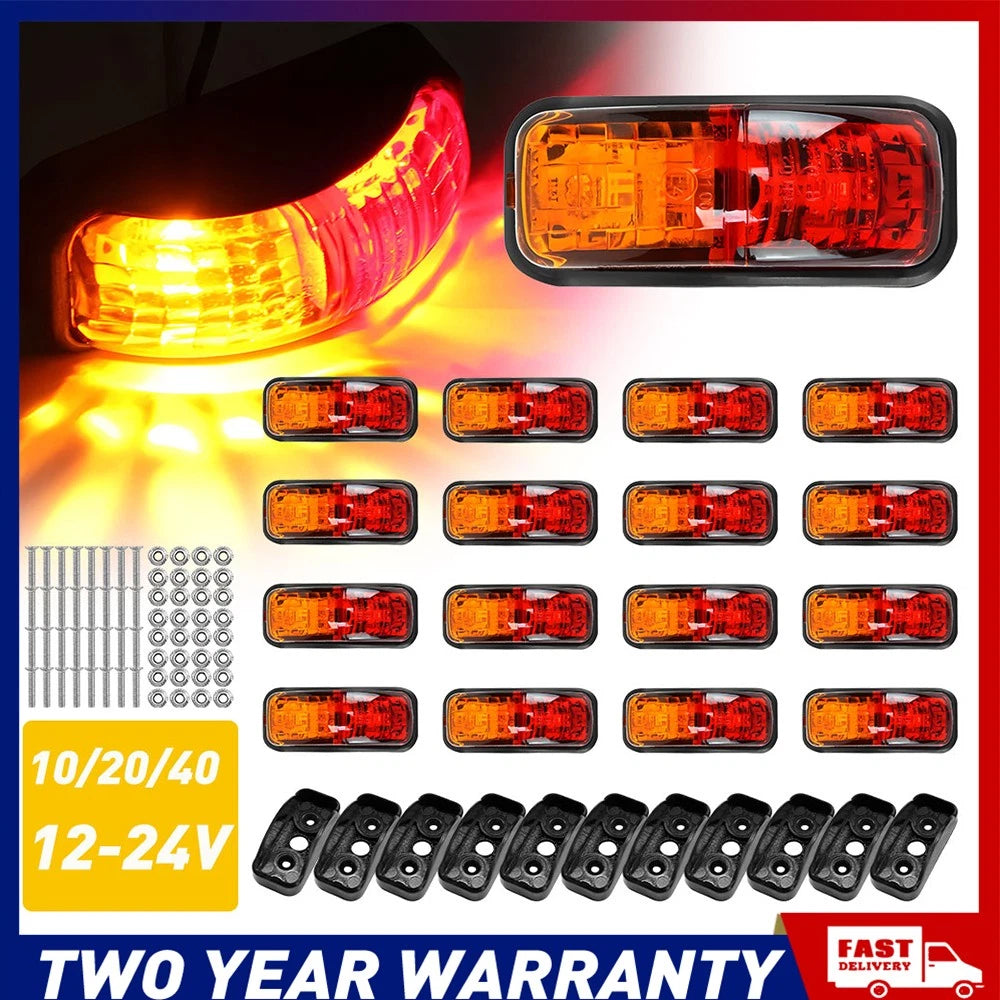

Compact LED side marker and clearance lights designed for universal 12V-24V applications, providing bright amber and red illumination for improved visibility on trucks, trailers, caravans, RVs and boats.

KEY FEATURES

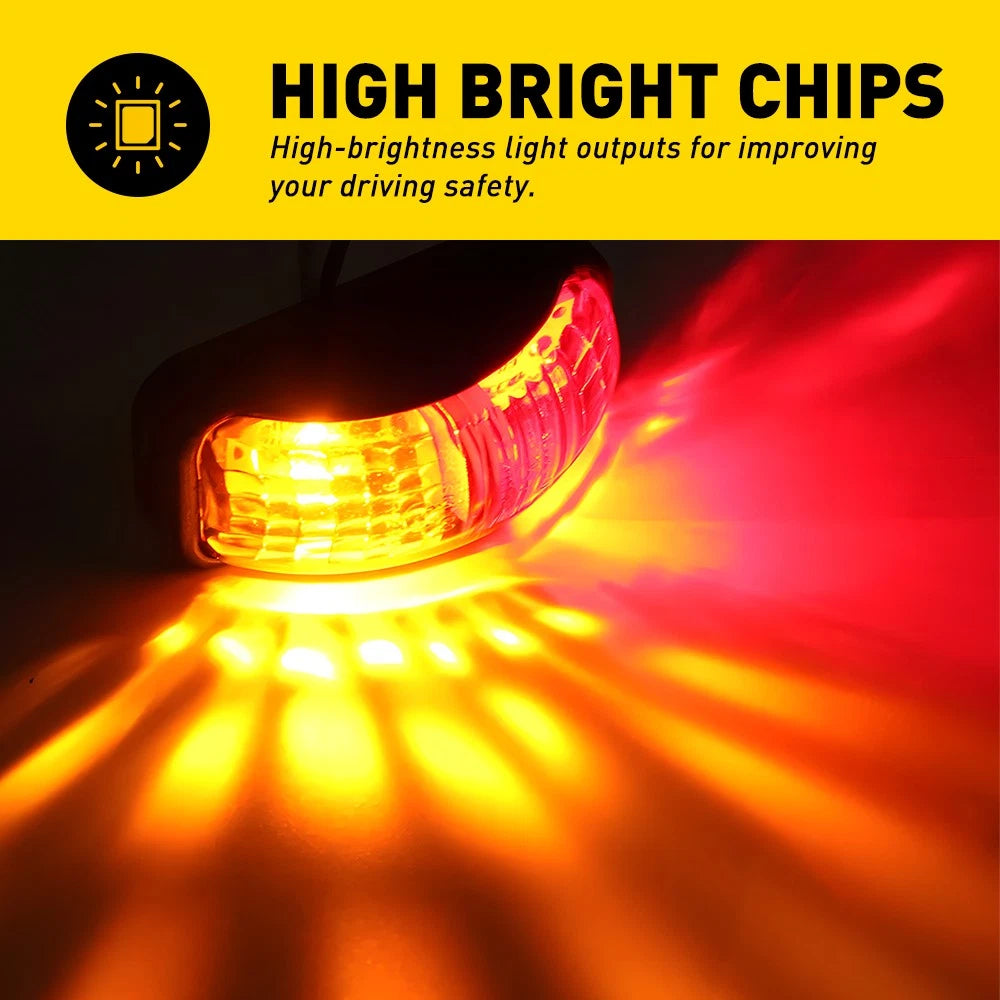

• High-brightness LED output enhances driving and towing safety.
• Waterproof construction (IP65) for reliable use in rain and fog.

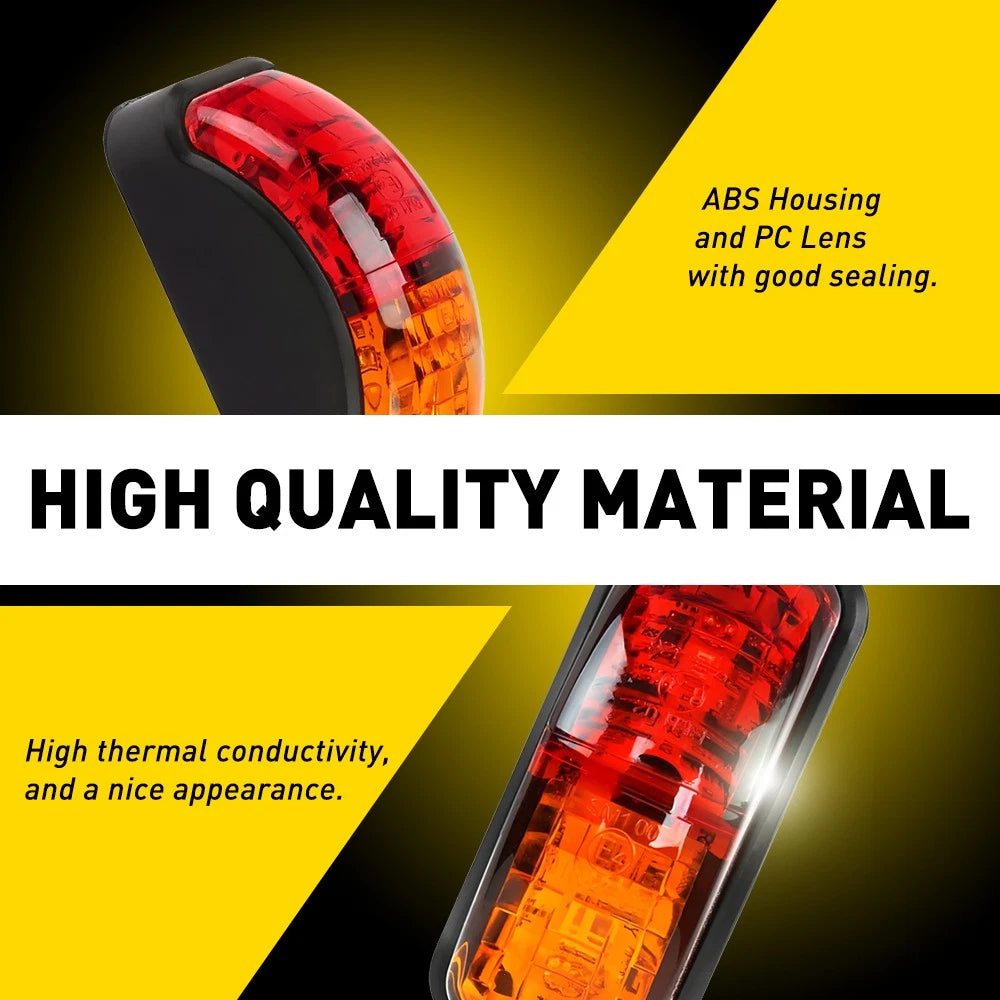

• Durable ABS housing with PC lens for impact and heat resistance.
• Low power consumption and long service life up to 30,000 hours.
• Universal DC 12V-24V compatibility for trucks, trailers, caravans, vans, RVs, lorries and boats.
• Simple screw mounting for fast, secure installation on multiple locations.

SPECIFICATIONS

• Voltage: DC 12V-24V
• Waterproof rating: IP65

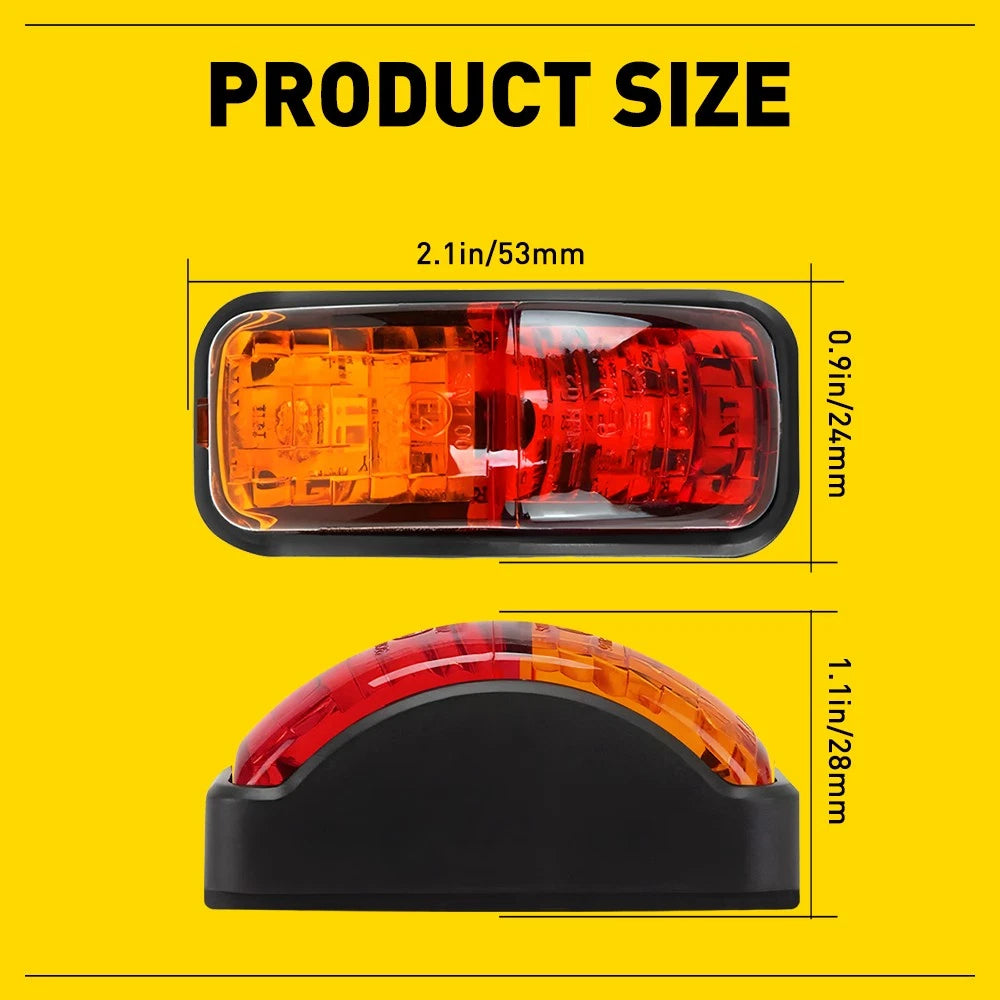

• Overall size: approx. 53–54 mm (L) x 24 mm (W) x 28 mm (H)
• Material: ABS housing + PC lens
• LED type: 2835
• Luminous flux: approx. 180 lm per lamp
• LED count: 2 LEDs per lamp
• Housing colour: black
• Lens colour: red / amber
• Light colour: red & yellow/amber
• Working temperature: -40℃ to 60℃
• Typical service life: up to 30,000 hours
• Mounting style: screw fixed
• Placement on vehicle: front, rear, left, right, top roof, truck bed, fender

APPLICATIONS

• Side marker lights
• Side indicator lights
• Clearance and position lights
• Tail and auxiliary marker lighting
• Suitable for trucks, trailers, tractors, semi-trailers, dump trucks, buses, RVs, vans, caravans and boats

PACKAGE CONTENTS

• Side marker clearance lights – quantity as selected (e.g. 4 / 8 / 16 / 20 / 40 / 60 pieces)

INSTALLATION NOTES

• Universal fitment for 12V-24V systems; professional installation is recommended if unsure.
• Ensure correct wiring polarity before connecting to power.
• Mount on a clean, flat surface using appropriate screws and sealant if required.
