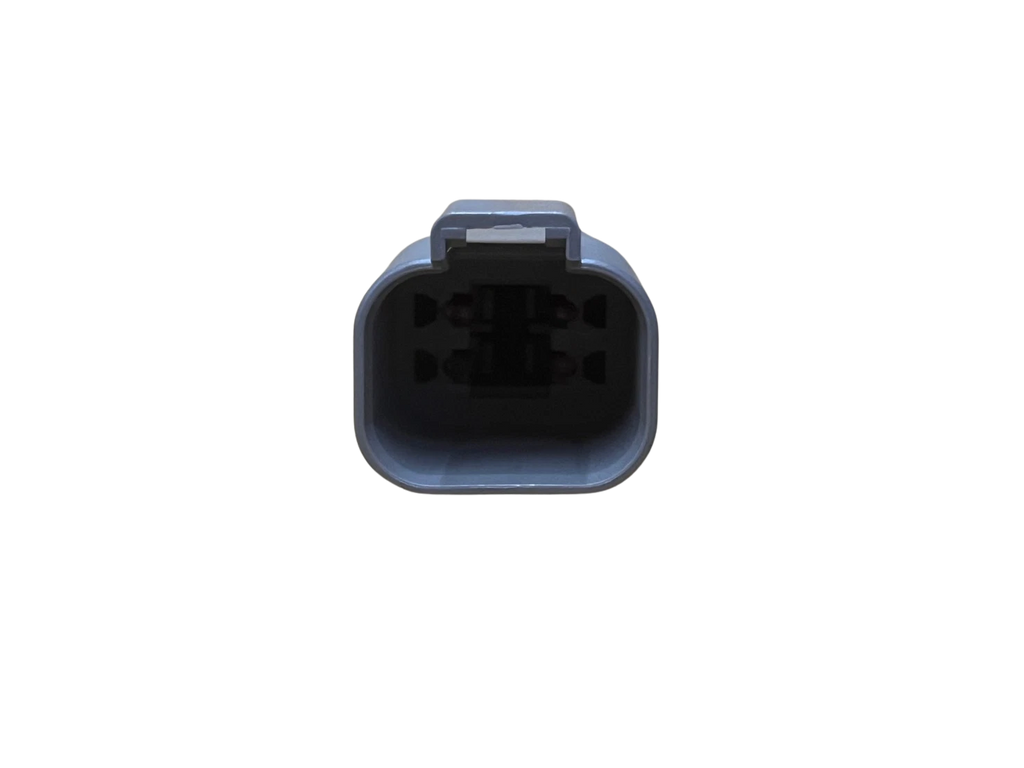

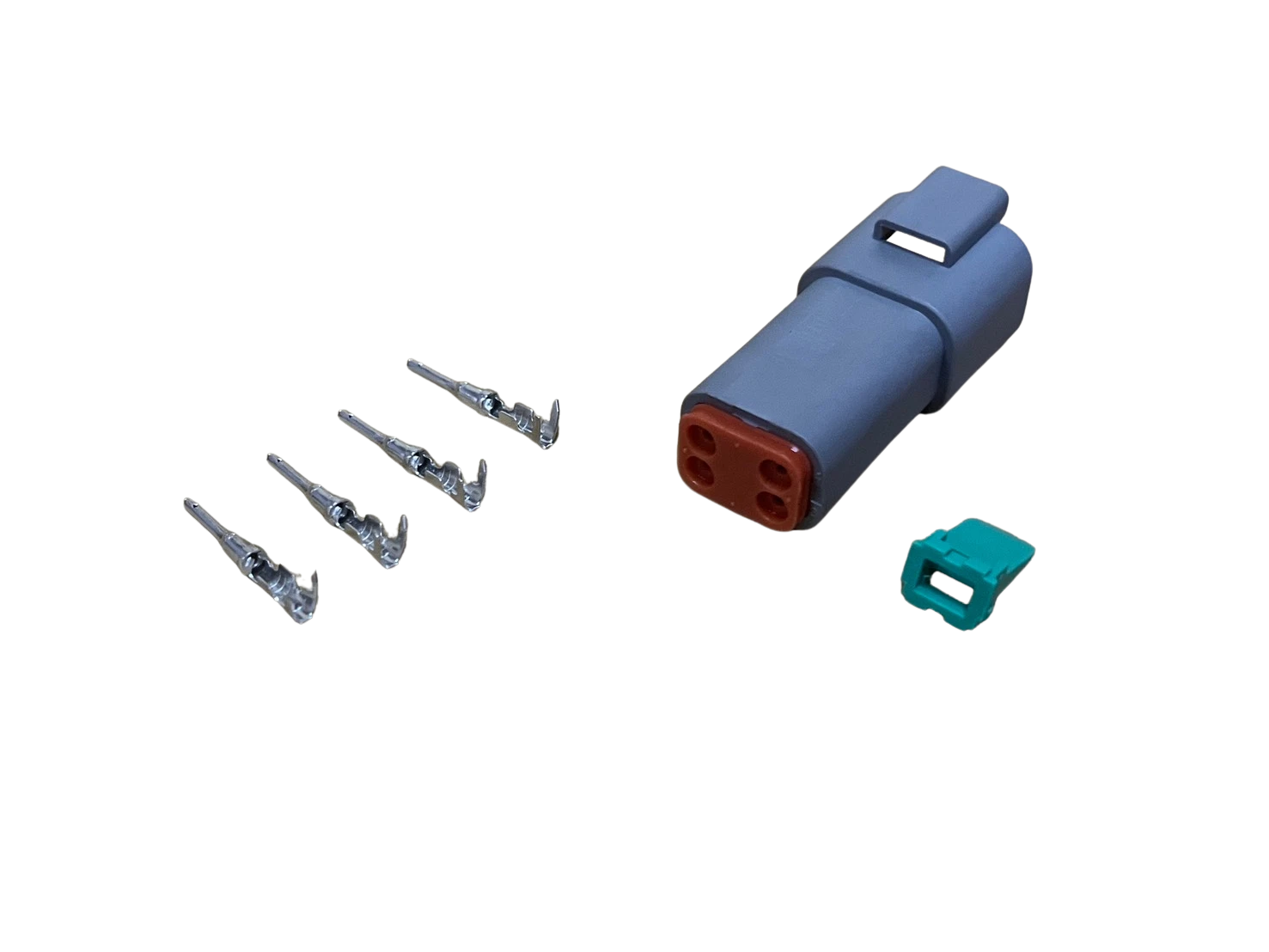

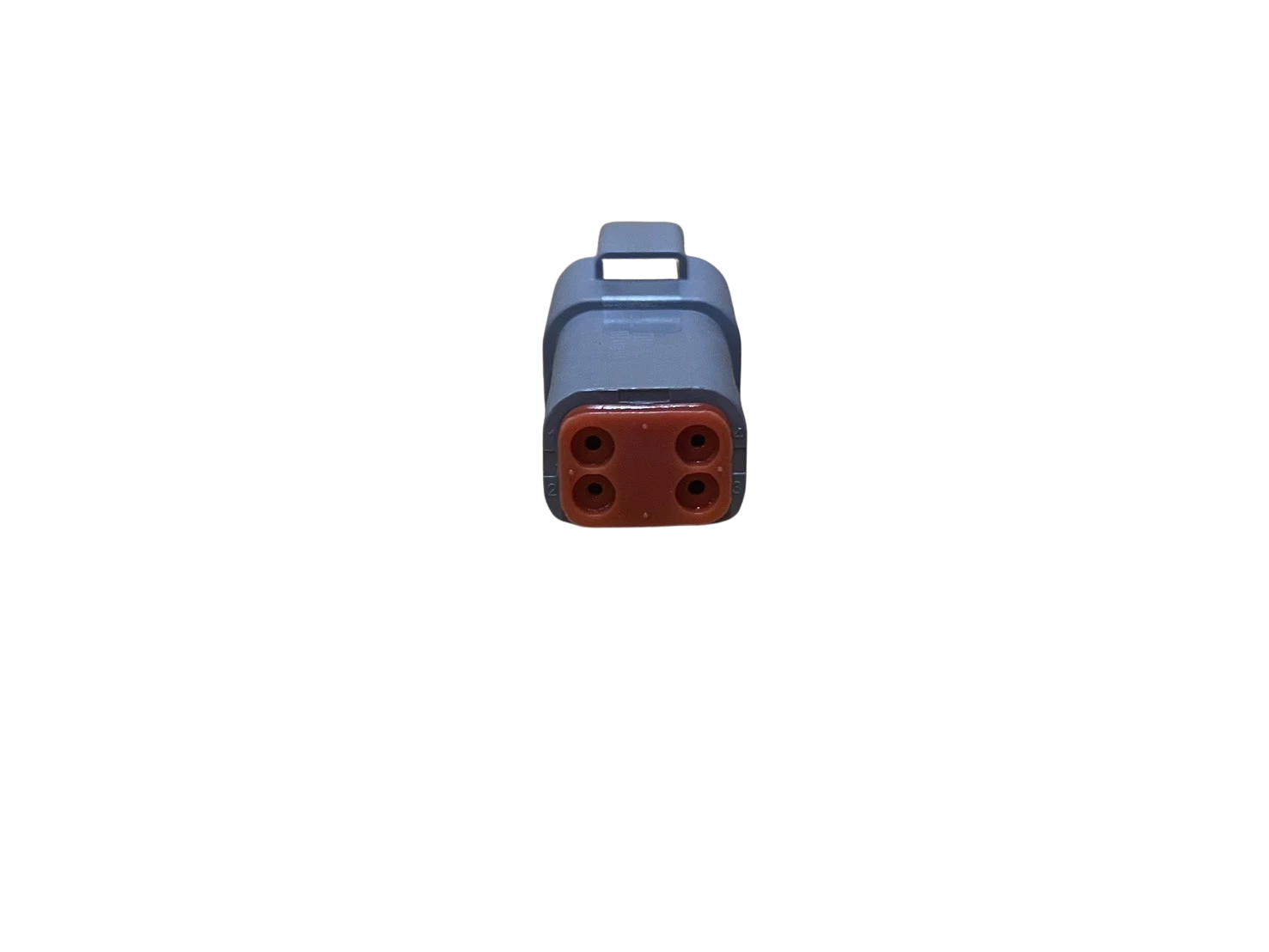

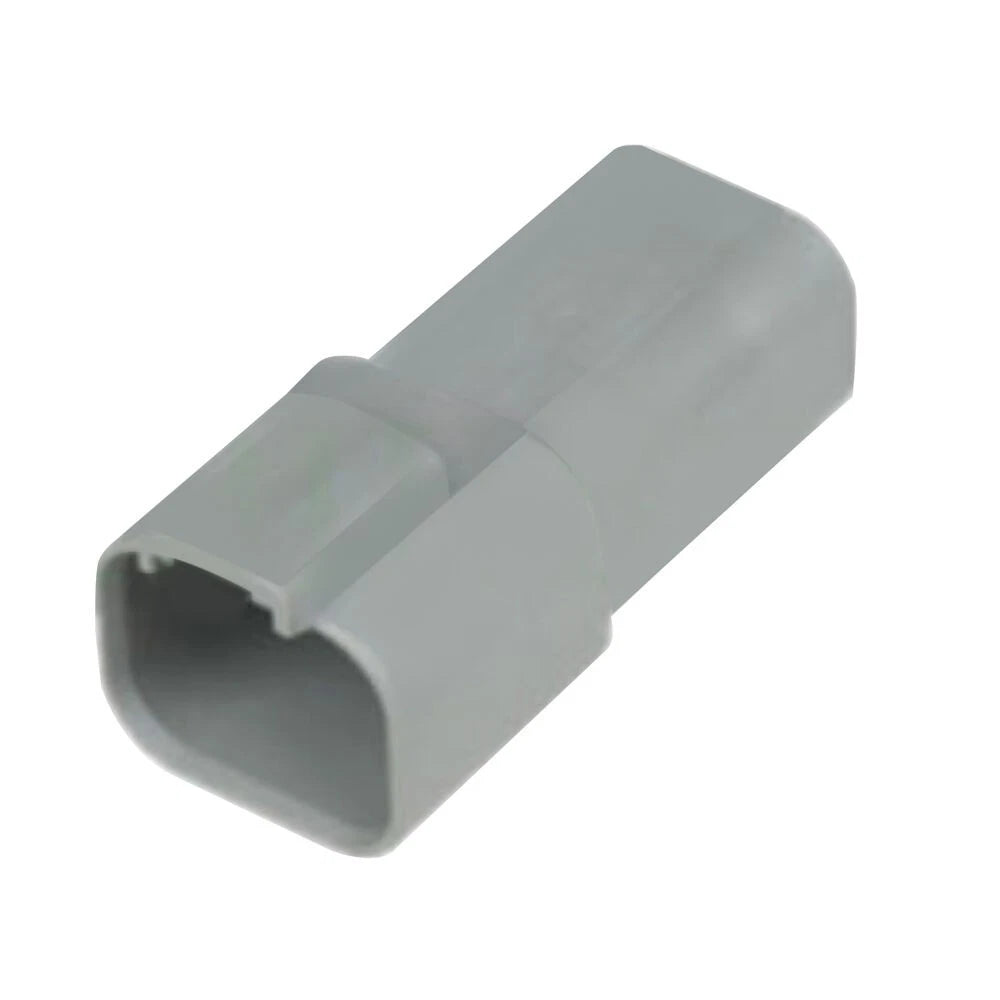

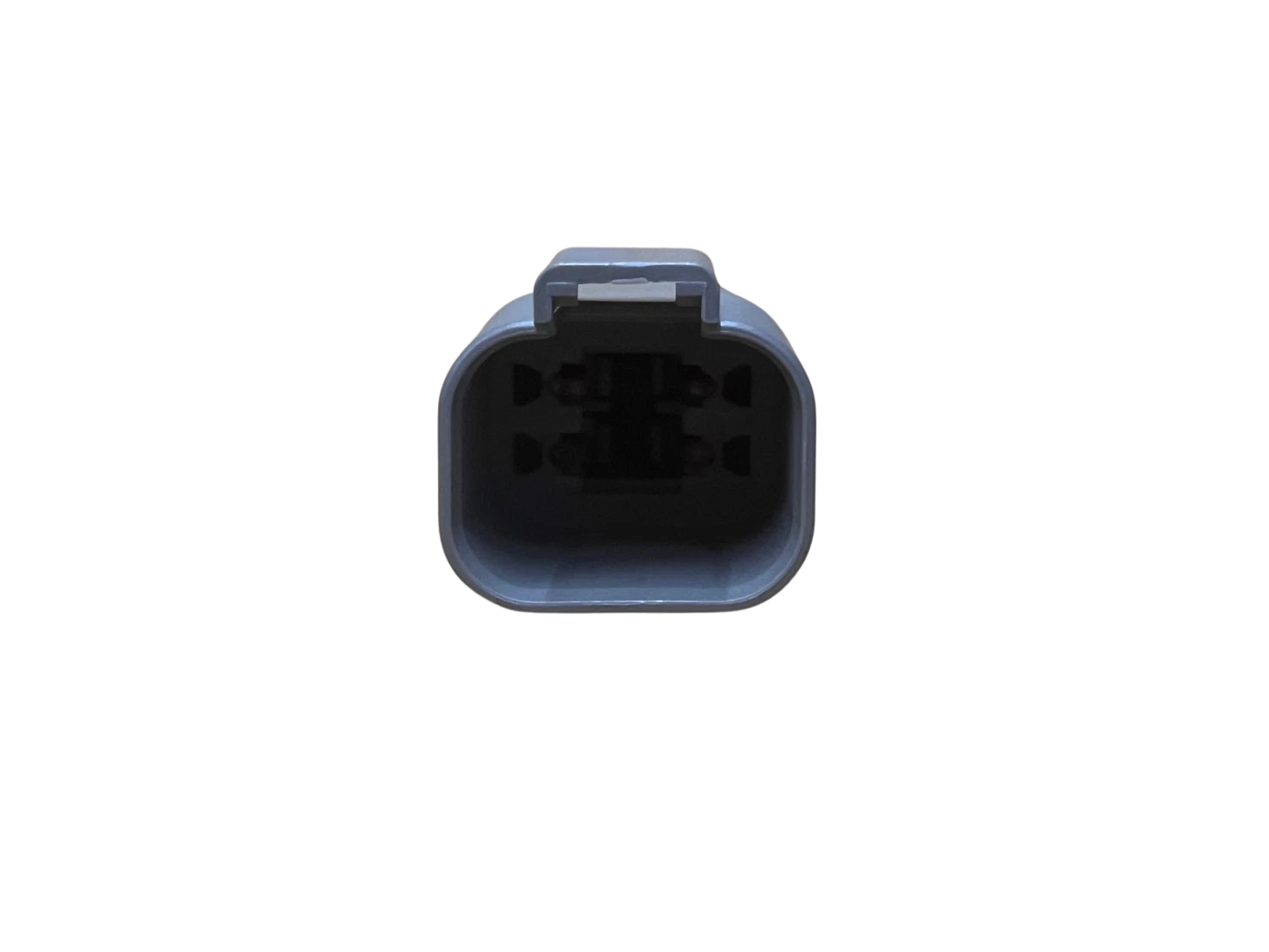

4 Pin Connector Adapter Wiring Harness Plug for 102553F

PRODUCT OVERVIEW

This 4 pin connector adapter wiring harness plug is designed as a replacement connector housing for automotive electrical applications. It is supplied as a brand new component and is suitable for use where a 4 pin connector is required.

KIT CONTENTS

• Connector housing x 1

KEY FEATURES

• 4 pin connector adapter wiring harness plug
• Brand new replacement component
• Compact dimensions for tight installation spaces
• Connector for part number: 102553F

SPECIFICATIONS

• Condition: Brand new
• Type: 4 pin connector adapter wiring harness plug
• Connector for: 102553F
• Dimensions: Height 19.8 mm; Width 21 mm; Length 44 mm

INSTALLATION & ANTI-PINCH RESET NOTE

This connector may be used with window regulator motors that include an anti-pinch function. When used in such systems, follow the reset procedure after installation if the window does not operate correctly.

• Install the motor in the door and connect it to the one-touch window switch before testing.
• If the window drops down after reaching the top, perform an anti-pinch reset.

Anti-pinch reset steps:

• Step 1: Pull the window switch briefly to move the window fully to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window fully to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch again to move the window to the top and confirm correct operation.

If the window still drops after reaching the top, repeat the above procedure until the anti-pinch function is correctly set.

USAGE & COMPATIBILITY

• Intended for repair and replacement of existing 4 pin connectors.
• Not a vehicle manufacturer official part.
• Compatibility information is a general guide only.

Important: Always verify compatibility by comparing the product images, pin layout, and dimensions with your original connector and vehicle specifications before purchase.

INSTALLATION RECOMMENDATIONS

• All parts should be installed by a qualified automotive mechanic or auto electrician.
• Ensure wiring is correctly terminated and secured.
• Avoid modification or tampering with the connector housing.

PRODUCT NOTES

• Images shown are of the actual product supplied.
• Colour may vary slightly due to screen settings and lighting.
