4x 10" Electric Trailer Brake Backing Plates with Handbrake – LH & RH

PRODUCT OVERVIEW

This kit includes four 10 inch electric trailer brake backing plate assemblies, supplied as two left-hand and two right-hand units. Each backing plate features an integrated handbrake lever and comes pre-assembled for straightforward installation.

COMPATIBILITY

Suitable for use with many popular trailer axle manufacturers including Alko, Dexter, Quality and others using 10 inch electric brake assemblies. Always confirm dimensions and mounting pattern against your existing components before purchase.

PACKAGE CONTENTS

• 2 x Left-hand 10" electric brake backing plates with handbrake lever
• 2 x Right-hand 10" electric brake backing plates with handbrake lever
• Pre-fitted brake shoes and magnets on each backing plate
• Fixed mounting bolts, star washers, nuts and lock washers

SPECIFICATIONS

• Type: 10" electric trailer brake backing plate assemblies
• Quantity: 4 pieces (2 x LH, 2 x RH)

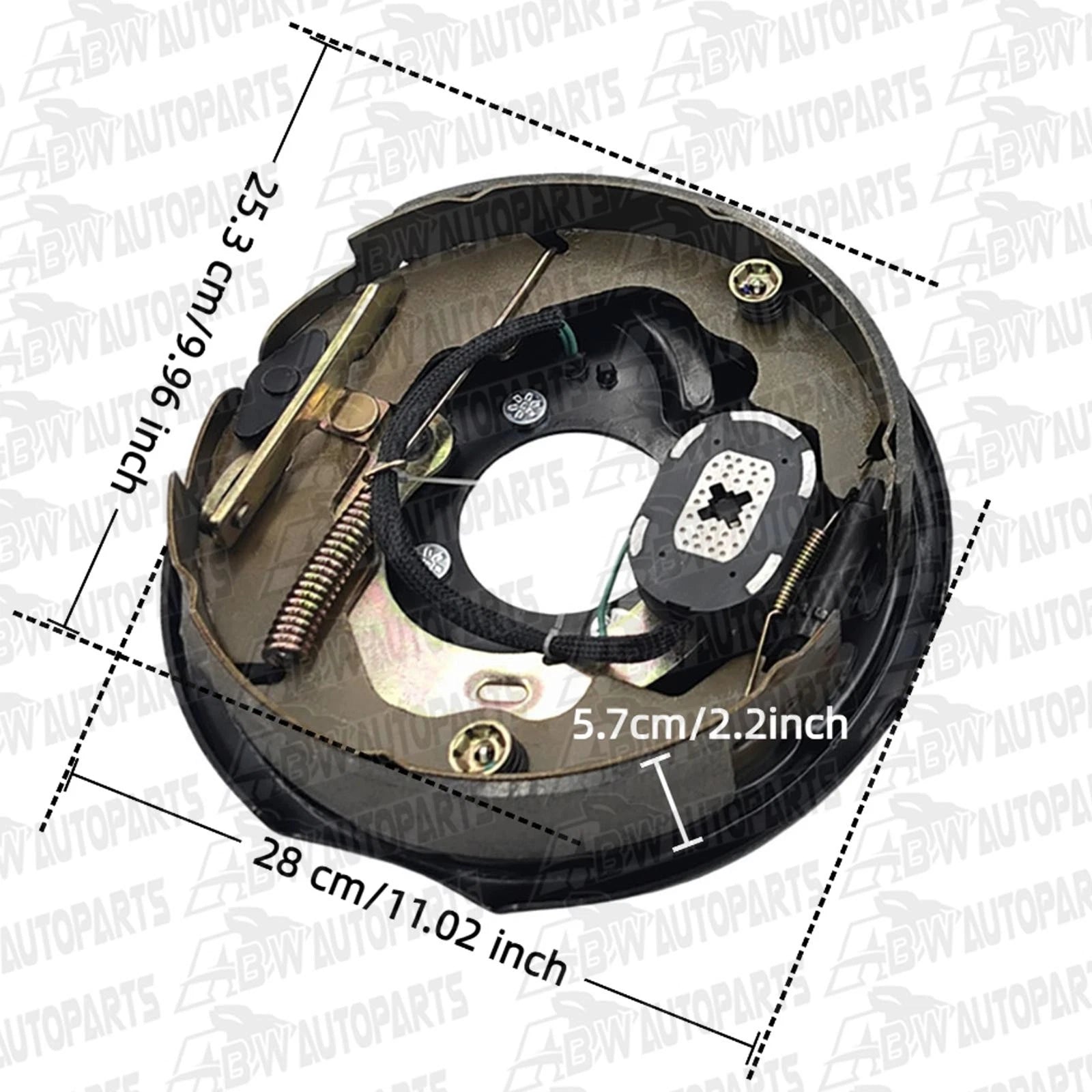

• Inner diameter: 25.3 cm (10 inch)
• Outer diameter: 28 cm (11 inch)
• Overall height: 5.7 cm (2.2 inch)

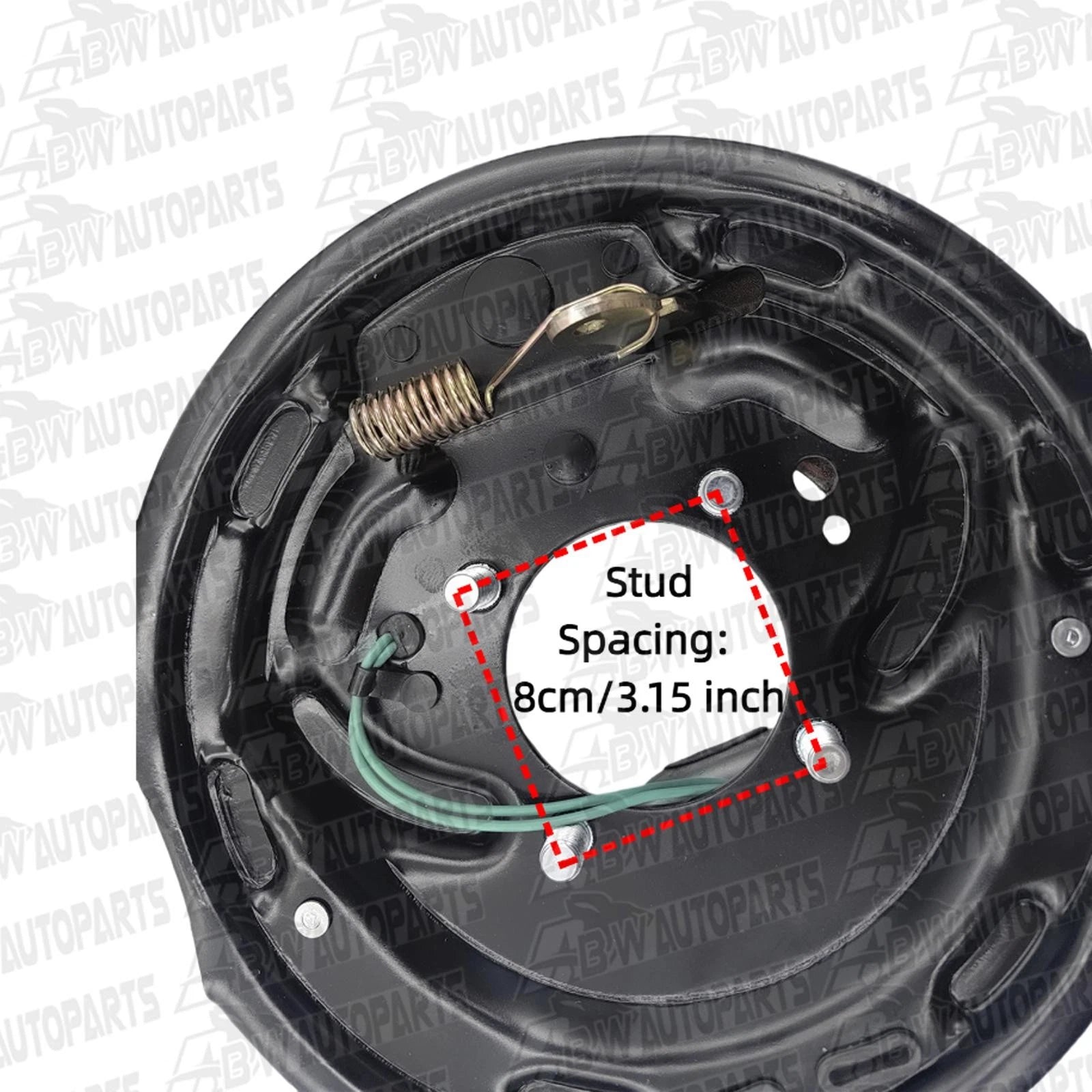

• Stud spacing: 8 cm (3.15 inch), bolt centres approx. 72 mm x 72 mm
• Mounting: 4-hole pattern, supplied with bolts, nuts and lock washers
• Condition: Brand new, designed as an OEM-style direct replacement

FEATURES

• Complete assemblies with brake shoes and quality magnets pre-installed
• OEM-style fitment with no modifications required when matched correctly
• 4-hole mounting for common trailer axle configurations
• Designed for reliable electric braking performance on trailers and caravans

INSTALLATION NOTES

• Professional installation is recommended; installation instructions are not included.
• Verify all measurements, mounting pattern and orientation (LH/RH) before installation.
• Ensure compatibility with your existing hubs, drums and axle assembly.

IMPORTANT INFORMATION

• Check part specifications and photos carefully to ensure they match your original components.
• No specific vehicle fitment data is provided; suitability must be confirmed by the installer.
