4x 88 LED Sequential Tail Lights Stop Reverse Indicator 12-24V Trailer Truck

OVERVIEW

Universal 88 LED tail light set designed for trailers, trucks, utes, 4WDs, caravans and other 12-24V vehicles. Each light integrates brake, tail, reverse and sequential turn signal functions for improved visibility and safety. Not submersible for boat trailers.

KEY FEATURES

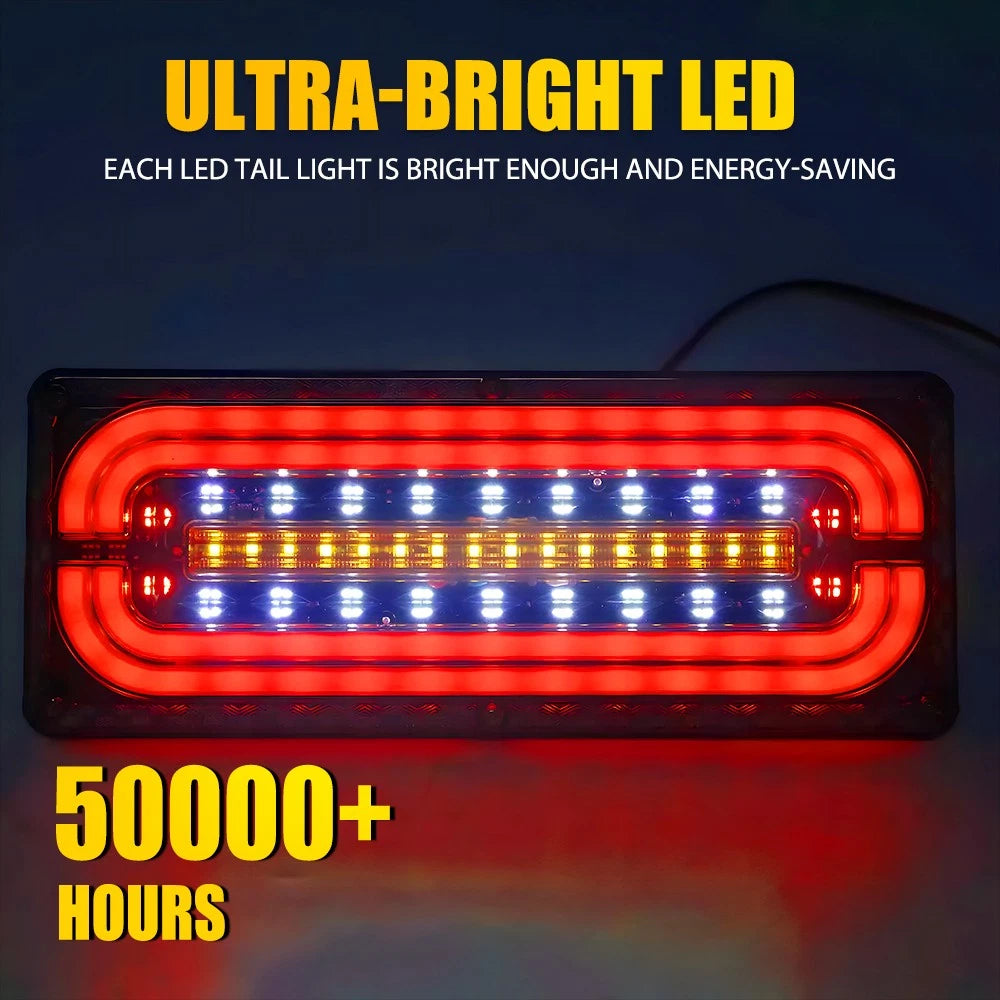

• 88 high-intensity LEDs per lamp for bright, energy-efficient illumination
• Sequential dynamic amber turn signal for enhanced signalling
• Integrated brake, tail, reverse and indicator functions
• Wide 12-24V operating range for universal fitment
• IP67-rated waterproof design for harsh weather conditions
• Durable ABS housing with impact-resistant PC lens

APPLICATIONS

• Universal fit for trailers, trucks, utes, 4WD, 4x4 and caravans
• Suitable for buses, trailers, lorries, RVs and tow vehicles
• Can be used as brake, rear, reverse, side indicator and side marker lights
• Not recommended for submersible boat trailer use

SPECIFICATIONS

• Lighting technology: LED
• Operating voltage: 12-24V
• Power: 5 W (approx.)
• Lumens: up to 2400 lm
• Colour temperature: approx. 3000 K
• Light colours: red, white, amber/yellow
• Model: Sequential dynamic flowing turn signal
• Material: ABS housing, PC lens
• Housing colour: black
• Lens colours: yellow/red/white
• Finish: polished
• Working temperature: -40 °C to 80 °C
• Estimated service life: > 50,000 hours
• Mounting style: screw mount
• Placement: rear left/right, side, upper/lower, front/rear as required
• Approx. length: 33 cm (13 in)
• Approx. width: 13 cm (5.11 in)
• Approx. height: 4.1 cm (1.61 in)
• Universal fitment: yes

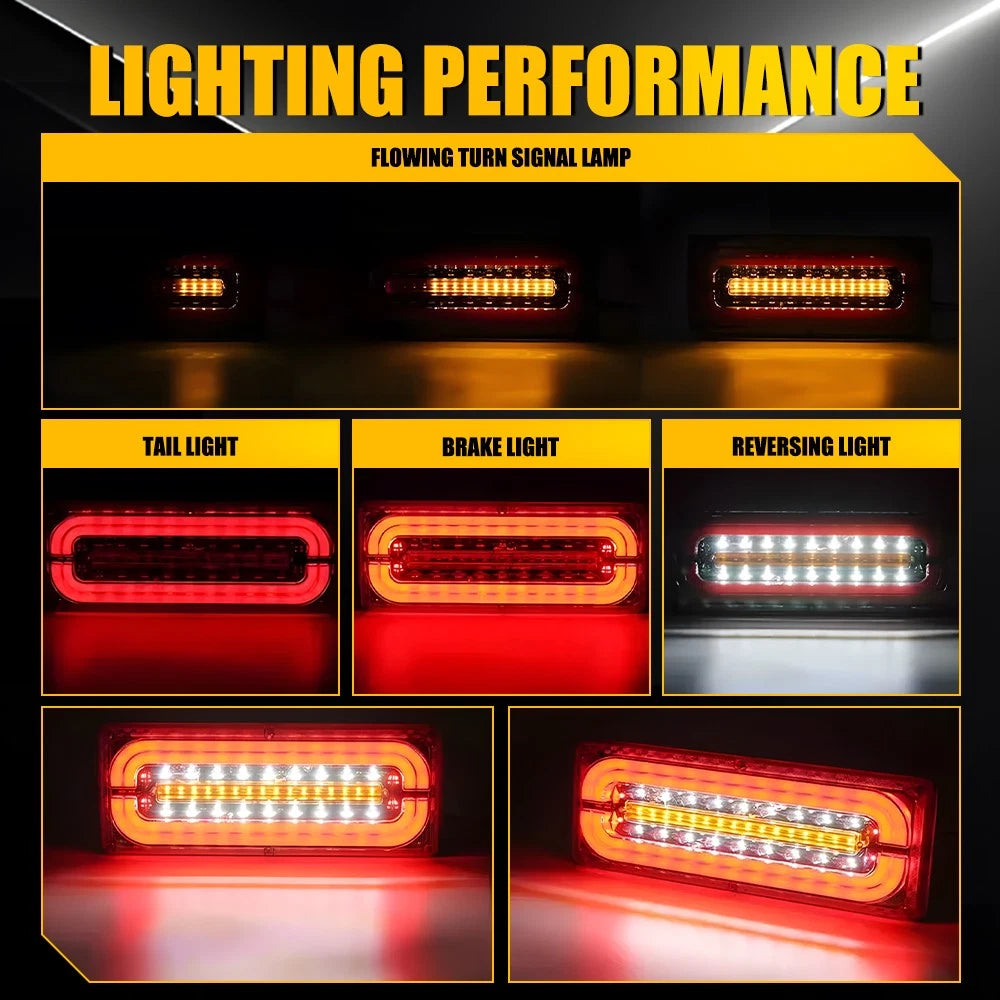

FUNCTIONS & WIRING

• Brake light: high-brightness red ring
• Tail light: low-brightness red ring
• Reverse light: white light
• Turn signal: amber light (steady or sequential)

• Black wire: negative (ground)
• Red wire: brake light (high-bright red)
• Green wire: tail light (low-bright red)
• White wire: reverse light (white)
• Orange wire: turn signal (steady amber)
• Yellow wire: turn signal (sequential amber)

DURABILITY & COMPLIANCE

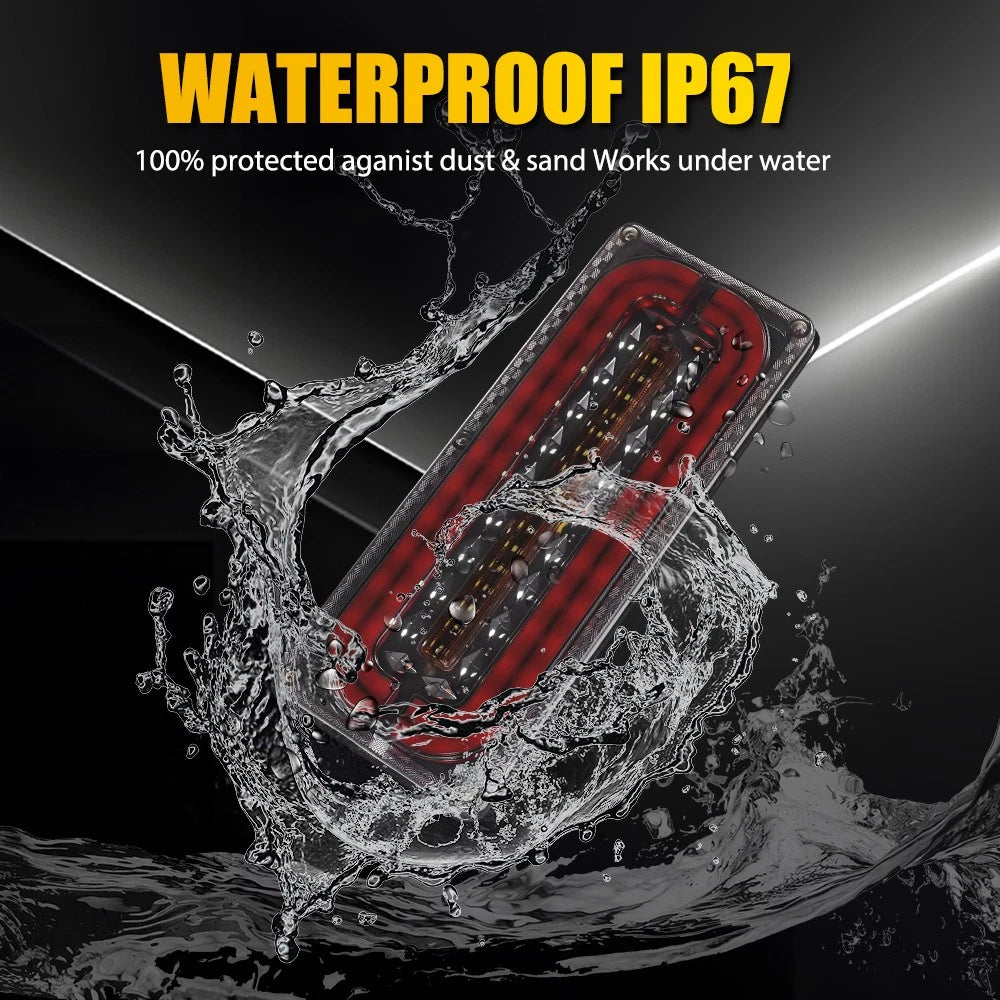

• Waterproof rating: IP67
• Shock and vibration resistant construction
• Rust-resistant design
• Road-legal LED technology (check local regulations)
• Manufacturer warranty: 2 years (indicative)

PACKAGE CONTENTS

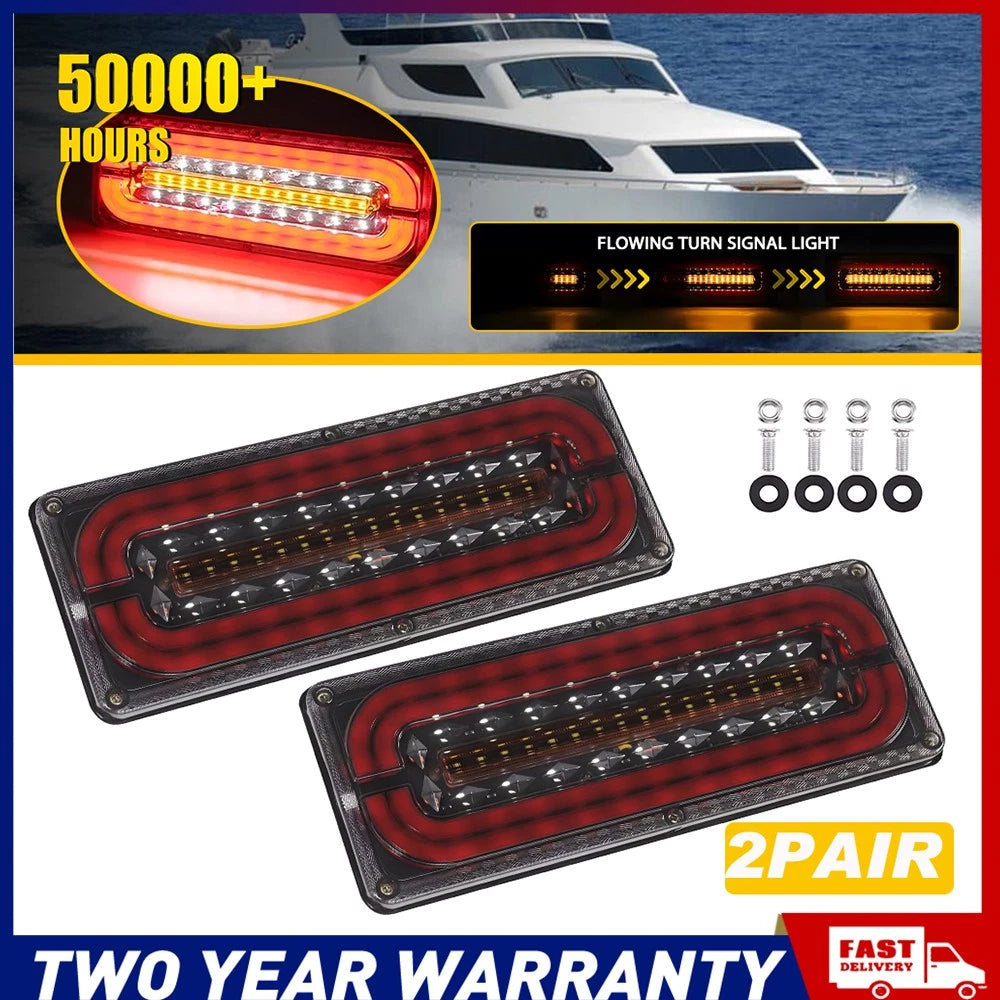

• 4 x 88 LED tail light assemblies
• Mounting hardware (screws) – where applicable

NOTES

• Professional installation is recommended for correct wiring and sealing.
• Confirm dimensions and wiring compatibility with your vehicle before purchase.
• Not designed for continuous underwater or submersible use.
