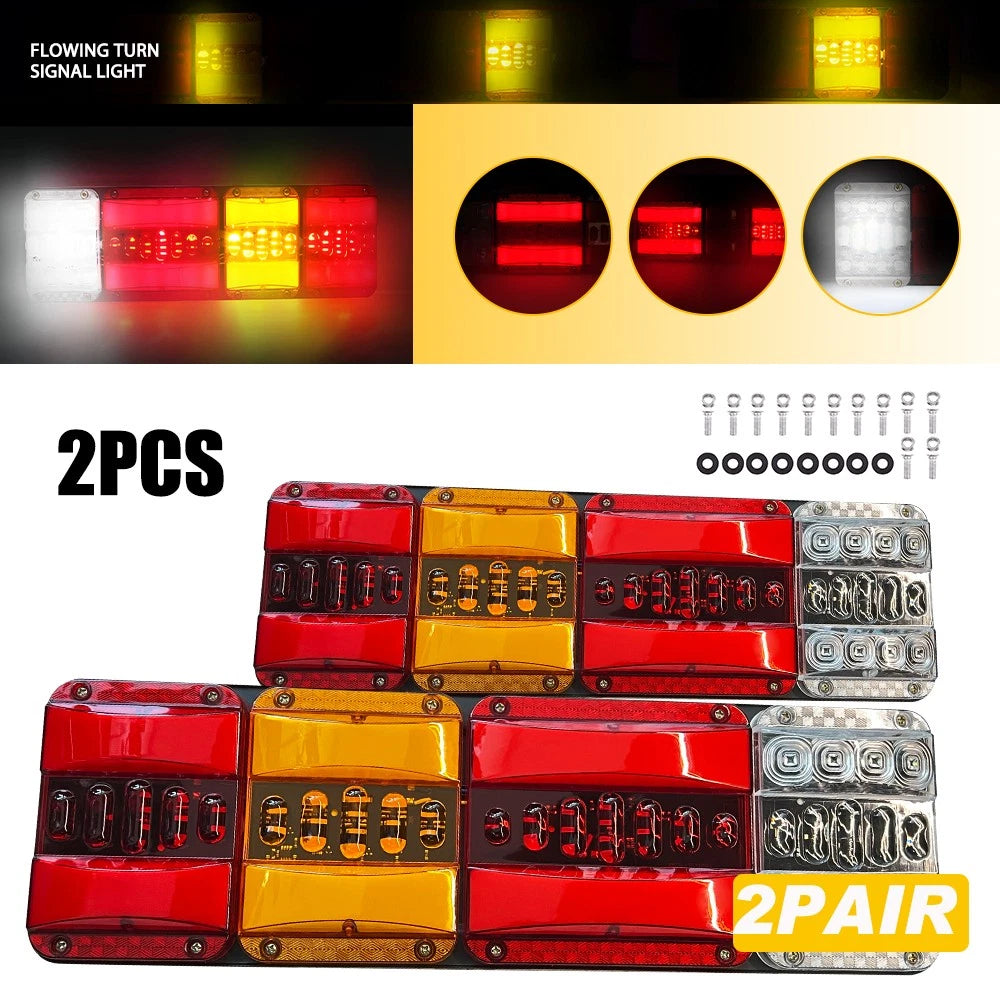

4x 122 LED Tail Lights Stop Indicator Reverse 12–30V Trailer Ute Caravan

PRODUCT OVERVIEW

These medium jumbo multifunction LED tail lights provide high-visibility stop, tail, indicator and reverse functions in a slim bar design. Each light uses 122 super bright LEDs and a heavy-duty housing, suitable for a wide range of 12–30V vehicles including trailers, utes, trucks, 4WDs and caravans. Not submersible for boat trailers.

KEY FEATURES

• 122 super bright 3528 SMD LEDs per light for excellent visibility

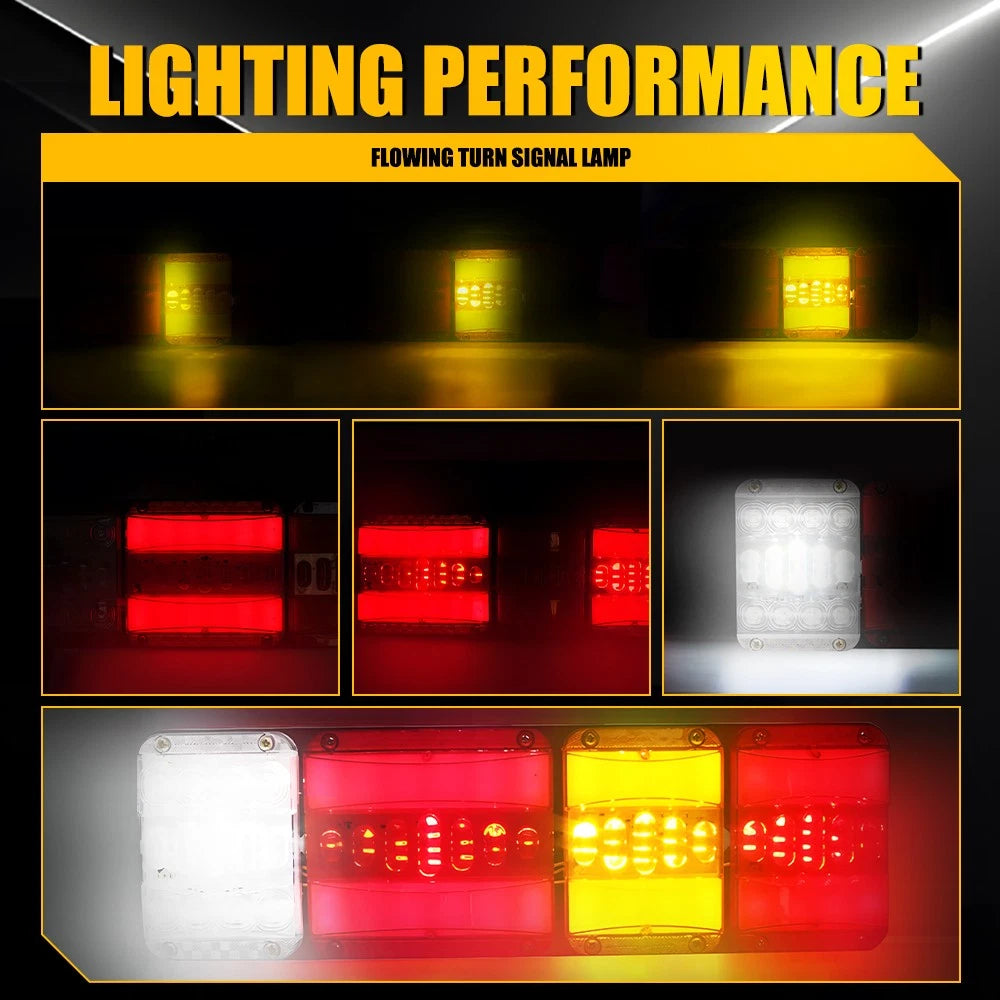

• Multifunction design: stop, tail, indicator and reverse light
• Wide operating voltage range: 12–30V DC (suits 12V and 24V systems)
• Heavy-duty full-body construction for long service life

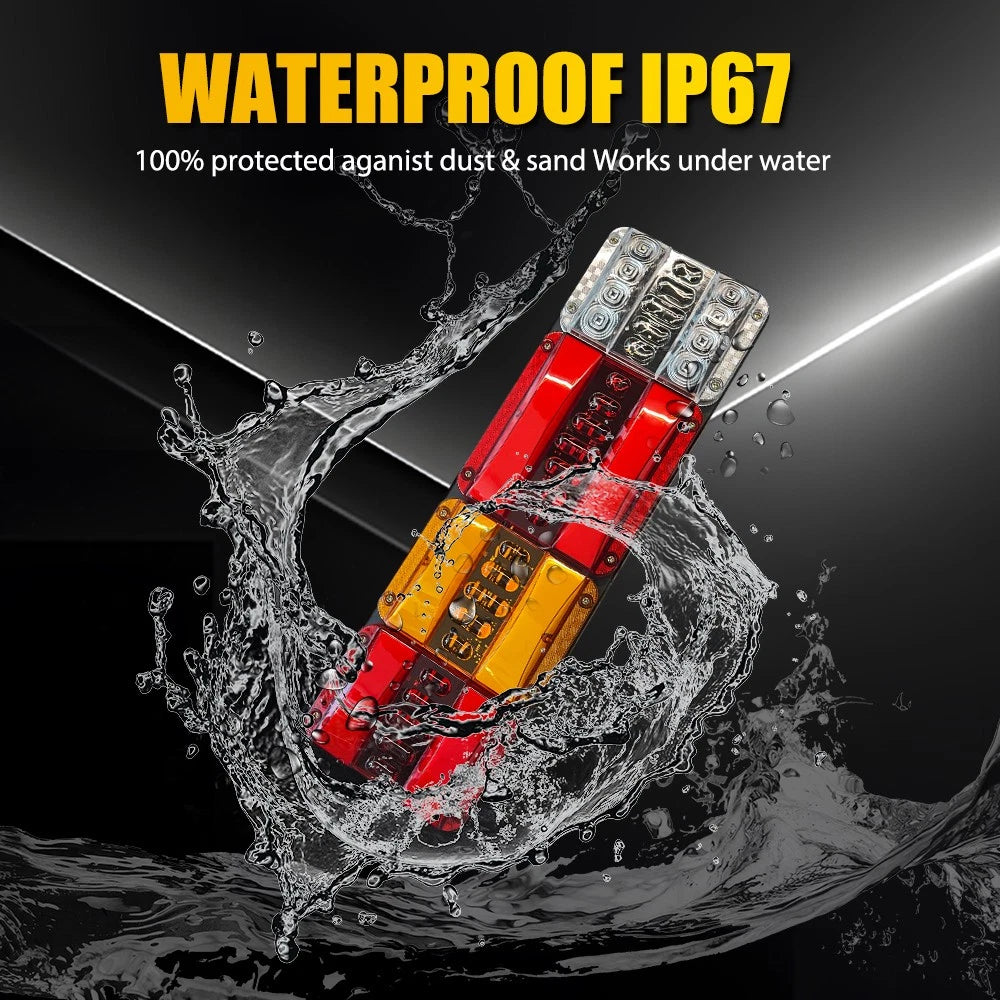

• IP67 rainproof, shock and vibration resistant (not submersible)
• Lights can be removed from housing for alternative mounting options
• Universal fitment for trailers, trucks, utes, 4WD, 4x4 and caravans
• Direct-replacement, screw-mount installation with no modification required

SPECIFICATIONS

• Functions: brake (stop) / tail / turn signal / reverse
• Operating voltage: 12–30V DC
• Lumens: approx. 2000 lm
• Power: 5 W
• Number of LEDs: 122 x 3528 SMD per light (244 per pair)
• Lighting technology: LED
• Light colours: red (stop/tail), amber (indicator), white (reverse)
• Lens colours: red, white, amber
• Housing colour: black
• Dimensions (L x H x D): 450 mm x 140 mm x 25 mm
• Distance between fixing bolts: approx. 280–380 mm
• Mounting style: screw mount
• Material: ABS / PC housing with PC lens
• Finish: polished
• Rated life: > 50,000 hours
• Fitment: universal for 12–24V vehicles and heavy trucks

WIRING / CONNECTION

• Green: tail
• Red, blue: stop (brake)
• Yellow: indicator
• Black: reverse
• White: earth (ground)

APPLICATIONS

• General-purpose trailer tail lights
• Caravan and RV rear lighting
• Ute and truck light bars
• 4WD / 4x4 auxiliary tail and indicator lighting
• General 12–24V marker and tail light applications (non-submersible)

IN THE BOX

• 4 x 122 LED multifunction tail lights
