4x 122 LED Submersible Tail Lights Kit for Truck Boat Trailer 12–24V

PRODUCT OVERVIEW

This 4-piece LED tail light kit provides high-visibility stop, tail and turn signal functions for 12–24V vehicles. The slim bar design and IP67 waterproof construction make it ideal for trucks, trailers, RVs and boat trailers where space and durability are critical.

KEY FEATURES

• 244 high-output LEDs total (122 LEDs per light) for excellent brightness and visibility.
• Multi-function operation: brake, tail, turn signal, position and side marker lighting.
• Sequential dynamic amber turn signal for clearer signaling and a modern look.
• IP67 waterproof and dustproof with sealed ABS housing and polycarbonate lens.
• Slim bar design for applications where mounting space is limited.
• Designed for heavy-duty use on trucks, semi-trailers, cargo and boat trailers, RVs and work vehicles.

SPECIFICATIONS

• Lighting technology: 3528 SMD LED
• Number of LEDs: 122 per light (244 total in kit)
• Light colours: red & amber, with white auxiliary light
• Operating voltage: 12–24V DC
• Lumens: approx. 2000 lm
• Colour temperature (white): 6500K
• Power: 5 W (per light)
• Material: ABS housing with PC (polycarbonate) lens
• Lens colour: red / amber (smoked polycarbonate)
• Housing colour: black
• Waterproof rating: IP67
• Mounting style: screw mount
• Distance between fixing bolts: approx. 280–380 mm
• Item length: 450 mm / 17.71 in
• Item width: 140 mm / 5.5 in
• Item height: 25 mm / 0.98 in
• Service life: > 50,000 hours
• Placement: rear, left/right, side, upper/lower as required

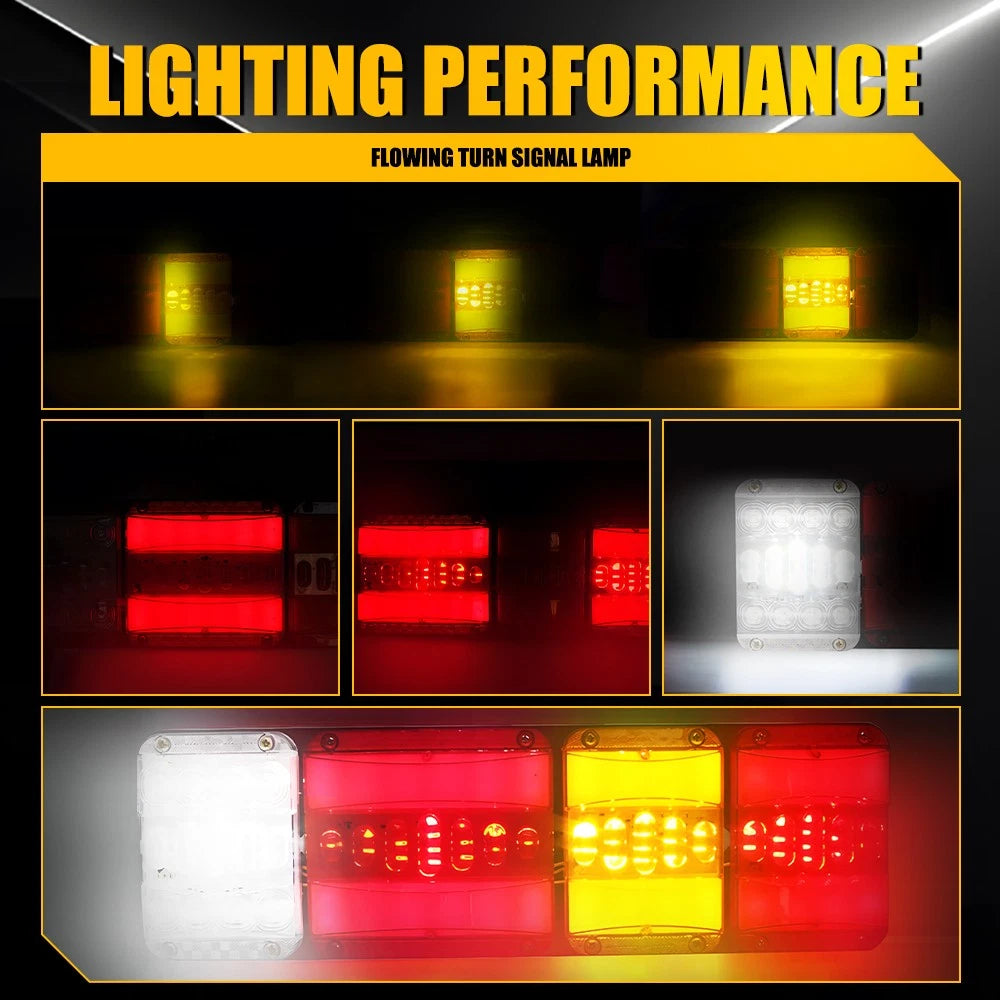

FUNCTIONS

• Tail / position light (low-brightness red)
• Brake / stop light (high-brightness red)
• Sequential flowing turn signal (amber)
• Side marker and identification lighting
• White auxiliary light

WIRING CONNECTION

• Black wire: negative (ground)
• Yellow wire: constant amber + sequential amber turn signal
• Green wire: low-brightness red (tail/position)
• Red wire: high-brightness red (brake)
• Blue wire: high-brightness red (additional brake/stop)
• White wire: white light

APPLICATIONS

• Heavy-duty trucks and semi-trailers
• Cargo and box trailers
• Boat and marine trailers
• RVs, caravans and overland vehicles
• General work vehicles and utility trailers
• Universal fit for most 12–24V vehicles requiring bar-style rear lighting

INSTALLATION NOTES

• Direct replacement, screw-mounted installation.
• No modification typically required when replacing similar bar-style lights.
• Ensure 12–24V DC power supply and correct polarity before connection.
• Mount on a clean, flat surface and seal screw holes appropriately on boat trailers.

PACKAGE CONTENTS

• 4 x 122-LED submersible tail / brake / turn signal light bars
