4X LED Trailer Tail Lights Kit 3-in-1 Stop Turn Tail Lamp 12-24V IP67

OVERVIEW

This ultra-slim LED trailer tail light kit provides combined stop, turn and tail lighting in a compact, surface-mount design. Suitable for universal 12–24V applications including trucks, trailers and RVs.

KEY FEATURES

• 3-in-1 function: stop, turn and tail / running light
• Ultra-slim LED strip design for tight mounting spaces
• High brightness, low power consumption LED technology
• Long life span solid-state LEDs (up to 50,000 hours)
• IP67 waterproof and dust-proof construction
• Smoked lens for a clean, modern appearance
• Universal 12–24V DC for trucks, trailers, RVs and work vehicles
• Surface-mount installation with screw mounting points

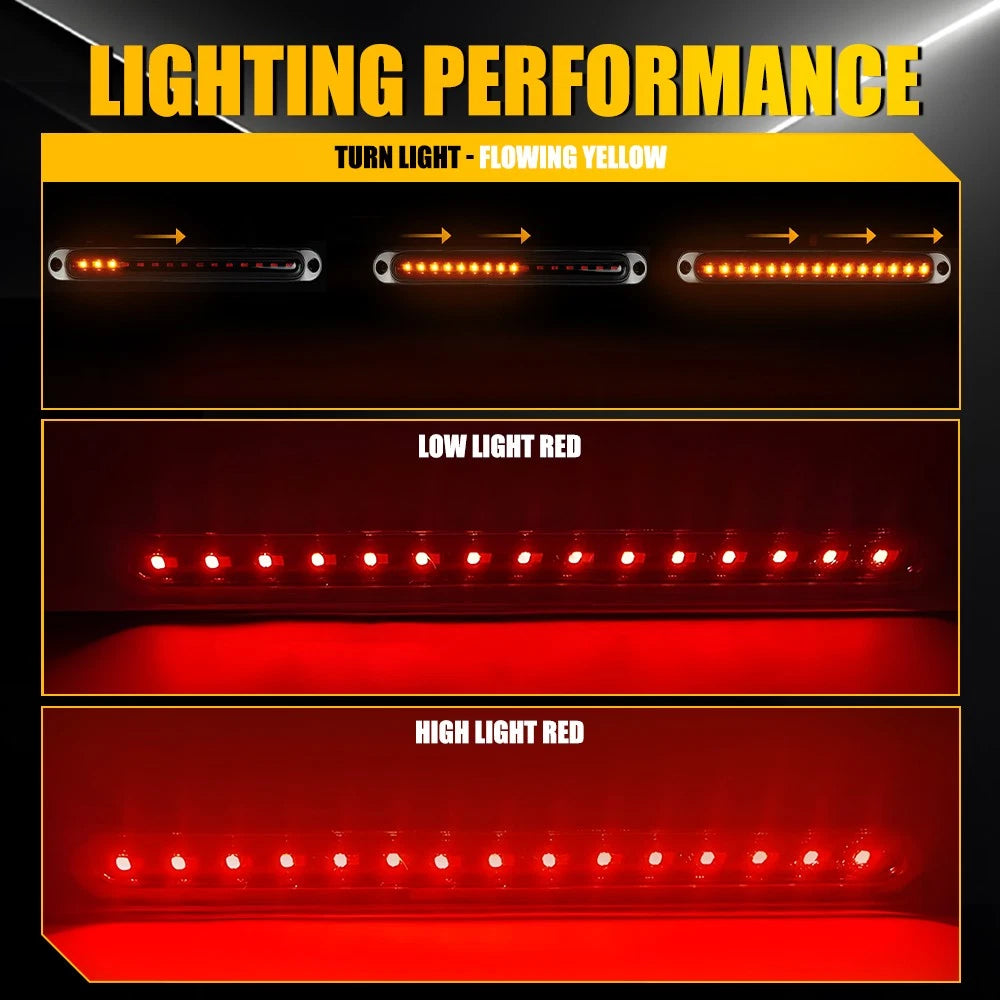

• Flowing (sequential) turn signal function

APPLICATIONS

• Truck and semi-trailer rear lighting
• Cargo and box trailers
• Caravans and RVs
• Work and utility vehicles
• Wide or narrow overland and tow vehicles where space is limited

SPECIFICATIONS

• Condition: 100% new
• Type: LED tail light bar (stop / turn / tail)
• Voltage: DC 12–24V
• Waterproof rating: IP67
• Lighting technology: LED
• Number of LEDs: 30 pcs total (15 pcs per light)
• Lumens: approx. 1800 lm
• Colour temperature: 3000K (red output)
• Light colour: Red + yellow (flowing turn signal)
• Lens colour: Smoke
• Material: PC + ABS (PC ABS)
• Mounting style: Screw mount
• Placement on vehicle: Rear, left and right, outer
• Fitment type: Direct replacement, universal fit
• Bulb fitment / shape code: C5W (LED equivalent)
• Operating current: 0.12 A (max)
• Wattage: 0.2 W (low power draw)
• LED life: up to >50,000 hours
• Waterproof and dust-proof sealed housing

DIMENSIONS

• Overall size (approx.): 248 mm (L) x 27 mm (W) x 17 mm (H)
• Bolt hole spacing (centre to centre): 232 mm / 9.13 in

WIRING DETAILS (4-WIRE)

• Black wire: Negative (ground)
• Yellow wire: Turn signal
• Red wire: Brake light
• White wire: DRL / tail / running light

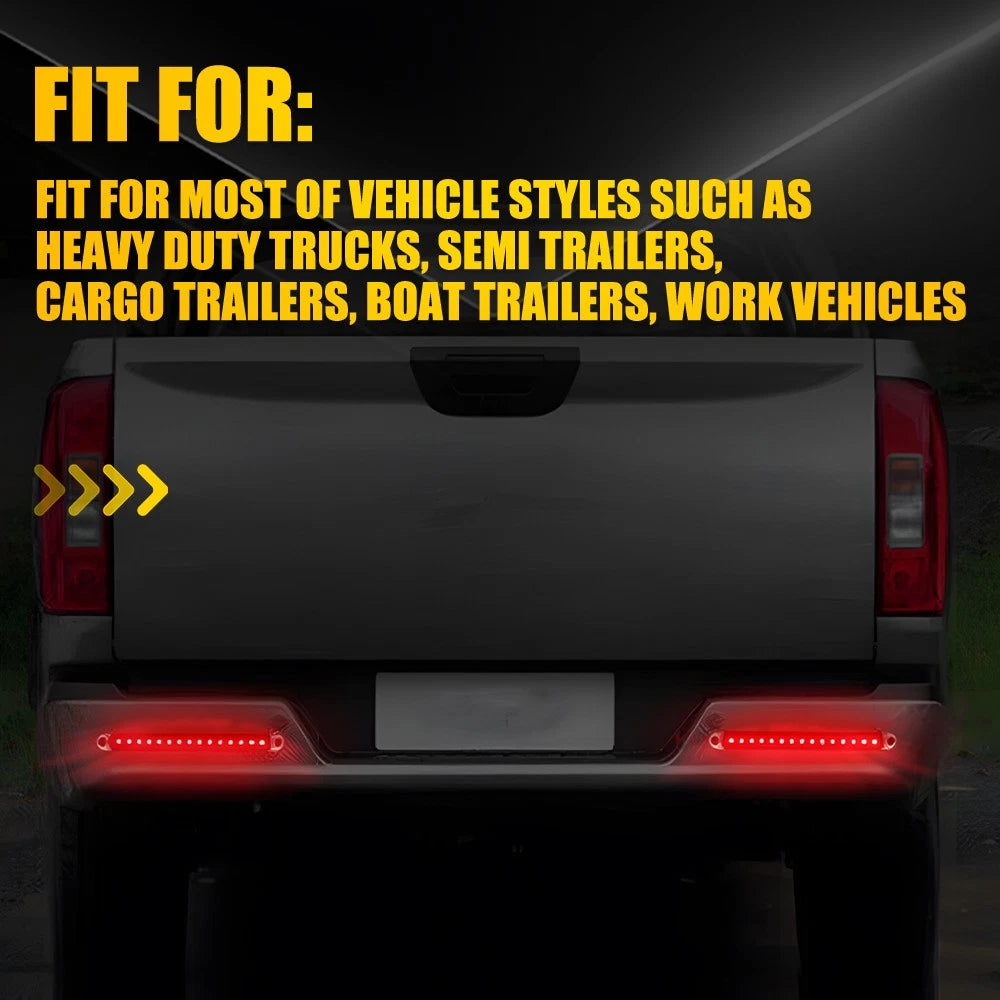

FITMENT

• Universal fit for 12–24V vehicles
• Suitable for heavy trucks, trailers, RVs and general towing applications
• Can also be used as side marker, side indicator or indicator light where dimensions and voltage are compatible
• No major modification required when replacing similar-size light bars

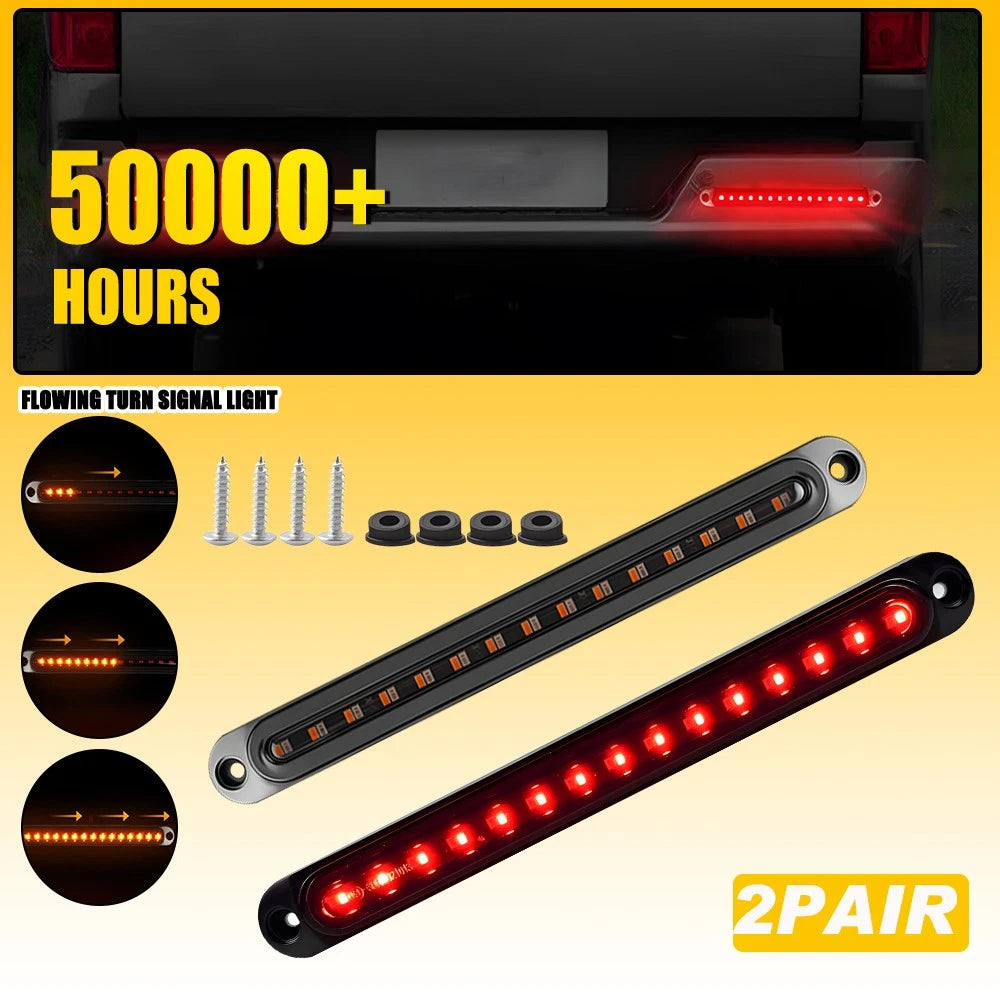

PACKAGE CONTENTS

• 2 x LED stop / turn / tail light bars
• 4 x Mounting screws
• 4 x Screw caps
