540pcs Heat Shrink Wire Crimp Connector Assortment Kit, 22-10 AWG

OVERVIEW

This 540-piece heat shrink wire crimp connector assortment kit provides a complete selection of waterproof ring, butt, spade, hook and quick-disconnect terminals for reliable electrical connections in automotive, marine, motorcycle, RC and home wiring projects.

KEY FEATURES

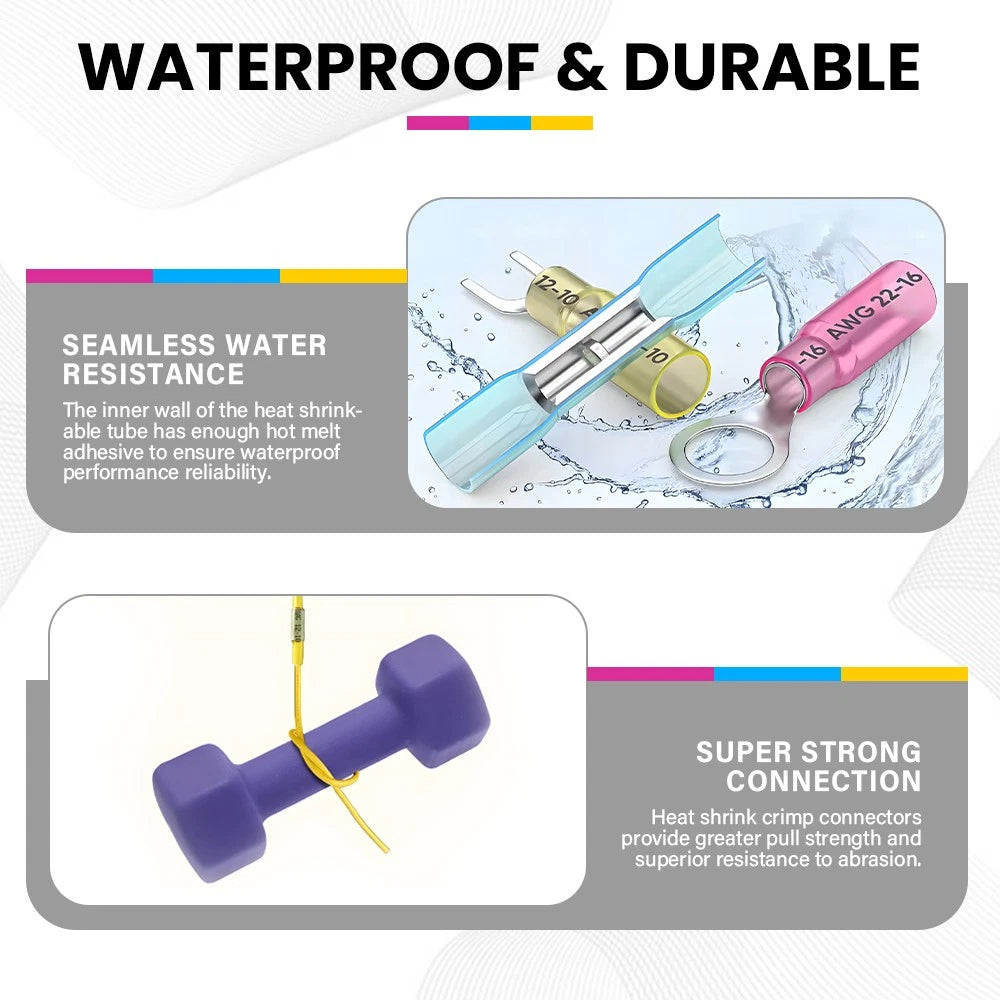

• Dual-wall heat shrink with adhesive lining for moisture-proof, corrosion-resistant connections
• 3:1 heat shrink ratio for tight, secure seals over a wide range of wire sizes
• Colour-coded insulation (red, blue, yellow) for quick wire gauge identification
• Premium tinned copper cores for high conductivity and low electrical resistance
• Suitable for automotive, marine, motorcycle, RC and general electrical applications
• IP67 waterproof rating when correctly installed

WIRE GAUGE & COLOUR CODES

• Red: 22–16 AWG
• Blue: 16–14 AWG
• Yellow: 12–10 AWG
• Compatible wire gauge range: 22–10 AWG

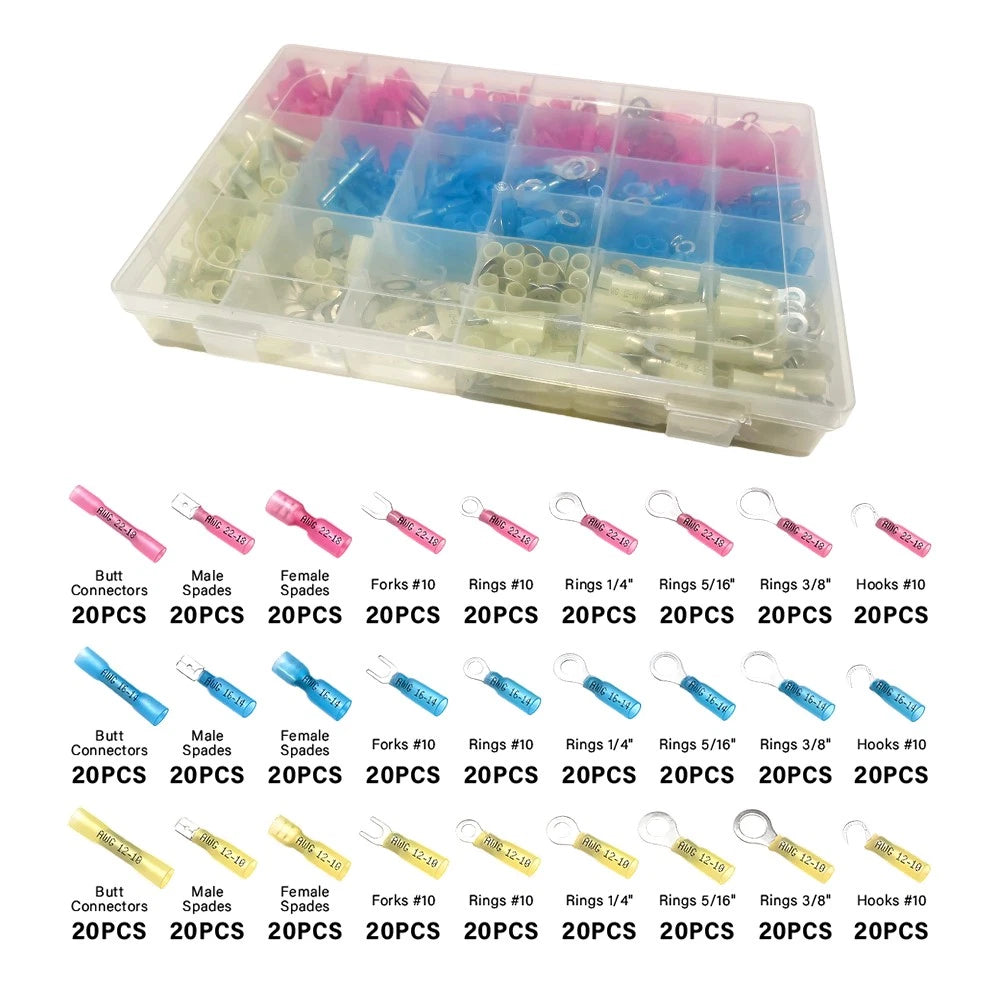

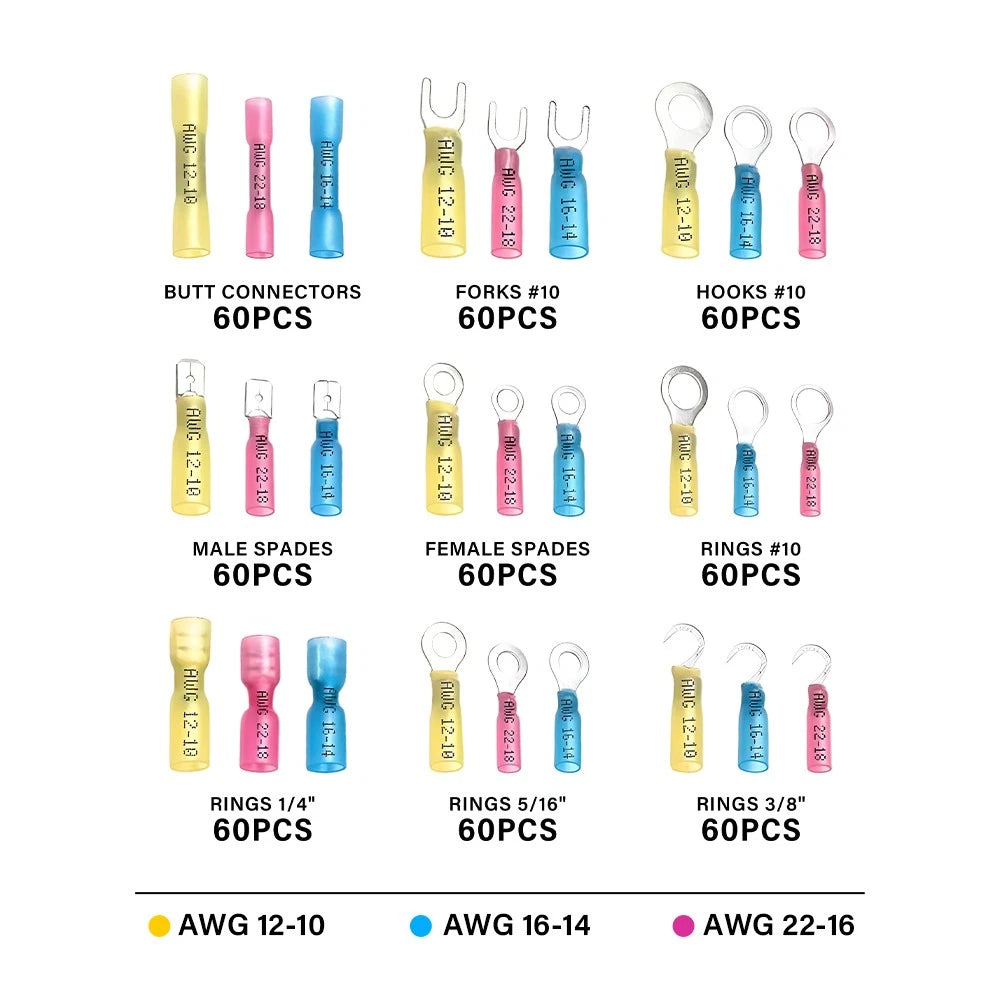

TERMINAL ASSORTMENT (540PCS)

• Red 22–18 AWG
  • Heat shrink ring terminals #10, 1/4", 5/16", 3/8" – 20 pcs each (80 pcs total)
  • Heat shrink butt connectors – 20 pcs
  • Male and female quick disconnects – 20 pcs each (40 pcs total)
  • Spade (fork) terminals for #10 stud – 20 pcs
  • Spade (hook) terminals for #10 stud – 20 pcs
• Blue 16–14 AWG
  • Heat shrink ring terminals #10, 1/4", 5/16", 3/8" – 20 pcs each (80 pcs total)
  • Heat shrink butt connectors – 20 pcs
  • Male and female quick disconnects – 10 pcs each (40 pcs total)
  • Spade (fork) terminals for #10 stud – 20 pcs
  • Spade (hook) terminals for #10 stud – 20 pcs
• Yellow 12–10 AWG
  • Heat shrink ring terminals #10, 1/4", 5/16", 3/8" – 20 pcs each (80 pcs total)
  • Heat shrink butt connectors – 20 pcs
  • Male and female quick disconnects – 20 pcs each (40 pcs total)
  • Spade (fork) terminals for #10 stud – 20 pcs
  • Spade (hook) terminals for #10 stud – 20 pcs

MATERIALS & PERFORMANCE

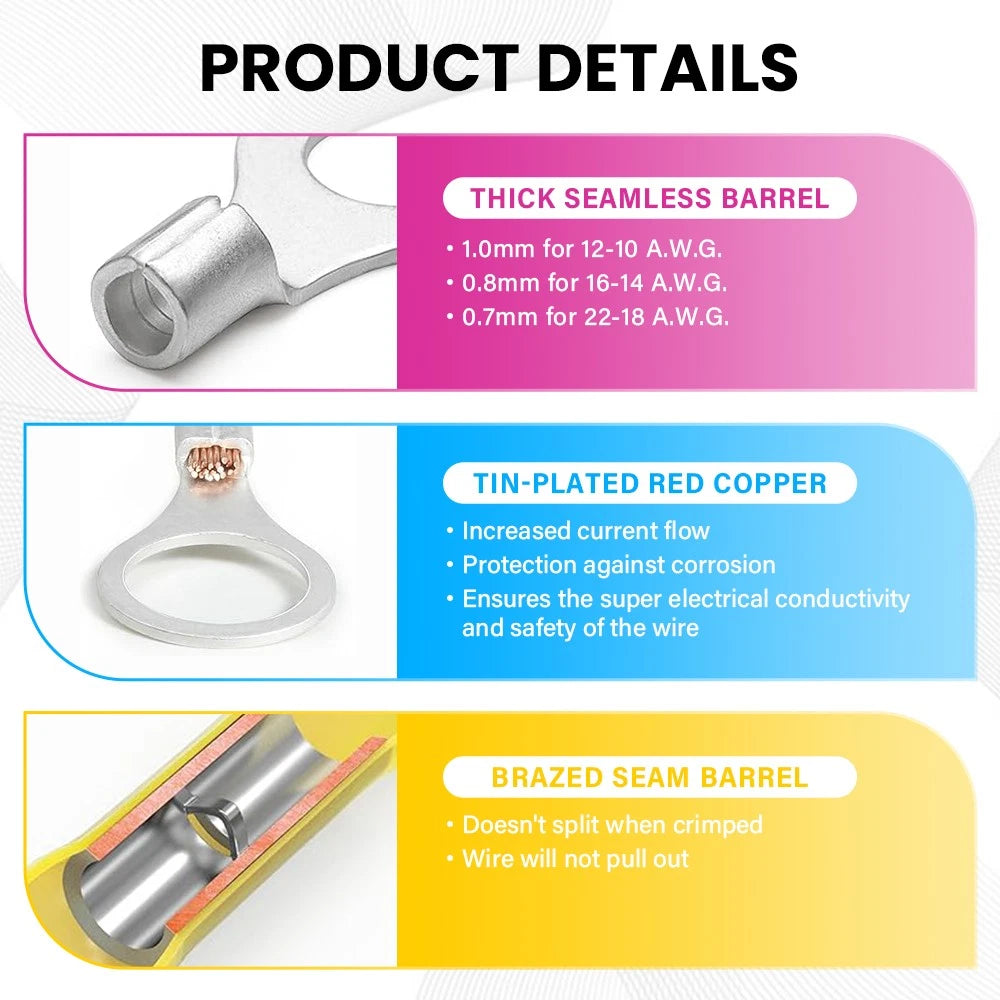

• Contact material: tinned copper

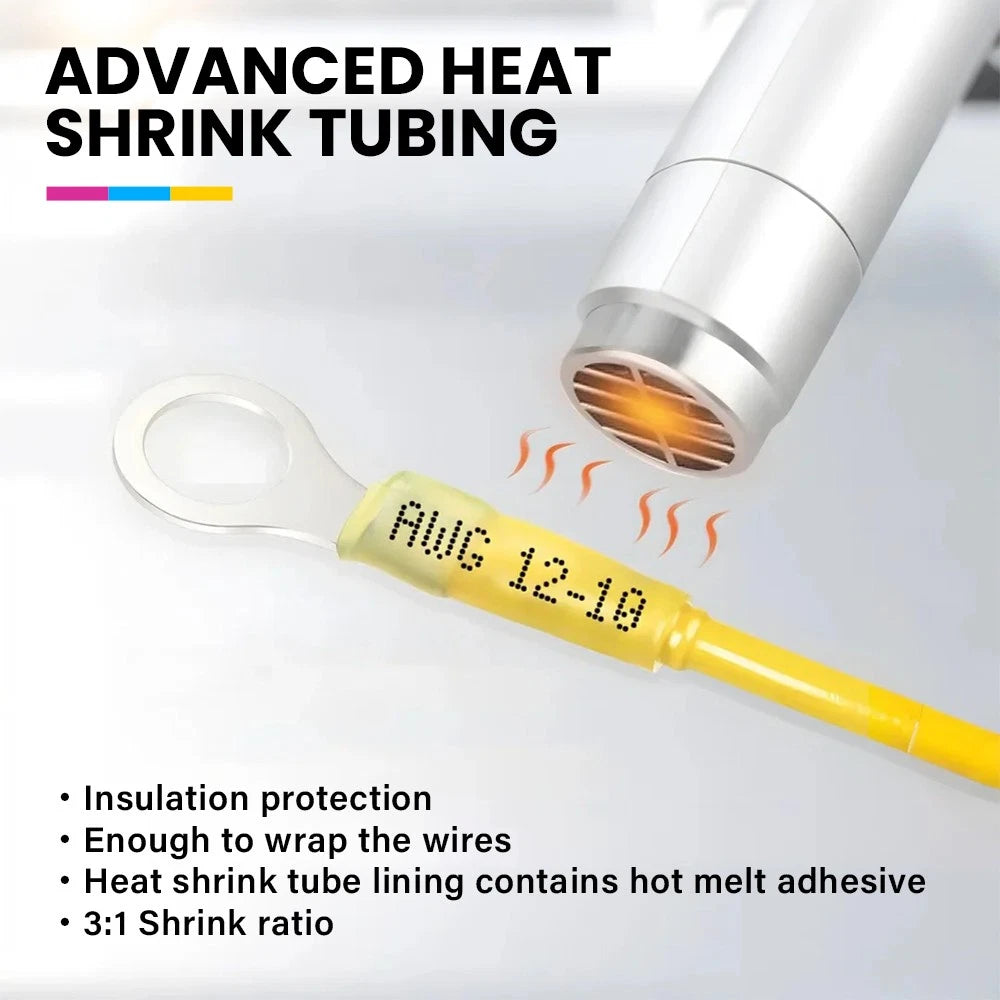

• Insulation: heat shrink tubing with adhesive lining
• Heat shrink ratio: 3:1
• Waterproof rating: IP67 (when properly shrunk and sealed)
• Designed to perform reliably across a wide temperature range

DIMENSIONS & PACKAGING

• Total quantity: 540 pieces
• Packaging weight: approx. 710 g
• Packaging size (approx.): 27.5 × 17.5 × 4 cm
• Includes assorted red, blue and yellow connectors in a single kit

APPLICATIONS

• Automotive wiring repairs and installations
• Marine and boat electrical systems
• Motorcycle and powersports wiring
• RC models and hobby electronics
• General home and DIY electrical projects
