58 LED Sequential Trailer Tail Light Kit 10–30V IP67 Waterproof

OVERVIEW

This 58 LED trailer tail light kit provides high-visibility rear lighting in a slim, heavy-duty bar design. Each lamp supports stop, tail, indicator and reverse functions, with sequential amber indicators and wide 10–30V DC compatibility for trailers, utes, trucks, caravans and more.

KEY FEATURES

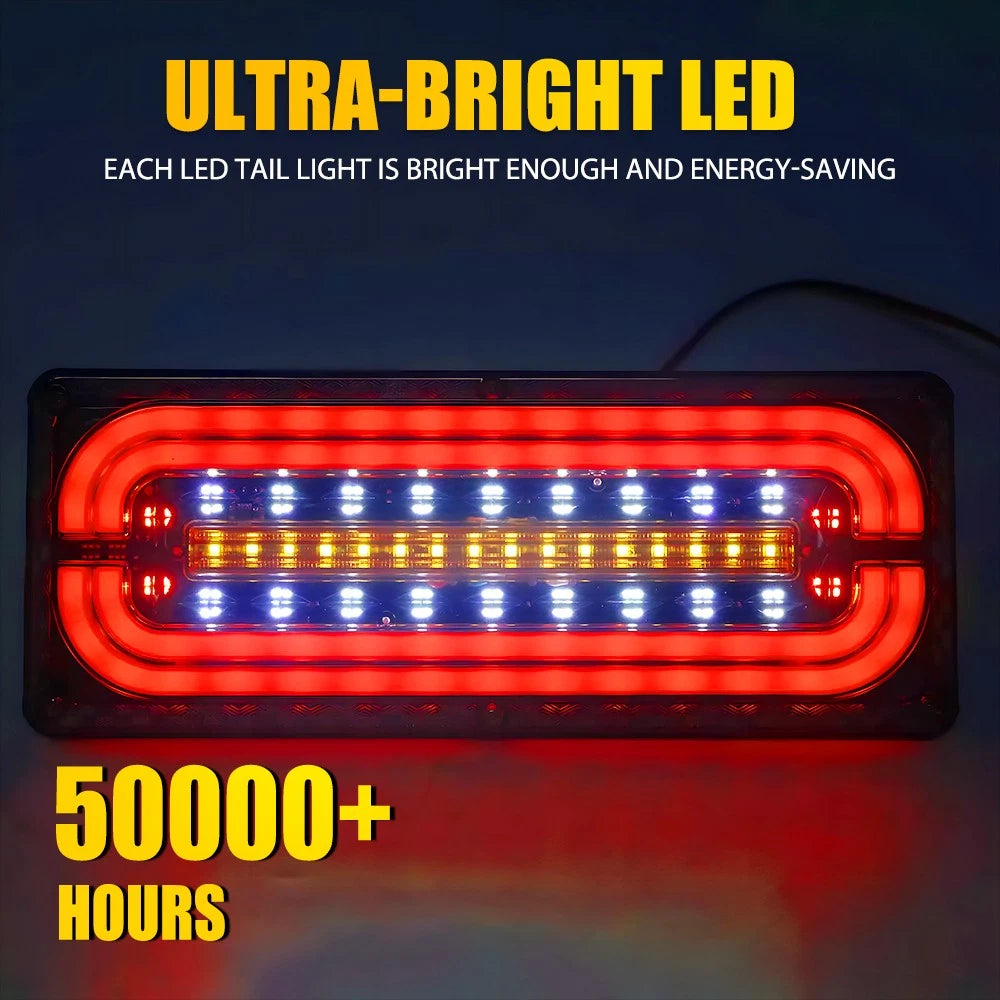

• 58 high-brightness LEDs per light for strong rear visibility
• Multifunction: stop, tail, indicator and reverse in one unit

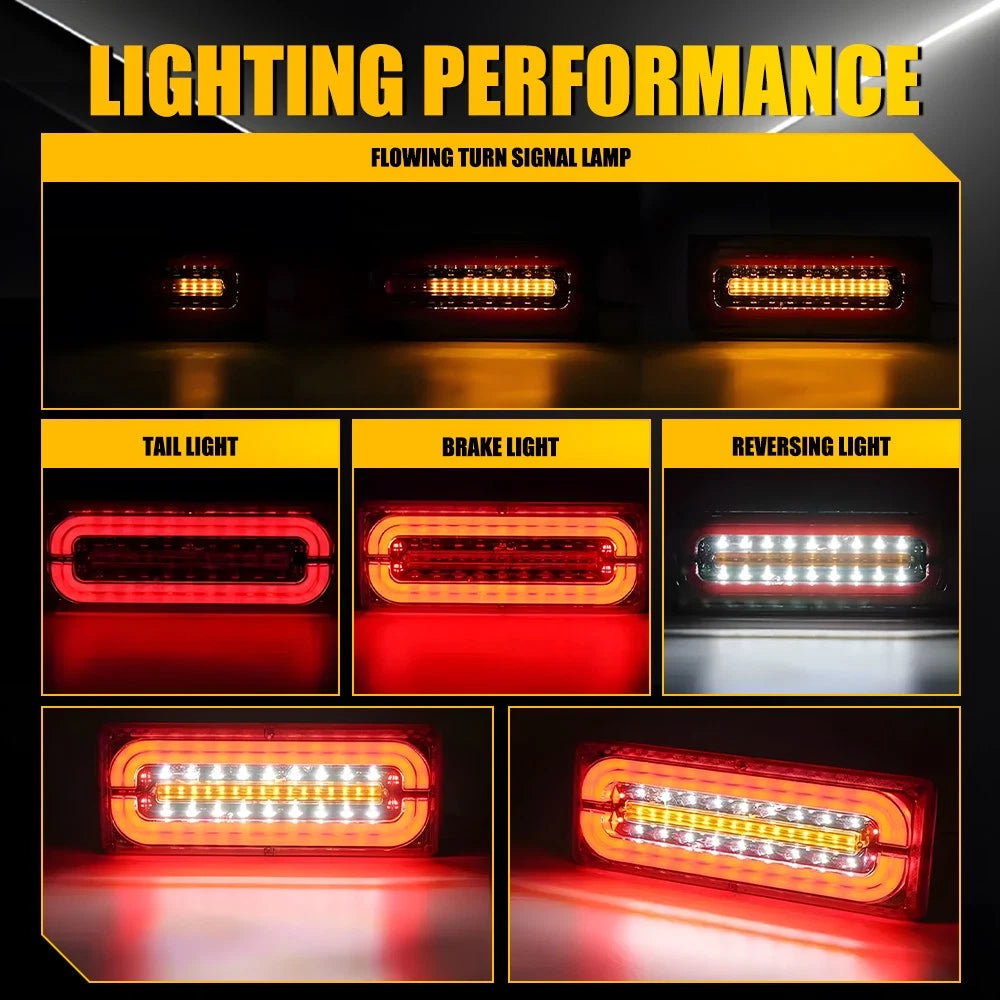

• Sequential dynamic flowing amber turn signal

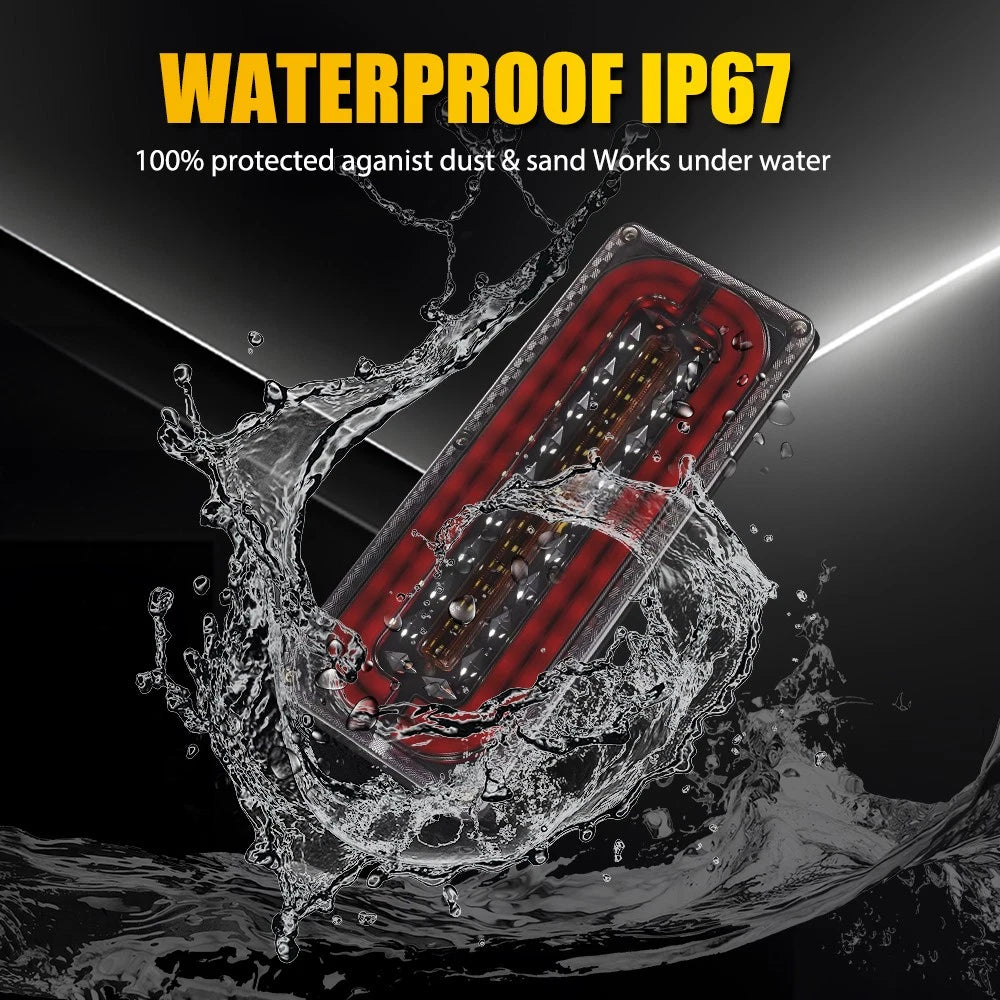

• IP67 waterproof (rain), shock and vibration resistant
• Wide input voltage 10–30V DC for flexible installation
• Heavy-duty ABS/PC construction for long service life
• Universal fit for trailers, trucks, utes, 4WD/4x4, caravans, RV, tow vehicles
• Easy screw mounting with adjustable bolt spacing
• Not designed for full submersion on boat trailers

SPECIFICATIONS

• LED count: 58 LEDs per light
• Functions: brake, tail, turn signal, reverse
• Operating voltage: 10–30V DC
• Lumens: 2400 lm (approx.)
• Power: 5 W
• Colour temperature: 3000 K
• Light colours: red / white / yellow (amber)
• Lens colours: red, white, yellow
• Housing colour: black
• Material: ABS, PC
• Working temperature: -40°C to 80°C
• Dimensions (L × W × H): 330 mm × 130 mm × 20 mm
• Approx. mounting bolt spacing: 110–260 mm (adjustable range)
• Mounting style: screw mount
• Estimated LED life: > 50,000 hours

WIRING CONNECTION

• Black: negative (ground)
• Red: brake light – high-brightness red ring
• Green: tail light – low-brightness red ring
• White: reverse light – white
• Orange: turn signal – constant amber
• Yellow: turn signal – sequential amber

APPLICATIONS

• Rear trailer tail lights and indicator lights
• Truck and ute tail, stop and reverse lights
• Caravan, RV and motorhome light bars
• Tow vehicles, pickups, SUVs, vans and utility vehicles
• Suitable positions: rear left or rear right (outer, upper or lower mounting)

PACKAGE CONTENTS

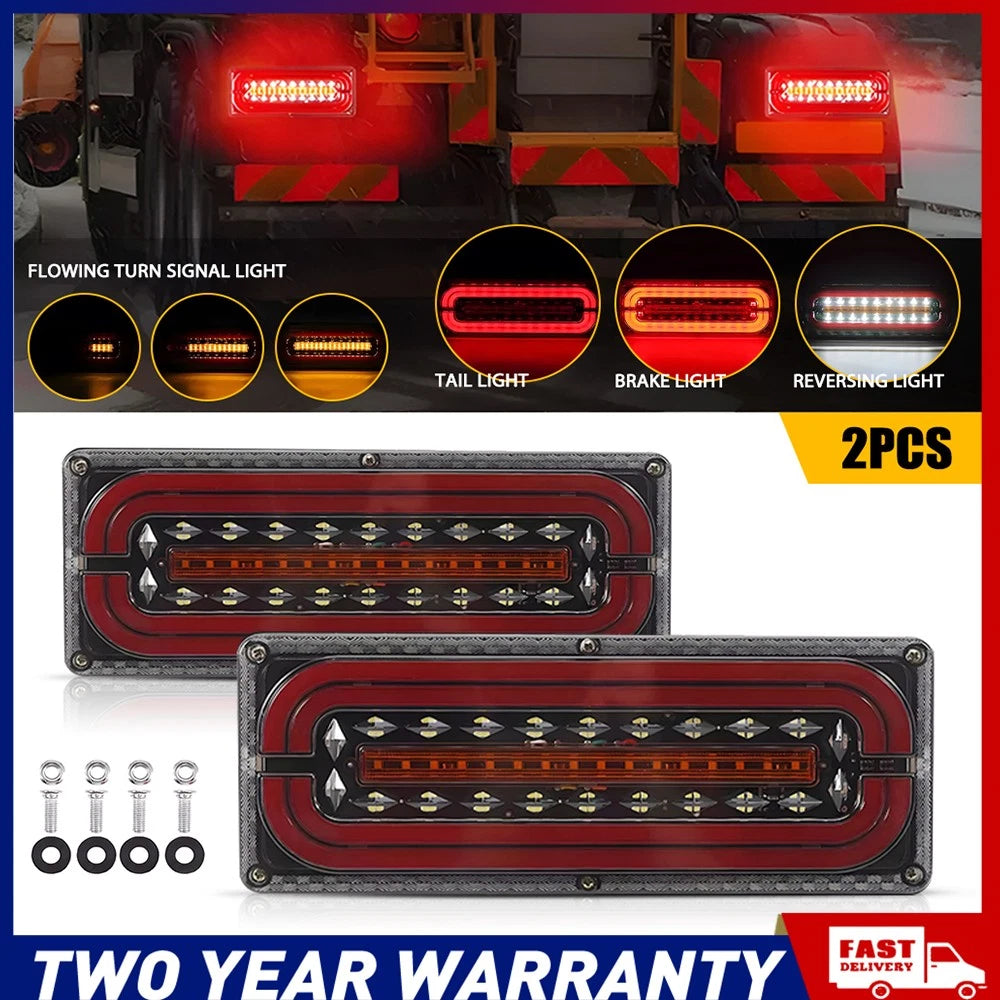

• 2 × 58 LED multifunction trailer tail lights

NOTES

• Universal fitment; check dimensions and mounting points before purchase.
• Rated IP67 for rain and spray; not intended for prolonged underwater use.
