PRODUCT OVERVIEW

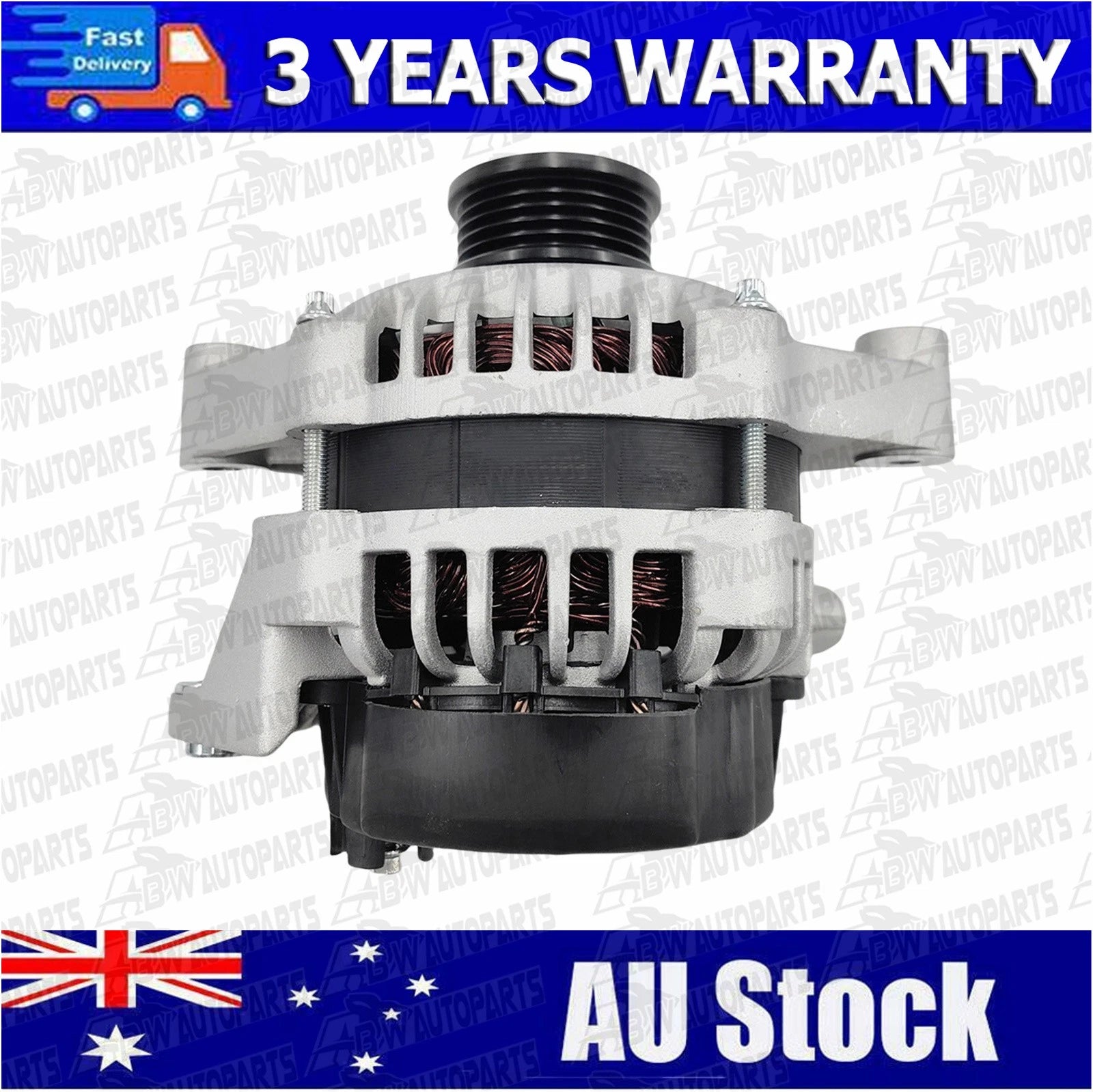

This 5PV alternator is a direct replacement unit for selected Holden Astra AH, TR and TS 4-cylinder 1.8L petrol engines from 1996–2007. Designed to match the original mounting, plug and pulley configuration, it delivers stable charging performance and reliable operation.
KEY FEATURES
- 12V, 120A output for consistent electrical system performance
- 5PV multi-rib pulley for compatible serpentine belt drive

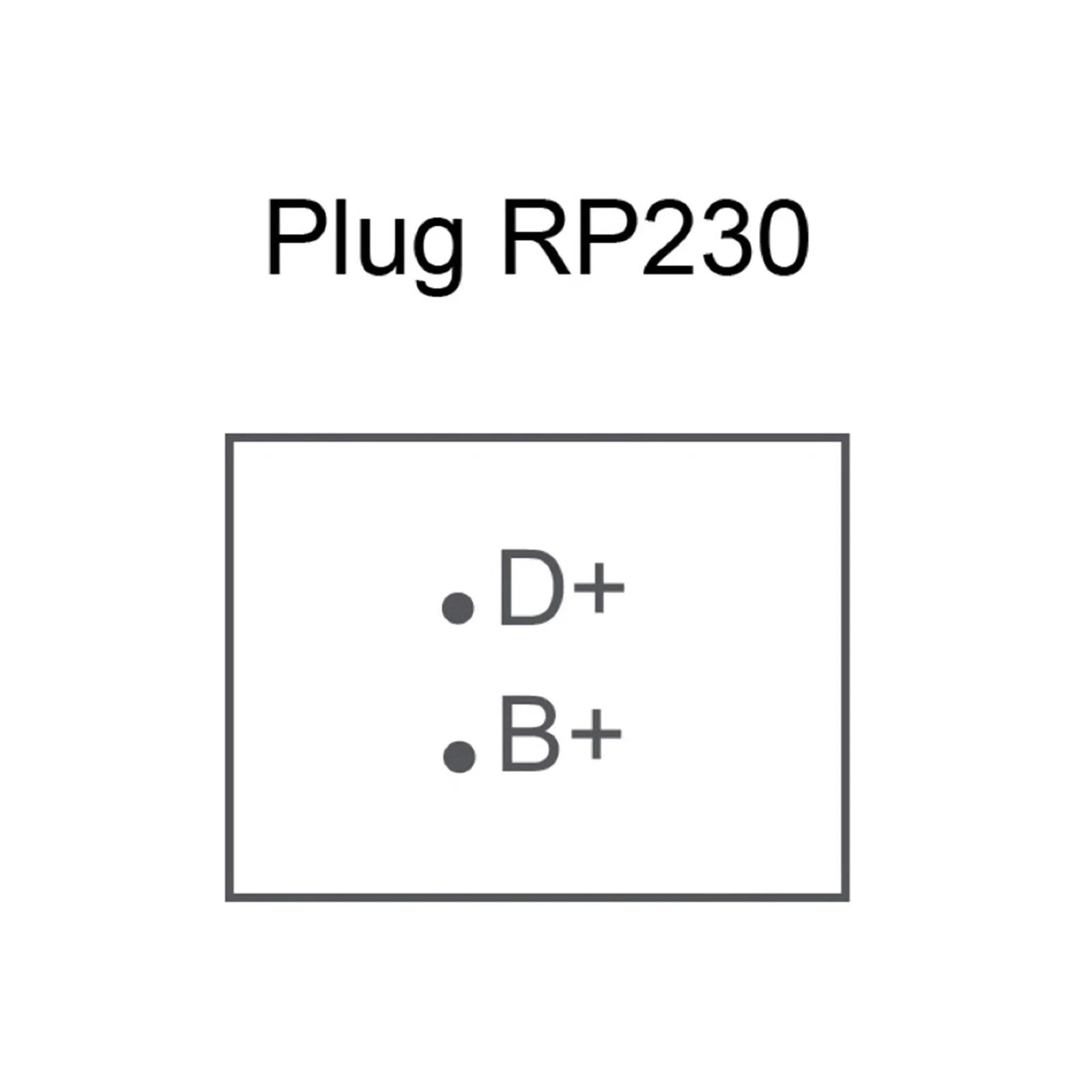

- RP230 plug connection to suit matching factory harness
- Engine codes: X18XE1, Z18XE, C18SEL (where applicable)
- Engineered as an OE-style replacement alternator
SPECIFICATIONS
- Voltage: 12V
- Amperage: 120A
- Adjustment hole: M8 x 1.25
- Pivot hole: 10 mm
- Adjustment to pivot distance: 181 mm
- Inside feet-to-feet: 56 mm

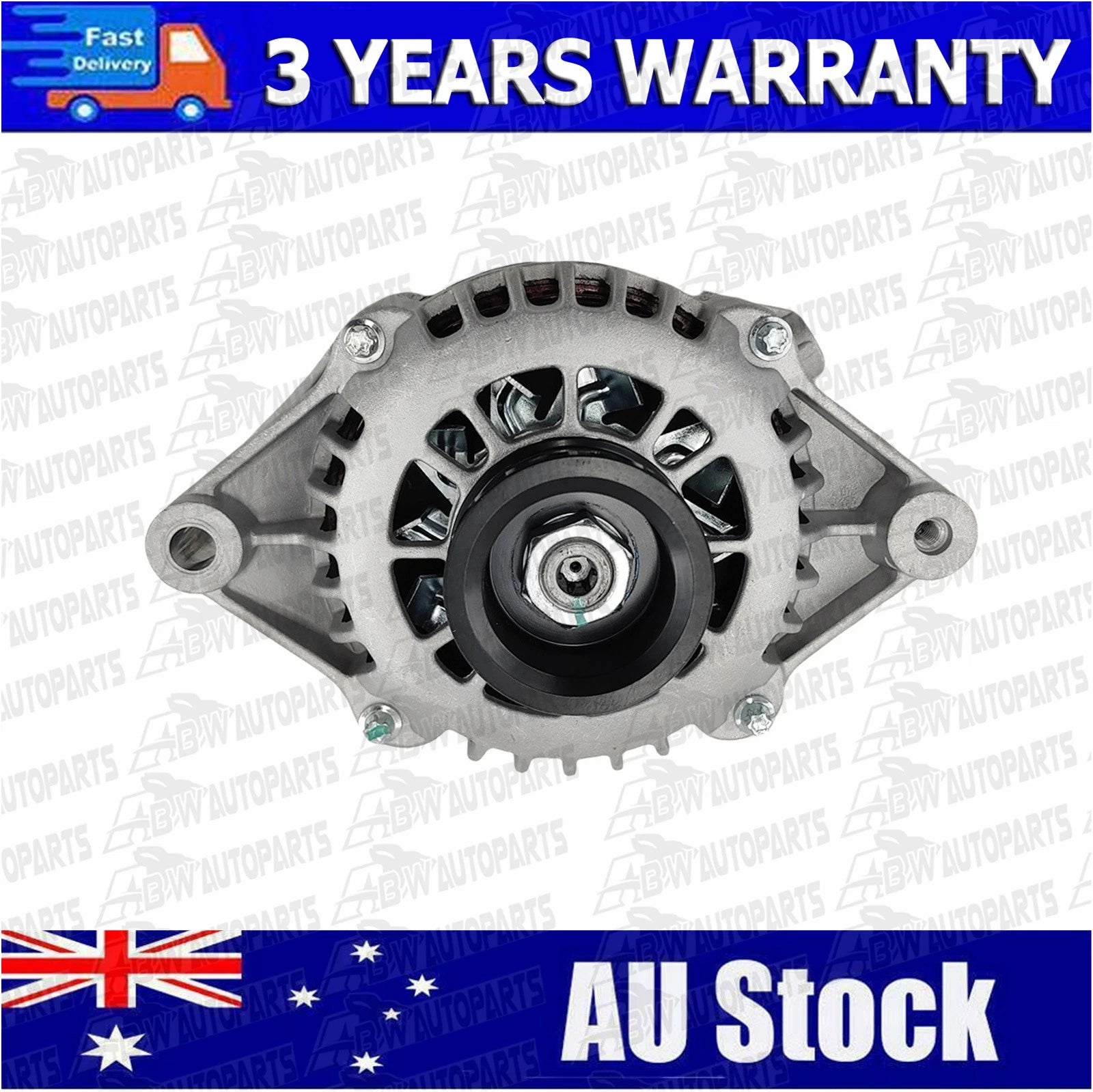

- Pulley diameter: 57 mm
- No. of grooves: 5PV
- Plug type: RP230
PART NUMBER REFERENCES
- 0124515004
- 0124515031
- 0124425009
PACKAGE CONTENTS
INSTALLATION NOTES
- Professional installation is strongly recommended.
- Before ordering, visually confirm plug type (RP230) and pulley style/size against the original alternator.
- Check all mounting dimensions and belt alignment for correct fitment to your specific vehicle.
Vehicle Compatibility
| MAKE |
MODEL |
SERIES |
ENGINE |
YEARS |
| Holden |
Astra |
AH |
1.8L 4cyl Petrol - Z18XE |
09/2004 - 03/2007 |
| Holden |
Astra |
AH |
1.8L 4cyl Petrol - Z18XER |
04/2007 - 06/2009 |
| Holden |
Astra |
LB |
1.5L 4cyl Petrol - E15 |
08/1984 - 02/1986 |
| Holden |
Astra |
LD |
1.8L 4cyl Petrol - 18LE |
07/1987 - 12/1989 |
| Holden |
Astra |
TR |
1.6L 4cyl Petrol - C16SE |
08/1996 - 08/1998 |
| Holden |
Astra |
TR |
1.8L 4cyl Petrol - C18SEL |
08/1996 - 08/1998 |
| Holden |
Astra |
TR |
2.0L 4cyl Petrol - X20XEV |
08/1996 - 08/1998 |
| Holden |
Astra |
TS |
1.8L 4cyl Petrol - X18XE |
04/2000 - 09/2000 |
| Holden |
Astra |
TS |
1.8L 4cyl Petrol - X18XE |
09/1998 - 09/2000 |
| Holden |
Astra |
TS |
1.8L 4cyl Petrol - Z18XE |
06/2001 - 01/2005 |
| Holden |
Astra |
TS |
1.8L 4cyl Petrol - Z18XE |
10/2000 - 04/2006 |
| Holden |
Astra |
TS |
2.0L 4cyl Turbo Petrol - Z20LET |
04/2003 - 06/2004 |
| Holden |
Barina |
SB |
1.2L 4cyl Petrol - C12NZ |
04/1994 - 08/1997 |
| Holden |
Barina |
SB |
1.4L 4cyl Petrol - C14NZ |
04/1994 - 07/1997 |
| Holden |
Barina |
SB |
1.4L 4cyl Petrol - C14SE |
08/1997 - 12/2000 |
| Holden |
Barina |
SB |
1.6L 4cyl Petrol - X16XE |
04/1994 - 12/2000 |
| Holden |
Barina |
TK |
1.6L 4cyl Petrol - F16D3 |
11/2005 - 10/2011 |
| Holden |
Barina |
XC |
1.4L 4cyl Petrol - Z14XE |
04/2001 - 06/2004 |
| Holden |
Barina |
XC |
1.4L 4cyl Petrol - Z14XEP |
07/2004 - 10/2005 |
| Holden |
Barina |
XC |
1.8L 4cyl Petrol - Z18XE |
04/2001 - 10/2005 |
| Holden |
Calibra |
YE |
2.0L 4cyl Petrol - C20NE |
10/1991 - 12/1997 |
| Holden |
Calibra |
YE |
2.0L 4cyl Petrol - C20XE |
10/1991 - 12/1997 |
| Holden |
Combo |
SB |
1.4L 4cyl Petrol - C14NZ |
01/1996 - 07/1997 |
| Holden |
Frontera |
M7 |
2.0L 4cyl Petrol - X20SE |
01/1995 - 12/1998 |
| Holden |
Frontera |
MX |
2.2L 4cyl Petrol - X22SE |
01/1999 - 12/2002 |
| Holden |
Tigra |
XC |
1.8L 4cyl Petrol - Z18XE |
09/2005 - 12/2007 |
| Holden |
Vectra |
JR |
2.0L 4cyl Petrol - C20SEL |
06/1997 - 07/1998 |
| Holden |
Vectra |
JR |
2.5L V6 Petrol - X25XE |
06/1997 - 07/1998 |
| Holden |
Vectra |
JS |
2.0L 4cyl Petrol - C20SEL |
08/1998 - 07/1999 |
| Holden |
Vectra |
JS |
2.2L 4cyl Petrol - C22SEL |
08/1998 - 07/1999 |
| Holden |
Vectra |
JS |
2.5L V6 Petrol - X25XE |
08/1998 - 07/1999 |
| Holden |
Vectra |
JS II |
2.0L 4cyl Petrol - C20SEL |
08/1999 - 12/2002 |
| Holden |
Vectra |
JS II |
2.2L 4cyl Petrol - C22SEL |
08/1999 - 12/2002 |
| Holden |
Vectra |
JS II |
2.5L V6 Petrol - X25XE |
08/1999 - 09/2000 |
| Holden |
Vectra |
ZC |
2.2L 4cyl Petrol - Z22SE |
03/2003 - 12/2006 |
| Make |
Model |
Year |
Submodel |
Variant |
Engine |
Notes |
| Holden |
Astra |
2010 |
AH Hatchback 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2010 |
AH Sportsback 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2010 |
AH Sportsback 2.0 i Turbo |
FWD Petrol 2.0L 4cyl 147kW Z 20 LER |
1998cc 147kW (Petrol) |
|
| Holden |
Astra |
2010 |
AH Wagon 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2009 |
AH Hatchback 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2009 |
AH Sportsback 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2009 |
AH Sportsback 2.0 i Turbo |
FWD Petrol 2.0L 4cyl 147kW Z 20 LER |
1998cc 147kW (Petrol) |
|
| Holden |
Astra |
2009 |
AH Wagon 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2008 |
AH Hatchback 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2008 |
AH Sportsback 1.8 i |
FWD Petrol 1.8L 4cyl 90kW Z 18 XE |
1796cc 90kW (Petrol) |
|
| Holden |
Astra |
2008 |
AH Sportsback 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2008 |
AH Sportsback 2.0 i Turbo |
FWD Petrol 2.0L 4cyl 147kW Z 20 LER |
1998cc 147kW (Petrol) |
|
| Holden |
Astra |
2008 |
AH Wagon 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2007 |
AH Hatchback 1.8 i |
FWD Petrol 1.8L 4cyl 90kW Z 18 XE |
1796cc 90kW (Petrol) |
|
| Holden |
Astra |
2007 |
AH Hatchback 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2007 |
AH Sportsback 1.8 i |
FWD Petrol 1.8L 4cyl 90kW Z 18 XE |
1796cc 90kW (Petrol) |
|
| Holden |
Astra |
2007 |
AH Sportsback 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
| Holden |
Astra |
2007 |
AH Sportsback 2.0 i Turbo |
FWD Petrol 2.0L 4cyl 147kW Z 20 LER |
1998cc 147kW (Petrol) |
|
| Holden |
Astra |
2007 |
AH Wagon 1.8 i |
FWD Petrol 1.8L 4cyl 90kW Z 18 XE |
1796cc 90kW (Petrol) |
|
| Holden |
Astra |
2007 |
AH Wagon 1.8 i |
FWD Petrol 1.8L 4cyl 103kW Z 18 XER |
1796cc 103kW (Petrol) |
|
