6 Gang 12/24V LED Rocker Switch Panel with Voltmeter & Dual USB for Car/Boat/RV

OVERVIEW

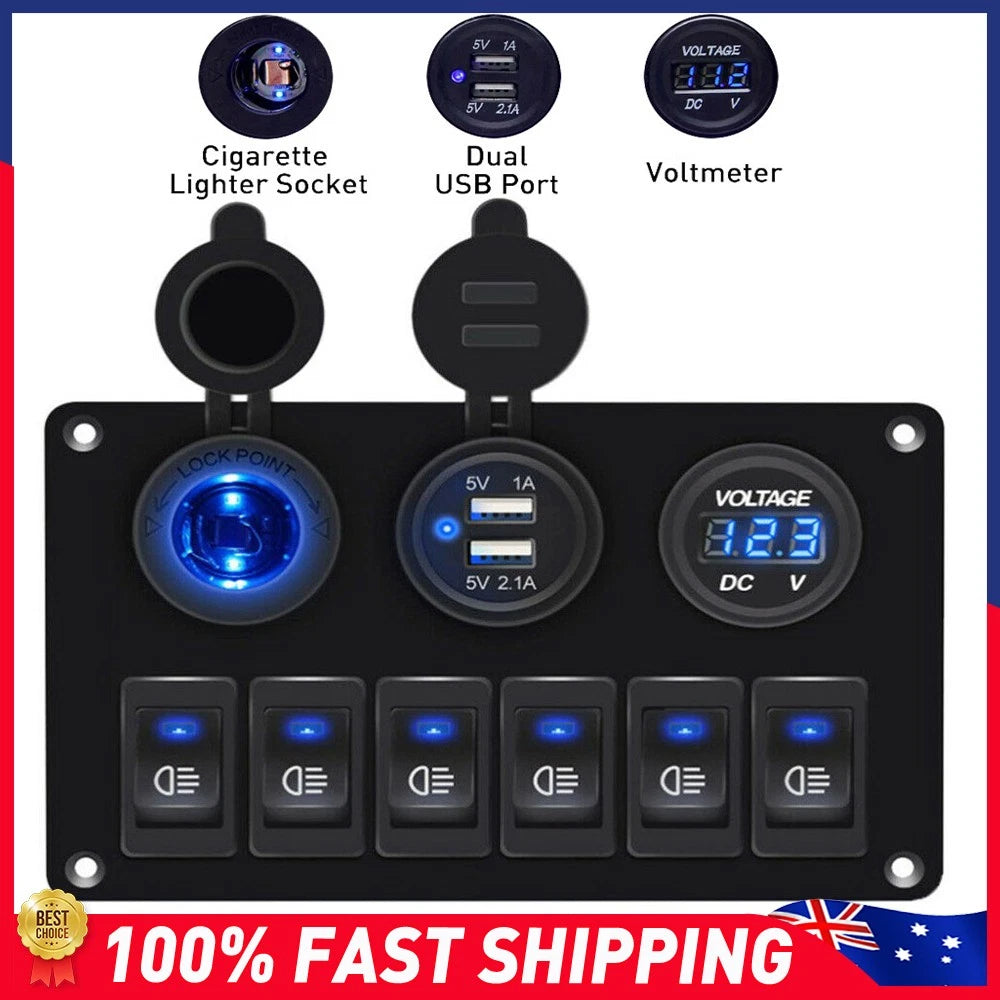

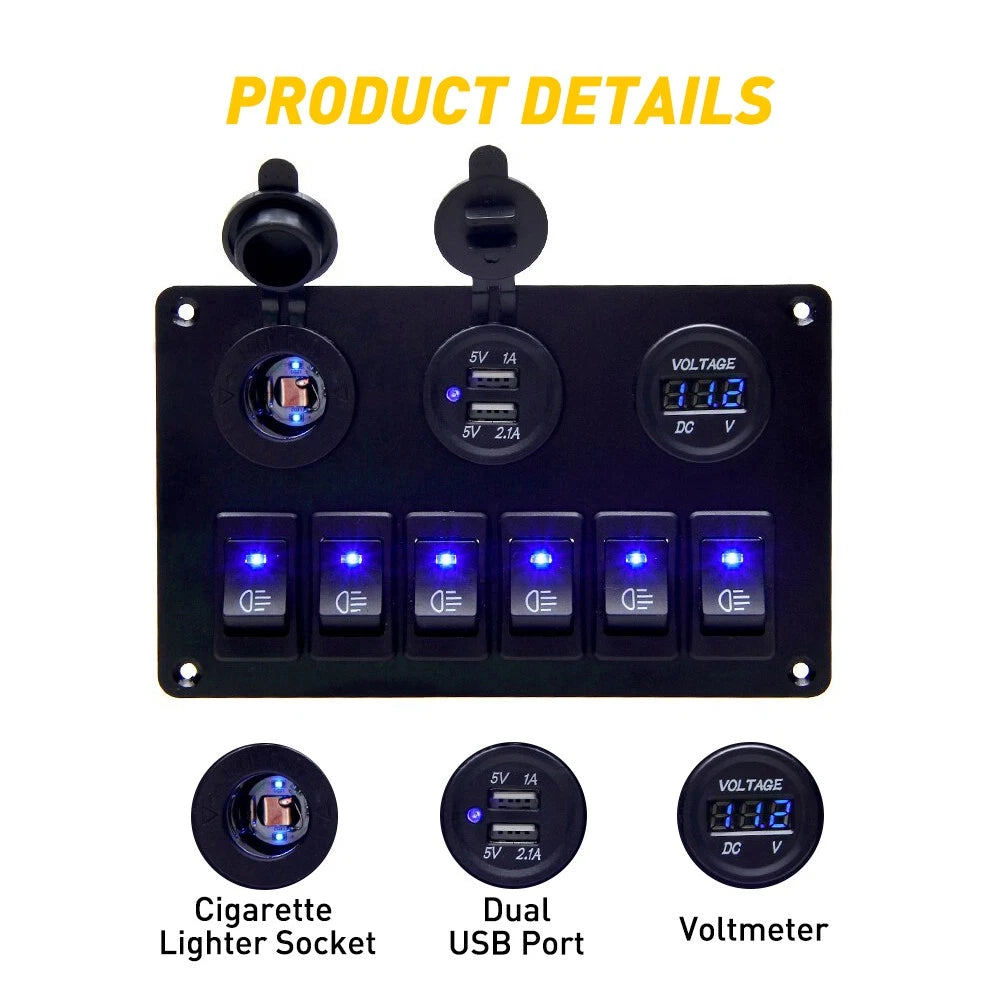

This 6 gang LED rocker switch panel combines circuit control, voltage monitoring and multi-port power output in a compact module for 12V/24V vehicles, marine and RV applications. It is designed for controlling auxiliary lights and accessories while providing convenient USB and socket charging.

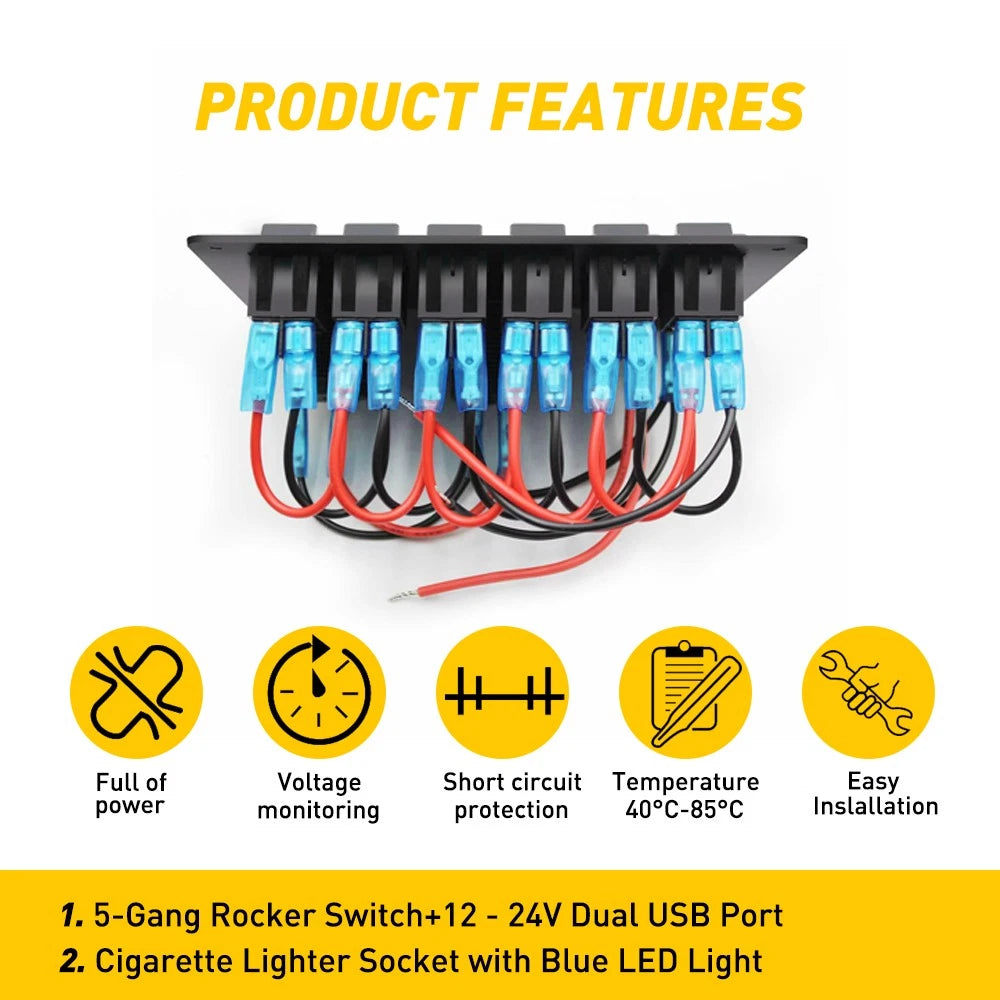

KEY FEATURES

• 6 blue LED illuminated ON/OFF rocker switches with sealed, water-resistant design.
• Integrated digital voltmeter for monitoring system voltage (6V–30V).
• 12V/24V cigarette lighter socket plus dual USB charger (5V 1A & 5V 2.1A) for devices.
• Suitable for 12V and 24V electrical systems in cars, trucks, SUVs, boats, UTVs and RVs.
• Short-circuit and overheat protection for safer auxiliary circuit control.
• Durable ABS/PC housing with aluminium faceplate, dustproof and weather-resistant.

SPECIFICATIONS

• System voltage: DC 12V/20A, 24V/10A
• Voltmeter range: 6V–30V
• Cigarette lighter socket output: 12–24V
• USB outputs: 5V 1A & 5V 2.1A
• Switches: 6 x rocker, ON-OFF loop circuit
• LED illumination colour: Blue
• Panel material: ABS/PC with aluminium plate
• Panel size: 175mm x 107mm (approx. 6.88in x 4.2in)
• Typical operating temperature: -20°C to +110°C
• Ingress protection: up to IP65–IP67 water and dust resistance (switch system)
• Electrical life: up to 10,000 make/break cycles at full load

TYPICAL APPLICATIONS

• LED light bars, spot lights, side lights and roof lights.
• Fog lights, driving lights, headlamps and auxiliary work lights.
• Interior lights, rear lights, indicators and hazard lights.
• Alarms, ignition circuits, wipers and other 12V/24V accessories.
• Universal use on pickup, SUV, ATV/UTV, truck, boat, RV and other 12V/24V systems.

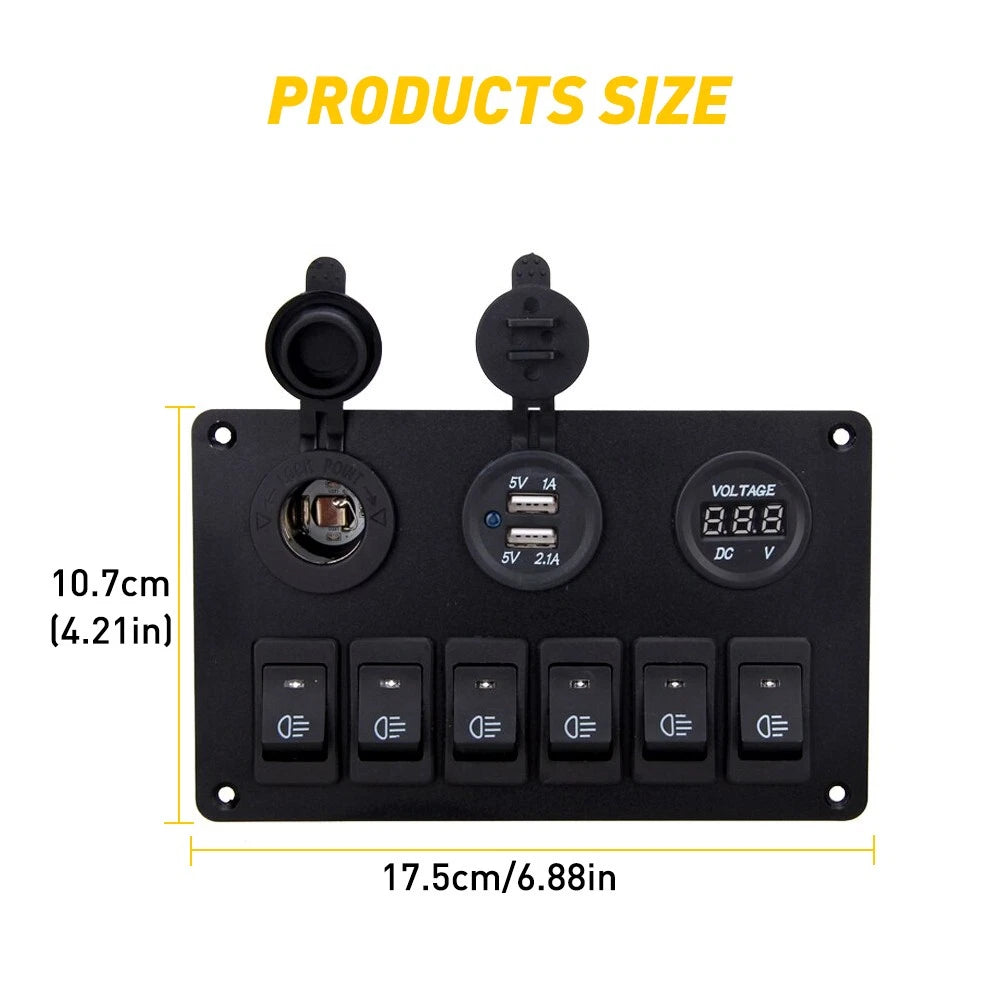

DIMENSIONS

• Overall panel dimensions: 18cm x 11cm x 7.5cm (7.08in x 4.33in x 2.95in) approx.
• Cut-out / mounting aperture: approx. 15cm x 8.5cm (5.9in x 3.35in).

PACKAGE CONTENTS

• 1 x 6 gang rocker switch panel with voltmeter, USB and socket
• 1 x Mounting screw set
• 1 x DIY rocker switch label/sticker sheet

INSTALLATION NOTES

• Intended for 12V or 24V DC electrical systems only.
• Ensure correct wiring, fusing and grounding according to load requirements.
• Professional installation is recommended if you are unfamiliar with automotive or marine electrical systems.
