Red Amber LED Side Marker & Clearance Lights 12-24V – 60 Pack

OVERVIEW

High-visibility red and amber LED clearance and side marker lights for universal 12–24V applications. Ideal for trucks, trailers, caravans, RVs, buses, boats and utility vehicles.

KEY FEATURES

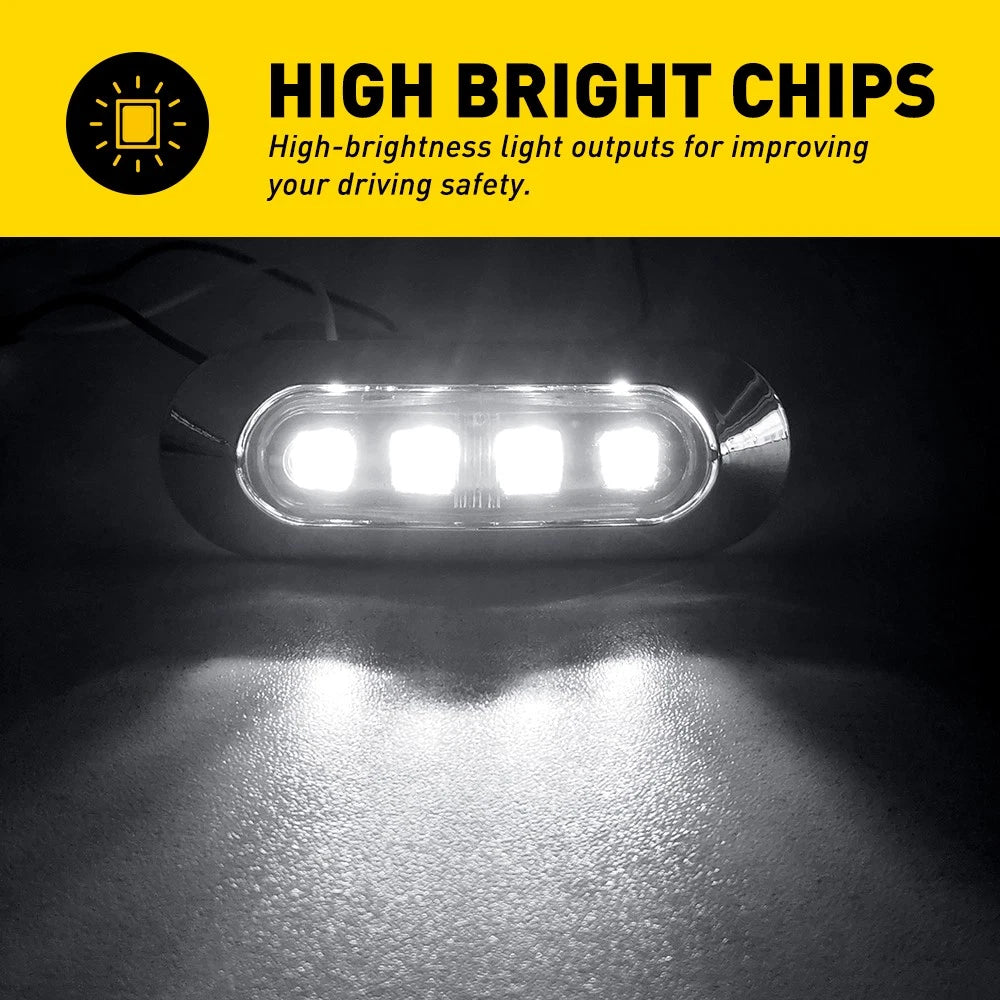

• High-brightness LEDs improve visibility and driving safety.

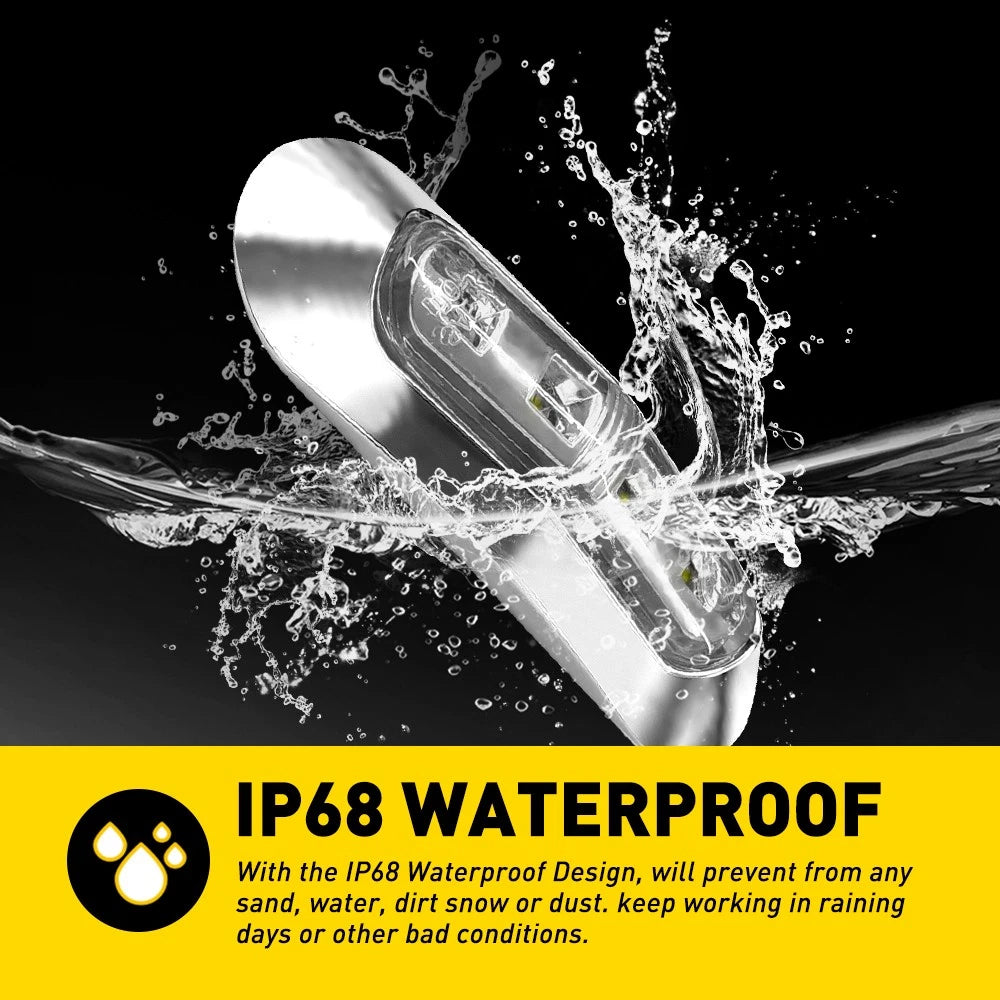

• IP68 waterproof design for reliable operation in rain, fog and harsh conditions.

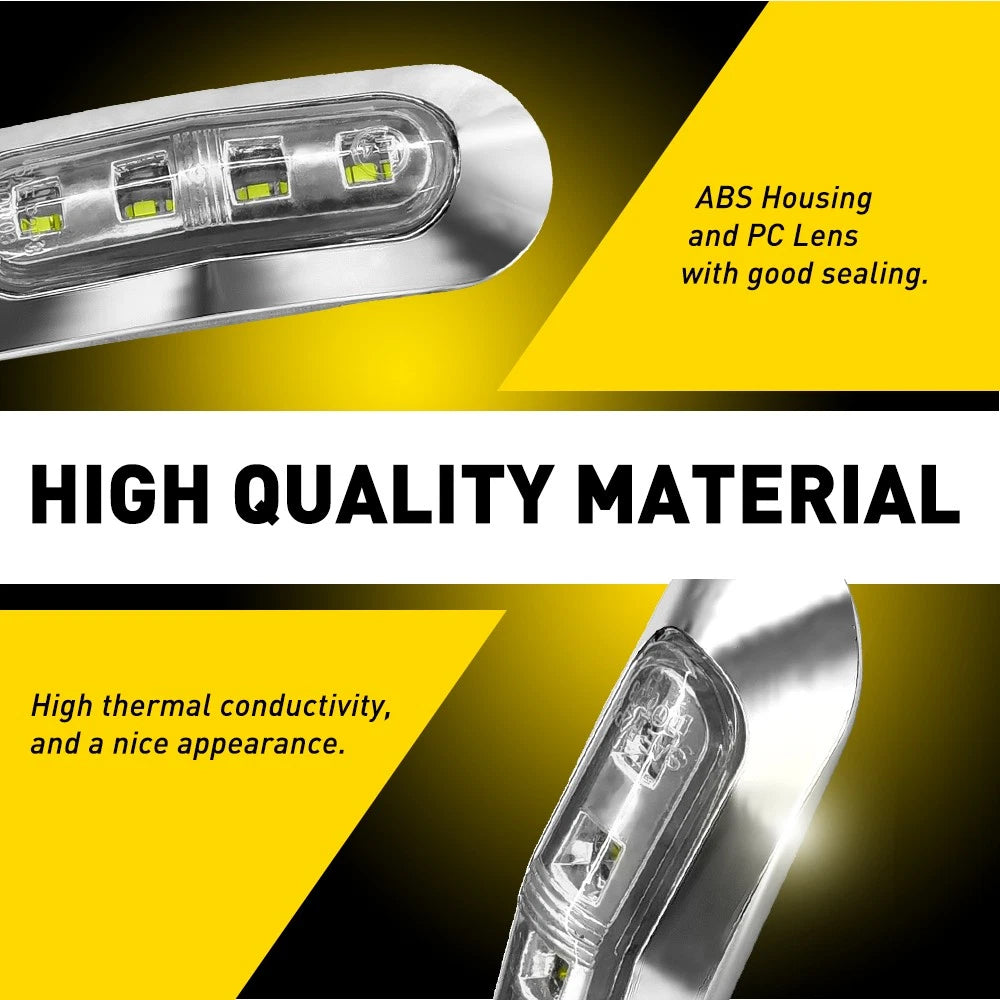

• ABS housing and PC lens with good sealing and heat dissipation.
• Low power consumption, long service life of over 50,000 hours.
• Suitable as side marker, clearance, rear tail, indicator, license plate and parking lights.
• Universal 12–24V DC for cars, SUVs, vans, lorries, RVs, buses, boats and trailers.

SPECIFICATIONS

• Lighting technology: LED
• Light colour: Red + Amber
• Operating voltage: 12–24V DC
• Waterproof grade: IP68 (housing rated), product table also notes IP67
• Material: ABS housing, PC lens
• Colour temperature: approx. 6000K white / 3000K yellow (where applicable)
• Service life: >50,000 hours
• Working temperature: -40 to 60 °C
• Certifications (variant dependent): E4, DOT, SAE, ADR

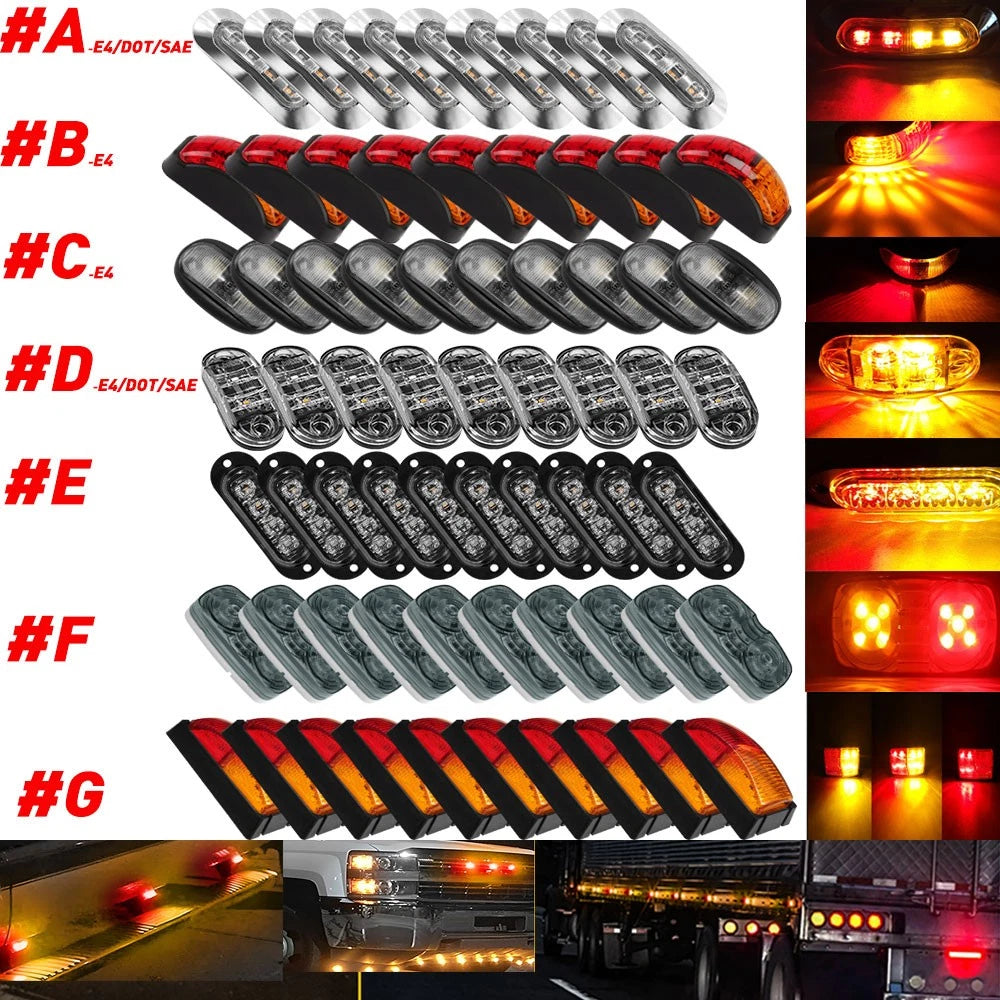

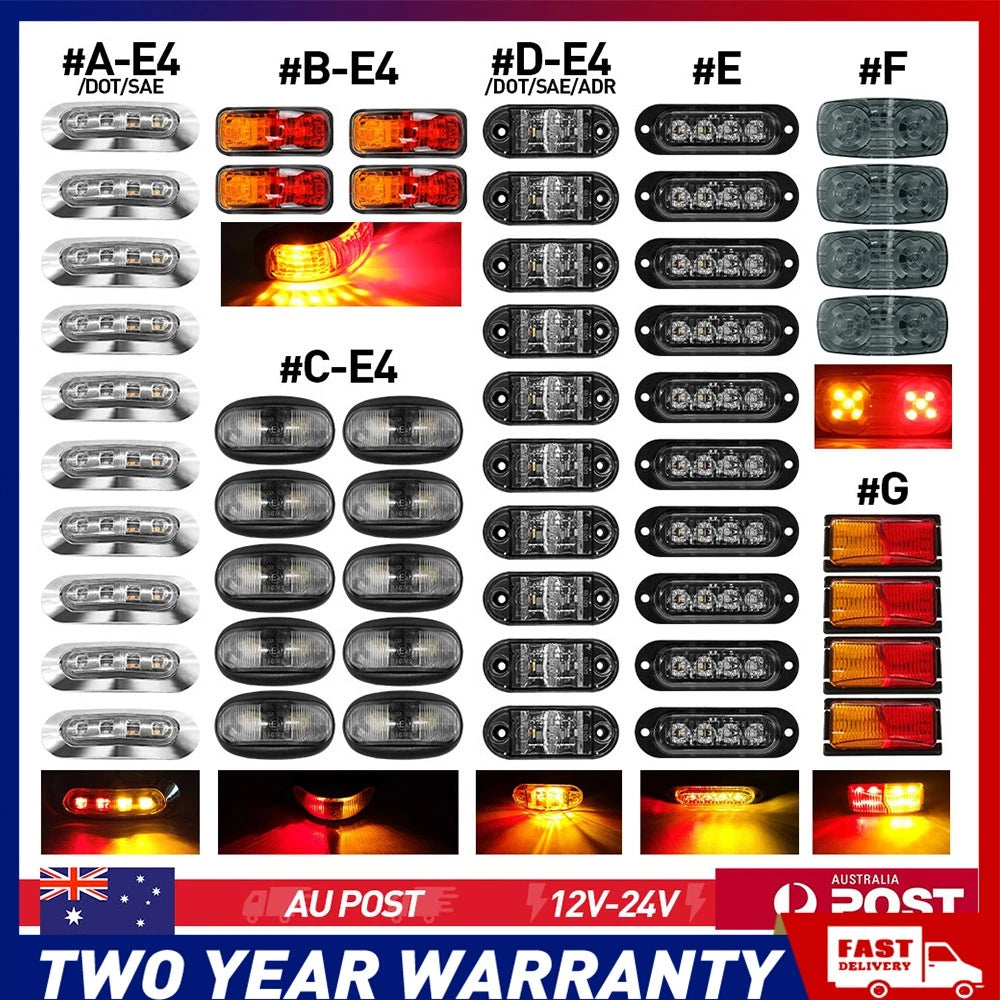

SIZE & VARIANTS (REFERENCE)

• #A: 4 LEDs per light, approx. 9.3 × 3.2 × 1.7 cm (L × W × H), E4/DOT/SAE.
• #B: 4 LEDs per light, approx. 5.3 × 2.4 × 2.8 cm, E4.
• #C: 2 LEDs per light, approx. 6.2 × 3.6 × 3.0 cm, fixing holes ~30 mm apart, E4.
• #D: 2 LEDs per light, approx. 6.5 × 2.7 × 1.8 cm, fixing holes ~48 mm apart, E4/DOT/SAE/ADR.
• #E: 4 LEDs per light, approx. 8.6 × 2.8 × 1.0 cm, fixing holes ~76 mm apart.
• #F: 8 LEDs per light, approx. 10.0 × 4.8 × 2.8 cm, fixing holes ~76 mm apart.
• #G: 8 LEDs per light, approx. 7.3 × 3.8 × 2.3 cm, fixing holes ~37 mm apart.

Exact quantity, shape and size supplied depend on the option selected at purchase.

TYPICAL APPLICATIONS

• Side marker and clearance lamps on trucks, Utes, lorries and trailers.
• Identification, side indicator and rear tail lighting.
• Caravan, camper, RV and motorhome marker lighting.
• Boat and trailer side and clearance lighting (12–24V systems).

PACKAGE CONTENTS

• LED side marker / clearance lights × selected pack size (4 / 8 / 10 / 12 / 20 / 40 / 50 / 60).

Pack size and variant must be chosen from the available options before ordering.
