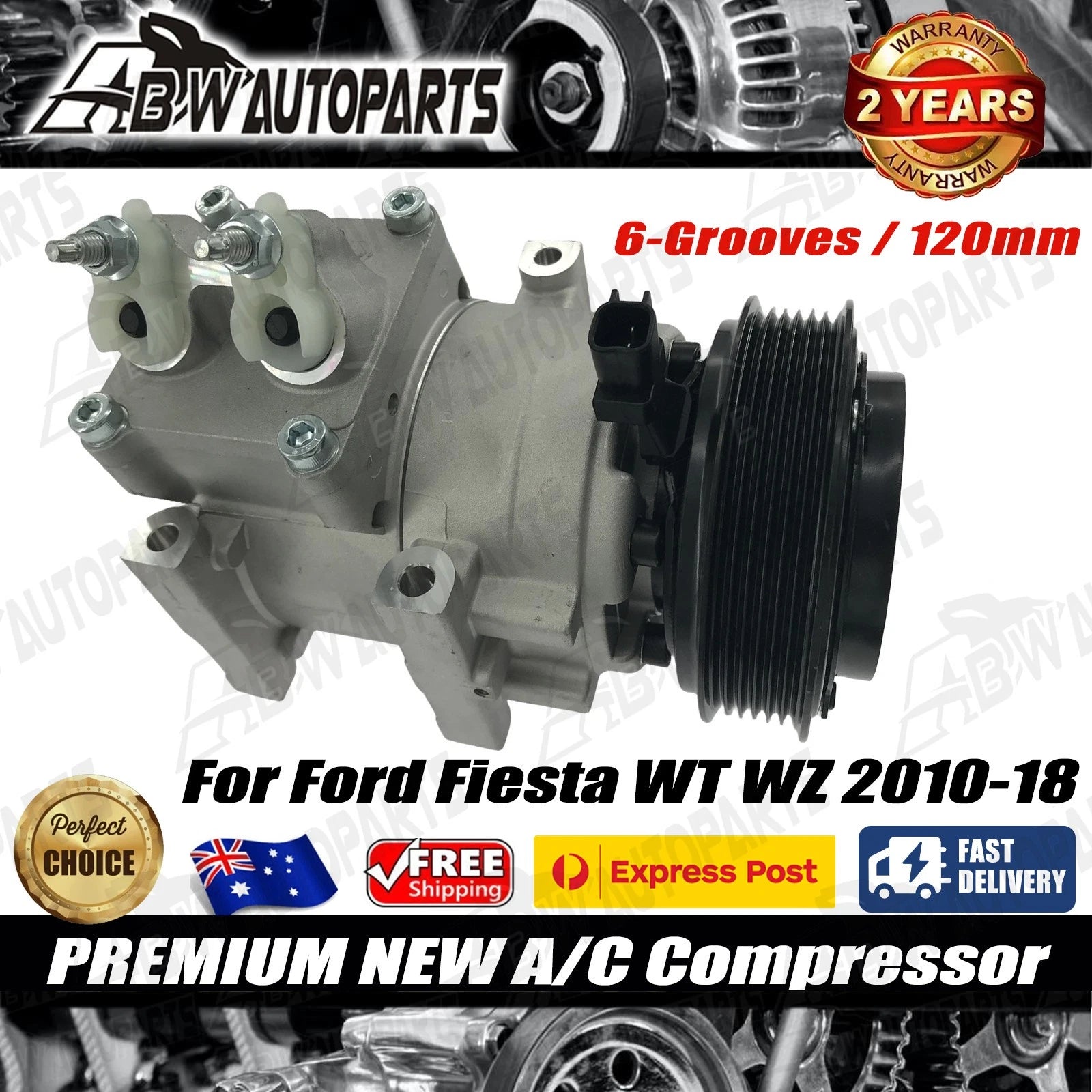

A/C Compressor with Clutch for Ford Fiesta WT WZ 1.0L 1.5L 1.6L 2010–2019

PRODUCT OVERVIEW

This replacement A/C compressor with clutch is designed for Ford Fiesta WT and WZ models from 2010–2019 with 1.0L, 1.5L, and 1.6L engines. It is built to meet OE specifications and deliver reliable, efficient cabin cooling performance.

KEY FEATURES

• Strong cooling performance to restore effective air conditioning.
• Low noise operation and reduced engine load for improved driving comfort.
• High and stable efficiency for consistent refrigerant circulation.
• Direct-mount design for straightforward installation.
• Durable aluminium construction for strength and corrosion resistance.
• Includes compressor, clutch, pulley and coil assembly.
• Backed by a 2-year warranty (manufacturer terms apply).

TECHNICAL SPECIFICATIONS

• Type: A/C compressor with clutch
• Mounting: Direct mount
• Material: Aluminium
• Model: HS15
• Voltage: 12 V
• Pulley diameter: 120 mm
• Number of grooves: 6 (6PV)
• Low noise and low fuel consumption design
• Replaces: HALLA HS15-type compressor (match by number and specs)

COMPATIBILITY NOTES

Engine and series coverage includes, but may not be limited to, Ford Fiesta WT and WZ variants with the following engines and years:

• Ford Fiesta WT 1.6L 4-cylinder Petrol Duratec/Duratorq: approx. 2010–2013
• Ford Fiesta WZ 1.0L 3-cylinder EcoBoost: approx. 2013–2018
• Ford Fiesta WZ 1.5L 4-cylinder Petrol Duratec: approx. 2013–2018
• Ford Fiesta WZ 1.6L 4-cylinder EcoBoost: approx. 2013–2017

Important: Always confirm fitment using the existing compressor number, pulley configuration, and vehicle details before purchase.

FUNCTION & CLUTCH OPERATION

• Compressor pumps refrigerant through the vehicle A/C system.
• Clutch assembly includes coil magnet, pulley and clutch plate.
• When energized, the electromagnet pulls the clutch plate to the pulley to drive the compressor shaft.
• When disengaged, the pulley freewheels on a sealed bearing and the compressor shaft does not rotate.

PACKAGE CONTENTS

• 1 × A/C compressor with clutch and 6-groove pulley

INSTALLATION & NOTES

• Professional installation is strongly recommended.
• Verify part number, pictures, and specifications against your original unit.
• Replace receiver drier and flush the A/C system as required by industry best practices.
• Use the correct type and quantity of refrigerant oil specified for your vehicle.
