Sanden 508 A/C Compressor & Driver Side Bracket for Small Block Chevy

OVERVIEW

This kit combines a Sanden 508 style A/C compressor with a low-profile driver side mounting bracket designed for small block Chevy engines with a long water pump. It is suitable for universal retrofit applications on Chevy, Ford, GM, hot rod and muscle car builds where a compact, polished compressor is required.

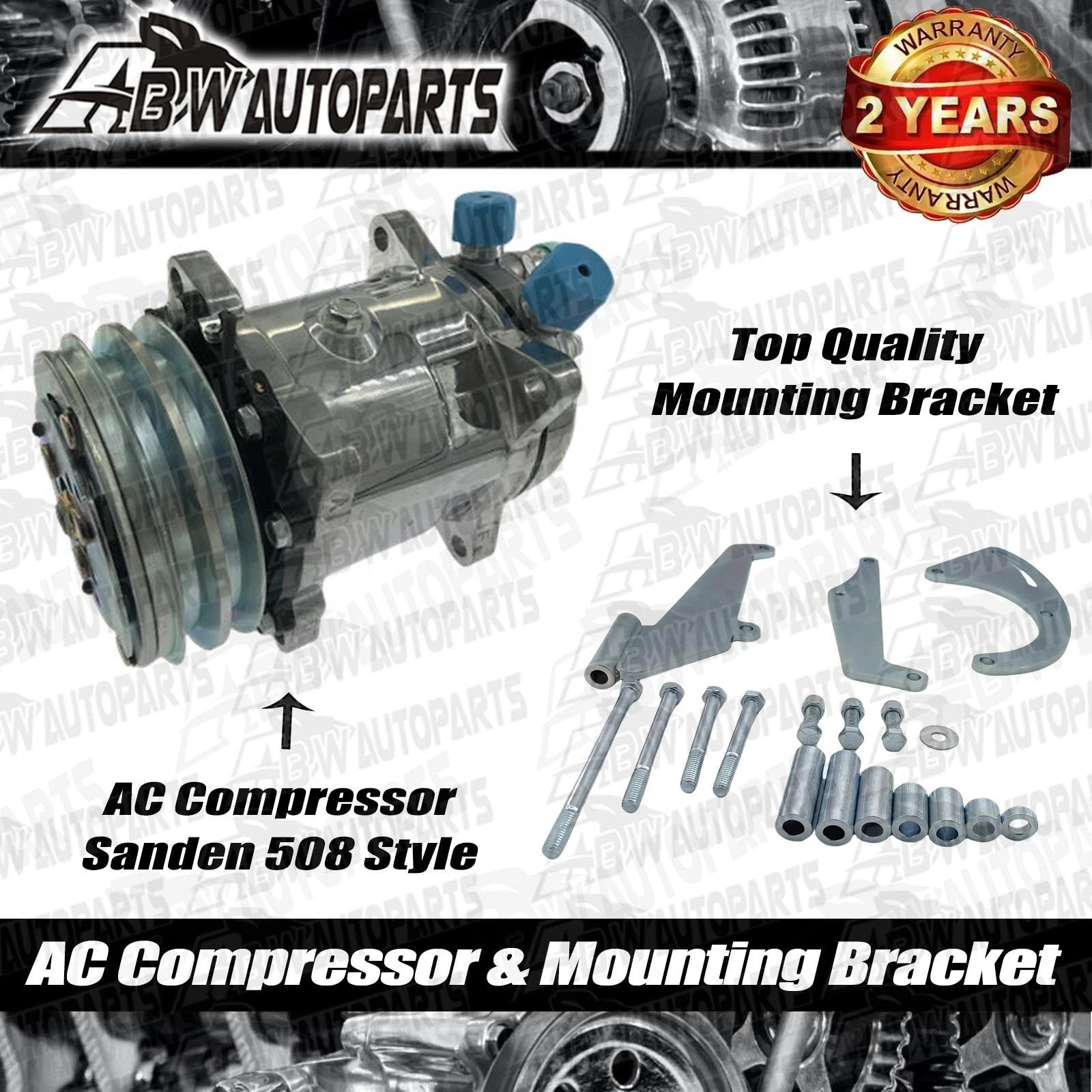

WHAT'S INCLUDED

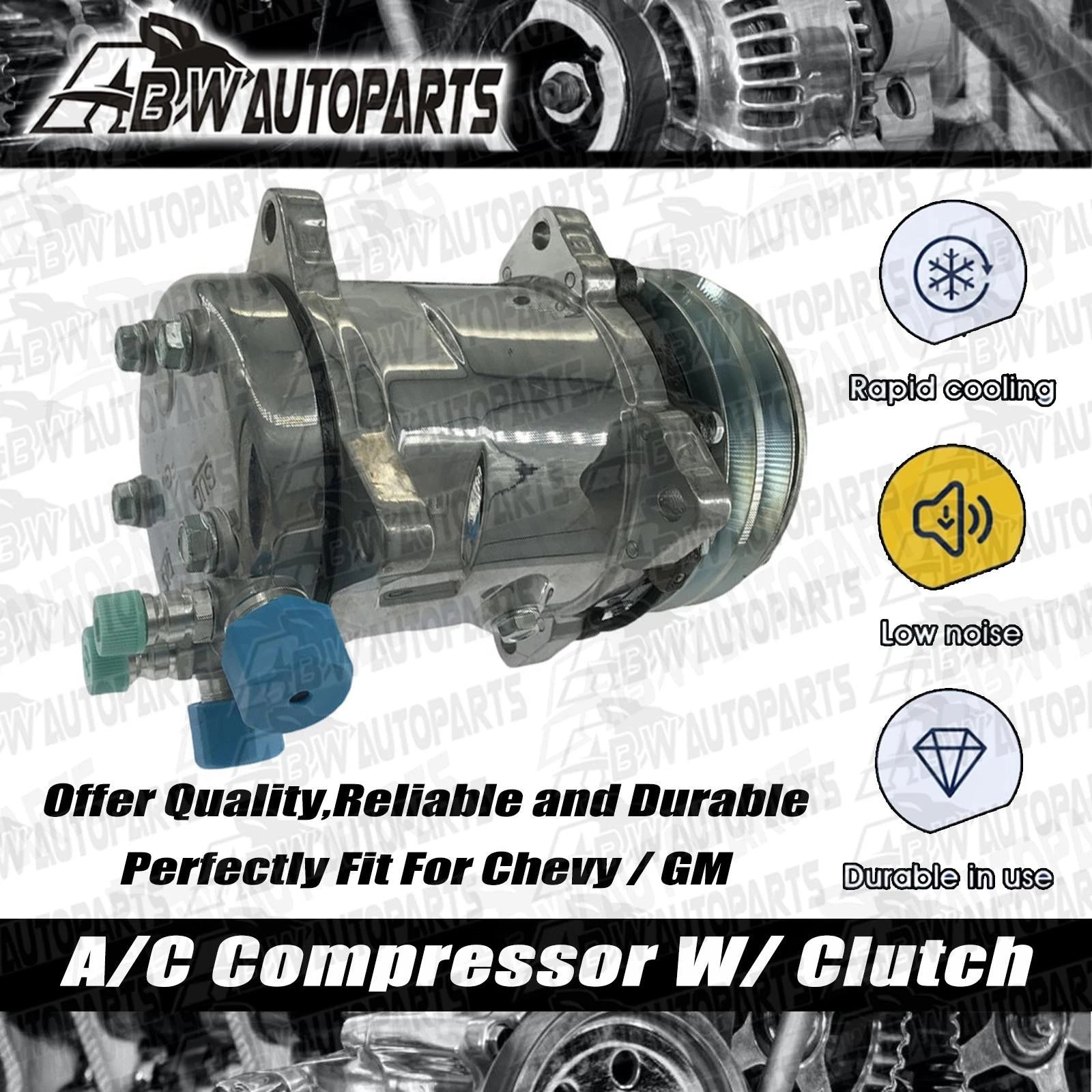

• 1 x Sanden 508 style A/C compressor with clutch (rear charging port, O-ring fittings, natural body, polished surface)

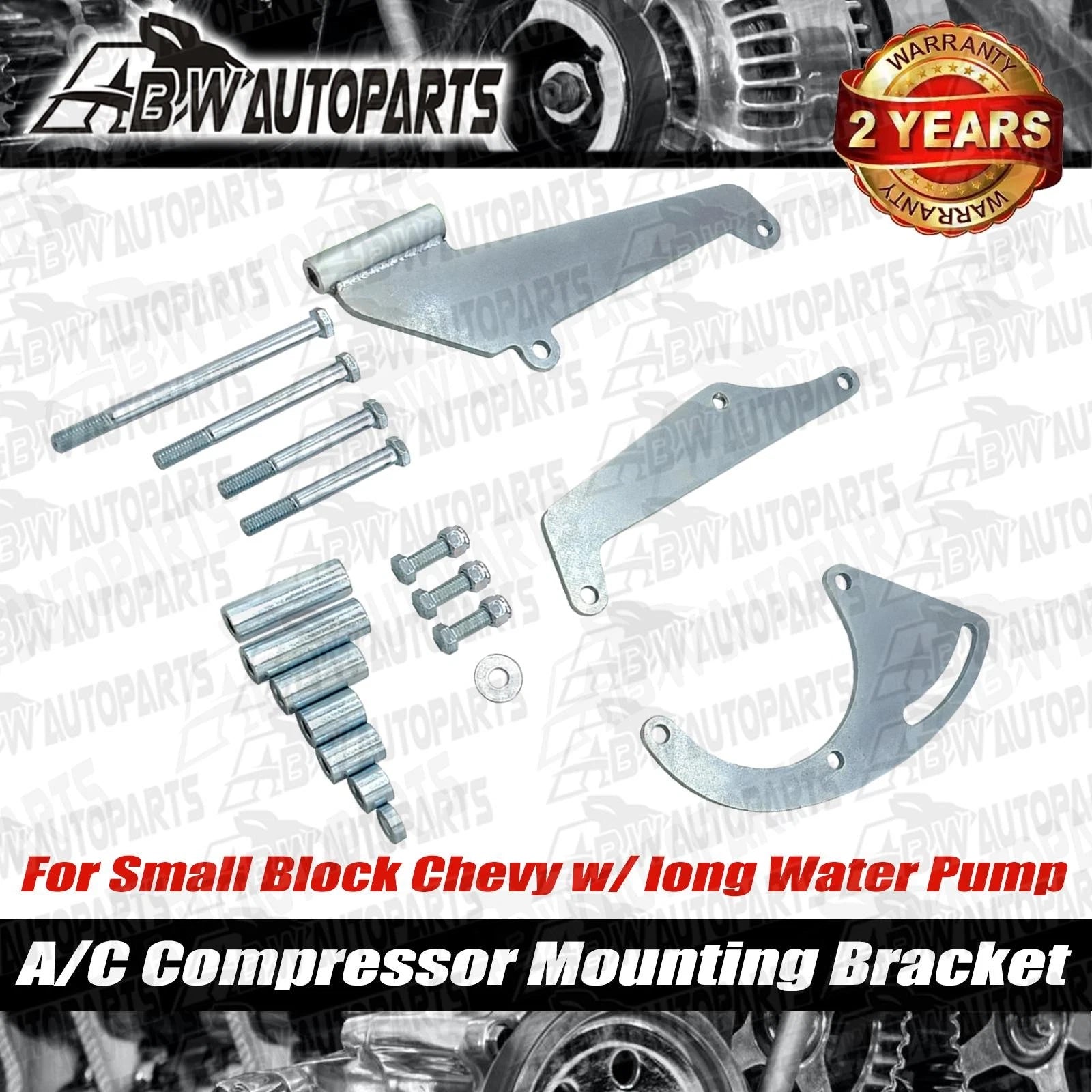

• 1 x steel driver side low-profile A/C compressor mounting bracket for small block Chevy (long water pump)

COMPRESSOR SPECIFICATIONS

• Style: Sanden 508 type A/C compressor
• Voltage: 12V
• Surface finish: Polished
• Oil type: PAG oil (pre-filled; verify quantity before use)
• Refrigerant compatibility: R-134a (also compatible with R12 per specification)
• Body: Natural finish with rear charging port and O-ring fittings
• Gross weight: 5 kg (approx. 11 lb)
• Compressor dimensions: 9.3 x 5.1 x 6.1 in (23.6 x 13 x 15.5 cm)

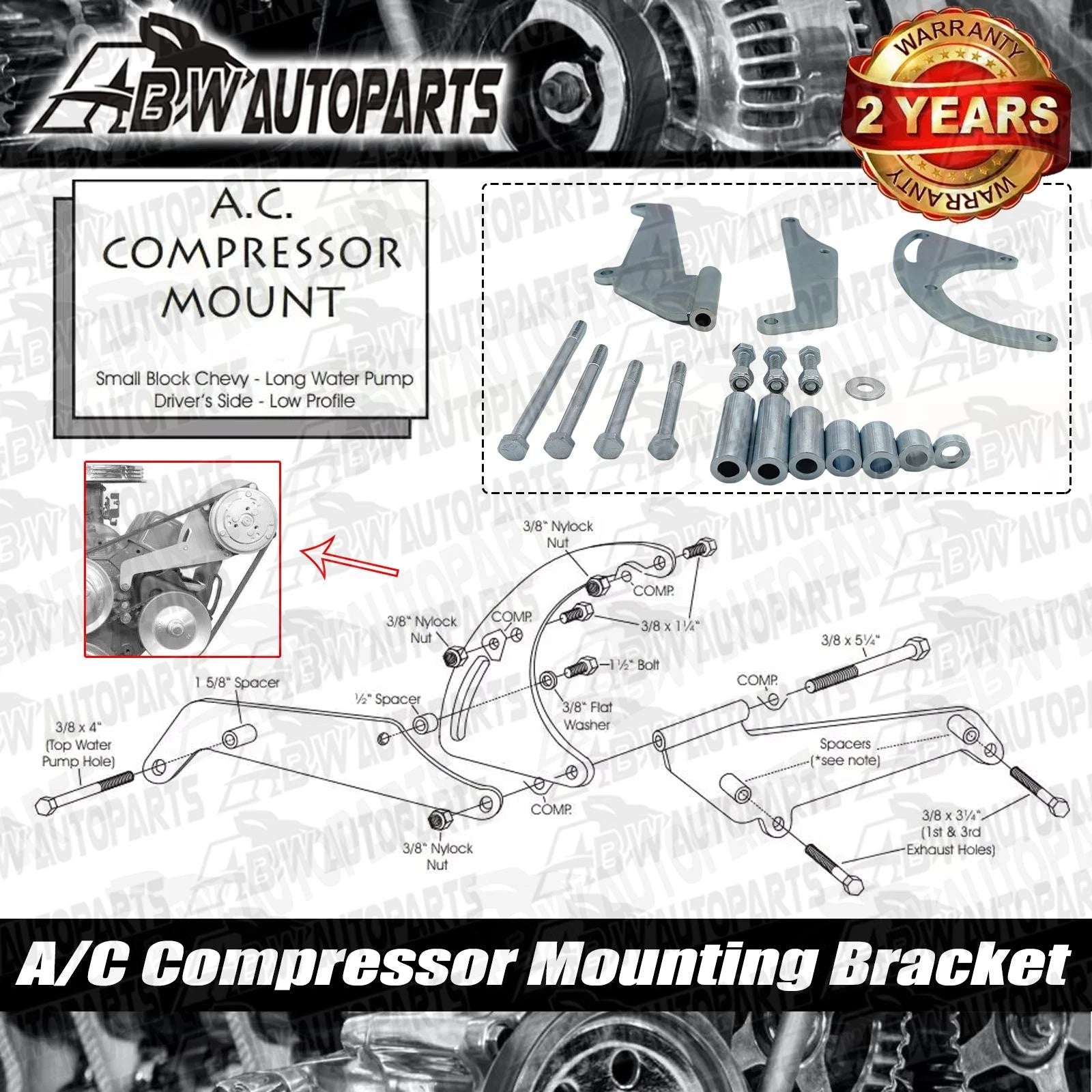

BRACKET DETAILS

• Application: Small block Chevy with long water pump
• Location: Driver side, low-profile mount
• Material: Steel
• Intended use: Ideal when adding a compressor while retaining the alternator in the factory passenger-side location

TYPICAL APPLICATIONS

• Universal use on Chevy, Ford and GM vehicles (verify mounting and pulley alignment)
• Hot rod and muscle car A/C system installations
• Custom and retrofit air conditioning projects using Sanden 508 style compressors

FEATURES & BENEFITS

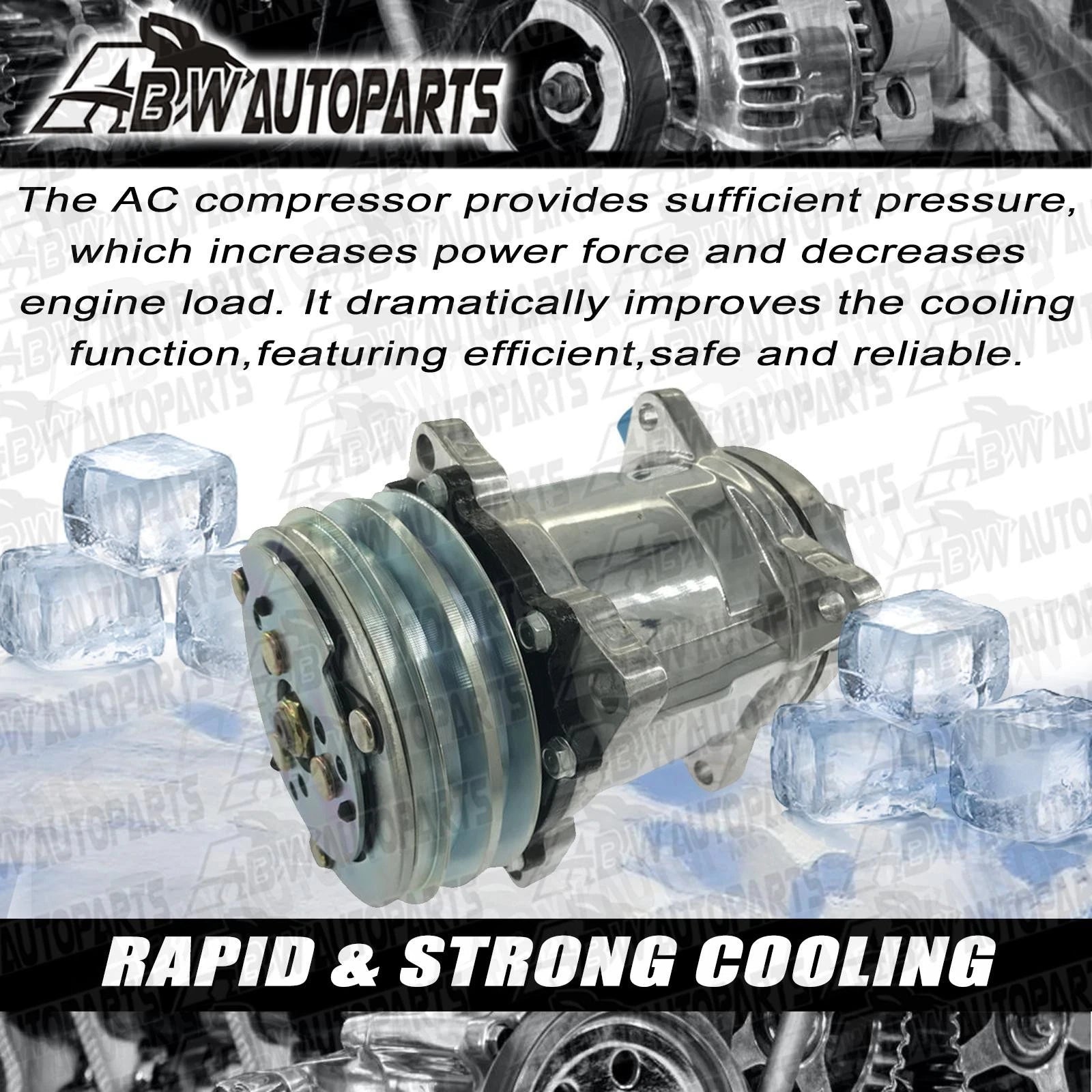

• New, high-quality Sanden 508 style compressor assembly
• Strict quality control and fitment testing
• Low-profile bracket design for improved clearance
• Compatible with modern R-134a refrigerant

IMPORTANT NOTES

• No specific vehicle fitment list is provided. This is a universal-style kit. Confirm compatibility with your engine configuration, brackets, pulleys and belt alignment before purchase.
• Verify the compressor style (Sanden 508 type) and mounting requirements match your A/C system layout.
• Check images and dimensions carefully to ensure they match your intended installation.
• Professional installation and proper evacuation/charging of the A/C system are strongly recommended.
