A/C Compressor Clutch Kit for Vauxhall Astra G & Opel Corsa C 12V 09118281

PRODUCT OVERVIEW

This A/C compressor clutch magnetic coil kit is designed as a replacement for selected Vauxhall Astra G / Astra Mk IV and Opel Corsa C applications using Delphi/Harrison CVC compressors. It restores proper engagement of the air conditioning compressor clutch for reliable cooling performance.

PACKAGE CONTENTS

• 1 x A/C compressor clutch magnetic coil

KEY FEATURES & SPECIFICATIONS

• Type: A/C compressor clutch magnetic coil
• Application: Delphi CVC compressors

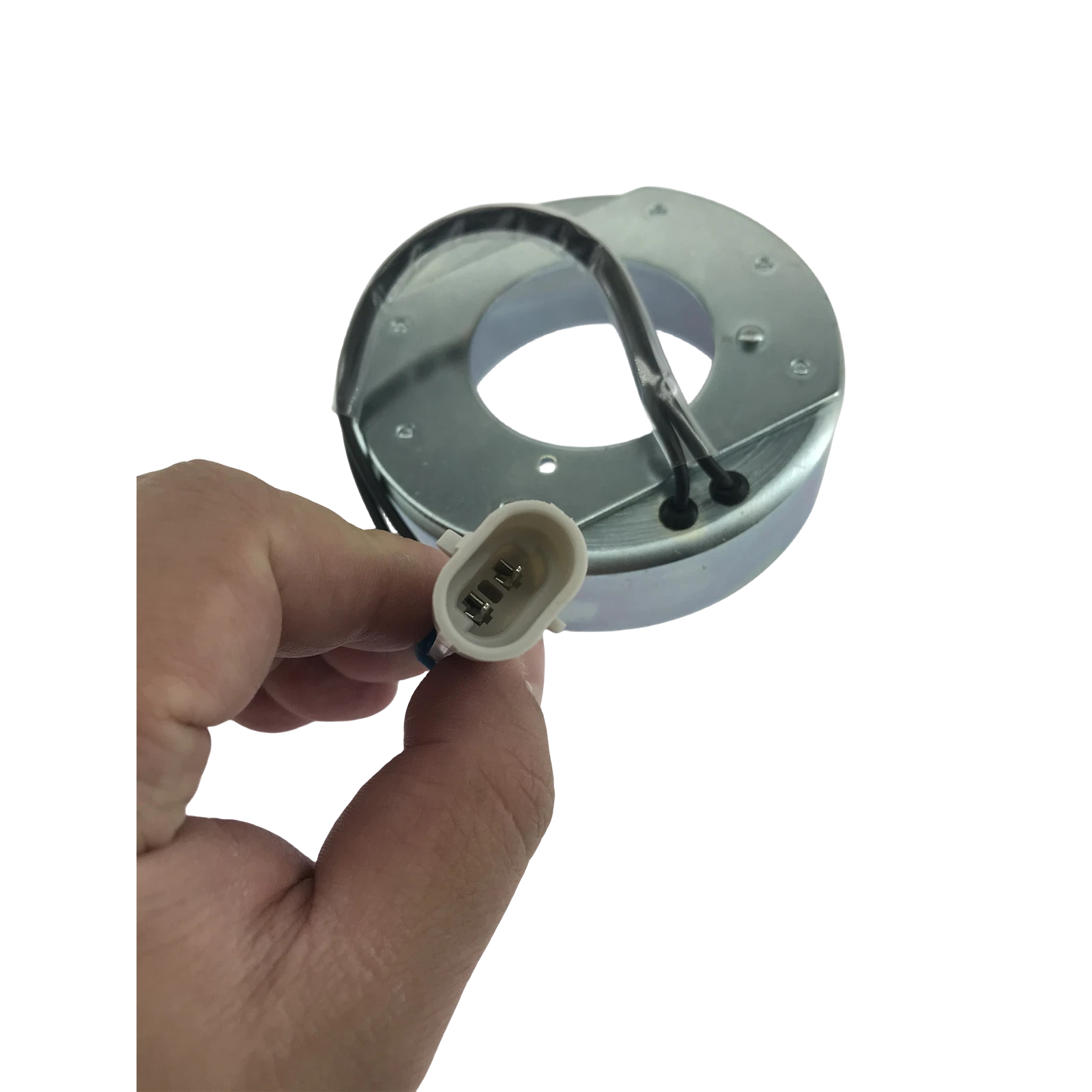

• Operating voltage: 12V (with plug)
• Material: Metal construction
• Outer diameter (coil body): 92 mm
• Inner diameter: 60 mm
• Height: 26.5 mm
• Pulley diameter (compressor pulley): 105 mm
• Belt profile: 6PK
• Number of grooves: 5
• Refrigerant compatibility: R134a systems
• Approx. size: 92 × 60 × 26.5 mm (3.6 × 2.4 × 1 inch)
• Approx. weight: 566 g (1.5 lbs / 20 oz)

COMPRESSOR COMPATIBILITY

This magnetic coupling is suitable only for Opel/Vauxhall air conditioning compressors from manufacturer Delphi/Harrison (CVC type) installed in various Opel and Vauxhall vehicles.

The compatible compressor ID codes on the compressor nameplate include:

• CVC, AC4, HR2, MU, NX, QS, RM, SW, UK3, UL3, WG, WG3, WP, WK, WY3, WZ3

CROSS-REFERENCE (OE NUMBERS)

For comparison and identification only:

• 09118281
• 1618329
• 1854272
• 93181006
• 0165003/0
• 24432392
• 90559855
• 9174396
• 93176861
• 1854140
• 1854123
• 1854102
• 1854092
• R1580016
• 13124750
• 13139055
• 09174396
• 13297440

TYPICAL VEHICLE APPLICATIONS

Used on various Opel and Vauxhall models equipped with Delphi CVC compressors, including (but not limited to):

• Vauxhall Astra G / Astra Mk IV (various 1.4, 1.6, 1.8, 2.0 16V and OPC engines)
• Opel Astra G Caravan, Coupé, Convertible and Saloon (Stufenheck) 1.4 / 1.6 / 1.8 / 2.0 16V
• Opel Corsa C 1.0 / 1.2 / 1.4 / 1.8 (including Twinport where equipped)
• Opel Zafira A 1.6 16V / 1.8 16V

This list is indicative only and does not replace a compatibility check by part number and compressor ID.

INSTALLATION NOTES

• Professional installation is strongly recommended.
• Ensure the compressor is correctly identified by its nameplate code (e.g. AC4, HR2, MU, NX, QS, RM, SW, UK3, UL3, WG, WG3, WP, WK, WY3, WZ3).
• Always compare dimensions, plug type and OE numbers with the original part before installation.

IMPORTANT NOTICE

• All OE and reference numbers are for identification and comparison purposes only.
• Please verify fitment using part numbers, compressor ID codes and vehicle data before ordering.
