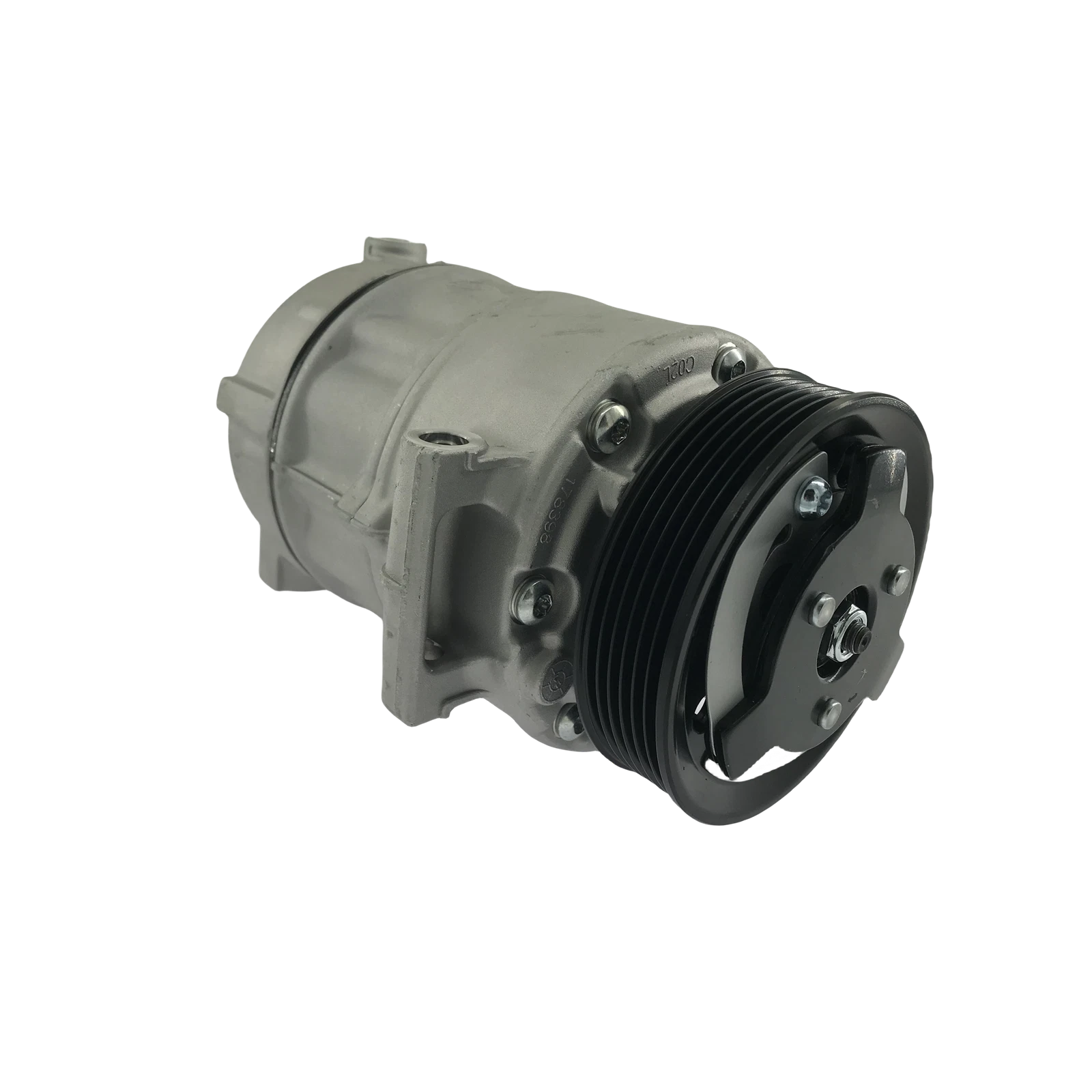

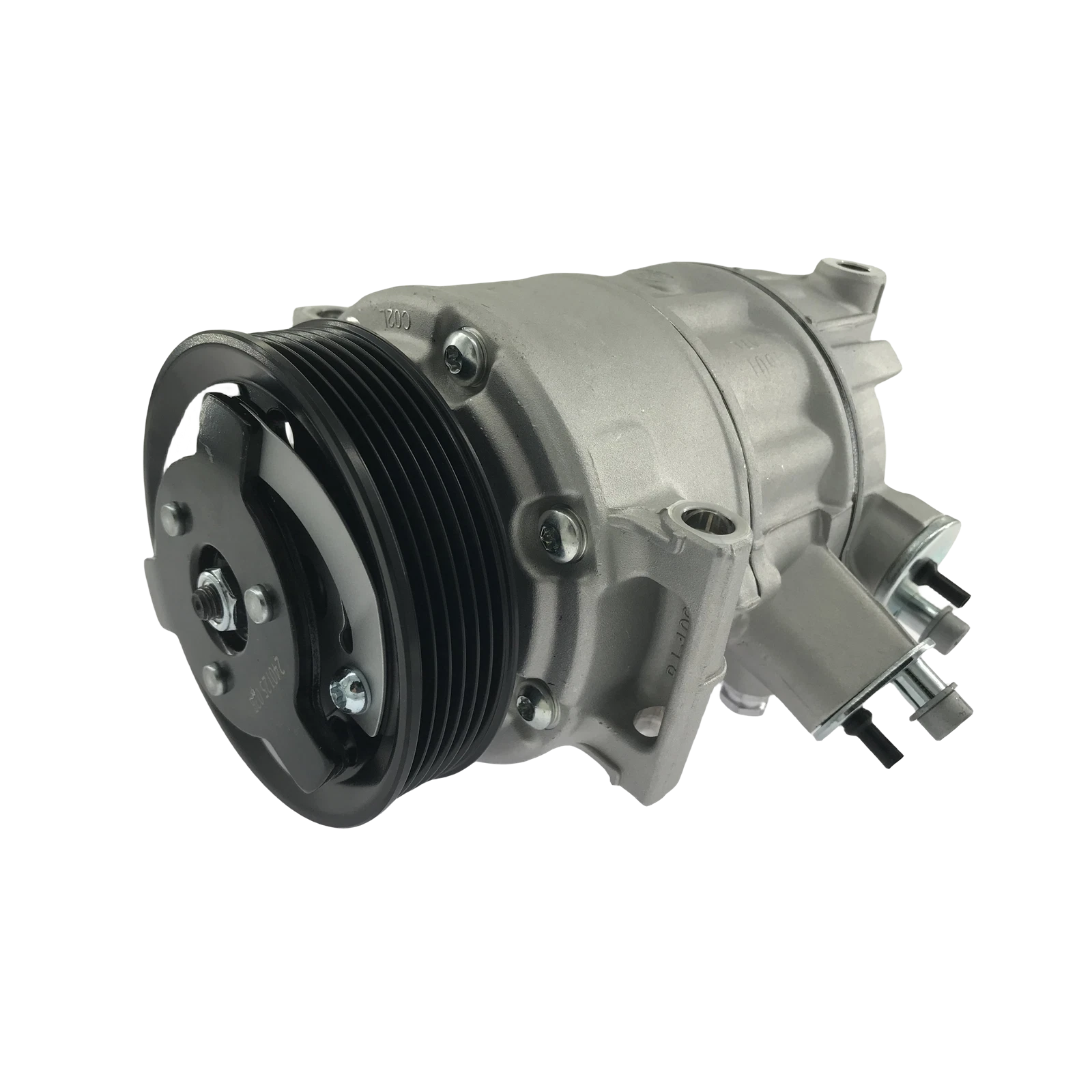

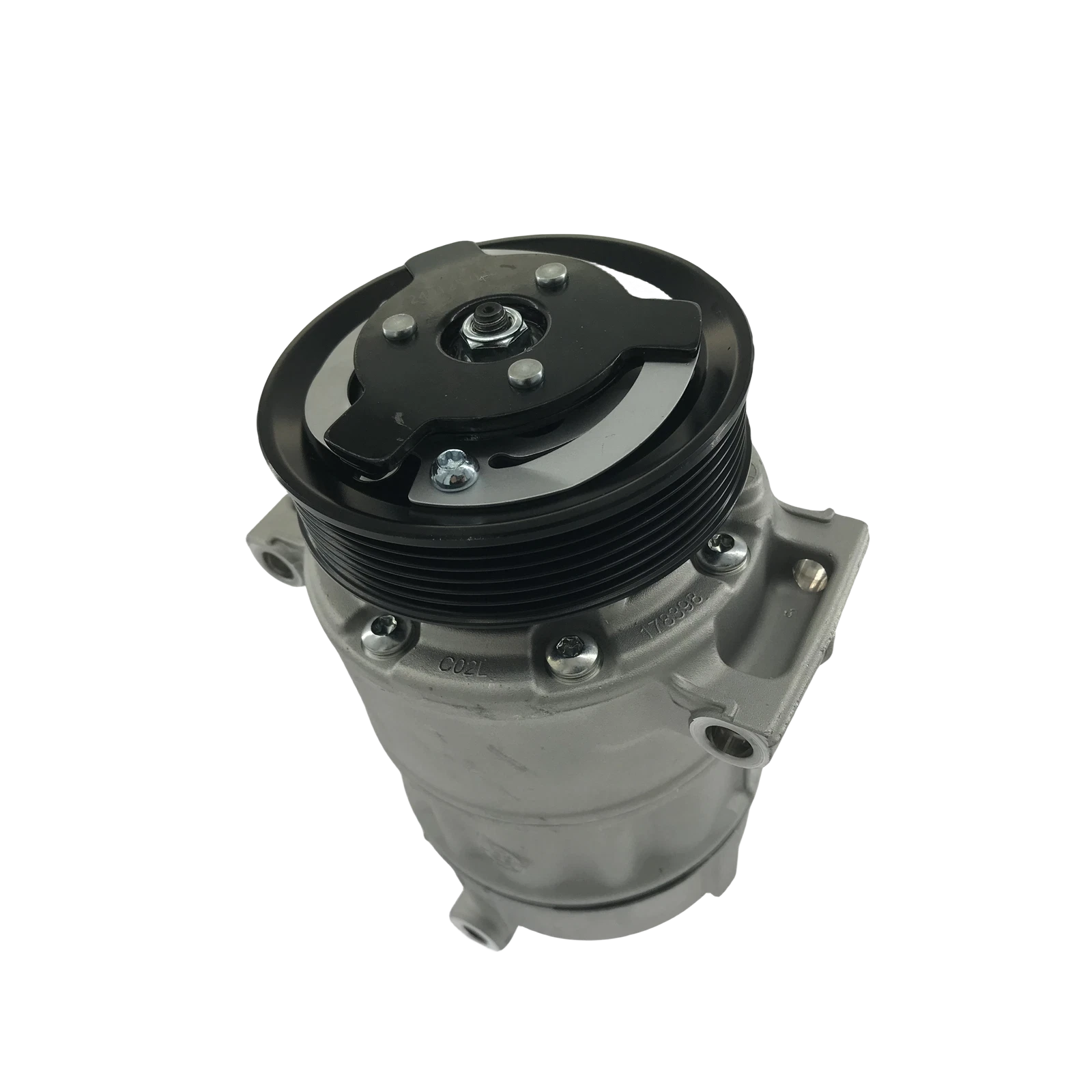

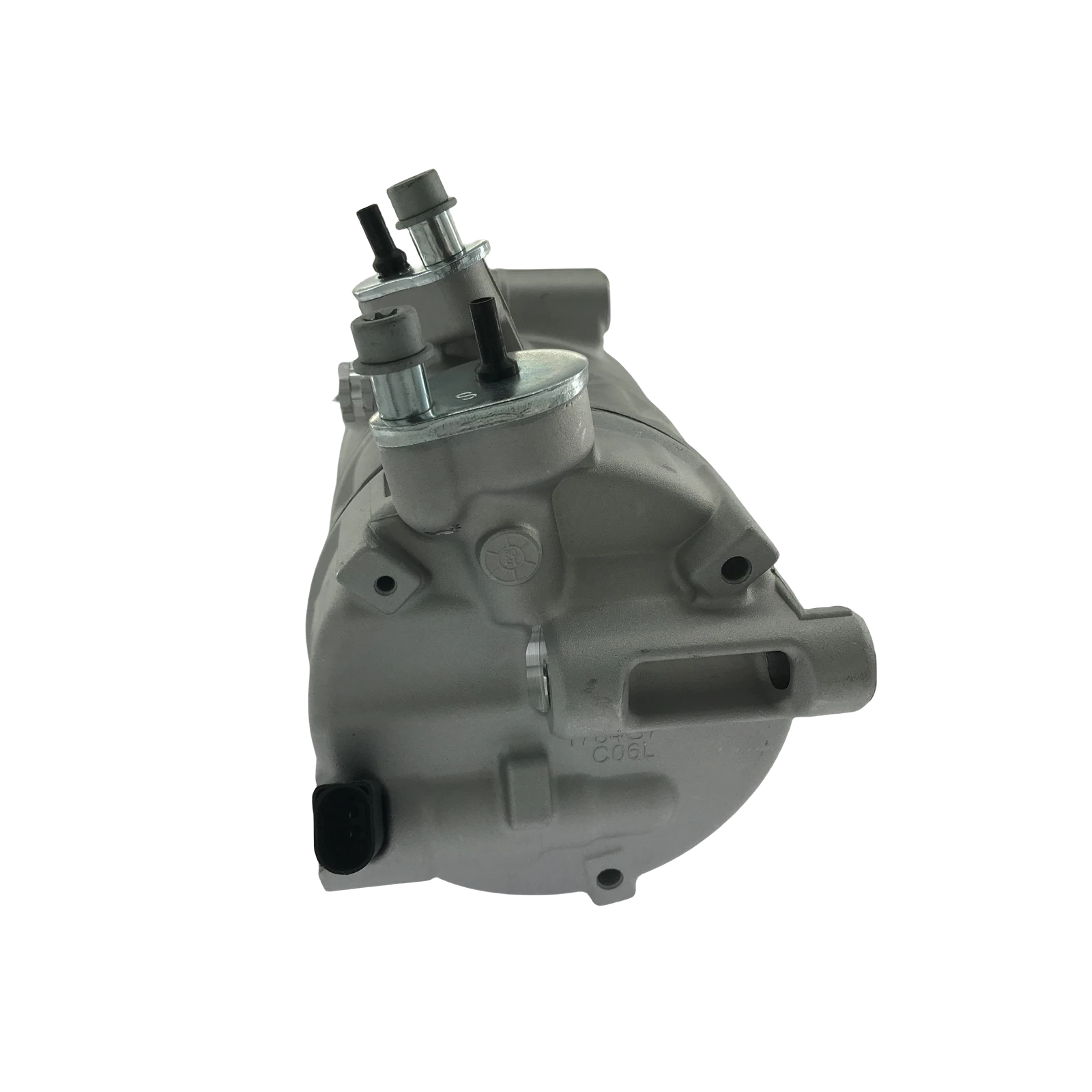

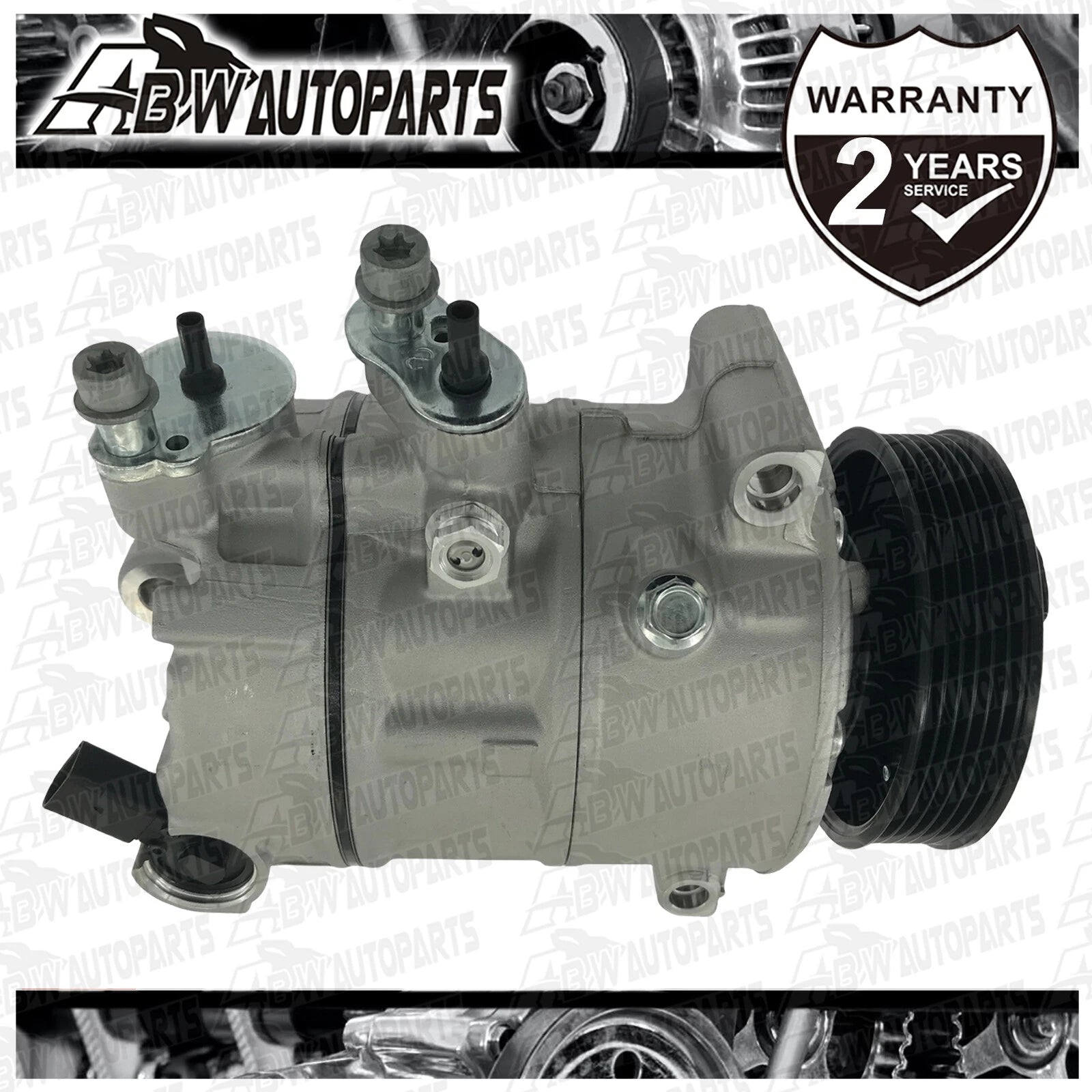

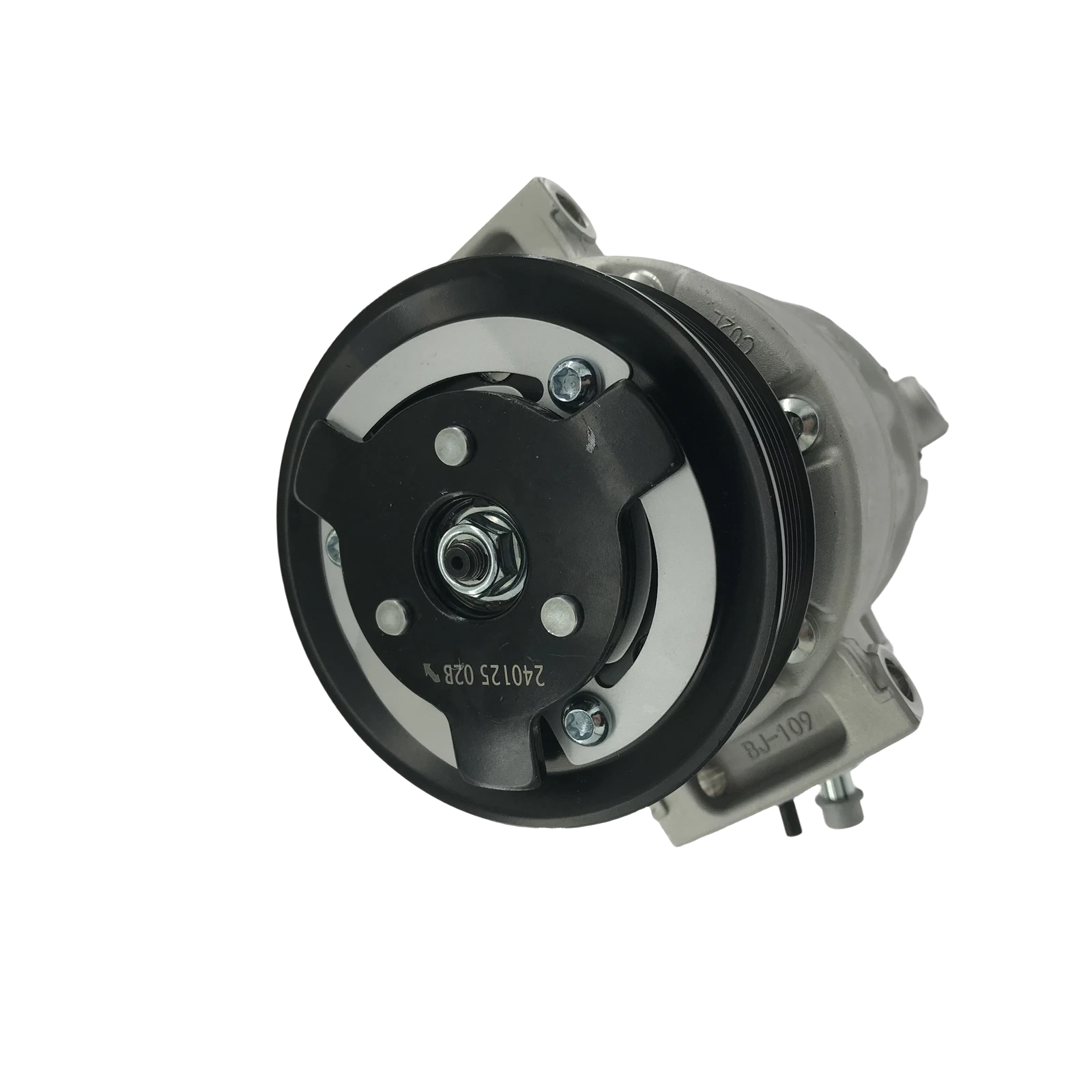

A/C Compressor w/ Clutch for Audi A1 A3 A4 A6 Q3 TT 1.4–3.0L 4cyl 2003–2016 OEM 1KD820803H

PRODUCT OVERVIEW

This replacement air conditioning compressor with clutch is designed to meet OE specifications for Audi A1, A3, A4, A6, Q3 and TT 4-cylinder petrol and diesel engines from 2003–2016. It delivers reliable refrigerant circulation for consistent cabin cooling performance.

KEY FEATURES

• Strong cooling performance with stable pressure output
• Low noise operation and reduced engine load
• High efficiency and reliability for long service life
• Direct-fit replacement built to OE dimensions and specs
• Supplied complete with clutch assembly

WHAT'S INCLUDED

• 1 x A/C compressor with clutch assembly

TECHNICAL SPECIFICATIONS

• OEM part number: 1KD820803H
• Compressor type / model: 7SEU16C, PXE16
• Voltage: 12V
• Number of grooves: 6PV
• Pulley diameter: 115 mm
• Warranty: 2 years
• Replaces: Denso / Sanden equivalent units (refer to OEM number)

CLUTCH & OPERATION DETAILS

• Integrated clutch assembly with coil magnet, pulley and clutch plate
• Clutch plate splined to compressor input shaft for positive drive
• Electromagnetic clutch engagement for on-demand compressor operation
• Freewheeling pulley on sealed bearing when clutch is disengaged

SELECT APPLICATIONS (REFERENCE ONLY)

This compressor is listed as suitable for various Audi, Volkswagen and Skoda models when equipped with the correct engine and A/C system. Examples include, but are not limited to:

• Audi A1, A3, A4, A6, Q3, TT – 1.4L to 3.0L 4-cylinder petrol and diesel (selected years 2003–2016)
• Skoda Octavia 1Z3 / 1Z5 – 1.8L, 2.0L 4-cylinder diesel (approx. 2007–2010)
• Skoda Superb 3T4 / 3T5 – 2.0L 4-cylinder diesel (approx. 2011–2014)
• Volkswagen Caddy, CC, Crafter, Eos, Golf, Jetta, Passat, Polo, Tiguan – 1.2L to 3.6L (approx. 2005–2016)

Always confirm compatibility using your original compressor’s part number, engine code and vehicle build date.

INSTALLATION NOTES

• Verify OEM part number 1KD820803H and compressor model before ordering
• Professional installation is strongly recommended
• System should be properly evacuated, flushed and charged to manufacturer specifications
• Compare the new unit to the old part to confirm mounting points, pulley and connector match

IMPORTANT

• This part is application-specific. Use pictures, specifications and OEM number for final verification.
• Incorrect installation or contamination of the A/C system can lead to premature compressor failure.
