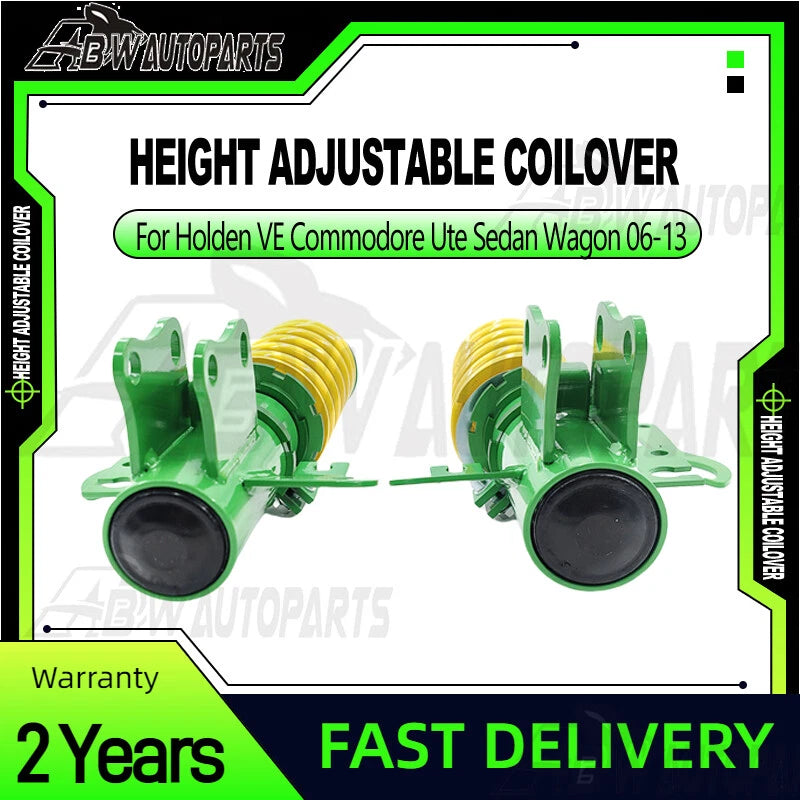

Adjustable Front Coilover Kit for Holden Commodore VE 2006-2013

OVERVIEW

Adjustable front coilover spring kit designed to improve handling, stance, and ride quality for compatible Holden Commodore VE models. Features height and damping adjustability for precise street or performance tuning.

VEHICLE APPLICATION

• For Holden Commodore VE Sedan 2006-2013
• For Holden Commodore VE Wagon 2008-2013
• For Holden Commodore VE Ute 2007-2013

KEY FEATURES

• 100% brand new shock & spring assembly
• Height adjustable: approx. 25-75 mm lowering capability
• 24-level damping adjustment from soft to stiff
• Twin-tube shock structure for balanced comfort and handling
• ROHS and ISO/TS16949 approved; fitment and quality tested
• Direct replacement design (no modifications to body mounts required)
• Upgraded high-tensile spring, tested over 600,000 compression cycles
• Rubber boots to protect dampers and extend service life
• Anti-corrosion finish: anodized aluminium and powder-coated steel
• Professional testing on dedicated equipment and by experienced drivers
• Clean-room assembly for accuracy and reliability
• Enhanced damper oil for consistent performance across temperatures
• Warranty: 2 years (subject to seller terms and conditions)

SPECIFICATIONS

• Position: Front, left and right
• Height adjustable: Yes, approx. 25-75 mm (varies by vehicle)
• Damping adjustment: 24-way adjustable damping force
• Shock structure type: Twin-tube
• Top mount: OE top mounts reused (no top mounts included)
• Spring rate (front): 7 kg/mm (392 in/lbs)
• Overall coilover length (front): approx. 430-510 mm
• Spring length (front): approx. 200 mm
• Colour: Green body with yellow spring
• Package size: approx. 74 x 28 x 21 cm
• Package weight: approx. 13,200 g

MATERIALS & CONSTRUCTION

• CNC-machined aluminium top-related components for strength and low weight
• Heavy-duty steel lower mounts for durability and reliability
• Powder-coated and anodized surfaces for corrosion resistance
• Precision-wound performance springs with high tensile strength

PERFORMANCE BENEFITS

• Lowers centre of gravity to improve handling and cornering stability
• Adjustable ride height to fine-tune stance and clearance
• 24-level damper adjustment for comfort, spirited driving, or track use
• Pre-load spring setup helps reduce body shake and improve responsiveness
• Twin-tube design offers good balance of comfort and control on varied road conditions

WHAT'S INCLUDED

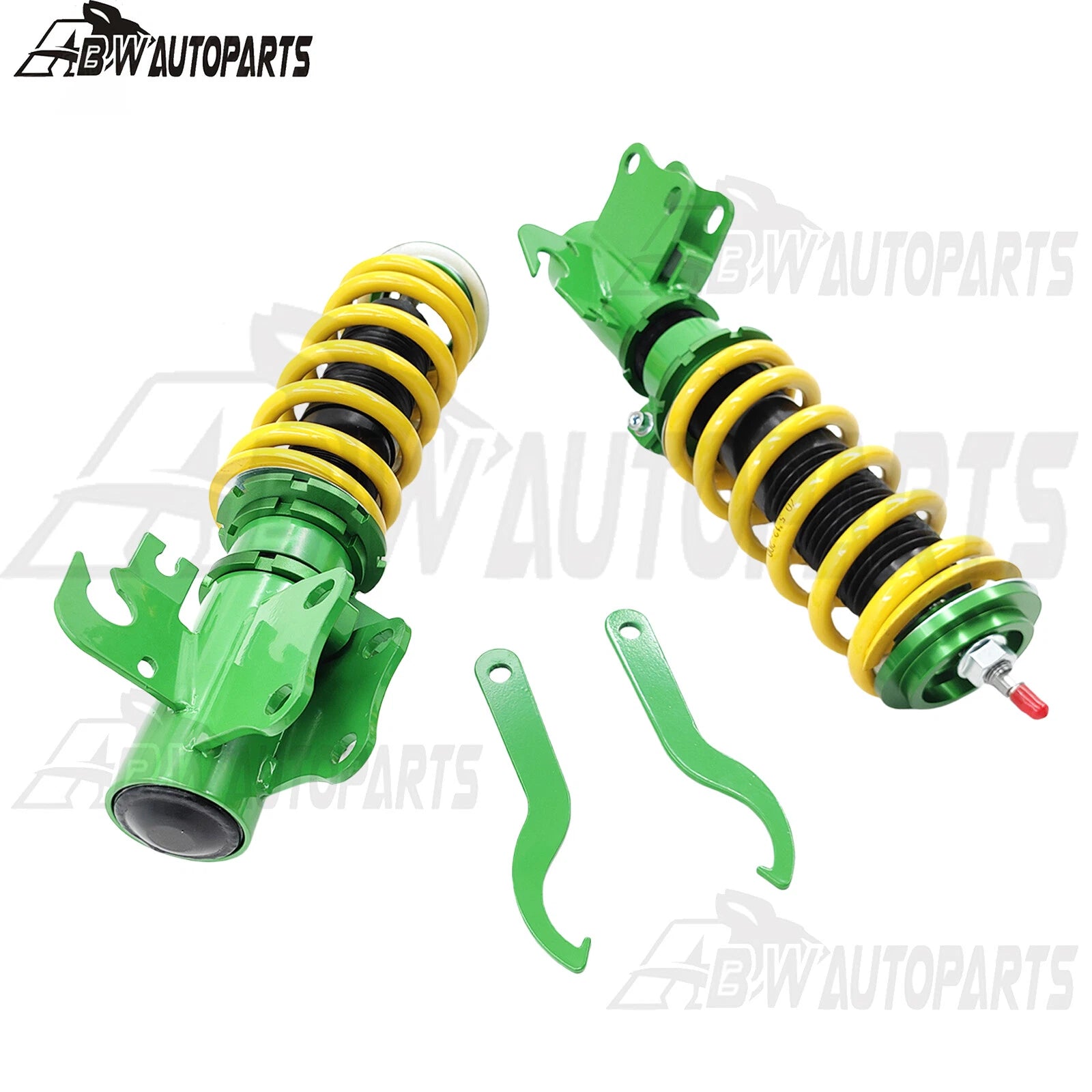

• 1 x set of front coilover spring assemblies (left and right)

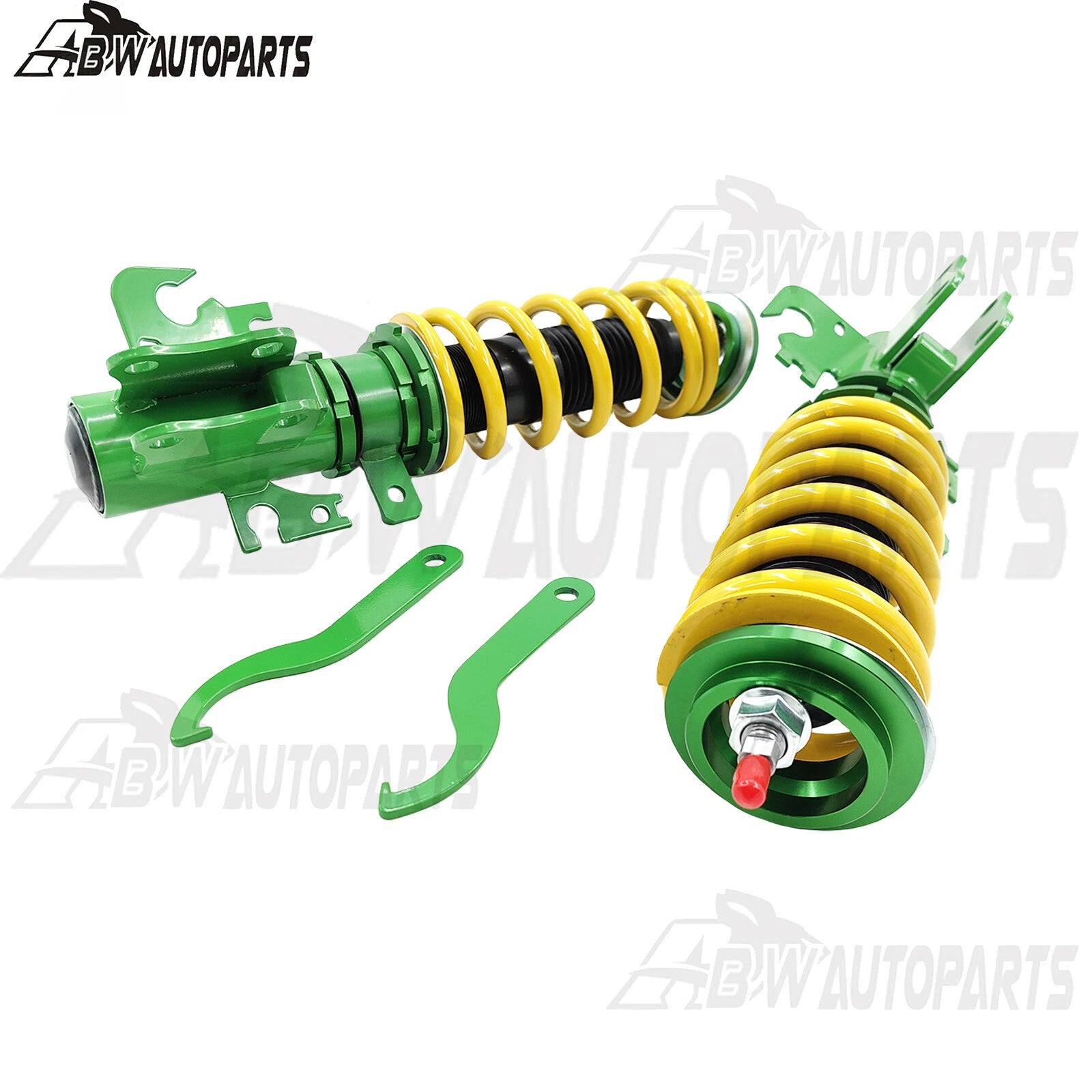

• 1 x pair of adjustment wrenches for height setting
• Note: Top mounts are not included; original OE top mounts must be reused.

INSTALLATION & SAFETY NOTES

• This kit is designed to lower ride height from factory settings.
• All modifications should be performed by a qualified mechanic.
• Ensure compliance with local vehicle modification regulations.
• Secure all fasteners to the manufacturer's torque specifications before and after initial use.
• Do not use an impact wrench during installation to avoid damage or loosening of components.
• After installation, check clearance between tyres and suspension components (minimum 4 mm).
• Wheel spacers may be required if sufficient clearance cannot be achieved.
• Clearance checks are especially important on vehicles with torsion beam trailing arm axles.
• Regular maintenance is recommended; apply a light lubricant such as WD40 every 3-4 months to keep threads clean and adjustable.
• Professional installation is strongly recommended.
• Always confirm compatibility with the vehicle's original part specifications before purchase.
