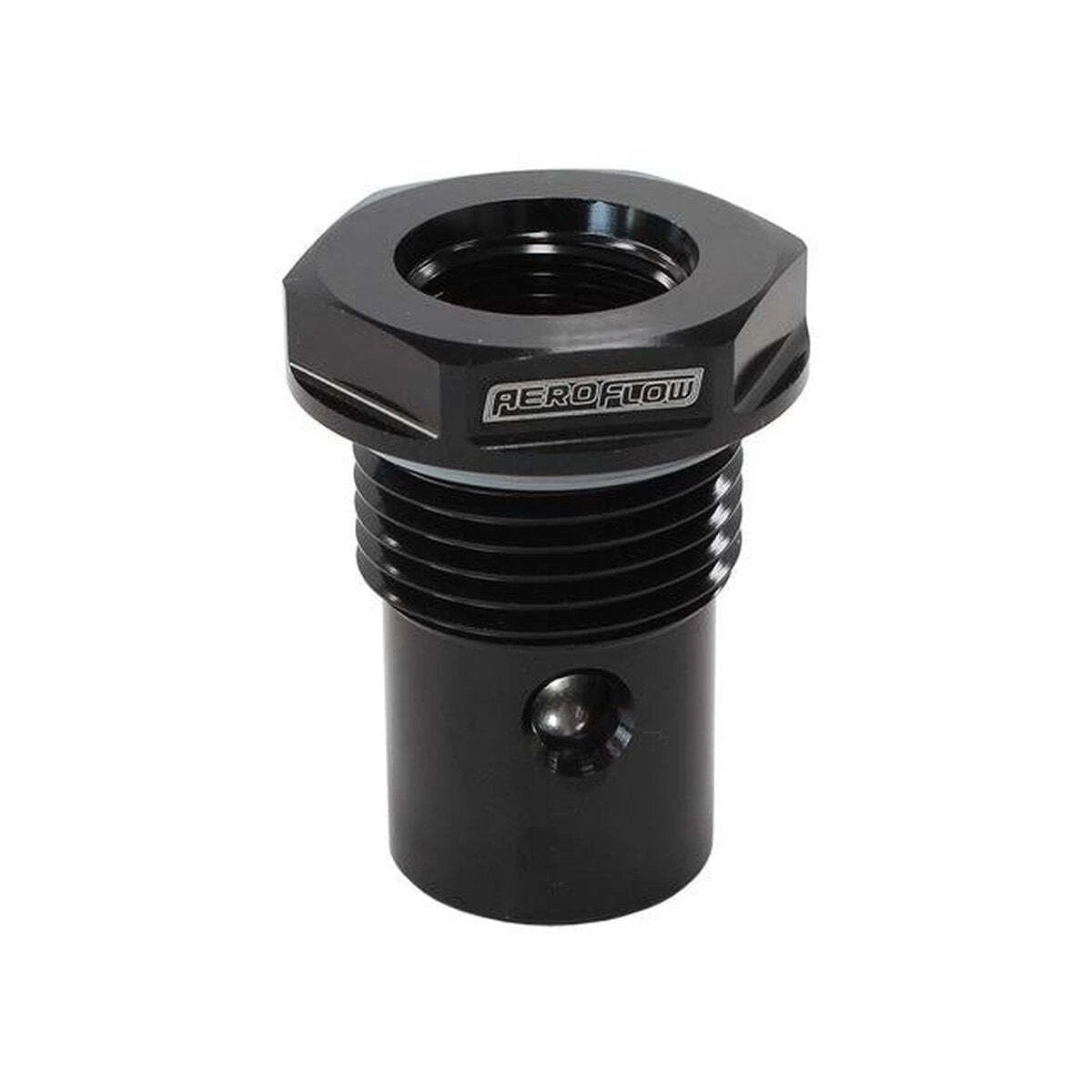

Aeroflow Roll Over Valve -12 ORB to -8 ORB Black for Fuel Cells

PRODUCT OVERVIEW

The Aeroflow AF613-12BLK roll over valve is designed for use with Aeroflow fuel cells featuring a -12 ORB female port. It provides safe venting with a compact, black-finish valve body and stainless steel internal ball.

FEATURES

• -12 ORB male to -8 ORB female configuration
• Suits Aeroflow fuel cells with -12 ORB female thread
• Black anodised finish for corrosion resistance
• Stainless steel ball for reliable roll over shut-off
• Compact design for easy integration into custom fuel systems

COMPATIBLE COMPONENTS

This roll over valve can be used with the following Aeroflow components:

• AF996-12D weld-on fitting
• AF996-12S weld-on fitting
• AF996-12SS weld-on fitting
• AF924-12 bulkhead nut

When a suitable -08 ORB fitting is screwed into the top of the roll over valve, it locks the stainless steel ball in place to complete the assembly.

SPECIFICATIONS

• Part number: AF613-12BLK
• Brand: Aeroflow
• Thread (bottom): -12 ORB male
• Thread (top): -8 ORB female
• Finish: Black
• Material: Aluminium body with stainless steel ball

USAGE NOTES

• Designed for installation into Aeroflow fuel cells with a -12 ORB female port.
• Must be mounted in the correct orientation for proper roll over function.
• Ensure all ORB threads are clean and use appropriate seals as required.
