Aeroflow AF89-302NSFI 164T SFI Flexplate Internal Balance Ford 289-351

PRODUCT OVERVIEW

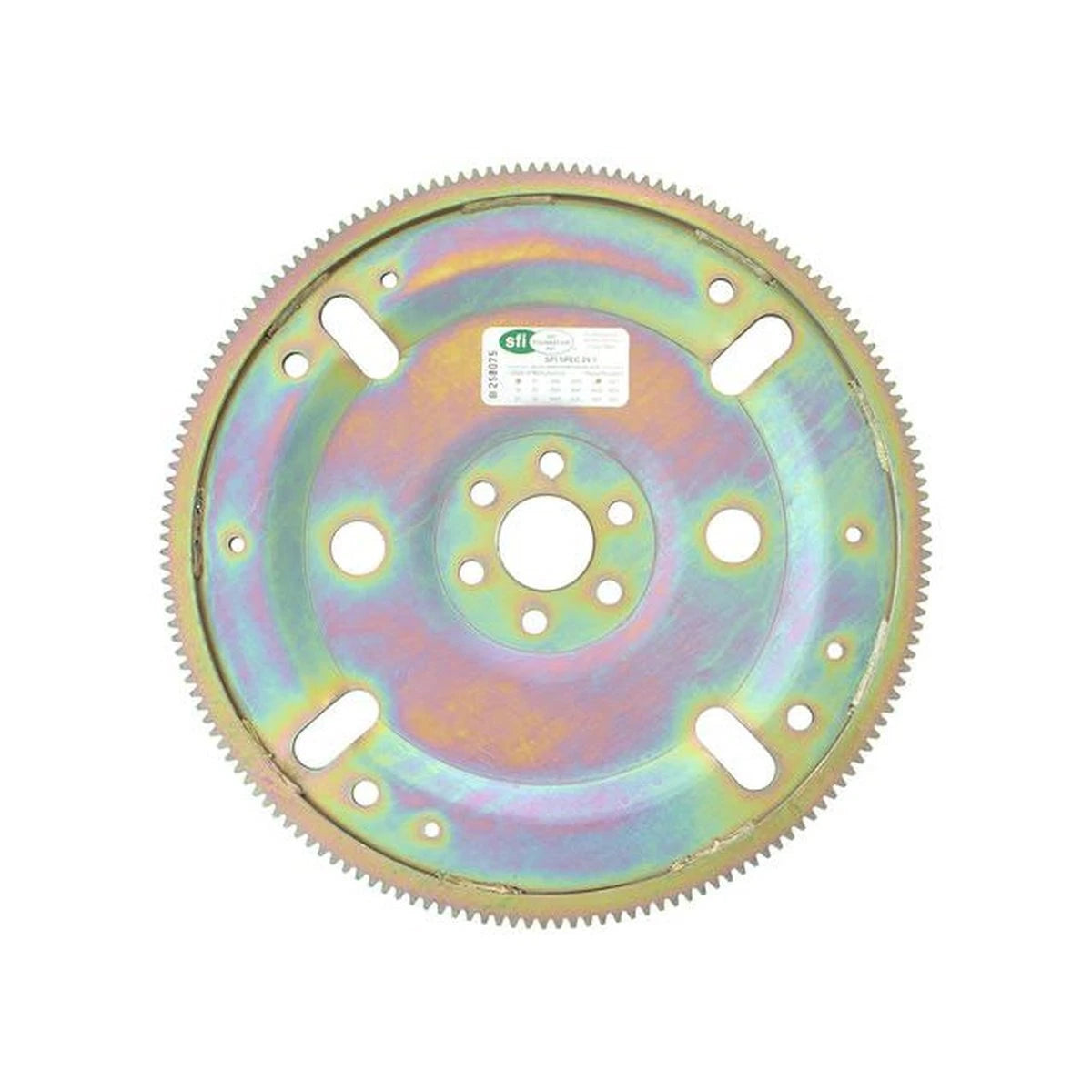

The Aeroflow AF89-302NSFI flexplate is a heavy duty, SFI 29.1 approved 164 tooth internal balance flexplate designed for Ford small block V8 applications. Manufactured from extra thick material with double welding, it is engineered to handle high RPM and increased power levels in performance and racing use.

KEY FEATURES

• Heavy duty 164 tooth flexplate
• Internal balance design
• SFI 29.1 approved with certification sticker
• Extra thick construction and double welded for strength
• Suits 11.5" torque converter bolt circle
• Outside diameter: 14-15/64" (361 mm)

APPLICATION INFORMATION

Suitable for selected Ford small block V8 engines including 289, 302 and 351 Windsor, and 351 Cleveland where a 164 tooth, internally balanced SFI flexplate with 11.5" converter bolt circle is required. Always confirm specifications and measurements against your engine and transmission before purchase.

SPECIFICATIONS

• Brand: Aeroflow
• Part number: AF89-302NSFI
• Tooth count: 164
• Balance: Internal (neutral)
• SFI rating: 29.1
• Outside diameter: 14-15/64" (361 mm)
• Converter bolt circle: 11.5"
• Construction: Heavy duty, double welded

NOTES

• No specific vehicle fitment list is provided. Confirm fitment using engine, transmission and converter specifications.
• Professional installation is recommended, especially for competition or high horsepower applications.
