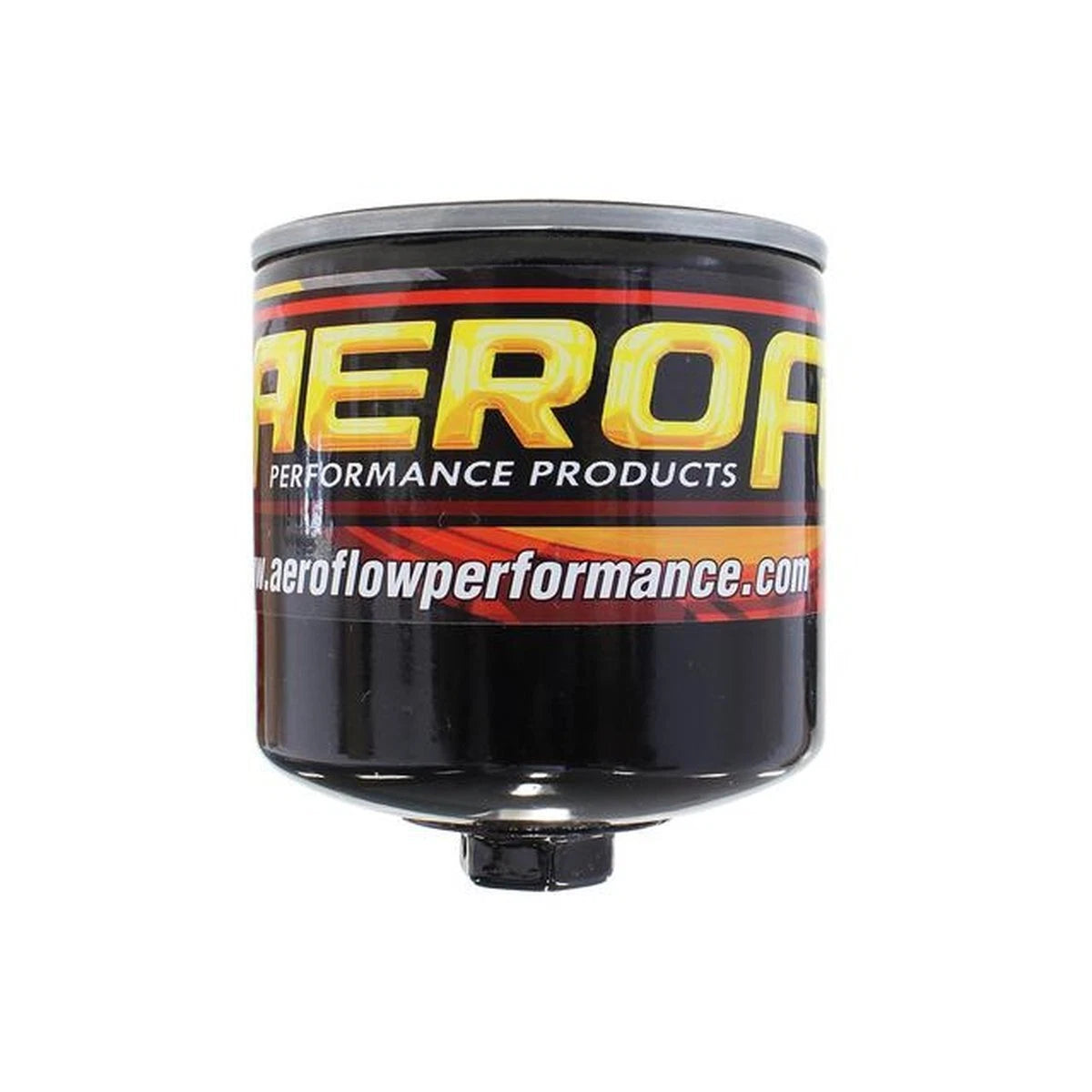

Aeroflow AF2296-2010 Performance Spin-On Oil Filter Z516 M22x1.5

PRODUCT OVERVIEW

The Aeroflow AF2296-2010 high performance spin-on oil filter is designed for demanding street and track applications. It uses a Z516 can size with M22 x 1.5 thread, providing reliable filtration and easy serviceability for engines where this specification is required.

KEY FEATURES

• High-flow premium synthetic blend media for excellent filtration with minimal pressure drop
• Extra-thick backing plate for improved strength and resistance to pressure surges
• Improved internal coil spring design for consistent sealing and performance
• Unique louvered centre tube to increase flow area and reduce media wear
• Integral hex removal nut (24 mm / 15/16") for fast and easy filter changes
• Buna-N (nitrile) rubber gasket compatible with most engine oils and racing lubricants
• Engineered for high performance street and motorsport applications

FILTER SPECIFICATIONS

• Part number: AF2296-2010
• Filter type: Spin-on oil filter
• Size / reference: Z516
• Thread specification: M22 x 1.5
• Anti-drain back valve: Yes
• Bypass valve: Yes
• Filter material: High-flow premium synthetic blend media
• Gasket material: Nitrile rubber (Buna-N)
• Height: 4 in (102 mm)
• Outside diameter: 3.656 in (93 mm)
• PSI relief valve: 11–17 psi
• Removal nut size: 15/16" (also accepts 24 mm)

TYPICAL APPLICATIONS

The AF2296-2010 Z516 oil filter is commonly used on selected petrol and diesel engines requiring an M22 x 1.5 Z516-style filter. It is suitable where a Z516 specification filter is listed.

Always confirm compatibility by checking your vehicle details and existing filter specifications before purchase and installation.
