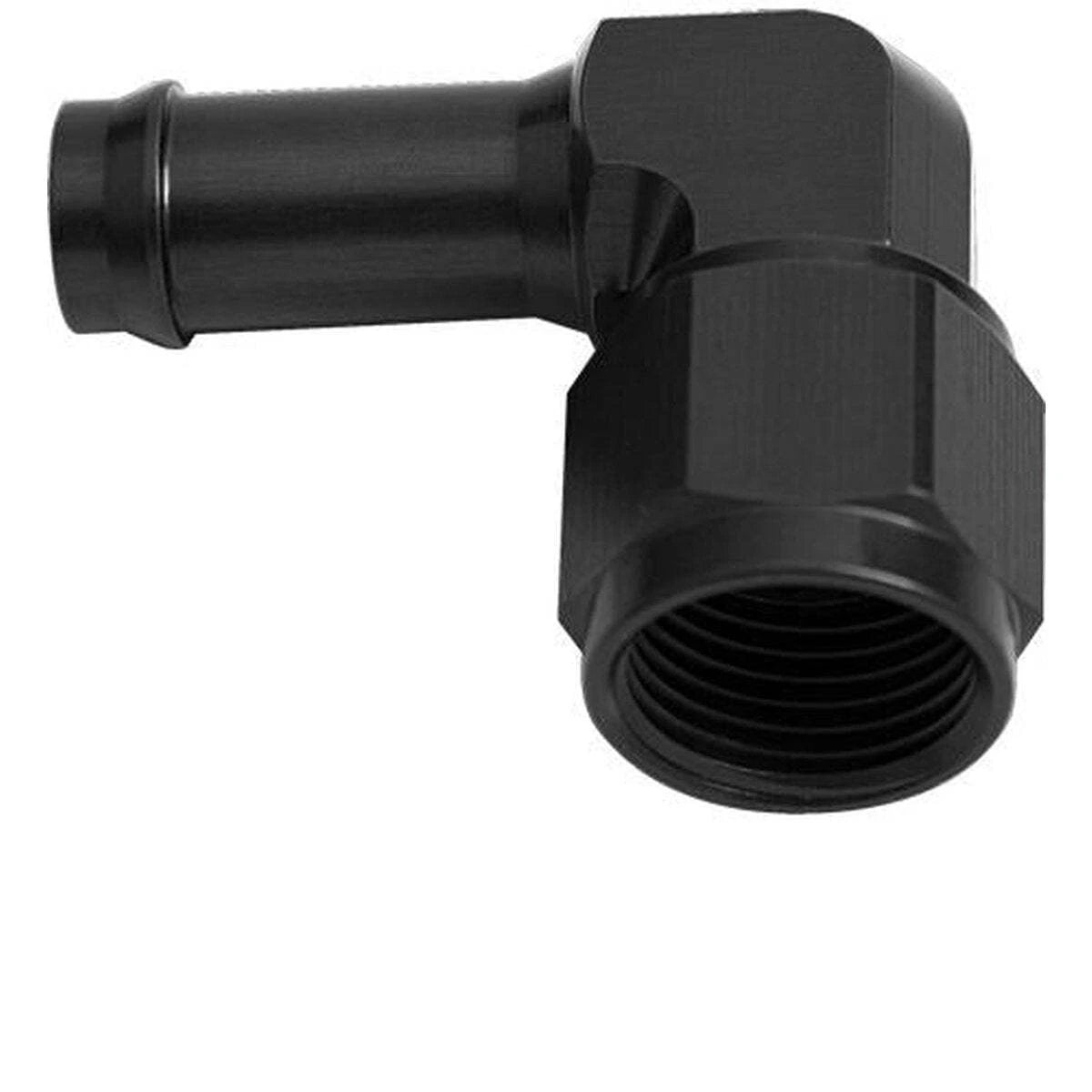

Aeroflow AF413-06BLK -6AN Female 90° to 3/8" Hose Barb Black Fitting

PRODUCT OVERVIEW

The Aeroflow AF413-06BLK fitting is a compact 90° adapter featuring a female -6AN swivel tube nut to 3/8" (9.52 mm) hose barb. Finished in black, it provides a reliable connection point for push-on hose in a range of fluid and vacuum systems.

KEY FEATURES

• Female -6AN swivel tube nut to 3/8" (9.52 mm) 90° hose barb
• Black anodised finish for a clean, professional appearance
• Machined from high-quality 6061-T6 aluminium
• Designed to screw onto male AN adapters for easy hose connection
• Suitable for fuel, oil, water, vacuum and air applications

APPLICATIONS

• Performance and street fuel systems
• Engine oil and cooling system plumbing
• Vacuum and boost reference lines
• General-purpose automotive and motorsport fluid transfer

SPECIFICATIONS

• Part number: AF413-06BLK
• Connection 1: Female -6AN swivel tube nut
• Connection 2: 3/8" (9.52 mm) hose barb
• Angle: 90 degrees
• Material: 6061-T6 aluminium
• Finish: Black anodised

INSTALLATION NOTES

• Designed to install onto a male -6AN adapter
• Push hose fully over the barb for a secure fit
• Use a suitable hose clamp to retain the hose on the barb
• Confirm hose and fluid compatibility with aluminium and AN-style fittings
