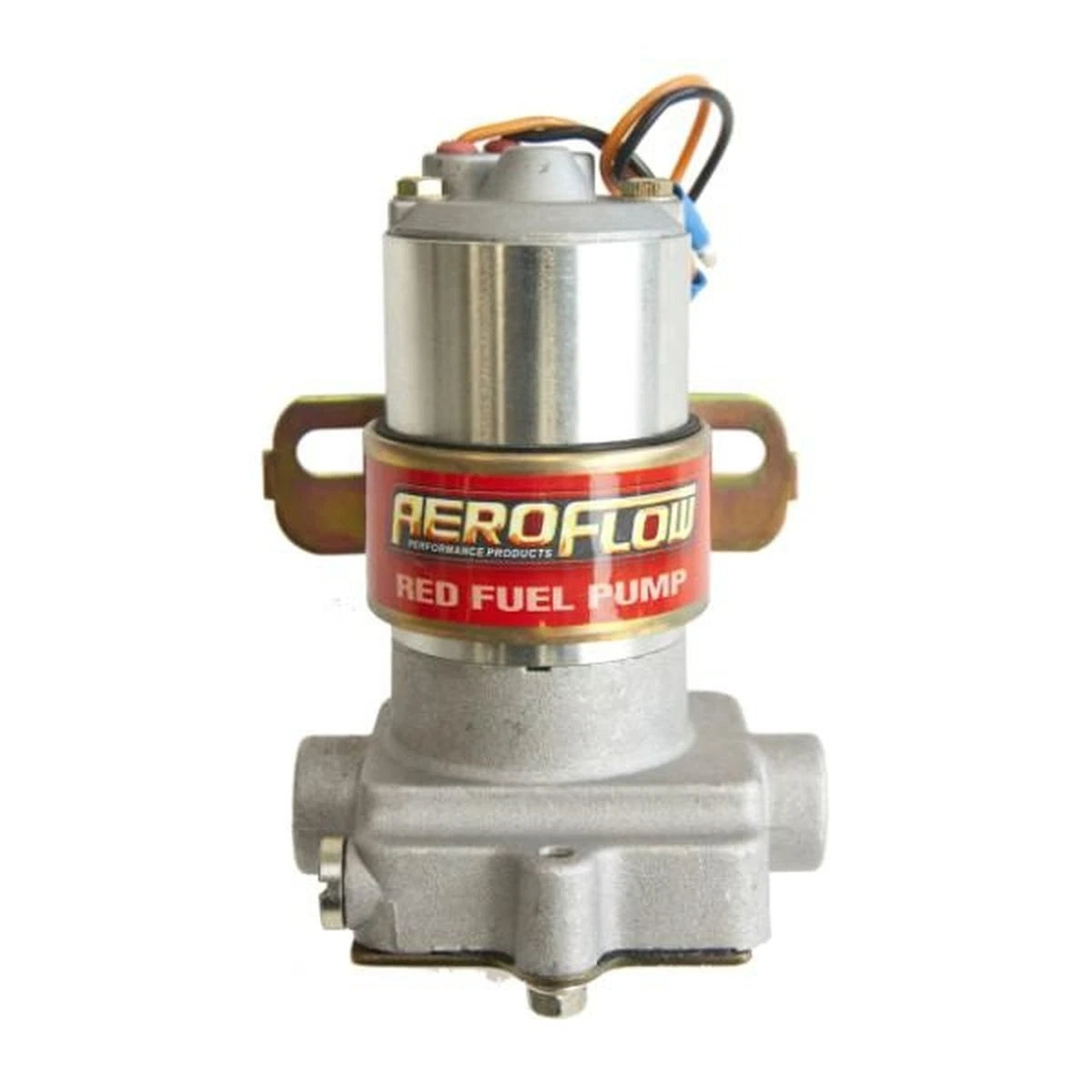

Aeroflow AF49-1008 Red Electric Fuel Pump 97 GPH 7 PSI 3/8" NPT

PRODUCT OVERVIEW

The Aeroflow AF49-1008 Red Electric Fuel Pump is a low-pressure external fuel pump designed for carburettor applications. It delivers a free flow of 97 GPH at a set pressure of 7 psi (0.48 bar), removing the need for a separate fuel pressure regulator in most standard carburetted fuel systems.

KEY FEATURES

• Part Number: AF49-1008
• Free flow rate: 97 GPH at 7 psi (0.48 bar)
• Low-pressure design for carburettor fuel systems
• 3/8" NPT inlet and outlet ports
• Electric external fuel pump in red housing
• Does not require an external fuel pressure regulator for most applications
• Current draw: approximately 2 amps
• Recommended fuse rating: 8 amp
• Compatible with unleaded fuel only

INSTALLATION NOTES

• Mount the pump below and as close to the fuel tank as possible to ensure adequate fuel supply.
• Designed to push fuel rather than pull it from the tank; avoid mounting positions that require the pump to lift fuel.
• Recommended mounting position is on the chassis, vertically, with the pump motor at the top.
• Ensure correct electrical protection using an 8 amp fuse in the power circuit.
• For use with unleaded fuel only; not suitable for other fuel types unless specifically stated by the manufacturer.

APPLICATION INFORMATION

This low-pressure electric fuel pump is intended for general carburettor-based fuel systems where a 7 psi supply pressure and 97 GPH flow are suitable. No specific vehicle fitment is supplied; always confirm compatibility with your fuel system requirements before installation.
