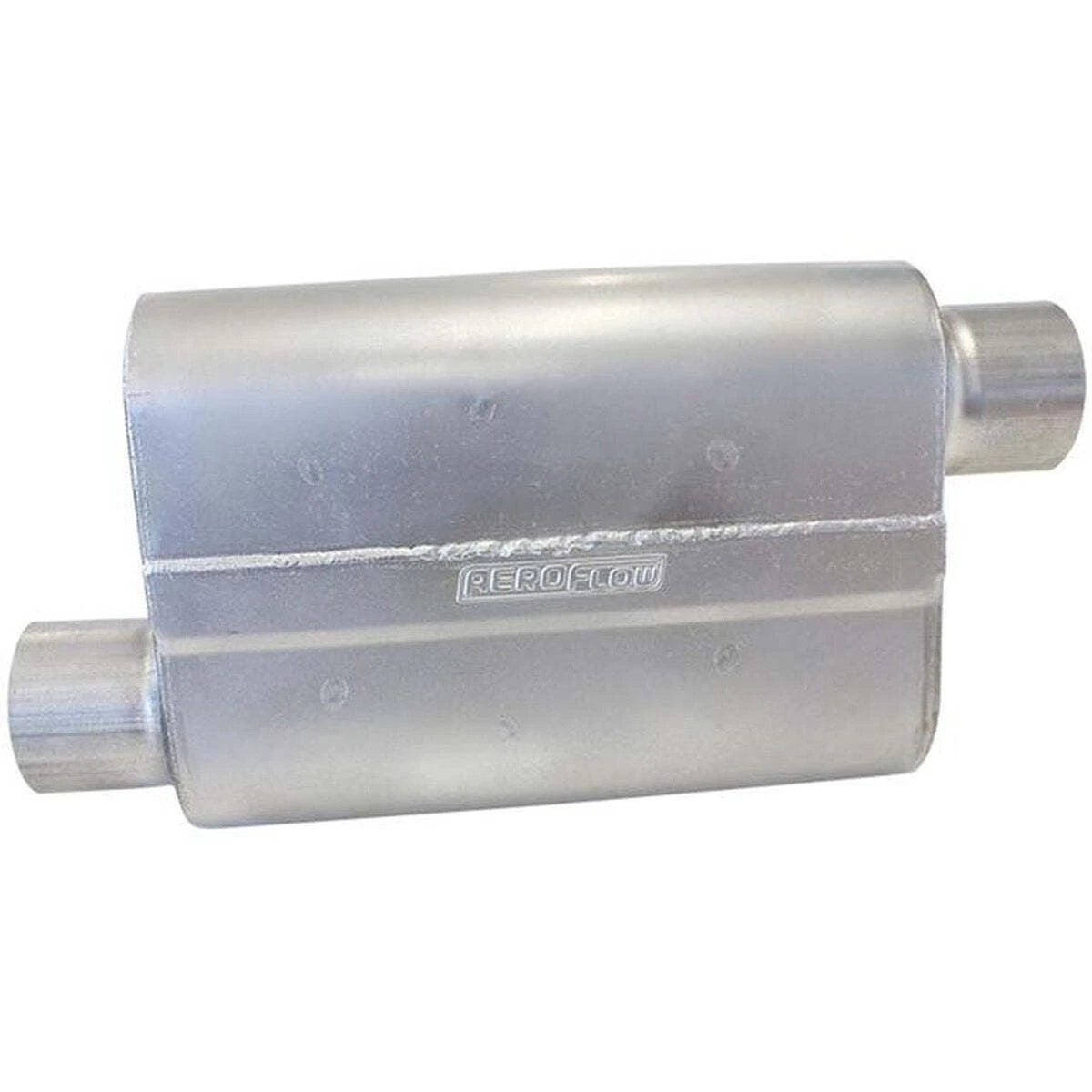

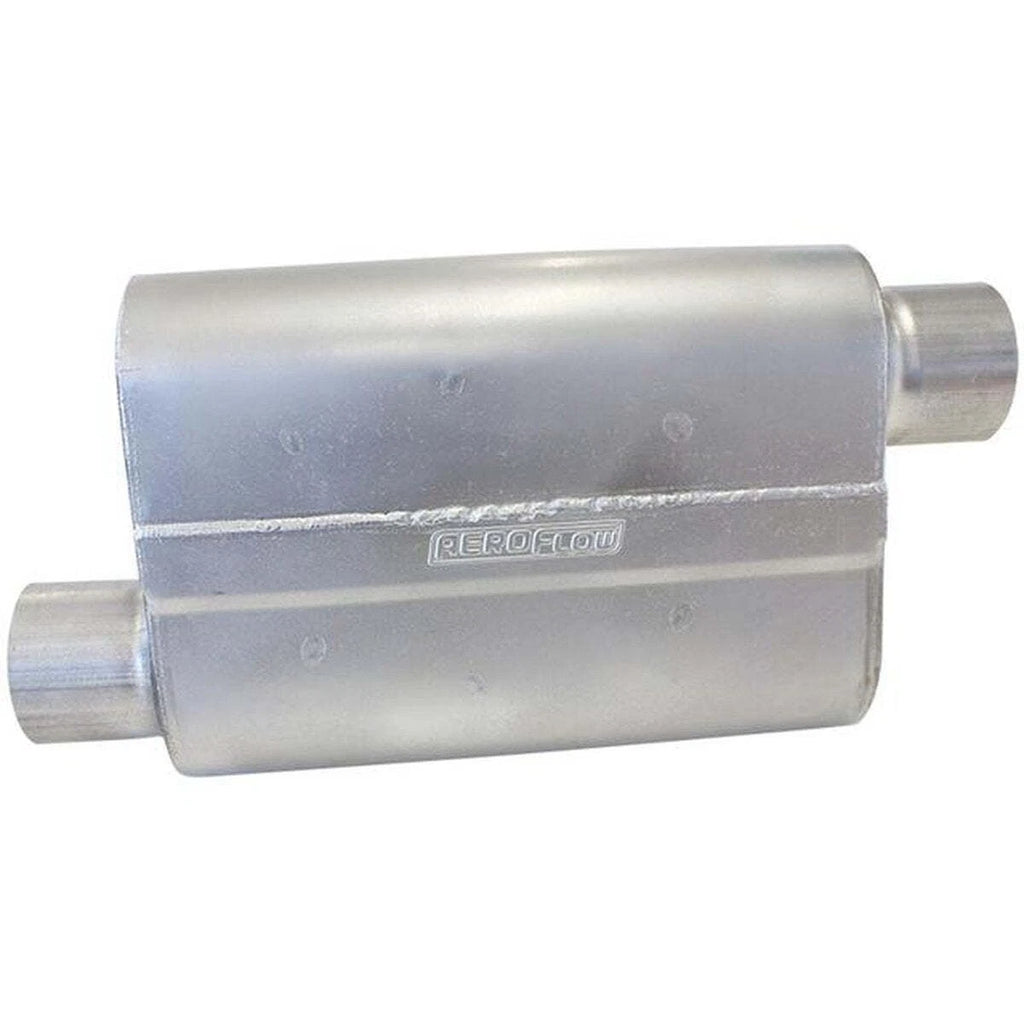

Aeroflow AF5000-250 2.5" Offset Muffler, Chambered, 16ga Steel

PRODUCT OVERVIEW

The Aeroflow AF5000-250 muffler is part of the 5000 Series, designed for high-performance street applications requiring strong exhaust flow and effective noise reduction. It features an offset inlet and offset outlet in a compact, chambered design.

KEY FEATURES

• Offset inlet / offset outlet configuration
• Chambered internal design for consistent exhaust note
• Engineered for high-horsepower, street-driven vehicles
• Provides strong flow for performance with effective decibel reduction

CONSTRUCTION

• 16 gauge TIG-welded aluminised steel body
• High-temperature silver coated finish
• Durable design for long-term street use

PERFORMANCE & SOUND

• Optimised flow to support high-performance exhaust systems
• Throaty exhaust note under acceleration
• Quieter operation at idle and cruising speeds when used in a suitable system
• Stable sound characteristics over time due to chambered design

DIMENSIONS & SPECIFICATIONS

• Part number: AF5000-250
• Inlet size: 2-1/2" (2.5 inch)
• Outlet size: 2-1/2" (2.5 inch)
• Case length: 13" (approximate)
• Case width: 10" (approximate)
• Case height: 4-1/4" (approximate)
• Material: 16 gauge aluminised steel
• Finish: High temperature silver coating
• Configuration: Offset inlet / offset outlet

APPLICATION NOTES

• Suitable for custom exhaust builds and performance street systems
• Can be used in single or dual exhaust layouts where dimensions and pipe size are compatible
• No specific vehicle fitment is provided; confirm space, orientation, and pipe diameter before purchase
