Aeroflow AF64-2098 Billet Oil Filter Block Adapter -8 ORB

PRODUCT OVERVIEW

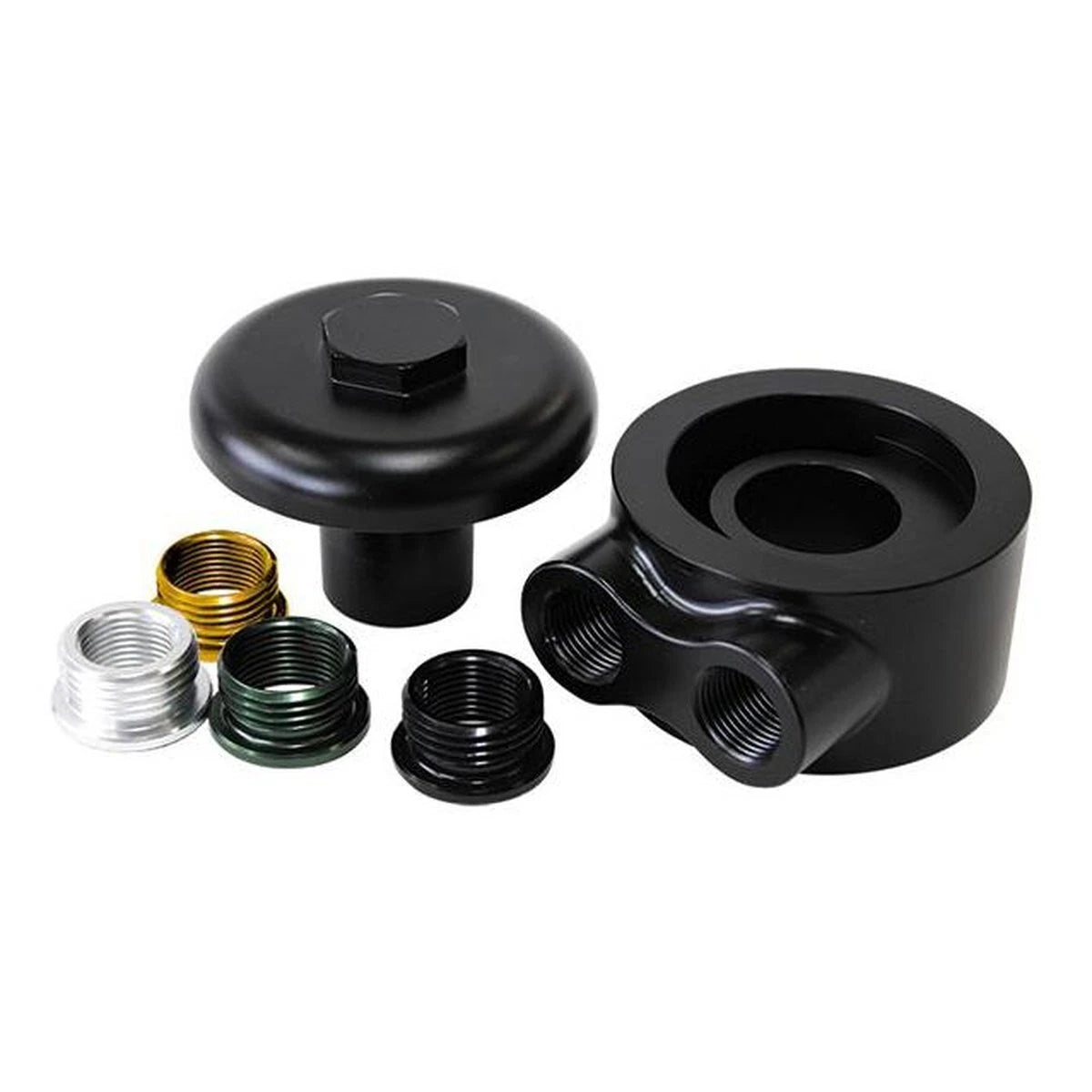

The Aeroflow AF64-2098 billet oil filter block adapter provides a compact, low profile solution for adding a remote oil filter and/or external oil cooler. It converts the factory oil filter landing on the engine block to AN-style oil passages for custom plumbing.

KEY FEATURES

• 90° low profile, two-piece design for tight engine bays and engine conversions
• Universal-style fitment with supplied thread inserts
• Two -8 ORB ports clearly labelled inlet and outlet
• Black anodised finish for corrosion resistance and a clean appearance
• Allows easy connection to remote oil coolers and remote oil filters

CONSTRUCTION & DESIGN

The main body is precision machined from billet 6061 aluminium and finished with black anodising for durability. The compact, low profile configuration is ideal where chassis rails or other components limit space around the original oil filter position.

PORTS & CONNECTIONS

• 2 x -8 ORB main ports (labelled inlet and outlet) for braided or rubber hose connections
• 2 x 1/8" NPT auxiliary ports (approx. 25 mm deep) for sensors or additional oil lines

INCLUDED THREAD ADAPTERS

All inserts below use 3/4"-16 internal thread on the adapter body:

• 3/4"-16 thread insert
• 13/16"-16 thread insert
• M18 x 1.5 mm thread insert
• M20 x 1.5 mm thread insert
• M22 x 1.5 mm thread insert

APPLICATION NOTES

• Intended for use with remote oil filter mounts and/or external oil coolers
• Universal-style product; specific vehicle fitment is not provided
• Check thread type and available clearance on your engine before installation

PART DETAILS

• Part Number: AF64-2098
• Material: Billet 6061 aluminium
• Finish: Black anodised
• Main Ports: 2 x -8 ORB
• Auxiliary Ports: 2 x 1/8" NPT
