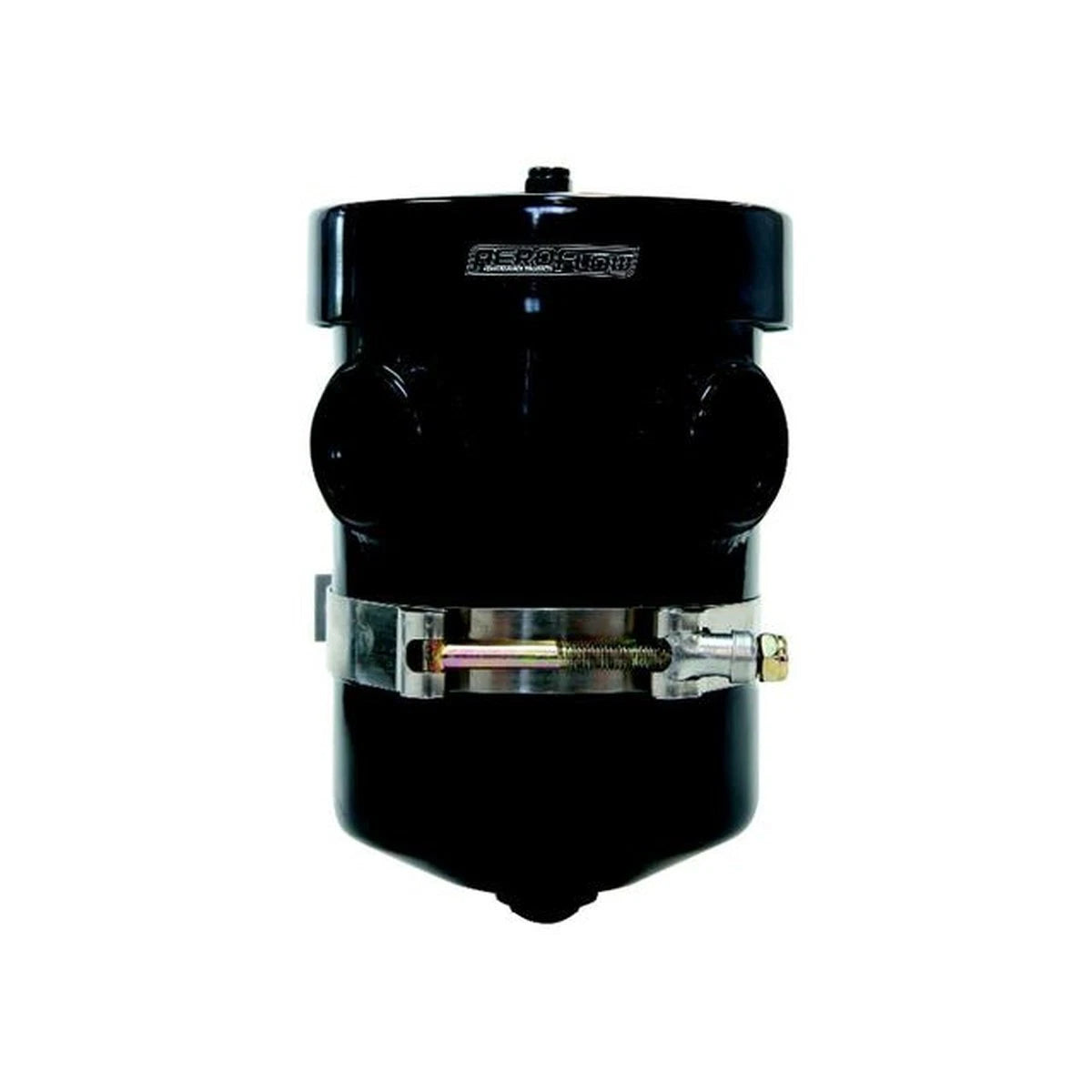

Aeroflow AF77-1019BLK Dry Sump Breather Tank Black, Baffled, ORB Ports

PRODUCT OVERVIEW

The Aeroflow AF77-1019BLK Dry Sump Breather Tank is engineered for high performance engines that generate excessive blow-by and crankcase pressure. It helps reduce oil vapour entering the intake, minimising carbon build-up, detonation and pre-ignition.

FEATURES & BENEFITS

• Designed to control crankcase pressure and excessive blow-by in performance engines.
• Internal baffling separates oil from air for cleaner ventilation.
• Breathes dry sump tank to atmosphere to improve reliability under high load.
• Internal foam filter in lid can be easily removed, cleaned or replaced.

CONSTRUCTION

• CNC machined from billet 6061-T6 aluminium for strength and durability.
• Black anodized finish for corrosion resistance and a professional appearance.
• Two M8 x 1.25 mm mounting bungs welded to the tank for flexible installation.

PORTS & DIMENSIONS

• 2 x -12 ORB female ports.
• 1 x -6 ORB port, suitable for use as a drain at the bottom of the tank.
• Width: 4.5" (115 mm).
• Height: 6.5" (165 mm).

APPLICATION NOTES

• Universal dry sump / breather tank for custom and performance applications.
• No specific vehicle fitment is supplied; verify space and mounting before purchase.

SPECIFICATIONS

• Brand: Aeroflow Performance.
• Part number: AF77-1019BLK.
• Material: Billet 6061-T6 aluminium.
• Finish: Black anodized.
• Ports: 2 x -12 ORB, 1 x -6 ORB.
