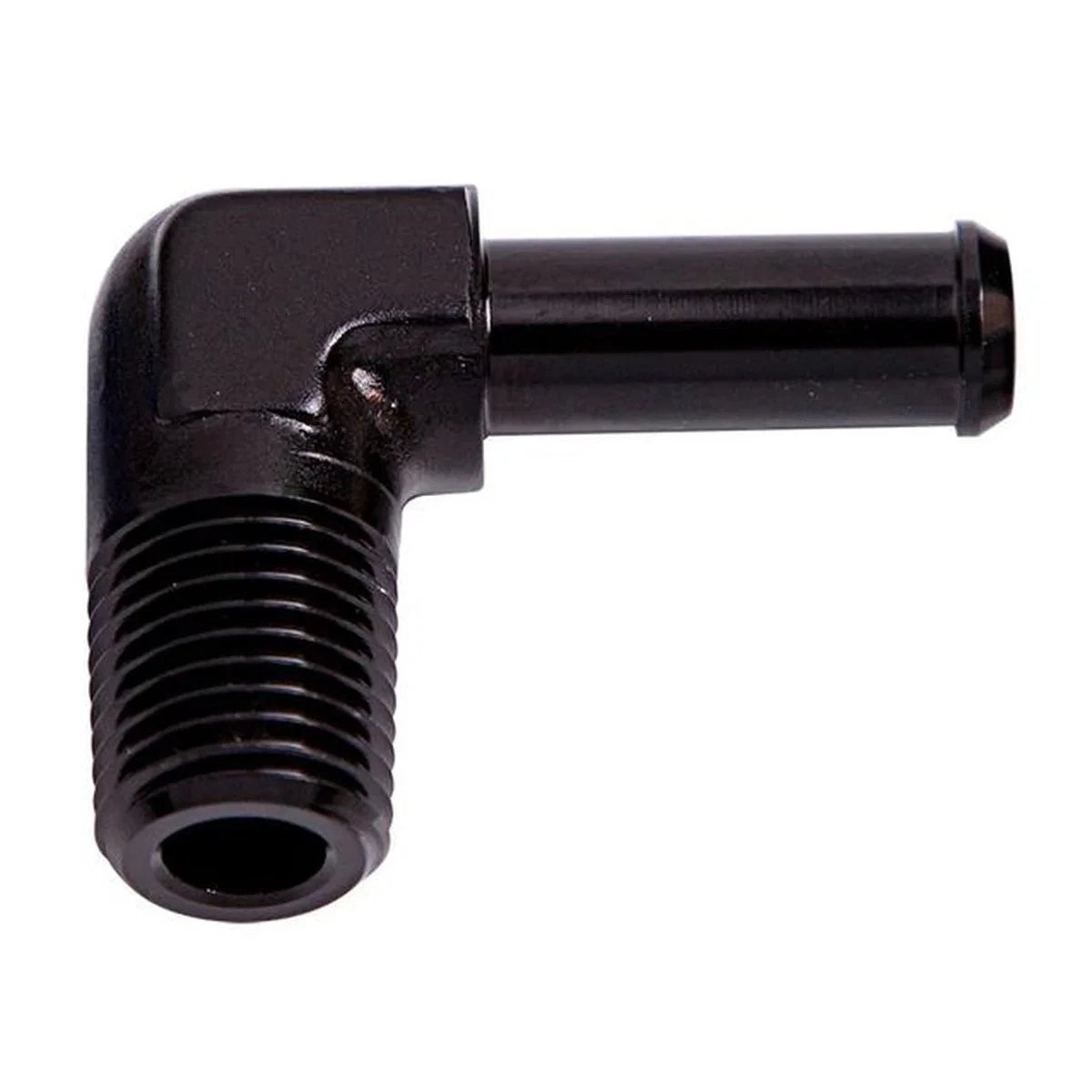

AF842-05BLK 90° 1/8" NPT Male to 5/16" Barb Elbow Fitting Black

Product Overview

The AF842-05BLK is a 90° male 1/8" NPT to 5/16" (7.93 mm) hose barb elbow fitting with a durable black finish. It is designed for use with rubber fuel lines and compatible push lock hose systems, offering a compact solution for tight fuel system layouts.

Key Features

• 90° male 1/8" NPT to 5/16" (7.93 mm) hose barb elbow fitting
• Black finish for a clean, professional under-hood appearance
• Ideal for routing rubber fuel line on electric fuel pumps and regulators
• Male NPT thread on one end and barbed hose connection on the other
• Barb design suited to 400 and 500 series push lock rubber hose

Application & Use

• Fuel system plumbing using rubber or push lock hose
• Electric fuel pump and fuel pressure regulator connections
• General fluid transfer where a 1/8" NPT to 5/16" barb elbow is required

Installation Notes

• Confirm ports are correctly threaded for 1/8" NPT before installation
• Use a suitable thread sealant compatible with the fluid in the system
• Push hose fully over the barb for maximum sealing and grip
• Use an appropriate hose clamp to securely retain the hose on the barb

Specifications

• Part number: AF842-05BLK
• Thread type: 1/8" NPT male
• Hose barb size: 5/16" (7.93 mm)
• Configuration: 90° elbow fitting
• Finish: Black
