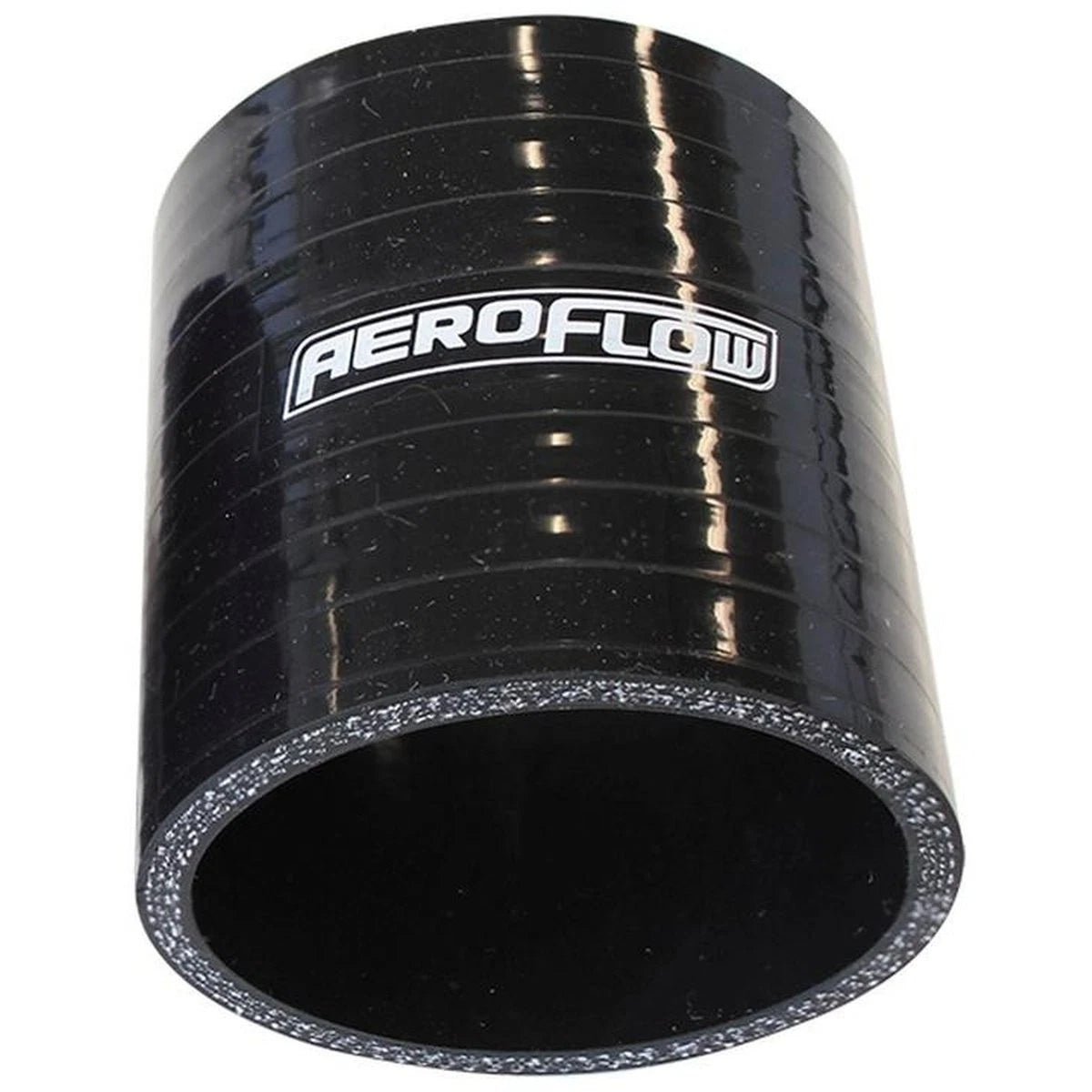

Straight Silicone Hose 2.5" ID x 3" Gloss Black AF9201-250

Product Overview

The AF9201-250 straight gloss black silicone hose is designed for demanding automotive, transport and industrial applications. It is suitable for use in cooling, intake and turbo systems where high temperature and pressure resistance are required.

Key Specifications

• Part number: AF9201-250
• Configuration: Straight silicone hose
• Inside diameter (ID): 2.5" (63mm)
• Length: 3" (76mm)
• Construction: 4-ply reinforcement
• Wall thickness: 5.3mm (13/64")
• Colour/finish: Gloss black
• Working temperature range: -60°C to +180°C (-75°F to +350°F)

Features & Benefits

• High-quality silicone construction for durability under heat and pressure
• 4-ply reinforced wall for excellent burst resistance and dimensional stability
• Strong ply adhesion from inner core to outer layers to reduce delamination
• Resistant to weathering from harsh sunlight, dry conditions and rainwater
• Ideal for heater, vacuum, intake and high-temperature turbo hose applications
• Supplied in protective, retail-ready packaging for transport and storage

Usage Notes

• Not recommended for use with oil or fuel.
• Universal hose – confirm dimensions and routing before purchase.

Recommended Clamps (Optional)

• Worm drive clamp: AF23-6083
• Constant tension clamp: AF28-5875
• T-bolt clamp: AF24-7479
